1. Core definition & industry standards of UHPC
2. Critical pain points of conventional concrete & why UHPC solves them
3. Raw material composition, functional mechanism & additive roles
4. Full performance data comparison: UHPC / HPC / Normal Concrete
5. Step-by-step on-site & precast application guidelines
6. Global real-world case studies (bridge, facade, marine repair)
7. Common construction defects, troubleshooting & prevention
8. Frequently asked technical & commercial questions
9. Conclusion & consultation call-to-action
Conventional reinforced concrete has dominated global infrastructure for over a century, delivering low-cost structural solutions for residential, commercial, and transport projects. However, traditional concrete suffers from inherent structural flaws that drive massive lifecycle maintenance costs across all climate zones.
Ordinary concrete features high internal capillary porosity, low tensile strength, severe drying shrinkage, and weak resistance to chloride ion penetration, acid erosion, freeze-thaw cycles, and dynamic fatigue loads. Bridges, coastal structures, landmark facades, and seismic zones all face recurring issues: surface spalling, through-cracking, steel rebar corrosion, short service life, and frequent repair shutdowns.
Ultra-High Performance Concrete (UHPC) represents the most transformative advancement in cement-based materials over the past 30 years. Defined under GB/T 31387-2025 (China) and international AASHTO / CEDD specifications, UHPC is a fiber-reinforced engineered composite with ultra-low water-binder ratio, dense particle packing, and strain-hardening tensile behavior, delivering compressive strength from UC100 to UC200 MPa, exceptional ductility, and near-impermeable microstructure.
This guide systematically breaks down UHPC’s material science, performance advantages, standardized construction workflows, real engineering use cases, defect control, and commercial application logic. Whether you design bridge structures, produce precast facade panels, conduct structural rehabilitation, or source high-performance building materials, this article provides actionable technical data and best practices to optimize project durability and total cost of ownership.
This article covers:
· Root failure mechanisms of traditional concrete structures
· UHPC raw material formula & functional working principles
· Standard mechanical & durability performance benchmarks
· Complete prefabrication and cast-in-place construction procedures
· Cross-industry global case studies with measurable project results
· Troubleshooting for fiber segregation, surface cracking, delamination
· FAQ addressing cost, curing, thickness limits, and cross-scenario substitution
· Core takeaways for engineers, contractors, and material manufacturers
With a clear understanding of concrete failure mechanisms, the next step is to examine how traditional concrete’s structural limitations create long-term project risks that UHPC is engineered to eliminate.
All conventional concrete degradation originates from three interconnected material weaknesses: high porosity, brittleness under tension, and unoptimized particle grading. Selecting standard concrete without addressing these root causes leads to repeated repairs, traffic downtime, and premature structural retirement.
Normal concrete only achieves 1.5–2.0 MPa tensile strength, compared to 30–40 MPa compressive strength. When thermal stress, shrinkage, or live loads generate minor tensile strain, immediate microcracks form and rapidly expand into wide through-cracks.
· Consequences: Water, chloride, and corrosive ions penetrate to corrode steel reinforcement; facade panels crack and delaminate; bridge decks develop reflective cracking under vehicle loads.
· Traditional mitigation: Increase steel reinforcement, add expansion joints, apply surface waterproof coatings—all raise material and labor costs without fully stopping crack propagation.
· UHPC solution: High-volume steel fiber reinforcement delivers strain-hardening toughness; microcracks are bridged and restrained to hairline width below 0.05 mm, blocking ion penetration entirely.
Ordinary concrete water-binder ratio ranges 0.40–0.60, leaving interconnected capillary voids after hydration. In coastal, cold, or industrial corrosive environments, these pores act as ion transport channels.
· Key risks: Chloride-induced steel rust (marine bridges, coastal buildings); freeze-thaw spalling (high-latitude infrastructure); sulfate erosion (sewage, underground tunnels); acid rain surface degradation.
· Lifespan gap: Standard concrete design service life = 50 years; UHPC engineered structures achieve 100–200 year maintenance-free lifespans with minimal intervention.
Normal concrete requires thick cross-sections to offset low tensile performance: bridge decks ≥180 mm thick, facade panels ≥100 mm, pedestrian beam heavy self-weight restricting spanning capacity.
· Drawbacks: Higher raw material consumption, increased transportation lifting costs, limited parametric curved architectural design, larger foundation load requirements.
· UHPC advantage: Functional panels can be manufactured as thin as 20–50 mm, cutting self-weight by 50–70% while retaining full structural capacity, enabling free-form double-curve facade elements and lightweight long-span beams.
·
Unmodified cementitious mortars and concrete exhibit significant drying shrinkage after hardening, creating separation between new repair layers and original substrates, especially for bridge rehabilitation and structural retrofitting projects.
· Common failure: Repair overlay delamination within 3–8 years, requiring full rework and traffic closure.
· UHPC optimization: Optimized mineral admixtures, cellulose ether water retention agents, and low-shrinkage particle grading reduce total shrinkage to ≤0.06% per GB/T 31387 standards, with interface bond strength ≥2.5 MPa against old concrete substrates.
UHPC is defined as a fiber-reinforced cement composite with water-binder ratio ≤0.25, no coarse aggregate, optimized dense particle packing, and steel fiber volume fraction ≥1.0% to deliver strain-hardening tensile behavior, complying with GB/T 31387-2025 and international structural UHPC specifications.
A standard structural UHPC formulation consists of six core functional groups, with construction chemical additives critical to balancing workability, strength, and crack resistance:
表格
Component | Standard Dosage Range | Core Technical Function |
High-grade Portland Cement (P·O 52.5+) | 750–850 kg/m³ | Primary hydraulic binder to develop compressive strength |
Silica Fume (90%+ SiO₂ purity) | 180–250 kg/m³ | Fill micro voids, secondary pozzolanic reaction, densify aggregate-paste transition zone, cut permeability |
Graded Fine Quartz Sand (0.05–2.6 mm) | 950–1100 kg/m³ | Rigid skeleton without coarse aggregate weak points, optimize particle packing density |
Short-Cut Hook-End Steel Fiber (0.2mm dia, 13mm length, ≥2700MPa tensile) | 130–195 kg/m³ (1.5–2.5 vol%) | Bridge microcracks, deliver ductility, boost tensile/flexural strength, prevent brittle failure |
Polycarboxylate Superplasticizer | 1.8–3.2% by cement mass | Reduce water demand to hit ultra-low water-binder ratio, maintain self-flow workability |
Cellulose Ether (HPMC/MHEC) + Redispersible Polymer Powder (RDP) | 0.08–0.25% total | Control water retention, avoid rapid surface drying & skin cracking, improve fiber dispersion, enhance substrate adhesion |
Defoamer, Anti-Shrinkage Additives | Minor dosage | Eliminate entrapped air voids, mitigate plastic and drying shrinkage, prevent surface "elephant skin" defects |
Conventional concrete mixes random large aggregate particles leaving wide void channels. UHPC uses multi-scale particle stacking: cement grains fill millimeter sand gaps, silica fume fills micron-level cement voids, and nano-scale mineral fillers close submicron pores. The final matrix achieves near-zero interconnected porosity, blocking water, chloride, and corrosive ion penetration completely.
When minor tensile stress initiates microcracks, distributed steel fibers across the matrix bear tensile load across crack planes. Instead of sudden brittle fracture, UHPC sustains increasing load while forming dense, stable microcrack networks—this strain-hardening property differentiates UHPC fundamentally from high-performance concrete (HPC) and normal fiber concrete, delivering outstanding fatigue and seismic resistance.
All test data follows EN 12190, GB/T 31387 standard test methods, 28-day curing age:
表格
Performance Index | UHPC (UC140 Structural Grade) | High Performance Concrete (C80) |
28d Compressive Strength | 140–180 MPa | 80 MPa |
Ultimate Tensile Strength | 6–12 MPa (strain-hardening) | 2.8–3.5 MPa (brittle) |
Flexural Strength | 18–25 MPa | 6–9 MPa |
Water-Binder Ratio | 0.15–0.22 | 0.28–0.35 |
Chloride Diffusion Coefficient | ≤0.1×10⁻¹² m²/s | 3–5×10⁻¹² m²/s |
Maximum Allowable Panel Thickness | 20–80 mm | ≥100 mm |
Freeze-Thaw Cycles (No Damage) | ≥1000 cycles | 300–500 cycles |
Design Service Life | 100–200 years | 60–80 years |
Typical Self-Weight Reduction vs C30 | 50–70% | 20–30% |
Key Insight: UHPC’s biggest competitive advantage is not just higher compressive strength, but its combination of ultra-low permeability, tensile ductility, and ultra-thin forming capacity unavailable in any other cementitious material.
UHPC splits into two main product categories per GB/T 31387: structural load-bearing UHPC (UC100–UC200) and architectural decorative non-load UHPC panels. It covers four high-growth engineering verticals with verified global project track records.

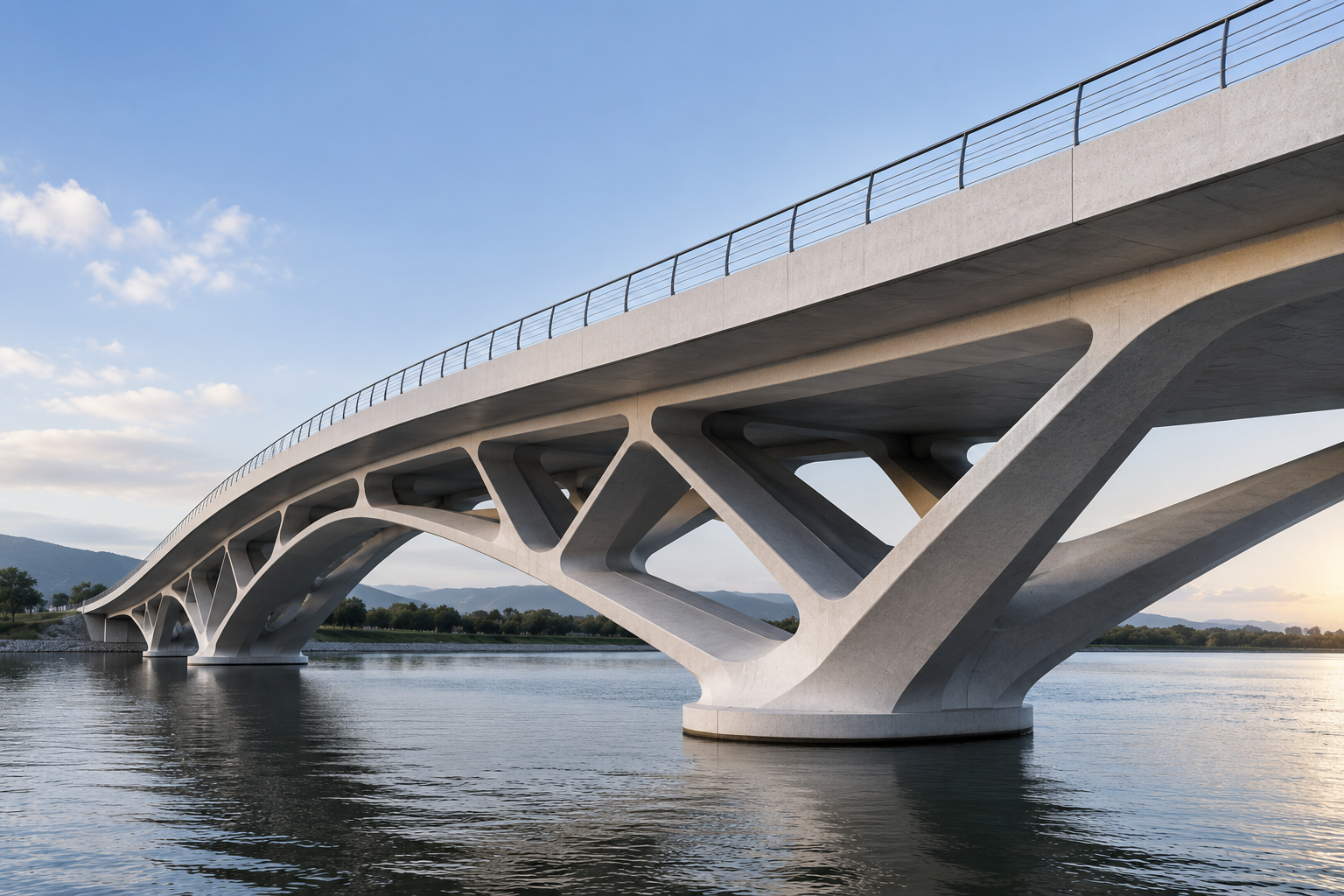

1. Prefabricated lightweight main girders, π-beams, T-beams for highway & urban viaducts
2. Ultra-thin bridge deck overlay (40–60mm thickness for existing bridge repair)
3. Wet joints for precast segmental bridges (eliminates post-cracking at connection zones)
4. Coastal cross-sea bridge anti-corrosion deck slabs, barrier walls
5. Pedestrian arch bridges, cable-stayed arch ribs for long lightweight spans
· Reduce concrete volume by 30–40%, steel reinforcement consumption by 20–25%
· Prefabricated beam self-weight cut by over 50%, lowering hoisting machinery requirements and installation time
· 50% shorter repair construction windows for old bridge rehabilitation projects
· Resist coastal chloride erosion, extend maintenance cycle from 30 years to over 100 years
The 60,000 m² UHPC composite deck uses only 45mm-thick structural UHPC slabs, replacing conventional 200mm reinforced concrete decks. The lightweight design reduced overall bridge dead load by 42%, simplified pier foundation design, and delivered a 120-year design service life for high-salinity riverine environments.
UHPC’s thin forming capacity unlocks complex free-form architecture impossible with traditional concrete or GRC panels.
1. Double-curve, hollowed, gradient-perforated exterior curtain wall panels
2. Monolithic tall decorative columns, large-span architectural canopies
3. Translucent light-permeable UHPC art facades for cultural venues
4. Textured imitation stone, wood-grain, matte decorative exterior cladding
5. Museum, exhibition center, landmark commercial building signature facades
UHPC hollowed facade panel
Seawater chloride, underground sulfate, and industrial chemical erosion rapidly degrade standard concrete. UHPC’s near-zero permeability makes it the gold standard for repair and new construction in harsh corrosive zones:
· Cross-sea tunnel lining repair overlay, underground sewage tank lining
· Offshore wind turbine foundation protective layers, port wharf anti-corrosion slabs
· Cave hydrogen storage tunnel shotcrete UHPC support lining
· Historic building structural reinforcement & heritage restoration
· Anti-blast protective structures, nuclear facility shielding
· High-speed railway track slab thin overlay, high-fatigue industrial floor slabs
· Public art installations, outdoor landscape curved seating monoliths
· 3D printed ultra-thin building components
Cur
ved UHPC landscape precast component
UHPC mixing, forming, and curing have stricter standardized procedures than normal concrete; improper operation directly causes fiber segregation, surface cracking, and reduced mechanical performance.
1、Mold Preparation & Sealing Fabricate rigid steel molds with dimensional tolerance ±0.5mm; seal mold joints with polyurethane sealant to prevent slurry leakage. Apply release agent evenly for smooth decorative surface finish.
2、Raw Material Sequential Feeding & Mixing
o Step 1: Add graded quartz sand, cement, silica fume, dry-mix 2 minutes for uniform powder blending
o Step 2: Add pre-diluted polycarboxylate superplasticizer + 70% mixing water, mix 3 minutes to form flowing base slurry
o Step 3: Slowly distribute steel fiber into rotating mixer over 2 minutes to avoid fiber balling/segregation
o Step 4: Add remaining mixing water, HPMC/RDP additive solution, defoamer, mix final 2 minutes
o Total mixing cycle: 7–9 minutes; finished mix must be used within 45 minutes before loss of workability.
3、Pouring & Vibration Control Layered pouring maximum thickness 50mm per pass; low-frequency vibration 15–30 seconds per layer to eliminate entrapped air voids. Avoid over-vibration which causes steel fiber sinking segregation. For thin facade panels, spray casting technology delivers uniform fiber distribution for complex curved geometry.
4、Initial Surface Finishing & Moisture Sealing Immediately smooth surface after vibration completion; fully cover mold with airtight plastic film within 30 minutes to stop rapid surface moisture evaporation and prevent skin cracking.
5、Two-Stage Curing (Critical for Full Strength Gain)
o Natural Standard Curing (decorative panels): Maintain ≥95% RH humidity, 20±2°C temperature for minimum 7 days before demolding; full strength achieved at 28 days.
o Accelerated Steam Curing (structural precast): 3 stages—slow heating (≤15°C/h), constant temperature 85–90°C (48–72h), slow cooling (≤10°C/h). Steam-cured UHPC reaches design strength at 7 days for fast factory turnover.
6、Demolding, Surface Finishing & Installation
Light sanding to remove minor surface blemishes; install embedded steel lifting anchors pre-placed during pouring. Control installation gap tolerance ≤±1mm for facade waterproof joint sealing.
1. Substrate Treatment: Grind/blast old concrete surface to remove laitance, dust, and loose material; saturate substrate to saturated-surface-dry (no standing free water) to maximize interface bond strength.
2. On-Site Mixing: Use forced-action vertical mixers; strictly follow factory pre-blended UHPC premix ratio, no random extra water addition.
3. Layered Pouring: Single layer maximum thickness 50mm; apply vibration uniformly across repair overlay area.
4. Instant Moist Protection: Cover wet UHPC surface with plastic sheeting immediately after finishing; continuous wet curing minimum 7 days in ambient temperatures 5–35°C.
5. Joint Waterproofing: Use dedicated UHPC-compatible polyurethane joint sealant to eliminate panel gap water infiltration risks.
· Do not cast when ambient temperature <5°C or >38°C
· Avoid direct strong sunlight and high wind exposure during initial setting phase
· Stop construction during continuous rainfall to prevent surface water dilution of fresh UHPC matrix
·
· Symptoms: Concentrated fiber clumps on surface or settled at mold bottom; inconsistent strength across component cross-section
· Root Causes: Incorrect feeding sequence, insufficient mixing time, excessive superplasticizer causing over-fluidity
· Prevention: Add steel fiber gradually mid-mixing cycle; dose HPMC water retention additive to moderate flow; control total mixing duration 7+ minutes
· Symptoms: Fine random surface cracks, folded uneven surface texture after initial set
· Root Causes: Rapid surface water evaporation under high temperature/wind; insufficient water retention additives; long standing time post-mixing before pouring
· Fix: Increase HPMC/RDP dosage; cover with plastic film within 30 minutes post-finishing; limit mixed UHPC standing time under 40 minutes
· Symptoms: UHPC repair layer separates from original concrete substrate under minor load
· Root Causes: Poor substrate cleaning, dry substrate before pouring, excess free water on base surface
· Standard Solution: Blast substrate to expose aggregate; pre-wet substrate to saturated-surface-dry state; avoid pooling water on base before UHPC casting
· Root Cause: Insufficient vibration, inadequate defoamer dosage, fast pouring trapping air
· Prevention: Extend vibration time moderately; adjust defoamer additive proportion; pour UHPC slowly from mold bottom upwards
Decorative facade panels safely down to 20mm; structural load-bearing bridge slabs minimum 40mm. Normal reinforced concrete cannot achieve stable performance below 100mm thickness.
Raw material unit cost is 6–10x higher than C30 concrete, but lifecycle total cost often lower for long-span, coastal, landmark projects due to reduced structural volume, zero frequent maintenance, and lighter foundation loads. UHPC delivers clear ROI for infrastructure requiring 100+ year service design life.
Not economically competitive for standard residential frames; UHPC targets specialized high-value verticals: bridges, coastal infrastructure, high-end architectural facades, structural repair, anti-corrosion protection.
· Natural ambient curing: 28 days for full mechanical performance
· High-temperature steam curing (85–90°C): 7 days meets all UC100–UC180 structural design indexes Minimum 7-day wet/moist curing is non-negotiable for all UHPC applications to prevent shrinkage cracking.
Yes, minimum overlay thickness 30mm. Critical pre-work: substrate blasting cleaning and saturated-surface-dry pre-wetting to guarantee ≥2.5MPa interface bond strength.
Three core functional additives work synergistically:
1. HPMC/MHEC cellulose ether: lock mixing water, stop rapid surface drying
2. Redispersible Polymer Powder (RDP): improve matrix flexibility and substrate adhesion
3. Low-shrinkage mineral admixtures + steel fiber: restrain drying and thermal shrinkage microcrack expansion
For most thin UHPC panels and bridge overlays, 1.5–2.5% volume steel fiber alone provides sufficient tensile capacity without traditional rebar cages, drastically simplifying precast manufacturing processes. Heavy load-bearing main girders may combine fiber UHPC with minimal prestressing steel strands.
Traditional concrete’s inherent brittleness, high porosity, and limited forming flexibility create unavoidable long-term maintenance costs across global infrastructure and architecture. Ultra-High Performance Concrete (UHPC) solves these fundamental material flaws via engineered dense particle packing, high-volume steel fiber strain-hardening reinforcement, and precision-formulated construction chemical additives including polycarboxylate superplasticizers, HPMC water retention agents, and redispersible polymer powders.
The core competitive advantages of UHPC can be summarized in four key takeaways:
1. Unmatched durability: Near-zero ion permeability delivers 100–200 year service life in coastal, freeze-thaw, and chemically corrosive environments
2. Ultra-thin lightweight forming: 20–50mm panel thickness cuts structural self-weight by 50–70%, enabling parametric free-form architectural design
3. Intrinsic tensile ductility: Strain-hardening fiber matrix eliminates catastrophic crack propagation common in ordinary concrete
4. Lifecycle cost optimization: Higher upfront material cost is offset by minimal maintenance, reduced foundation loads, and faster modular precast construction timelines
From long-span highway bridge decks and coastal cross-sea infrastructure to landmark curved architectural facades and structural rehabilitation projects, UHPC has evolved from laboratory composite material to mainstream industrial construction solution standardized under GB/T 31387 and international engineering codes.
For structural engineers, precast manufacturers, and construction chemical suppliers targeting high-performance building material markets, mastering UHPC formulation, mixing workflows, and defect control technology unlocks differentiated project solutions unavailable with conventional concrete systems.
If you require customized UHPC mix design data, precast construction technical specifications, or project cost-benefit evaluation for bridge/facade applications, contact our technical engineering team for tailored professional consultation.
