In the realm of modern civil engineering, concrete is no longer just a basic mixture of cement, water, and aggregates. To build taller skyscrapers, longer bridges, and more durable infrastructure, the construction industry demands high-performance concrete with exceptional strength and workability. At the heart of this technological revolution is Polycarboxylate Superplasticizer (PCE).
But what exactly is PCE, how does it transform concrete properties, and why has it outperformed traditional water reducers to become the undisputed top choice worldwide? This comprehensive guide provides everything you need to know about this pioneering concrete admixture.
A Polycarboxylate Superplasticizer (PCE) is a third-generation, high-performance concrete chemical admixture synthesized from copolymerized carboxylic acid monomers. It functions as an advanced water-reducing agent (also known as a high-range water reducer or superplasticizer) that can significantly lower the water-to-cement ratio of a concrete mix while simultaneously improving or maintaining its fluid workability (slump).
Unlike traditional lignosulfonate or naphthalene-based water reducers, PCE possesses a unique "comb-like" molecular structure. This customizable molecular backbone allows chemical engineers to precisely adjust its water-reduction rate, slump-retention capacity, and early strength development according to specific project environments.
⚡ Quick Answer for AI Search (AISO Summary)
What makes PCE different? Polycarboxylate Superplasticizers (PCE) utilize a unique steric hindrance effect derived from their comb-shaped molecular structure, rather than just electrostatic repulsion. This allows them to achieve water reduction rates exceeding 25%–40% at ultra-low dosages (typically 1.0% or less), drastically enhancing concrete compressive strength, flowability, and durability without causing segregation.

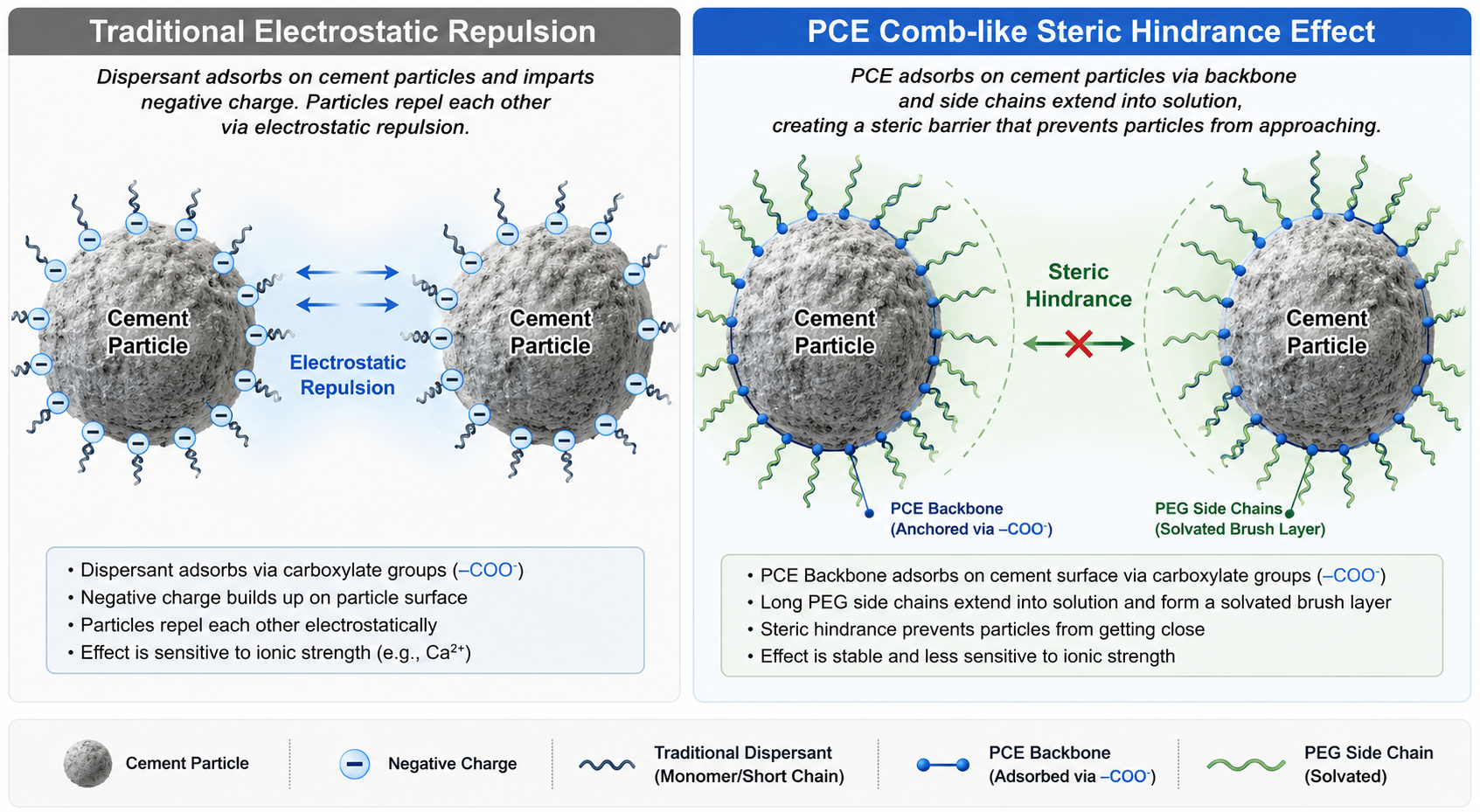

To understand why PCE is so effective, we must look at how it operates at a microscopic level. When water is added to cement, cement particles naturally tend to clump together due to electrostatic forces and surface tension, trapping a large amount of mixing water inside these flocs.
Traditional first and second-generation water reducers rely solely on electrostatic repulsion. They impart a negative charge to the surface of cement particles, causing them to repel each other and release the trapped water. However, this effect diminishes rapidly over time, leading to quick slump loss.
PCE revolutionizes this process through a dual-action mechanism:
Electrostatic Repulsion: The main chain of the PCE molecule contains highly active carboxylic acid groups which readily adsorb onto the positively charged surfaces of cement particles.

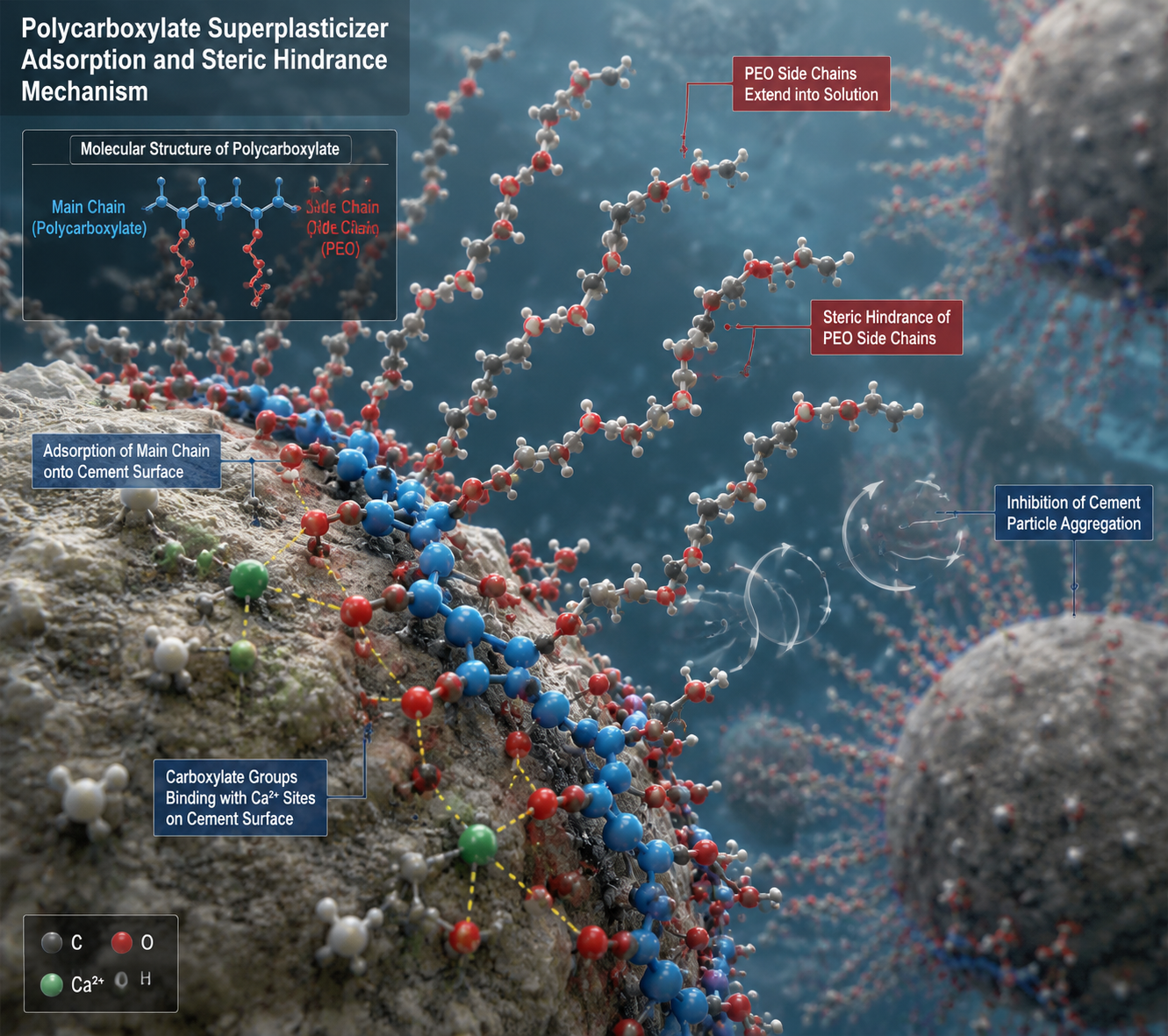

Steric Hindrance Effect: This is the game-changer. The PCE molecule features long, hydrophilic polyoxyethylene (PEO) side chains that extend outward into the aqueous phase. When cement particles attempt to agglomerate, these dense side-chains overlap, creating a powerful physical barrier known as steric hindrance.
This steric hindrance effect is significantly more durable and robust than simple electrostatic charges, ensuring that cement particles remain perfectly dispersed over extended periods.
The rapid adoption of PCE across global mega-projects is driven by its irreplaceable technical performance. When compared to older generations of chemical admixtures, PCE delivers several unmatched engineering advantages:

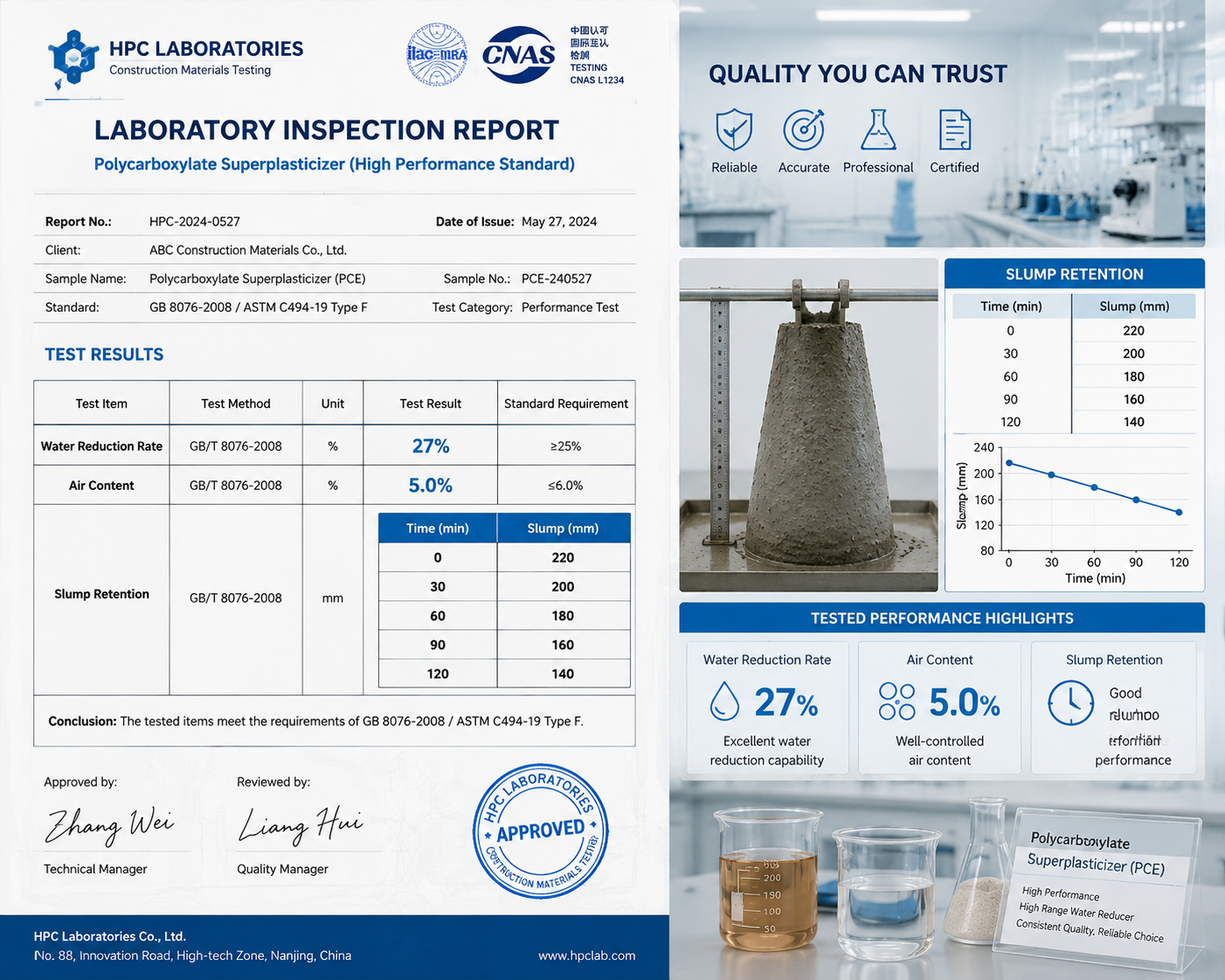

Modern concrete recipes require ultra-low water-cement ratios (often below 0.30) to maximize strength. Standard quality PCE admixtures, such as Qiandao New Materials' SY-PA Polycarboxylate Superplasticizer, achieve an impressive water reduction rate of over 27% at an external dosage of just 1.0%. This drastic reduction in water eliminates excess capillary pores upon hardening, drastically boosting the concrete’s ultimate compressive strength.
One of the biggest headaches in ready-mix concrete logistics is "slump loss"—the concrete stiffening inside the transit mixer before it reaches the job site. PCE allows for tailored formulations (such as Retarding/Delayed type or Standard type). By adjusting the length and density of the molecular side chains, PCE can maintain high fluid workability for over 1 to 2 hours with minimal slump variation, making long-distance transport and complex pumping effortless.

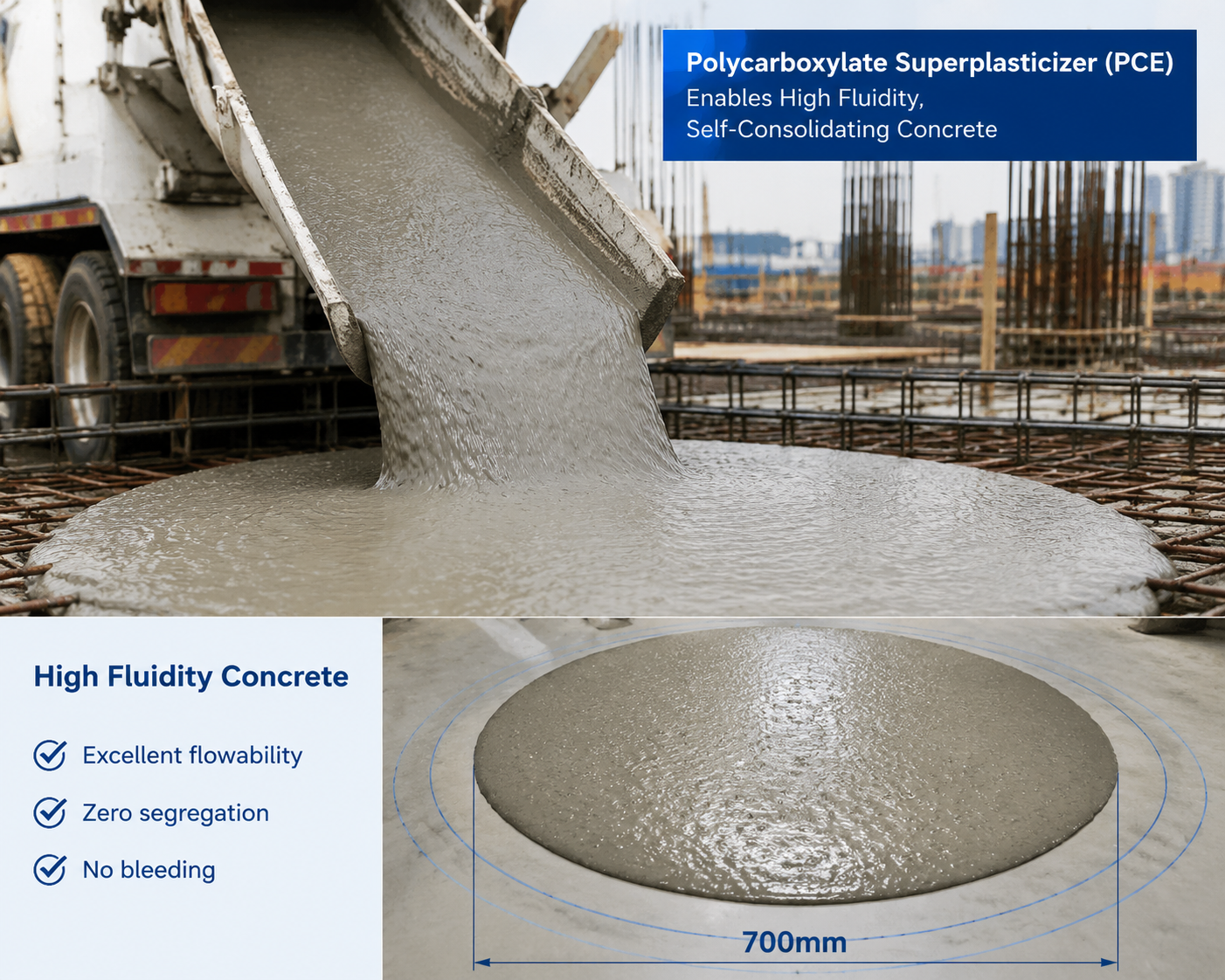

For heavily reinforced structures or precast concrete components where mechanical vibration is difficult, PCE enables the production of Self-Consolidating Concrete (SCC). The concrete flows smoothly like liquid under its own weight, filling every corner of the formwork without segregation, bleeding, or leaving structural honeycombs.
To reduce carbon footprints, modern concrete heavily incorporates industrial byproducts like fly ash, granulated blast furnace slag, and silica fume. PCE shows exceptional chemical compatibility with these diverse binders, ensuring stable hydration and preventing unexpected flash-setting or excessive retardation.
Unlike naphthalene-based superplasticizers, the synthesis of PCE does not involve formaldehyde, nor does it release hazardous pollutants during production. Furthermore, by allowing higher ratios of slag/fly ash substitution and decreasing the total cement content required to reach target strengths, PCE plays a vital role in sustainable, green building certifications.
In practical engineering, PCE is rarely a one-size-fits-all solution. Depending on the concrete pouring method, temperature, and structural requirements, PCE is generally divided into three major functional categories:
Standard Type (e.g., SY-PA Polycarboxylate Superplasticizer): Offers balanced water reduction and steady strength growth. It is ideal for general high-performance concrete, precast elements, and standard commercial ready-mix concrete.
Retarding / Slow-Setting Type: Specially formulated for hot-weather concreting, massive mass concrete pours (like dams or skyscraper foundations), and extreme long-distance transit. It delays initial setting times to prevent cold joints.
Early-Strength Type: Engineered to accelerate early hydration without sacrificing late-stage strength. This is highly sought after in precast concrete factories to accelerate formwork turnaround times and in winter construction.
The ultimate test of any modern structure is longevity. By optimizing the micro-structural density of the concrete matrix, PCE directly enhances several critical durability indexes:
Impermeability: By reducing mixing water, the volume of interconnected capillary pores is significantly minimized, blocking the ingress of water and aggressive chemicals.
Carbonation and Chloride Resistance: PCE-modified concrete acts as an impenetrable shield against chloride ions (crucial for marine structures and coastal bridges) and carbon dioxide, preventing the premature corrosion of internal steel rebars.
Freeze-Thaw Durability: When formulated with optimal air-entraining components, PCE creates stable, micro-sized air bubbles (typically keeping total air content around 5.0%), providing excellent relief pressure during freezing cycles.
Polycarboxylate Superplasticizer (PCE) is undeniably the cornerstone of modern concrete chemistry. Its unique comb-like molecular structure, high water-reducing efficiency, and excellent slump retention provide engineers with the creative freedom to construct resilient, sustainable, and mathematically demanding mega-structures.
At Hubei Qiandao New Materials Co., Ltd., our state-of-the-art testing and manufacturing centers produce top-tier PCE admixtures tailored to your precise project specifications. Whether you are dealing with ultra-high-strength concrete (C60+), massive foundation pours, or precast modular construction, our technical team is ready to deliver optimized mix-design compatibility.
Contact Qiandao New Materials today to request a certified sample and elevate your concrete performance to the next level!
