Views: 0 Author: Qiandao Technical Team Publish Time: 2026-09-03 Origin: Hubei Qiandao New Materials Co., Ltd.
A reliable UHPC steel fiber supplier must do more than quote a price per ton. The supplier should identify the manufacturing type, control dimensions and tensile properties, provide traceable samples, support the required standard, protect fibers in transport and communicate realistic lead time. For UHPC, small changes in diameter, length, surface or packaging can affect dispersion and composite performance. Procurement should therefore combine technical qualification with a commercial and logistics review. The goal is a repeatable approved supply, not the cheapest unverified container.
Send every candidate the same controlled requirement. Include fiber type, nominal geometry and tolerances, minimum tensile strength, surface or coating, applicable standard, sample quantity, annual forecast, bag weight, pallet or container requirements, destination and certificate format.
If the project is performance-based rather than product-prescriptive, describe the application, mixer, element constraints and composite qualification tests. Ask the supplier to identify any assumptions and deviations separately. A quotation that silently changes diameter or tolerance is not technically comparable.
Topic | Evidence to Request | Warning Sign |
|---|---|---|
Product identity | Controlled data sheet and fiber type | Generic “steel fiber” description |
Dimensions | Nominal values, tolerances and method | Aspect ratio only |
Strength | Minimum requirement and test basis | Typical value with no minimum |
Shape/surface | Drawing or clear sample and coating statement | Unannounced surface variation |
Standard | Current applicable compliance evidence | Logo or claim without scope |
Traceability | Lot code linked to production and documents | Bags cannot be linked to records |
Change control | Written notification process | Supplier may substitute freely |
Sample | Representative production-route material | Hand-selected sample with no identity |
Nonconformance | Isolation and corrective-action process | No documented response |
ASTM A820/A820M can provide a baseline where the project invokes it. Current FHWA UHPC guidance also identifies the fiber properties owners should receive. The purchase order should state which standard edition and project requirements govern.

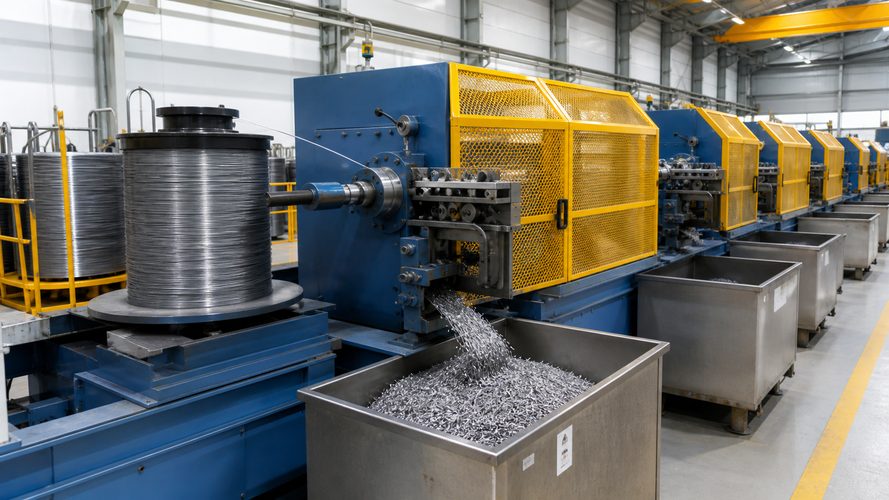

Ask which process makes the offered fiber: drawn wire, cut sheet or another permitted route. Review how the factory controls raw material, diameter, cutting length, deformation, coating and packaging. A site or remote audit should focus on the offered production line and records, not a showroom.
Check gauge calibration, sampling frequency, lot definition, retention policy and release authority. Request example certificates before ordering. Confirm whether the certificate is lot specific and whether third-party testing is available if the project requires it.
Capacity should be supported by production-line information and an order-specific plan. The source material available in this workspace states 11 steel-fiber production lines and approximately 40,000 tonnes of annual capacity for the referenced production base, while noting that uncommon custom models may not be stocked and lead time must be negotiated. Treat capacity and inventory as separate questions.

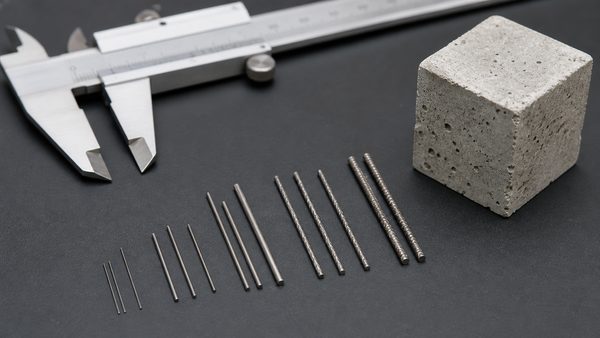

Require the sample to carry the proposed product and lot identity. Inspect dimensions, surface, shape and package condition. Test it in the actual UHPC matrix and mixer sequence, then complete the required composite program.
Retain part of the approved sample for later visual and dimensional comparison. Link approval to the controlled product description rather than only the supplier name. If the bulk lot differs, hold it for review instead of assuming the sample was merely approximate.
Document review passed.
Fiber sample inspection passed.
Laboratory UHPC trial passed.
Production-scale mockup passed where required.
Commercial and logistics terms accepted.

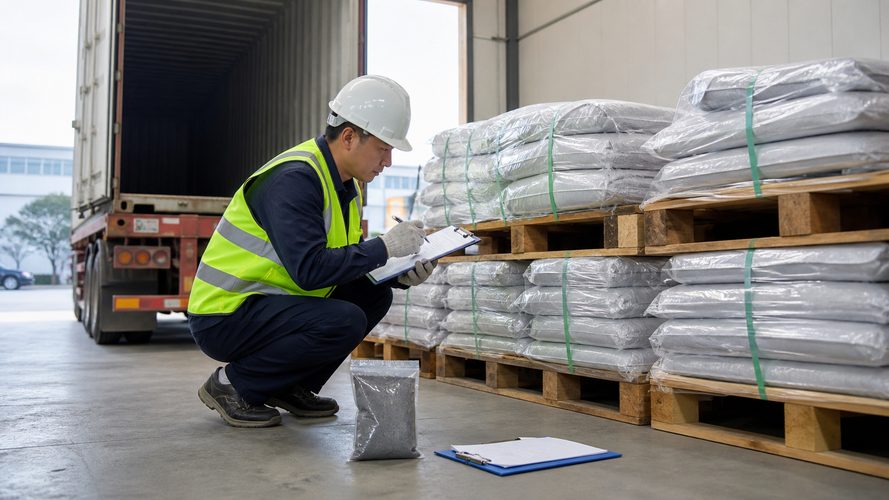

First shipment inspection passed.
Supplier added to the approved list for the defined product only.
Unit price is only one part of landed and usable cost. Compare the same Incoterm, currency, payment terms, bag and pallet format, certificate scope and tolerances. Include inland transport, export charges, ocean or air freight, insurance, duties, customs handling, inspection and storage.
Then consider technical risk: extra mixing time, partial-bag labor, rejected batches, repeated testing, schedule delay and supplier-change approval. Do not invent a percentage saving. Use your project’s actual costs and probability assumptions.
For custom fibers, ask whether tooling, minimum order quantity or trial charges apply. Confirm the price-validity period and metal-price adjustment method. A clear mechanism is safer than an artificially fixed quote that is later withdrawn.

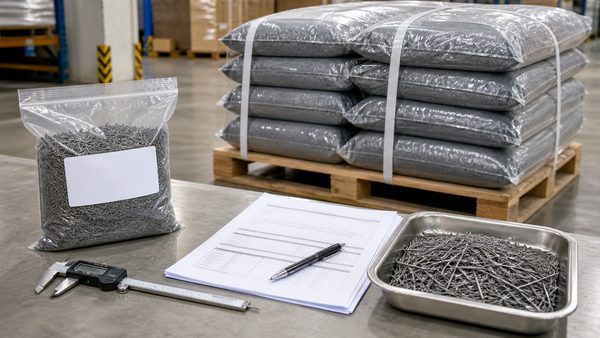

Packaging should keep fibers dry, contained and easy to dose. Specify net bag weight and tolerance, inner moisture protection if required, pallet strength, wrapping and labels. Confirm container loading and unloading constraints before production.
Store sealed packages off the ground in a dry covered area. Inspect for water damage, tears, corrosion or missing lot identification. Use gloves resistant to puncture and follow site handling rules.
Required export documents depend on destination and contract. Confirm commercial invoice, packing list, certificate of origin, bill of lading and any project-specific material certificates with the freight forwarder and buyer. Do not assume one document package works worldwide.
Is this exact geometry a stock item or made to order?
What is the production and inspection lot definition?
Which values are guaranteed minimums and which are typical?
How are length and diameter measured?
What changes trigger customer notification?
Can the sample be linked to the bulk production route?
What is the realistic production window after approval?
How are wet or damaged packages handled before shipment?
Can bag size and pallet pattern match our batch and warehouse?
Who owns technical communication during qualification?
No. Capacity helps, but product control, communication, traceability, custom lead time and project fit also determine risk.
Request the tolerance the design and production need. Unrealistically tight limits can raise cost without improving verified composite performance.
No. It supports screening. The actual fiber must be tested in the intended UHPC system.
Normalize Incoterm, quantity, packaging, documentation, payment, validity and specification. Then calculate landed cost and qualification risk.
Follow project change control. Typical triggers include changes in geometry, material, strength basis, coating, manufacturing route, plant or other approved characteristics.
Choose a UHPC steel fiber supplier through evidence: a complete response to specification, controlled manufacturing, traceable samples, successful composite trials, realistic capacity and robust export packaging. Compare total landed and usable cost rather than headline price. To request a Qiandao review, send the applicable standard, geometry and tolerances, strength requirement, trial and bulk quantities, destination, delivery target and documentation list. The reply can then identify compliance, deviations, sample timing and a transparent commercial basis.
