Precast UHPC Steel Fiber for Thin and Complex Elements

Precast UHPC steel fiber helps thin structural and architectural elements maintain post-cracking tensile capacity, but the factory must control more than fiber strength. Element thickness, inserts, ribs, mold boundaries and visible surfaces influence flow and orientation. Fine fibers that work in a laboratory cube may behave differently across a long panel or around a sharp return. The best precast program connects a controlled fiber specification to mixer trials, a documented casting path, finish requirements, curing and representative mechanical tests. That integration supports repeatable production rather than one successful prototype.

Why Thin Precast Elements Need Special Fiber Review

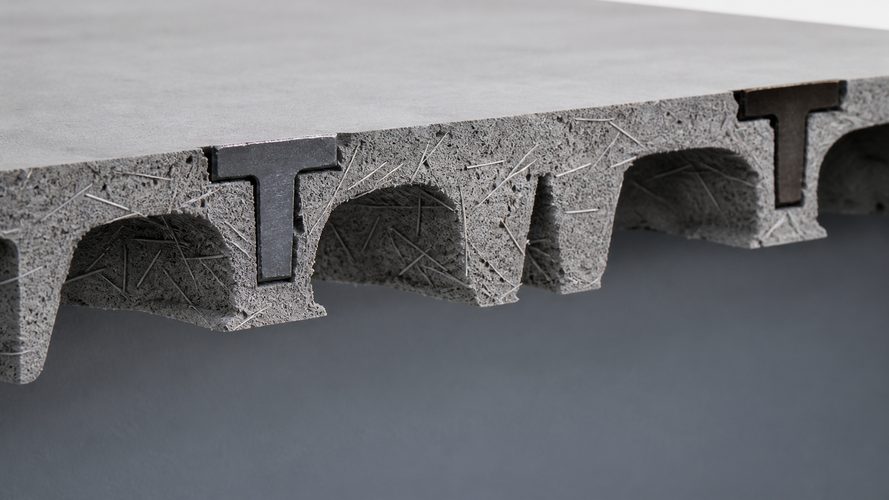

As a section becomes thinner, fiber length occupies a larger share of its thickness. Form walls influence orientation, and fibers near a visible face may affect the finish. Narrow ribs or densely reinforced zones can screen long or deformed fibers. A geometry that disperses well in an open beam may not pass cleanly through a decorative mold.

Short, fine straight fibers are common in UHPC because they can create many crack bridges in a compact volume. Final selection still depends on the qualified matrix and element. Review absolute length and diameter, not aspect ratio alone.

Typical Precast UHPC Uses

• thin architectural facade panels and screens;

• slender structural members and shells;

• bridge deck panels and connection components;

• stairs, canopies and street furniture;

• complex molded components with ribs or openings;

• localized strengthening or repair units.

The structural design and local code determine whether fibers supplement or replace any conventional reinforcement.

Match Precast UHPC Steel Fiber to Mold Geometry

Create a geometry review before the first batch. Mark minimum section thickness, narrowest flow passage, insert spacing, expected crack planes and critical visible faces. Compare those dimensions with fiber length and with the intended discharge opening.

Use a full-size or representative mold when wall effects or flow distance are important. A small coupon cannot recreate the alignment that develops in a long narrow panel. Record where UHPC enters, how the front moves and whether separate fronts meet.

Control Mixing for Factory Consistency

Precast plants benefit from repeatable equipment and trained crews, but UHPC can require more mixer energy and time than conventional concrete. Establish the approved base-matrix condition, gradual fiber feed rate, post-addition time and batch-size range.

Track mixer load and material temperature because both can reveal process drift. Inspect paddles and dead zones at safe maintenance intervals. Do not let production pressure shorten fiber addition or mixing time. A clump hidden inside a thin panel can create a serious local defect.

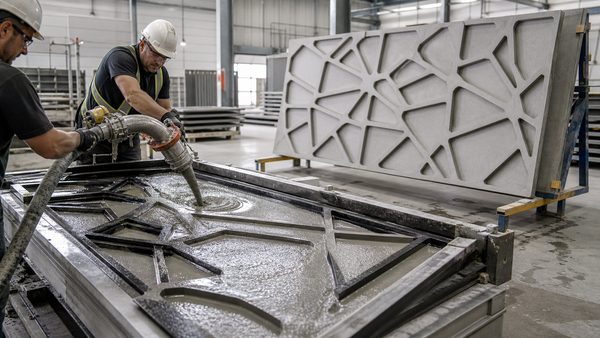

Casting, Orientation and Surface Finish

UHPC flow can align fibers. A broad moving discharge may produce a different pattern from a single fixed point. The casting plan should aim for complete filling and a predictable orientation compatible with critical loading. Keep the leading edge continuous and avoid unplanned changes between shifts.

For architectural products, approve a visual sample that defines acceptable pinholes, color variation and exposed fibers. Fiber appearance is connected to geometry, matrix cover, mold surface, release agent, casting and finishing. It should not be controlled by asking the fiber supplier for an unsupported “no visible fiber” guarantee.

Keep Test Specimens Representative

Separately cast specimens are convenient but may not share the panel’s flow history. Follow the governing specification for specimen preparation. If extracted specimens are used, record their direction and location. Do not select only favorable zones.

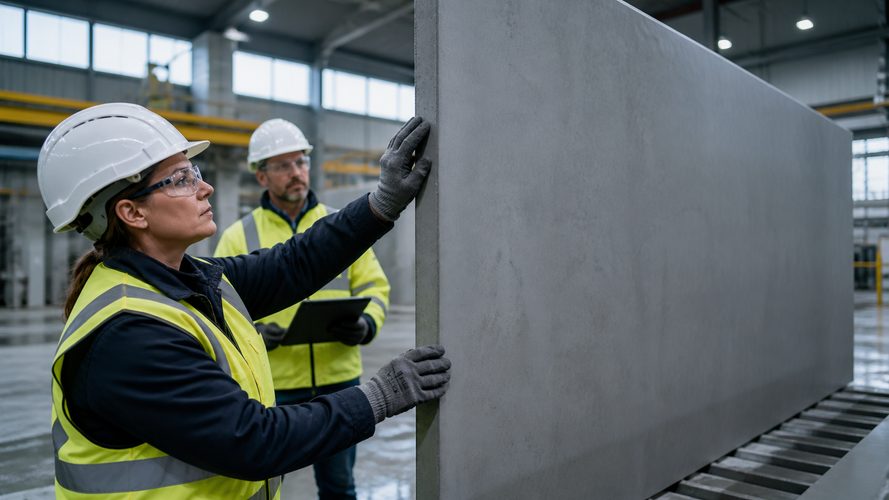

Incoming and In-Process Quality Control

At receiving, verify product name, lot, package condition, quantity and required documents. Keep bags sealed, dry and off the floor. Use first-in, first-out rules within the approved storage period and retain samples when the quality plan requires them.

During production, link fiber lots to batch records and finished elements. Record actual fiber mass, addition time, final flow, temperature and inspection. This traceability makes it possible to isolate an issue without holding unrelated products.

Measure dimensions at the defined frequency and compare them with the approved specification. A subtle diameter change can alter fiber count and surface area; a length change can affect form interaction.

Purchasing Fiber for Precast Production

Share forecast volume and packaging constraints early. Bag size should match batch increments where possible, reducing partial-bag weighing and exposure. Confirm pallet dimensions, lifting method and covered storage capacity.

For a custom product, align sample, qualification, first production and reorder lead times. Approve a change-notification clause so a raw material, geometry, coating or manufacturing change is reviewed before shipment. Ask for lot-specific documents when required rather than discovering after arrival that only a general data sheet is available.

FAQ About Precast UHPC Fiber

What fiber is best for a thin UHPC panel?

Often a short fine fiber is practical, but thickness, flow path, finish and structural testing must determine the approved geometry.

Can fiber marks on the surface be eliminated?

Surface appearance depends on the entire casting system. Establish an agreed sample and control matrix, mold, flow and finishing; do not rely on fiber selection alone.

Should fibers be preweighed?

Preweighed sealed units can reduce dosing error when bag size matches the batch. Partial bags require a controlled scale and resealing procedure.

Is a laboratory flow test enough for production approval?

No. It does not reproduce a full mold, production mixer, long flow path or finish procedure. Use a representative factory trial.

What happens if the fiber supplier changes wire source?

Apply the purchase specification’s notification and review process. Determine whether documents, dimensional checks or composite requalification are required.

Conclusion

Precast UHPC steel fiber must be selected for the real element, not an abstract concrete grade. Thin sections, long flow paths, form boundaries and visible faces amplify geometry and orientation effects. Qualify the fiber in the production mixer and representative mold, connect each lot to batch records, and preserve the approved process through change control. Qiandao can review target dimensions, strength requirements, bag size and forecast demand to prepare a custom sample plan for precast qualification.
