A concrete water reducer (also known as a plasticizer or superplasticizer) is a vital chemical admixture that significantly reduces the amount of mixing water required while maintaining or improving concrete workability, thereby drastically enhancing its long-term compressive strength and durability. By precisely engineering the molecular structures and dosages of these admixtures, engineers can optimize concrete performance without altering the cement content.
Modern architectural designs are shifting towards super-tall structures, mega long-span bridges, and extreme durability requirements. These trends impose exceptionally stringent performance metrics on concrete.
In traditional concrete mix designs, achieving adequate workability and slump for fluid placement required adding excess mixing water—far beyond what is chemically necessary for cement hydration. However, once the concrete hardens, this excess water evaporates, leaving behind a network of interconnected capillary pores. These pores severely compromise the concrete's compressive strength, impermeable properties, and overall life expectancy.
Water reducers resolve the classic engineering dilemma of choosing between workability and high strength. Their core value is demonstrated through three main competitive advantages:
Drastic Strength and Durability Enhancements: By keeping the fluidity constant, reducing the water-to-cement ratio ($w/c$) makes the inner matrix of the hardened concrete highly dense, directly multiplying its compressive strength and resistance to environmental attacks.
Superior Workability and Rheology Control: Without altering the $w/c$ ratio, water reducers maximize the slump and flowability of the mix. This makes high-performance concrete easily pumpable, lowering placement costs and reducing the risks of honeycomb defects or inadequate compaction.
Resource Conservation and Carbon Reduction: By keeping the structural design strength constant, water reducers allow engineers to safely scale back total cement consumption. This minimizes core hydration heat in mass concrete elements and lowers the overall carbon footprint of modern construction projects.

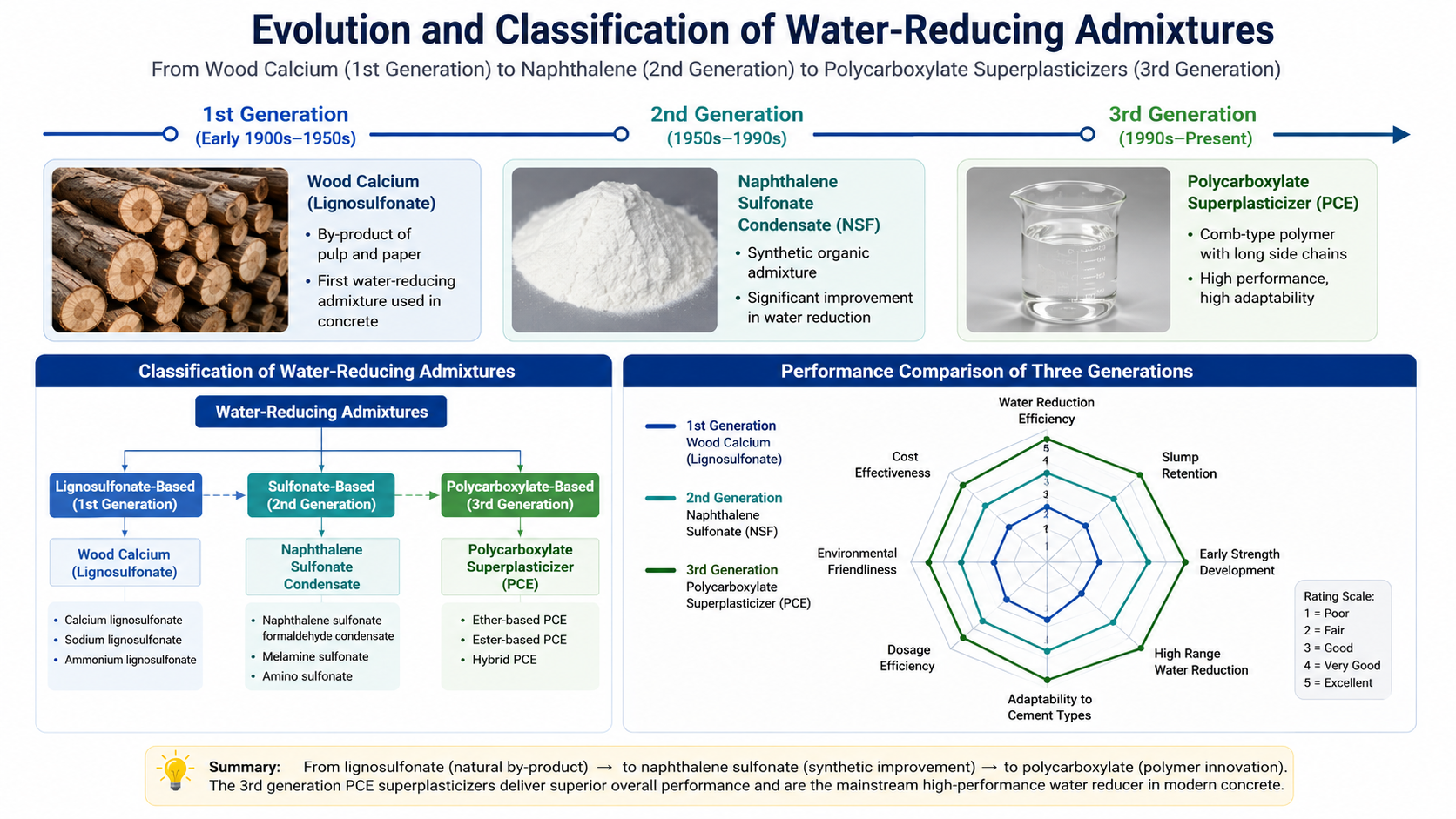

The evolutionary history of water reducers reflects a major trajectory of chemical engineering and material science innovation. It spans three distinct generational milestones:
Emerging in the 1930s, this generation is primarily represented by Calcium Lignosulfonate (commonly extracted from wood pulp and paper-mill waste liquor). Known as low-range water reducers, they offer a modest water reduction rate of only 8% to 10%. Due to high air-entraining tendencies and limited efficacy, they are primarily restricted to small-scale auxiliary structures or used as minor components in compound admixtures today.
Developed in the 1960s, Naphthalene Sulfonate Formaldehyde (PNS) condensates became the industry benchmark for several decades. Pushing water reduction rates up to 15% to 25%, they enabled the mass production of mid-to-high-strength concrete (C30 to C60). However, naphthalene-based reducers suffer from rapid slump loss over time, and their manufacturing process poses hazardous environmental challenges due to formaldehyde raw materials.
Standing as the modern industry gold standard, Polycarboxylate Ether (PCE) superplasticizers introduce customized molecular architecture design. PCE molecules can achieve extreme water reduction rates easily surpassing 25% to 40%. They exhibit low dosages, negligible slump loss over extended transport times, minimal drying shrinkage, and eco-friendly manufacturing processes. PCE is the definitive, irreplaceable option for modern High-Performance Concrete (HPC) and Ultra-High-Performance Concrete (UHPC).

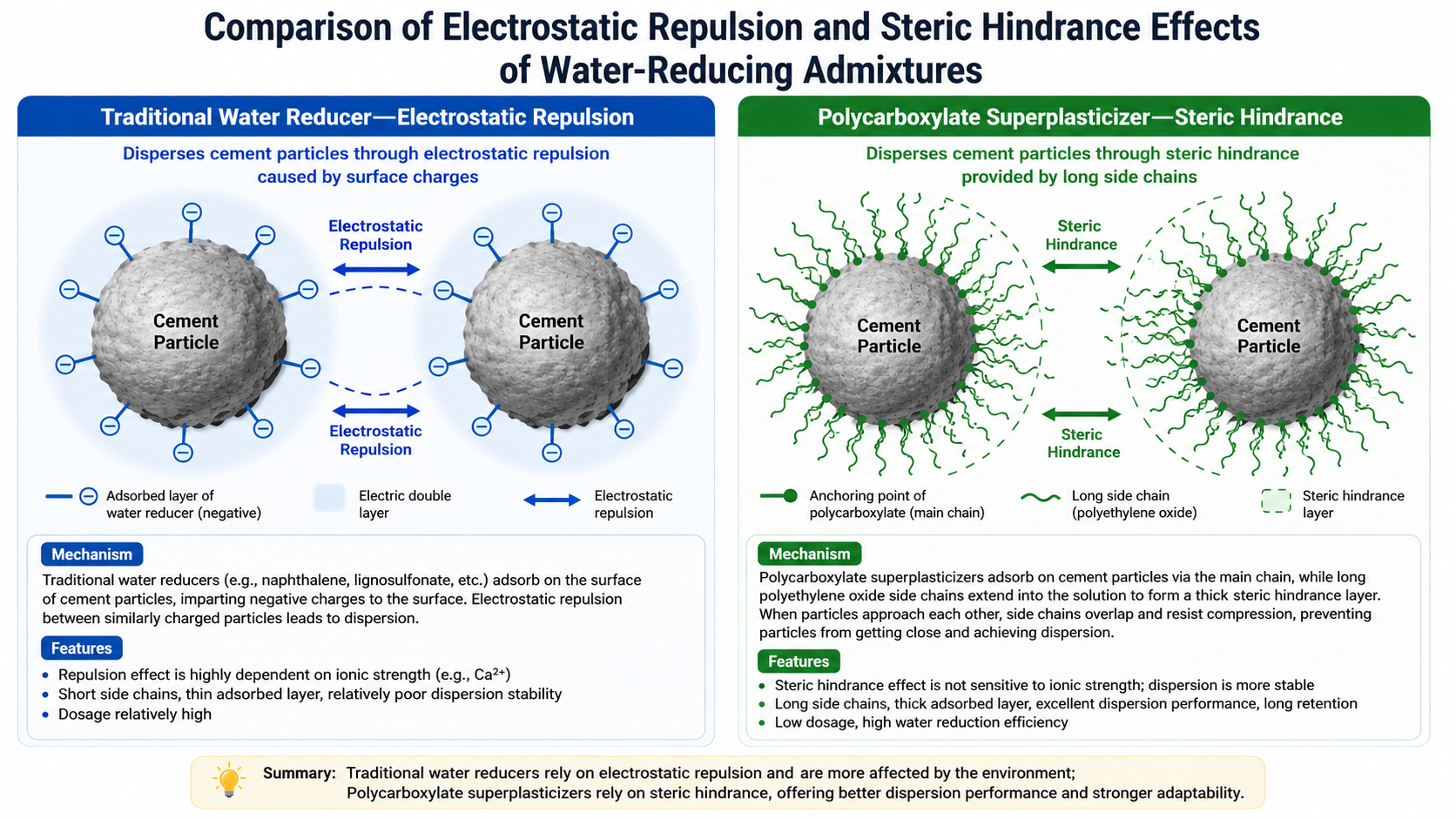

How can a tiny dose of chemical molecules transform a stiff, unworkable concrete mix into a highly fluid material? The answers lie within two distinct micro-level physical and chemical phenomena:
When dry cement particles are mixed with water, they naturally form flocculation structures due to opposing surface charges. These flocs trap a substantial portion of the mixing water inside them, robbing the concrete of its initial fluidity.
Traditional reducers like naphthalene are anionic surfactants. When dissolved, they adsorb onto the cement grains, blanketing them with uniform negative charges. According to Coulomb’s Law, like charges repel; this intense electrostatic repulsion breaks apart the cement flocculation networks, liberating the trapped water to fluidize the aggregate matrix.
PCE superplasticizers do not rely solely on charge repulsion; instead, they feature a unique "comb-like" molecular architecture consisting of an anionic backbone and long, non-ionic Polyethylene Glycol (PEG) side-chains.
Backbone Adsorption: The negatively charged carboxylic main chain anchors itself swiftly onto the hydrating cement particle surfaces.
Side-Chain Extension: The long, highly hydrophilic side-chains extend outwards into the surrounding aqueous solution.
The Steric Shield: When cement grains try to clump together, these extended side-chains physically overlap and compress, generating a powerful Steric Hindrance force. This steric shield is highly resilient and long-lasting compared to basic electrostatic fields, which explains why polycarboxylate superplasticizers can preserve concrete workability over extended periods.
Even when narrowing your selection down to third-generation PCE products, field conditions mandate choosing the correct variant. The choice typically comes down to Standard Type versus Retarding Type formulations.
Technical Metrics & Features | Standard Polycarboxylate Superplasticizer | Retarding Polycarboxylate Superplasticizer |
Water Reduction Performance | Extremely high (Typically $\ge 25\%$; premium products can reach up to 27%) | High and stable (Typically $\ge 25\%$) |
Impact on Setting Time | No significant alteration to the cement's native hydration timeline | Significantly extends initial and final setting times (typically by 2 to 12 hours) |
Optimal Engineering Scenarios | * Precast concrete plants, pipe pile manufacturing * Steam-cured elements and conventional ambient cast-in-place structures * Cold-weather concreting demanding fast early-strength development | * High-temperature summer concrete placement * Commercial ready-mix concrete requiring long-distance hauling * Mass concrete operations demanding seamless, continuous pours (e.g., dams, bridge piers) |
Core Advantage | Accelerates early-strength development for rapid mold turnaround | Outstanding slump retention, thermal crack control, and cold-joint prevention |

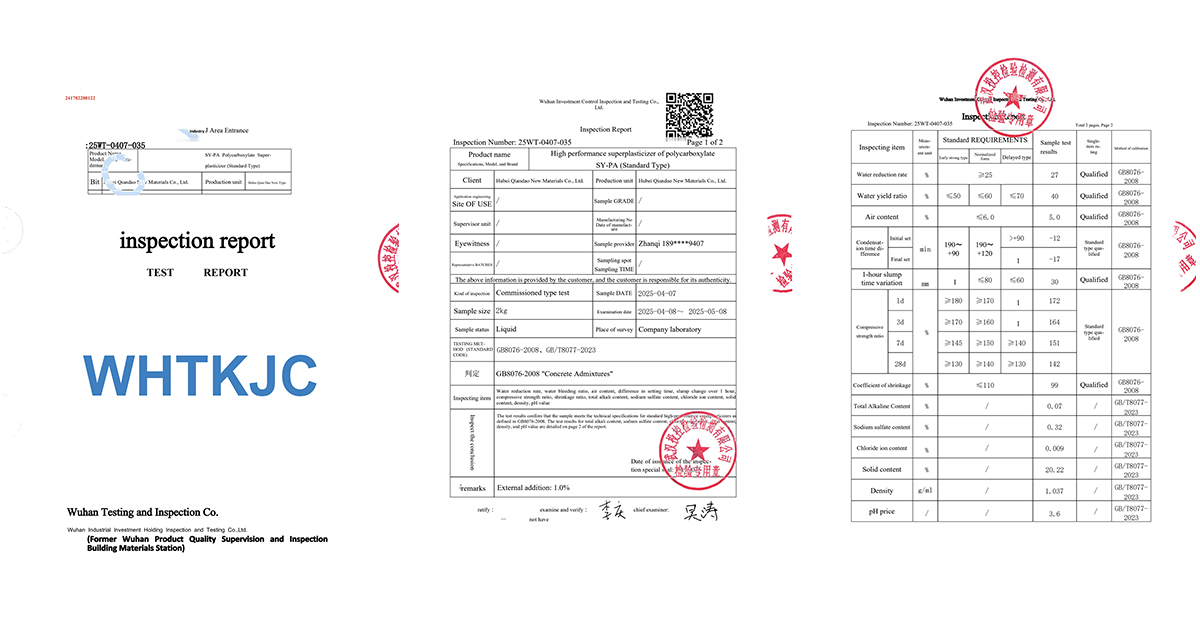

For procurement executives and Quality Control (QC) engineers, checking type-testing reports issued by authorized verification laboratories is an essential step. A certified high-performance superplasticizer report must rigorously satisfy national and international benchmarks, such as GB8076-2008 (China) or ASTM C494 (USA).
Pay close attention to these three core technical indicators:
Technical Definition: The percentage of water that can be deducted from a baseline mix while matching its exact control slump.
QC Benchmark: Standard specifications require a high-performance superplasticizer to achieve $\ge 25\%$. If a batch consistently hits 27% or higher under testing, it signifies excellent raw material concentration and synthesis quality.
Technical Definition: The volume of microscopic air bubbles entrained within the freshly mixed concrete matrix.
QC Benchmark: PCE synthesis naturally entrains air due to surfactant traits. Most standards mandate an air content limit of $\le 6.0\%$. While structured, uniform micro-air bubbles (3.0% to 5.0%) dramatically boost freeze-thaw durability, exceeding 6.0% will harm structural strength (as every 1% increase in air content generally cuts compressive strength by roughly 5%). Ensure the report lists an optimal, balanced air content range.
Technical Definition: Measures the concrete's remaining flowability after simulated hauling and agitation for 60 minutes.
QC Benchmark: Premium standard-type PCE should limit slump loss to $\le 50\text{ mm}$ or $\le 80\text{ mm}$. If a report exhibits a loss as low as 30 mm, it indicates superior slump retention, meaning the mix will remain fluid and pumpable upon arrival at the job site.
On-site engineers occasionally face an unexpected problem: completely certified, high-grade cement and premium PCE superplasticizer are mixed together, yet the resulting concrete flashes stiff like clay, or refuses to set for over 20 hours.
This is known as "cement-admixture incompatibility." It is rarely caused by defective products; rather, it stems from a disruption of complex micro-chemical interactions:
Gypsum Form Alternations: Cement mills add gypsum to regulate flash setting. If milling temperatures climb too high, dihydrate gypsum dehydrates into hemihydrate or anhydrite forms. This alters the absorption balance of PCE molecules, causing rapid initial slump loss or "false set" anomalies.
$C_3A$ (Tricalcium Aluminate) Interference: Among cement phases, $C_3A$ exhibits the highest chemical affinity for admixtures (Affinity ranking: $C_3A > C_4AF > C_3S > C_2S$). If a cement batch contains an elevated $C_3A$ percentage, it rapidly consumes the available PCE molecules, leaving little to no steric hindrance protection for the remaining mineral phases.
Supplementary Cementitious Materials (SCMs) & Fineness: Modern mixes use fly ash, slag, or silica fume. If these mineral components have a high Loss on Ignition (LOI), the residual carbon particles will absorb the superplasticizer molecules, dropping the effective admixture concentration in the liquid phase.
Formulation Modification: During chemical blending, introduce targeted retarding components (like Sodium Gluconate) or customized defoamers to balance competitive absorption on the cement grain.
Dosage Adjustments & Delayed Addition: Fine-tune the chemical dosage or implement a "delayed addition method" (adding a fraction of the PCE into the mixer truck right before discharge at the job site) to instantly restore lost fluidity.
Precise Compatibility Testing: Every single time you change your cement source, SCM source, or admixture brand, perform comprehensive cement paste fluidity tests in your lab prior to large-scale batching.
With the widespread adoption of smart automated construction, precast systems (such as cast iron half-grouted sleeve connections), and ultra-high pumping pressures for high-strength classes (C60 to C100), the technical role of water reducers has evolved significantly:
Advanced Rheological and Viscosity Control: Pumping concrete up hundreds of meters requires low plastic viscosity alongside high slump. Modern PCE formulations incorporate specialized viscosity-modifying monomers to reduce shear-thinning resistance, preventing pipeline blockages.
Ultra-Low Shrinkage and Crack Mitigation: Low $w/c$ high-strength concrete is highly susceptible to autogenous shrinkage and micro-cracking. Next-generation PCEs act as multi-functional systems that combine water reduction with shrinkage-reducing agents. When paired with magnesium oxide expansive agents or high-performance steel fibers, they form a double-layer crack prevention network.
Green and Low-Carbon Footprint: The construction industry heavily penalizes high embodied carbon materials. Shifting toward bio-based feedstocks over traditional petrochemical sources to create non-toxic, low-energy synthesized green polycarboxylate superplasticizers is now an industry standard.
