Steel Fiber Reinforced Concrete: A New Material for Toughness Upgrade in Modern Infrastructure

Ordinary concrete is the most widely used fundamental material in infrastructure projects, thanks to its high strength, low cost and easy construction. However, its inherent drawbacks — high brittleness, low tensile strength, tendency to crack, poor impact resistance and limited service life — have long restricted the quality upgrading of high-end, heavy-load and long-service-life infrastructure projects.

To address this industry challenge, Steel Fiber Reinforced Concrete (SFRC) has come into being. As a new type of composite building material, it makes up for the performance deficiencies of traditional concrete, and has now become a core upgraded material for roads, bridges, tunnels, water conservancy projects, wind power facilities and UHPC (Ultra-High Performance Concrete) projects.

I. Basic Overview and Reinforcement Mechanism of Steel Fiber Reinforced Concrete

1. Product Introduction

Steel Fiber Reinforced Concrete (SFRC) is a composite construction material produced by uniformly adding an appropriate amount of short steel fibers into ordinary concrete during mixing, followed by pouring and curing. The randomly distributed steel fibers interlock with the cement matrix to comprehensively improve concrete performance, overcoming the inherent limitations of conventional concrete — high compressive strength yet low tensile strength, rigidity lacking toughness.

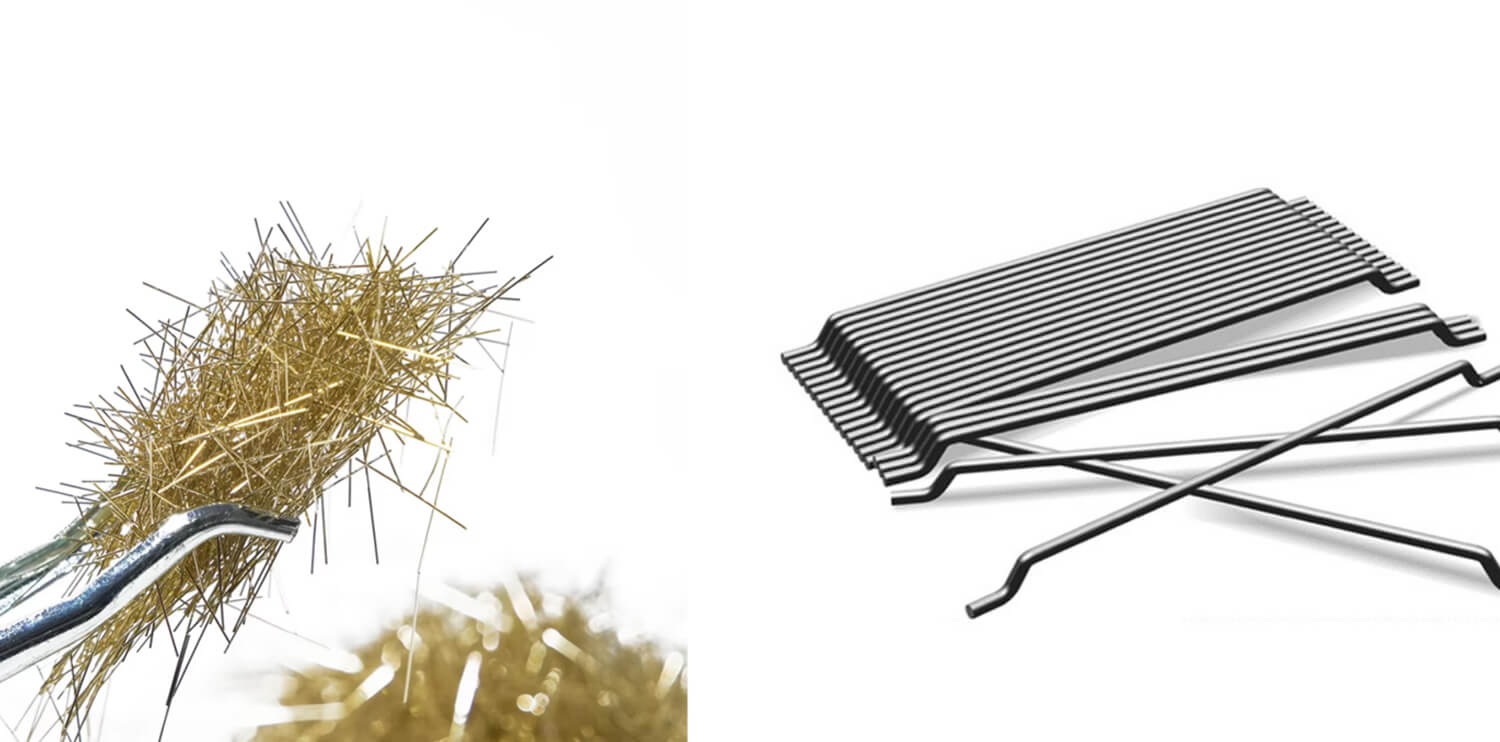

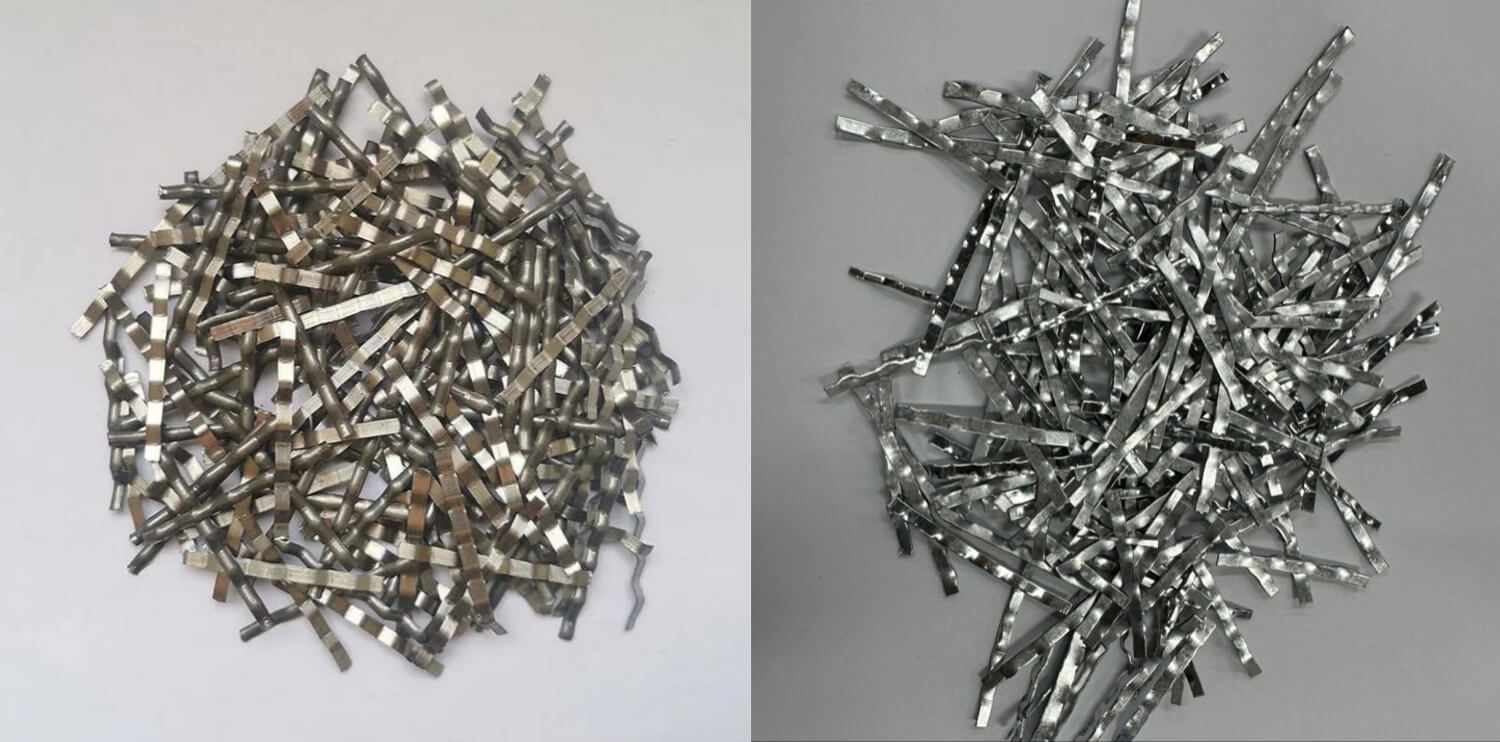

Common types of steel fibers include hooked-end bundled fibers, indented wave-shaped fibers, milled fibers and copper-coated microfilaments. Product selection can be made according to actual working conditions and strength requirements of projects.

2. Reinforcement Mechanism

During hardening and service, concrete tends to develop numerous microcracks due to temperature variation, moisture loss, vehicle loads and other factors. Randomly distributed steel fibers span across cracks and form a stable anchoring system, effectively restraining the initiation, propagation and penetration of cracks.

When the structure is subjected to tension, bending force or impact load, stress is transferred from the brittle cement matrix to high-strength steel fibers, which bear part of the load and prevent sudden fracture and spalling of concrete. This material achieves three major performance improvements: inhibiting microcrack development, enhancing structural toughness and improving overall compactness. It effectively solves common engineering problems such as cracking, delamination, spalling, abrasion and water penetration of concrete.

II. Development History and Current Status of Steel Fiber Reinforced Concrete at Home and Abroad

The research and application of steel fiber reinforced concrete (SFRC) dates back more than a century. In 1907, Russian scholars first attempted to mix metal fibers into concrete, pioneering the research on fiber-reinforced concrete. In 1910, researchers in the United States completed preliminary forming tests on short fiber concrete, verifying the reinforcing effect of steel fibers on concrete. In 1963, overseas scholars formally put forward the Fiber Spacing Theory (Fiber Crack Arrest Theory), which systematically explained the core principles of steel fibers in crack resistance, toughening and reinforcement, laying a solid theoretical foundation for the industry.

From the 1960s to the 1980s, large-scale application of SFRC was realized in Europe and America. The United States took the lead in conducting systematic research on its mechanical properties, mix proportioning and construction technologies. SFRC was widely adopted in the reconstruction and new construction of highway pavements, airport runways and hydraulic structures, greatly improving the fatigue resistance and abrasion resistance of infrastructure.

At present, sound industrial codes, testing standards and construction systems have been established abroad, represented by EN 14889-1 and ASTM A820. Technological innovation focuses on refinement, environmental friendliness and long-term service performance. In Europe, over 70% of tunnel linings use SFRC to replace traditional steel mesh, which significantly simplifies construction procedures and enhances structural safety.

Domestic research on SFRC started in the 1970s. In the early stage, it mainly focused on introducing foreign technologies and conducting fundamental experiments, including research on fiber dosage, applicable working conditions and basic mechanical property tests.

After the 1980s, domestic research institutions and engineering enterprises carried out large-scale tests and practical applications. Construction techniques and mix proportion standards tailored to local infrastructure conditions were gradually formulated, and SFRC was gradually applied to municipal roads and small-scale hydraulic projects.

Since the 21st century, as China’s infrastructure undergoes quality upgrading, conventional concrete can no longer meet the requirements of projects featuring heavy loads, large volume, ultra-long service life and complex operating conditions. The SFRC industry has achieved explosive growth. Four mainstream types of steel fibers — hooked-end bundled fibers, indented wave-shaped fibers, milled fibers and copper-coated fibers — have realized domestic mass production.

Nowadays, steel fibers for concrete are widely used across various fields, including highways and bridges, tunnels and subways, water conservancy and port projects, industrial floors, wind power infrastructure, precast components and high-end UHPC projects. Meanwhile, China has continuously improved national and industrial standards such as GB/T 39147-2020 and YB/T 151-2017, forming a complete industrial chain covering material production, mix design, standardized construction and project acceptance.

III. Core Performance Advantages of Steel Fiber Reinforced Concrete

Compared with ordinary concrete and conventional reinforced concrete, steel fiber reinforced concrete (SFRC) boasts remarkable overall performance, which underpins its extensive application.

1、Superior crack resistance and toughness It effectively restrains various cracks caused by drying shrinkage, temperature shrinkage and applied loads, and eliminates brittle fracture of concrete. The structure can remain integral even after cracking or partial damage, greatly improving structural integrity.

2、Excellent impact and fatigue resistance Capable of withstanding long-term alternating loads such as repeated vehicle rolling, water scouring and vibration impact, it is ideal for frequently stressed areas including road pavements, bridge decks, tunnels and heavy-duty floors, and slows down structural aging and damage.

3、High compactness and durability It optimizes the internal microstructure of concrete and reduces porosity, blocking the ingress of moisture, chloride ions and other harmful substances. The material features enhanced impermeability, frost resistance and corrosion resistance, extending the service life of projects.

4、High construction efficiency and lower overall cost It simplifies construction procedures and shortens the construction period. Meanwhile, it cuts expenses on later-stage crack repairing and renovation, delivering far better cost performance in long-term operation and maintenance than ordinary concrete.

5、Compatibility with concrete of all strength grades Conventional steel fibers work well for ordinary and high-strength concrete, while copper-coated microfilament fibers are applicable to UHPC with a strength of 120–180 MPa. It fully meets the demands of projects ranging from general infrastructure to high-strength engineering works.

IV. Application Scenarios and Engineering Uses

With technological advancement, steel fibers produced by different processes are tailored for specific engineering scenarios. Proper selection can maximize material performance.

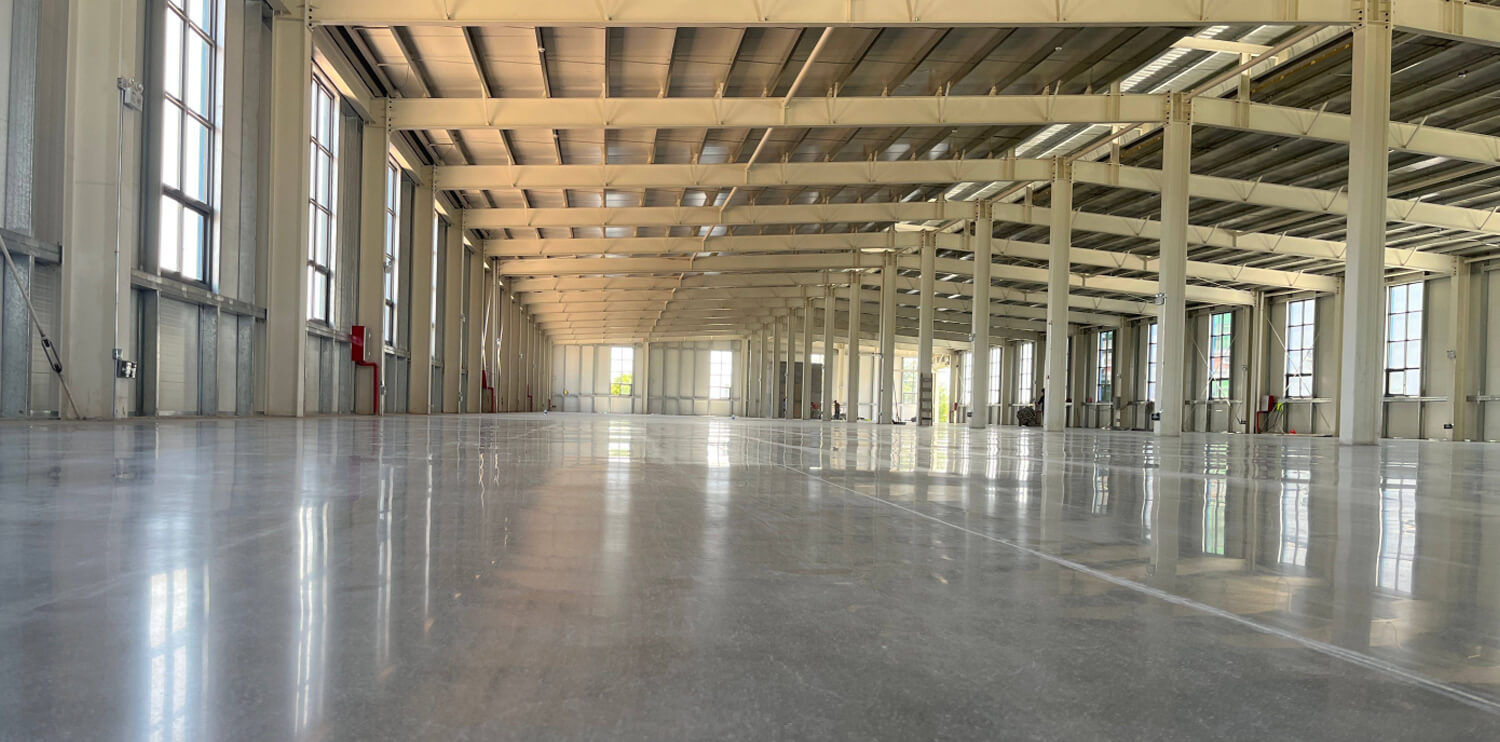

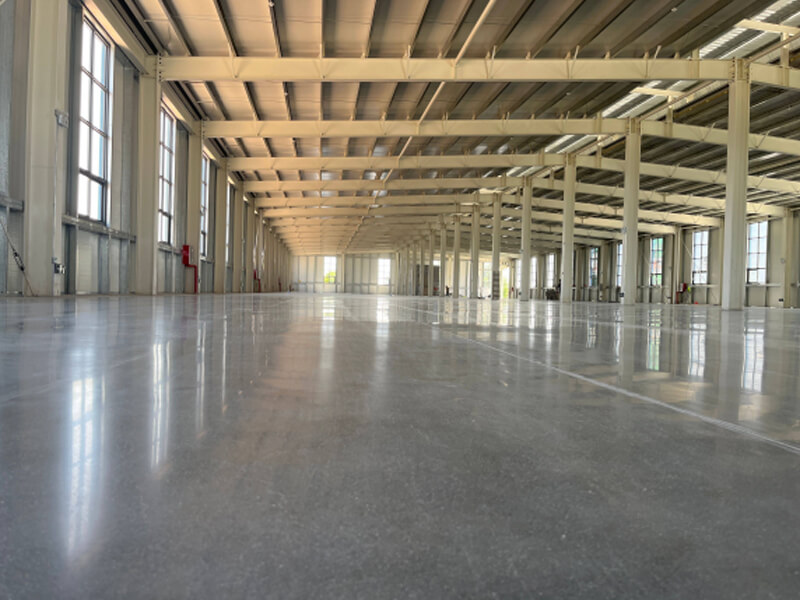

1、Concrete with hooked-end bundled steel fibers Featuring easy construction, no fiber balling and cost-effectiveness, it is suitable for general infrastructure projects such as municipal roads, bridge deck surfacing, heavy-duty factory floors, bridge crash barriers and conventional precast components.

2、Concrete with indented wave-shaped steel fibers It delivers low rebound rate, no pipe clogging and excellent resistance to vibration-induced spalling, making it ideal for shotcrete support works in tunnels, slopes, mines and underground utility tunnels.

3、Concrete with milled steel fibers Possessing strong bonding force, superior heavy-load resistance and fatigue resistance, it is widely used in large-scale projects under extreme loading conditions, including ports, hydraulic dams and heavy industrial equipment foundations.

UHPC with copper-coated microfilament steel fibers Combining ultra-high strength and excellent dispersibility, it is applied to high-performance projects such as bridges, metro tunnels, building curtain walls, high-precision precast components, marine anti-corrosion works and structural reinforcement.

From a century of technological exploration to widespread application across all engineering sectors, steel fiber reinforced concrete has become a core direction for the upgrading of modern concrete materials. It remedies the inherent defects of conventional concrete at the microscopic level. With outstanding crack resistance, toughness, durability and impact resistance, it addresses numerous quality problems plaguing traditional infrastructure.

As China’s infrastructure development shifts from scale expansion to quality improvement, efficiency enhancement and long-term durability, steel fiber reinforced concrete will continue to replace ordinary concrete and partial steel reinforcement structures. It will play an increasingly vital role in high-end infrastructure, new energy projects, marine engineering and ultra-high performance buildings, emerging as a key basic material for the long-lasting, safe and eco-friendly infrastructure of the future.

The steel fiber series from Qiandao New Materials has obtained CE certification for the European market. We deliver products compliant with international standards to support the steady development of the industry.
