Views: 0 Author: QD Material Technical Team Publish Time: 2026-09-10 Origin: Site
A polycarboxylate water reducer—usually called a PCE or polycarboxylate-ether superplasticizer—disperses cement particles so concrete can reach a target consistency with less mixing water. That simple description hides the real selection problem: performance depends on the polymer, cement, supplementary cementitious materials, aggregate fines, temperature, mixing sequence and required delivery time. This guide explains how PCE works, what the standards actually require, and how to qualify a product without relying on an unverified headline dosage.

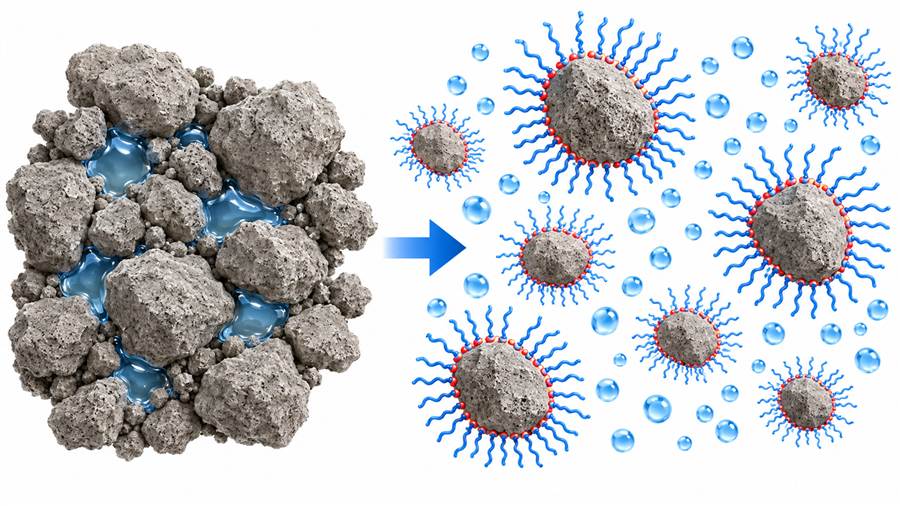

A PCE water reducer is a synthetic, comb-shaped polymer used as a concrete admixture. Its anionic backbone adsorbs on reactive mineral surfaces, while polyethylene-glycol side chains extend into the pore solution. The resulting steric repulsion separates agglomerated cement particles and releases water that had been trapped in the flocculated structure.
This mechanism can produce either of two practical outcomes:
Keep slump or spread approximately constant while reducing water, thereby lowering the water-to-cementitious-materials ratio (w/cm).
Keep water and w/cm constant while increasing workability, which can improve placement and pumping.
PCE is a chemical family, not one universal product. Backbone charge density, side-chain length and density, molecular weight, active solids, defoamer package and slump-retention components can all change field behavior. Therefore, two liquids sold as “PCE superplasticizer” may not be interchangeable at equal mass.
The current active edition listed by ASTM is ASTM C494/C494M-24. It classifies chemical admixtures by measured concrete performance rather than polymer chemistry. The relevant categories are shown below.
ASTM C494 type | Function | Maximum water content versus control* | Setting behavior |
|---|---|---|---|
Type A | Water reducing | 95% | Normal-range limits |
Type D | Water reducing and retarding | 95% | Retarding |
Type E | Water reducing and accelerating | 95% | Accelerating |
Type F | Water reducing, high range | 88% | Normal-range limits |
Type G | Water reducing, high range, and retarding | 88% | Retarding |
*A maximum of 95% means at least 5% less water than the control; 88% means at least 12% less. These are qualification thresholds under the standard's prescribed test conditions—not a promise that every concrete will achieve the same reduction.
ASTM also recommends testing with the actual cement, pozzolan, aggregate, air-entraining admixture, proportions, batching sequence and physical conditions proposed for the work because admixture effects vary with the system. That project-specific clause is one of the most important purchasing requirements.
European projects commonly reference EN 934-2, which also separates water-reducing/plasticizing admixtures from high-range water-reducing/superplasticizing admixtures. Do not treat an ASTM classification as automatic evidence of EN conformity, or vice versa; request the declaration and test documentation required by the project jurisdiction.
PCE adsorption competes with sulfate species during the first minutes of hydration. Differences in cement alkalis, soluble sulfate, C3A reactivity, fineness and temperature can alter initial dispersion, slump retention and set. A product optimized for one cement source may overdilute, lose slump or retard another mix.
Fly ash, slag, silica fume, calcined clay and limestone affect surface area, ionic composition and particle packing. Silica fume has very high surface area and usually raises dispersant demand. Some carbon-rich fly ashes can also alter air-entraining admixture demand, so air content must be checked whenever the binder or admixture package changes.
Clay minerals can consume PCE that would otherwise disperse cement. Peer-reviewed research reports that montmorillonite is especially harmful because PCE can adsorb on its surface and interact with its layered structure. The symptom is often unexpectedly high dosage demand followed by rapid workability loss. Increasing PCE blindly may create cost, set or air problems; first confirm aggregate fines and methylene-blue or equivalent quality indicators specified for the project.
Hot concrete generally hydrates faster and loses workability sooner. Cold conditions can extend retention and setting. Evaluate the intended delivery window at realistic fresh-concrete temperatures—not only in a 20–23°C laboratory.
Adding PCE with all batch water, after initial wetting, or as a split dose can produce different adsorption and dispersion. The correct sequence must be validated at plant scale, then locked into the batching procedure. Never add water at the jobsite to recover slump unless the mixture specification and responsible quality personnel permit it.
Suppose a control concrete uses 180 kg/m³ of water and 400 kg/m³ of cementitious material:
Control w/cm = 180 ÷ 400 = 0.45
If a trial-batched PCE enables a verified 20% water reduction at the same target slump:
Reduced water = 180 × (1 − 0.20) = 144 kg/m³
Revised w/cm = 144 ÷ 400 = 0.36
This is an arithmetic example, not a guaranteed performance value. The revised mix must still be re-proportioned for absolute volume and tested for yield, air, finishability, setting, strength, shrinkage and durability. A lower w/cm often supports higher strength and lower permeability, but the outcome is controlled by the complete mixture and curing—not by the admixture alone.
Start with measurable acceptance criteria. Decide whether the priority is maximum water reduction, extended slump retention, early strength, low viscosity, precast cycle time, self-consolidation or a balance of these. “High performance” is not a specification.
For ready-mix concrete with a long haul, retention and predictable set may matter more than the highest initial spread. For precast concrete, rapid early strength and short mold cycles may justify a faster-reacting grade. For SCC, stability and viscosity must be evaluated together with flow.
Supplier dosages may be stated as liquid product percentage, milliliters per 100 kg of binder, or percentage of cementitious material. Because commercial liquids have different solids contents and densities, equal liquid dosages do not mean equal polymer dosages.
Record at least:
Product density and total solids
Recommended dosage basis and range
Chloride and alkali declarations where relevant
ASTM C494 or EN 934-2 classification and supporting documentation
Compatibility with air entrainers, retarders, accelerators and viscosity modifiers
Storage temperature, shelf life and agitation requirements
The active-solids dose can be normalized as:
PCE solids (% of binder) = liquid dose (% of binder) × solids fraction
For example, 0.80% liquid product at 40% solids supplies 0.32% solids by binder mass. This calculation supports comparison, but it does not replace concrete testing because molecular efficiency differs.
Screen candidate products in paste or mortar only to narrow the field. Final approval should use concrete with production aggregates and the planned batch sequence. Include a control and several doses around the supplier's recommended range; do not extrapolate far outside that range.
Stage | Measurements | Decision supported |
|---|---|---|
Initial fresh concrete | Water, slump/flow, air, temperature, density/yield | Water reduction and immediate compatibility |
Retention intervals | Slump/flow, visual stability and air at specified times | Haul and placement window |
Setting | Initial/final set or penetration resistance | Finishing and production schedule |
Hardened concrete | Early and 28-day strength; project durability tests | Structural and durability compliance |
Plant trial | Real mixer, normal moisture corrections and transport simulation | Production robustness |
Change one primary variable at a time. Otherwise, a simultaneous change in cement, moisture correction and PCE dose can hide the real cause of a result.
There is no reliable universal PCE dosage. Use the supplier's current technical data sheet as the starting envelope and establish the project dose through trials. Overdosing can cause excessive retardation, segregation, bleeding or unwanted air; underdosing can leave the mix harsh and increase water demand.
Calibrate the dispenser for the product's actual density and required batch quantity. Protect liquid PCE from freezing or excessive heat according to the data sheet, keep tanks clean, and use recirculation or agitation only where recommended. Before changing supplier, grade or production lot, check uniformity and repeat the agreed confirmation tests.
Symptom | Likely checks | Practical response |
|---|---|---|
Rapid slump loss | Concrete temperature, cement source, sulfate balance, clay, delayed discharge | Repeat time-based trials; evaluate a retention grade or split dose |
Excessive retardation | Dose, cold temperature, retarding components, accidental double dosing | Verify batch records and dispenser calibration; trial a lower or faster grade |
Segregation or bleeding | Excess water, excess PCE, poor grading, low fines | Correct aggregate/moisture data and redesign stability; do not solve with cement alone |
Unexpected air | PCE/defoamer package, air entrainer interaction, mixing time | Run an admixture-compatibility matrix and verify the air test method |
High dose demand | Clay contamination, changed cement/SCM, low product solids | Test incoming materials and normalize comparisons by active solids |
Pump pressure remains high | Low paste volume, aggregate shape, viscosity, low slump at pump | Assess the full rheology and grading rather than adding PCE automatically |
Ask for evidence that helps your plant reproduce performance:
Which ASTM C494/C494M or EN 934-2 category is supported, and by which test report?
What are the density, solids content, recommended dose basis and tolerance?
Which cementitious systems and temperatures have been evaluated?
Is the product designed primarily for initial dispersion, slump retention or both?
What changes are expected in set, air and early strength?
What incoming quality-control results accompany each lot?
Can the supplier support a trial with the project's actual materials?
These questions are more useful than comparing price per kilogram. The meaningful commercial measure is cost per cubic meter of compliant concrete, including rejected-load risk and production stability.
PCE is a common chemistry used to formulate superplasticizers. “Superplasticizer” describes high-range water-reducing performance; it does not identify one chemistry. Older high-range systems may use sulfonated naphthalene or melamine chemistry.
ASTM C494 high-range Types F and G must meet a test requirement equivalent to at least 12% water reduction under the standard conditions. Actual PCE systems may achieve more, but the value is mixture-specific and must be verified at the target consistency.
Only when the approved mix procedure, project specification and responsible quality personnel allow it. The addition must be measured, mixed for the required revolutions or time, and documented. Uncontrolled redosing risks segregation, retardation and noncompliance.
No. Response eventually reaches a saturation region, while side effects may increase. Clay, temperature or incompatibility can also make extra dose ineffective. Use a dose-response trial instead of assuming a linear relationship.
No product should be assumed universally compatible. ASTM itself recommends testing with the proposed project materials and batching conditions because admixture effects vary.
A polycarboxylate water reducer is most valuable when it is treated as part of a controlled concrete system. Specify the required performance, compare candidates on a consistent basis, test them with actual materials and verify retention at realistic temperature and time. QD Material can support product selection and sample evaluation, but the final dosage and acceptance criteria should always come from documented project trials.
ASTM C494/C494M-24, Standard Specification for Chemical Admixtures for Concrete.
ACI Education Bulletin E4-22, Chemical Admixtures for Concrete.
Lei, L. and Plank, J. Interaction of polycarboxylate-based superplasticiser with clay in Portland cement systems, Advances in Cement Research, 30(6), 2018, 270–276.
EN 934-2: Admixtures for concrete, mortar and grout—Concrete admixtures.
Technical note: Standards, product formulations and project requirements change. Confirm the contract edition of every standard and qualify the complete concrete mixture before production.
