PCE powder for dry-mix mortar gives formulators the dispersing efficiency of polycarboxylate technology in a factory-blended, one-component product. Once water is added on site, the powder dissolves and the polymer disperses cementitious particles. However, its low use level makes weighing, dry-blend uniformity and compatibility at least as important as the polymer itself. This article explains how to formulate, trial and purchase powdered PCE without turning a supplier dosage into an unsupported performance claim.
Powdered PCE is normally produced by converting a liquid polycarboxylate-ether polymer into a free-flowing solid, often through spray drying and subsequent finishing. Commercial products may also contain processing aids or foam-control components. Therefore, “100% powder” does not necessarily mean 100% active polymer, and two grades should not be compared by appearance alone.

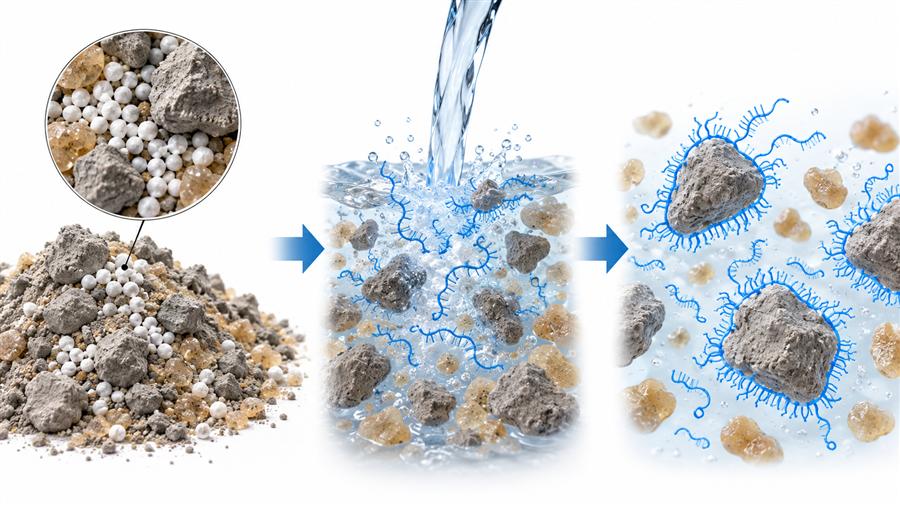

The polymer has a comb-like structure. Its carboxylate-bearing backbone adsorbs on cementitious particles, while solvated side chains create steric repulsion. This breaks down particle agglomerates and releases water trapped inside them, improving flow at a given water content or allowing lower water demand at a defined consistency.
The powder format is especially useful where water cannot be shipped inside the finished product, including:
Self-leveling underlayments and screeds
Cementitious grouts and repair mortars
Tile adhesives and joint fillers
Flowable anchoring and bedding mortars
Gypsum- or cement-based factory blends, if the specific PCE is compatible
It is not automatically the right choice for ready-mixed concrete. Liquid admixtures are easier to meter accurately at concrete-plant scale and allow flexible dosing into the wet batch.
Decision factor | PCE powder | Liquid PCE |
|---|---|---|
Best fit | Bagged dry-mix products | Ready-mix and precast wet batching |
Transport | No carrier water | Includes water and requires tanks/IBC handling |
Dosing | Very small dry mass may challenge accuracy | Pump or dispenser can meter larger liquid volume |
Formulation | Ships inside the one-component blend | Added separately during wet mixing |
Main production risk | Segregation and micro-dosing error | Pump calibration, freezing or liquid contamination |
Adjustment on site | Fixed once the dry product is packed | Plant can adjust within approved mix limits |
Do not convert a liquid product into a powder dosage using solids content alone. Spray-drying history, molecular design, carrier materials and dissolution behavior can change performance. Qualification must compare equal mortar outcomes, not merely equal nominal polymer mass.
Published manufacturer ranges are broad because applications differ. For example, Arkema's ETHACRYL DM technical data sheet gives a recommended addition level of 0.05–1.00% of binder mass for its specific powder. Sika describes ViscoCrete-556 P EU as a powder PCE for dry-mix mortar with fast adsorption, high initial flow and extended processing time, but its current product data sheet must be consulted for the application-specific dose.
These are product-specific references, not universal limits. A simple batch calculation shows why plant accuracy matters.
Assume a 1,000 kg dry-mix batch contains 300 kg of binder. A laboratory-approved PCE dose is 0.15% of binder:
PCE powder = 300 kg × 0.0015 = 0.45 kg
The dose is only:
0.45 ÷ 1,000 × 100 = 0.045% of the total dry mix
If the feeder adds 50 g too much, the actual dose becomes 0.50 kg—an 11.1% dosing error relative to the target. A scale suitable for bulk cement may therefore be unsuitable for PCE. Use a validated micro-feeder, a properly designed additive premix, or another proven dilution method.
Direct addition can work when the mixer, batch size and feeder can distribute the powder consistently. For very low doses, preblending PCE with a compatible portion of fine mineral filler may improve distribution. The premix carrier and ratio must be validated because moisture, particle size and surface chemistry can affect flow and storage.
Never assume that longer mixing always improves uniformity. Excessive mixing can promote particle segregation, damage fragile ingredients or increase temperature. Establish the required sequence and time using mixer-uniformity sampling.

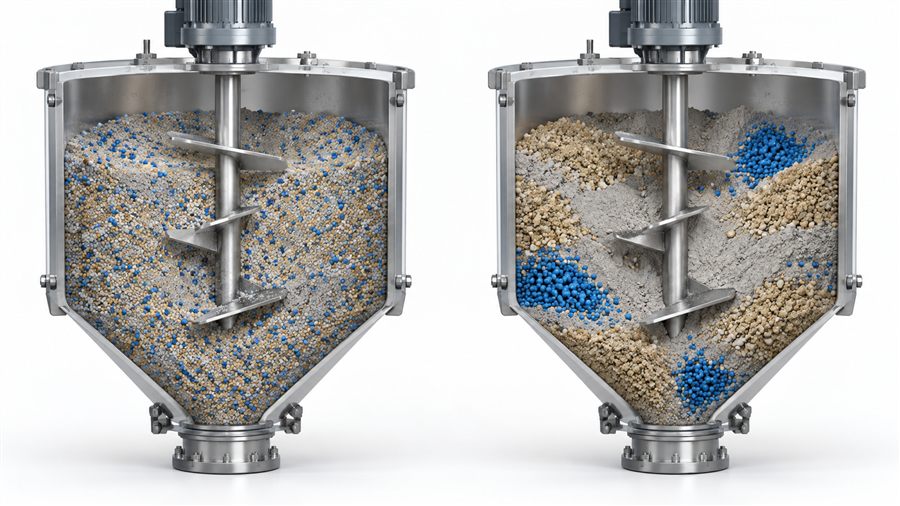

Dry-mix mortar combines coarse sand, fine cement, fillers and additives with very different particle sizes and densities. Powder segregation can occur during blending, discharge, pneumatic transport, silo storage and bag filling. A free-flowing PCE grade reduces handling problems, but it does not eliminate system-level segregation.
Check:
Bulk density and particle-size information supplied for the PCE
Flowability and tendency to bridge in the selected feeder
Moisture and caking after the intended storage period
Additive recovery from the mixer, conveyor and dust collector
Uniformity among early, middle and late discharge samples
Humidity can cause caking, poor feeding and local concentration. Keep packages sealed, store them under the supplier's stated temperature and humidity conditions, and use opened material within the documented period. Do not reprocess hardened lumps without supplier approval.
Dry-mix mortars are multi-additive systems. PCE response should be evaluated with every functional ingredient present.
Cellulose ether improves water retention and modifies viscosity, but it can reduce spread and change air content. Increasing PCE to recover flow may then alter set or stability. The correct balance depends on cellulose type, viscosity grade and dosage.
RDP can improve flexibility and adhesion in suitable mortars, while also changing entrained air and rheology. Some combinations produce a smooth, stable mix; others become sticky or over-aerated. Measure fresh density and air rather than judging only by hand feel.
Spray-dried PCE may introduce or stabilize air, depending on its formulation. Defoamer can reduce large bubbles but may also harm workability or surface quality if overdosed. Air should be optimized for the product function: a lightweight render and a high-strength grout do not have the same target.
Calcium formate, lithium salts, aluminates, gypsum chemistry and organic retarders may alter dissolution, setting and early strength. A compatible initial flow does not prove compatible hardening. Record both consistency over time and setting/strength.
Portland cement source, calcium aluminate cement, gypsum, slag, fly ash, silica fume, limestone and calcined clay all change surface area and pore-solution chemistry. Research consistently shows that PCE performance depends on molecular structure, charge density, binder mineralogy and dosage. Requalify when a major binder source changes.
Prepare the full formulation without PCE. Record water required for the target consistency, mixing time, temperature, fresh density, air, setting and strength. A reference reveals whether PCE solves a real water-demand problem or merely masks poor grading.
Test at least three PCE levels around the supplier's starting recommendation while keeping other ingredients constant. Measure flow immediately and at the required working times. Look for the point where additional powder gives little extra flow or begins to cause separation, delayed set or excess air.
After identifying the responsive range, lower water in controlled increments until the required performance envelope is reached. Do not report “water reduction” by comparing mortars at different consistencies. Hold the defined flow or penetration criterion constant.
Repeat trials at the minimum and maximum use temperatures, with realistic mixing equipment and water hardness. Test the expected extremes of cement source, sand moisture and additive tolerances. A formulation that works only at one laboratory condition is not production-ready.
Property | Purpose | Example test framework* |
|---|---|---|
Flow or consistency | Quantifies initial dispersion and retention | ASTM C1437 or relevant EN 1015 method |
Fresh density | Detects air or batching variation | EN 1015-6 or product-specific method |
Air content | Separates true flow improvement from aeration | EN 1015-7 or approved equivalent |
Setting time | Confirms finishing and return-to-service window | Project-selected mortar method |
Flexural/compressive strength | Checks water reduction and hardening outcome | ASTM C109/C109M or EN 1015-11 as applicable |
Dimensional change | Important for grouts and self-levelers | Application-specific standard |
Adhesion or abrasion | Required for tile, repair or flooring products | End-use product standard |
*Use one defined method, specimen geometry and curing regime for comparison. These methods are not interchangeable, and not every method applies to every mortar.

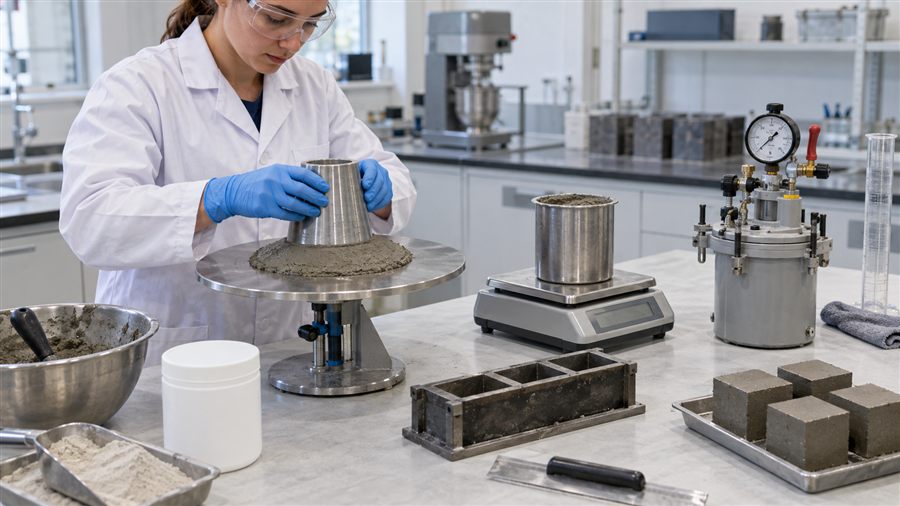

A robust control plan covers both the incoming PCE and the finished mortar.
For incoming powder, verify product identity, lot number, appearance, moisture or loss on drying where agreed, bulk density and a reference-mortar performance test. For production, monitor feeder calibration, scale resolution, mixing sequence, mixer fill level and discharge uniformity.
Sample the finished blend at multiple discharge positions. A practical uniformity study can compare flow, fresh density and strength of specimens prepared from beginning, middle and end samples. The acceptance limits should be based on process capability and end-product specifications, not invented after a batch fails.
Maintain traceability from the PCE lot to each finished-product lot. If a complaint occurs, retain enough sealed sample to reproduce the mortar under the printed water demand and mixing instructions.
Symptom | Checks to prioritize | Corrective direction |
|---|---|---|
Large bag-to-bag flow variation | Feeder accuracy, segregation, mixer fill and sampling | Validate micro-dosing and mixer uniformity |
Good initial flow, rapid stiffening | Binder change, temperature, dissolution and sulfate balance | Trial a retention-oriented grade or adjust the system |
Excessive set delay | PCE dose, retarder interaction, low temperature | Confirm actual dose and run time-of-set trials |
Surface pinholes or low density | Entrained air, PCE/defoamer/RDP interaction | Optimize foam control using density and air tests |
Bleeding or edge separation | Excess water or PCE, poor grading, low viscosity | Reduce to the validated dose and redesign stability |
Weak early strength | Excess water/air, retardation or curing | Diagnose fresh density, water and setting before changing cement |
Caking in storage | Moisture ingress, packaging or high humidity | Improve barrier packaging and storage control |
Is the stated dosage based on binder mass or total dry-mix mass?
What are the active content, moisture, bulk density and particle characteristics?
Does the powder include defoamer or other functional components?
Which cement, gypsum and calcium-aluminate systems have been evaluated?
What are the recommended storage conditions, shelf life and packaging barrier?
Can the supplier provide lot-specific QC and a reference-mortar method?
Is the grade optimized for initial flow, retention, early strength or low air?
Compare suppliers by cost per tonne of compliant finished mortar, not price per kilogram of additive alone.
There is no universal dosage. One commercial technical data sheet gives 0.05–1.00% of binder for its specific product, but the correct range depends on active content, binder, water demand and other additives. Begin within the supplier's range and confirm a dose-response curve.
Adding a water-based liquid to a dry product can cause agglomeration, premature reactions and poor storage stability. Use a purpose-designed powder unless the manufacturing process has been engineered and validated for liquid addition.
Common causes include PCE segregation, feeder error, cement variability, sand grading or moisture, water temperature, mixing energy and air-content changes. Compare fresh density and retained samples before blaming the polymer lot.
No. Once the system approaches saturation, extra PCE may add little flow while increasing retardation, air or separation risk. Water reduction must be measured at equal consistency.
Only if the supplier recommends both systems and trials confirm performance. Gypsum chemistry and setting control differ substantially from Portland-cement mortar.
PCE powder makes high-efficiency water reduction practical in one-component dry-mix mortar, but successful use depends on micro-dosing, powder uniformity and whole-formulation compatibility. Define the required mortar performance, run a controlled dose-response program, verify the real mixer and maintain lot traceability. QD Material can support grade screening and formulation trials; production settings should be released only after documented plant validation.
ASTM C1437, Standard Test Method for Flow of Hydraulic Cement Mortar.
ASTM C109/C109M, Compressive Strength of Hydraulic Cement Mortars.
Structure–property relationships for PCE superplasticizers, Journal of Colloid and Interface Science, 2019.
Technical note: Formulations, supplier products and standards change. Confirm current documents and qualify the complete mortar under its intended manufacturing, storage and use conditions.
