Views: 0 Author: Qiandao Technical Team Publish Time: 2026-09-09 Origin: Hubei Qiandao New Materials Co., Ltd.
Ultra-high-performance concrete, or UHPC, is a class of dense, fiber-reinforced cementitious composite with exceptional compressive strength, low permeability and sustained resistance after tensile cracking. It is not simply conventional concrete with more cement. UHPC performance comes from optimized particle packing, a very low water-to-binder ratio, effective chemical admixtures, controlled mixing and a high volume of well-dispersed fibers.
That distinction matters. A mixture can reach a high cube strength and still lack the tensile behavior, durability, flow or production consistency required for structural UHPC. Engineers should specify measurable performance rather than rely on the product name.
Quick answer: UHPC commonly reaches 140–200 MPa compressive strength, 6–10 MPa tensile cracking strength and 40–70 GPa elastic modulus in published FHWA data. However, the required values depend on the governing specification, test method, curing regime and structural application. Direct-tension behavior and fiber distribution can be more important than compressive strength alone.
There is no single worldwide strength threshold. Several respected documents use different scopes:
The classic FHWA UHPC TechNote describes UHPC with compressive strength above 150 MPa and sustained post-cracking tensile strength above 5 MPa.
ASTM C1856/C1856M-24 applies its specimen-fabrication and testing procedures to UHPC with specified compressive strength of at least 120 MPa, nominal maximum aggregate below 5 mm and modified flow-table spread of 200–250 mm.
ACI PRC-239.1-24 defines UHPC broadly through performance beyond conventional and high-performance concrete, including low permeability, high compressive strength and sustained post-cracking tensile resistance.
Therefore, “UHPC” should never be accepted as a complete specification. State the required compressive, tensile, durability and fresh-property criteria, together with test ages and methods.
The FHWA state-of-the-art report summarizes ranges available for structural consideration. These are orientation values, not automatic project design properties.
Property | FHWA published range | Why it matters |
|---|---|---|
Compressive strength | 140–200 MPa | Enables high local stress resistance and slender members. |
Tensile cracking strength | 6–10 MPa | Controls first cracking and service response. |
Elastic modulus | 40–70 GPa | Affects deflection, prestress loss and load distribution. |
Poisson’s ratio | About 0.20 | Used in elastic analysis. |
Coefficient of thermal expansion | 10–15 × 10⁻⁶/°C | Governs restrained thermal movement and interface behavior. |
One FHWA field-cast connection study reported an average 28-day compressive strength of 165 MPa, direct-tension cracking strength of 8.5 MPa, modulus of 48 GPa and thermal expansion of 14.7 × 10⁻⁶/°C. The same material contained 2% steel fibers by volume. See FHWA-HRT-14-084.
These data illustrate one qualified material. They do not define every UHPC formulation.
UHPC combines several mechanisms. Removing any one of them can change the whole response.

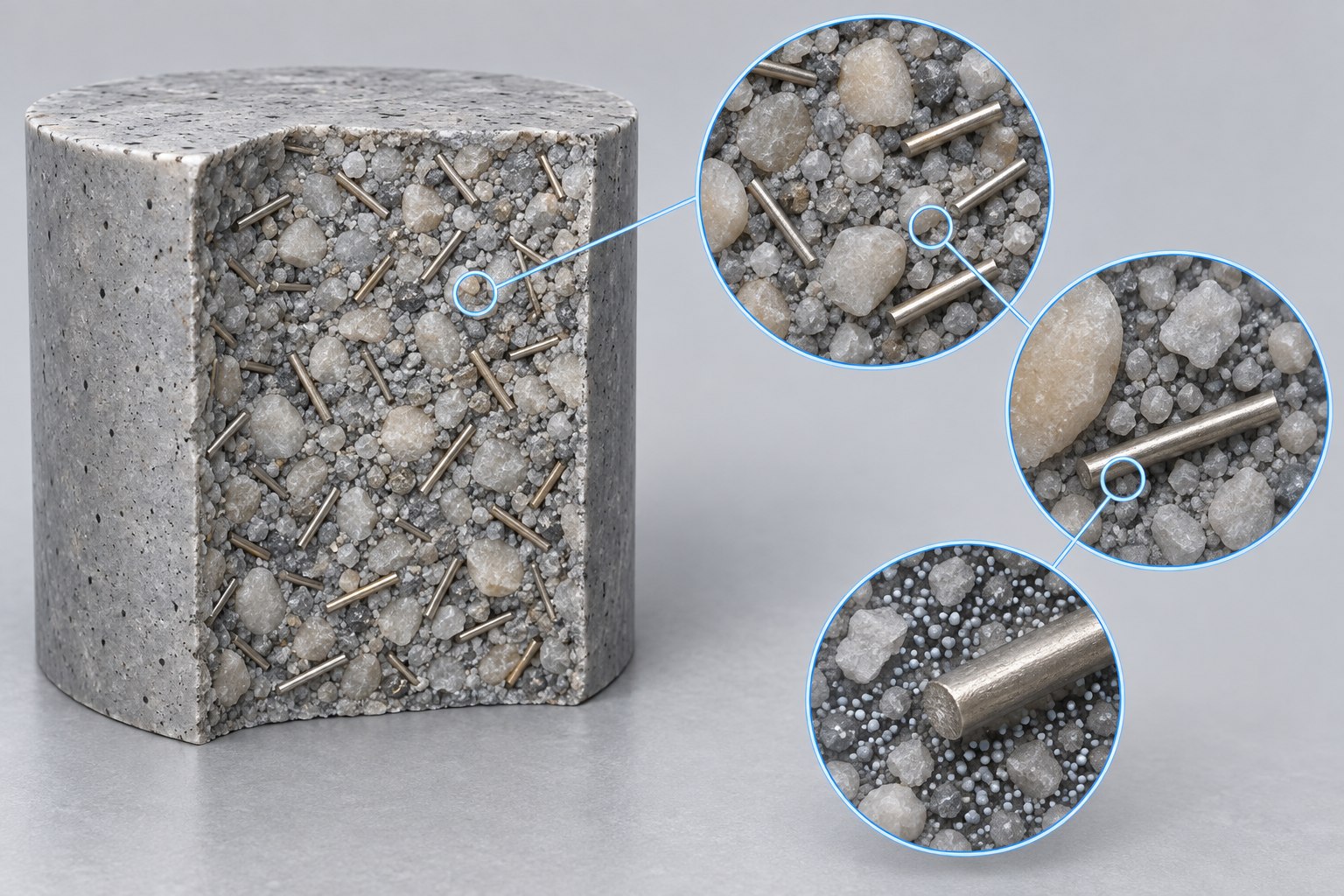

Conventional concrete contains relatively large coarse aggregate surrounded by mortar. Many UHPC mixtures instead use carefully graded fine sand, cement, supplementary cementitious materials and inert fillers. Progressively smaller particles fill spaces between larger particles. This lowers connected porosity and supports a dense matrix.
ACI PRC-239.1-24 states that coarse aggregate above 5 mm is not commonly included. It also reports that UHPC water-to-binder ratios are usually between 0.15 and 0.25.
A low water-to-binder ratio reduces capillary pore connectivity after hydration. However, the mixture would be unworkable without a compatible high-range water-reducing admixture. Water reduction alone does not create UHPC; the powder grading and admixture-binder interaction must also work.
Silica fume often fills small voids and reacts pozzolanically with calcium hydroxide. Slag, fly ash, calcined materials, limestone powder, quartz flour and other constituents may also be used. Their roles differ, so substitution by mass without trials can damage flow, setting, shrinkage or strength.

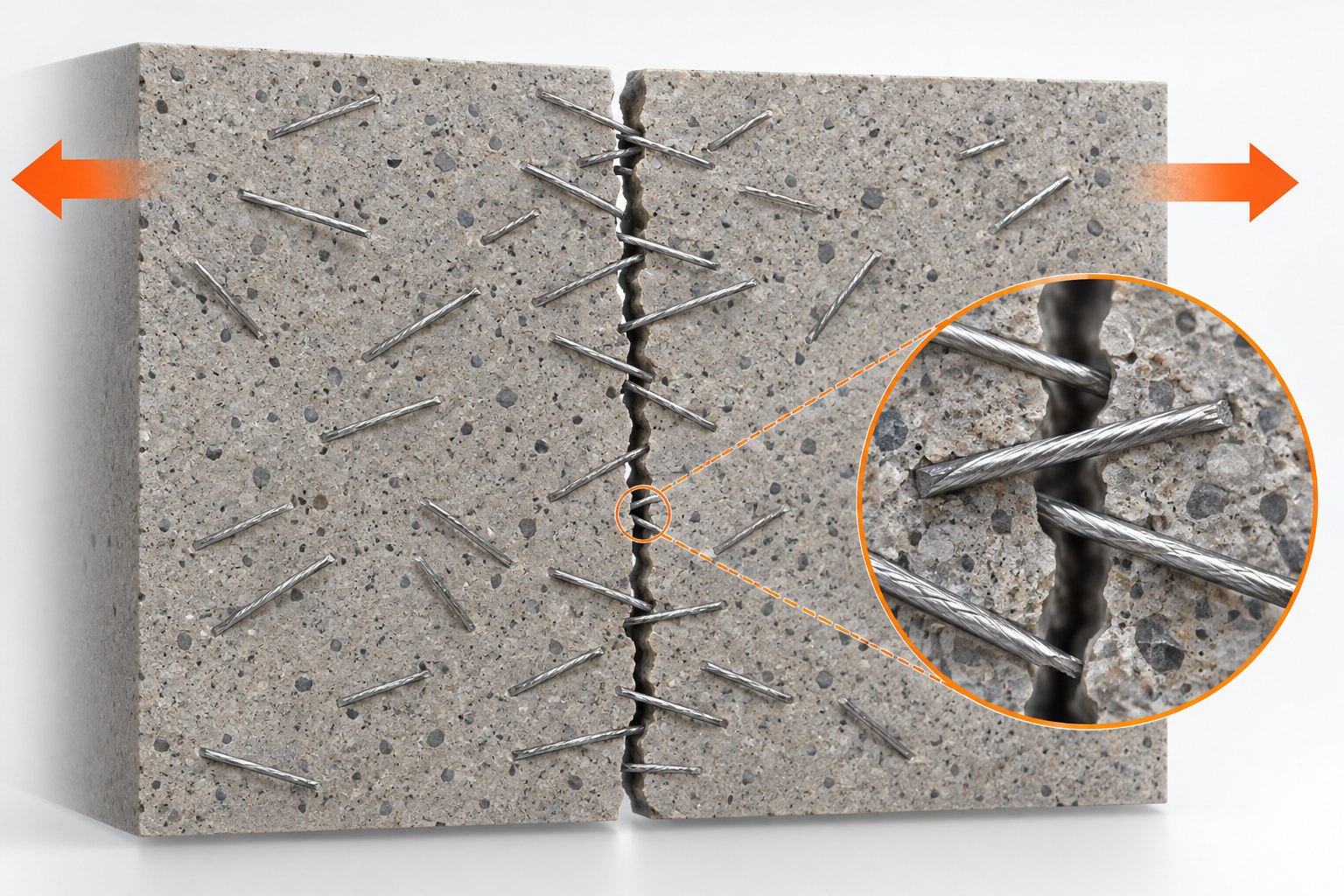

Fibers bridge cracks and transfer tensile stress after the matrix cracks. ACI PRC-239.1-24 notes that fiber content frequently exceeds 1.5% by volume. Structural UHPC commonly uses high-strength steel microfibers, although other fiber types may suit specialized applications.
Fiber type, length, aspect ratio, strength, volume, orientation and bond all matter. Two mixtures with the same fiber percentage can deliver different tensile behavior.
FHWA characterized one proprietary reactive-powder UHPC with the following composition. The values are useful for understanding scale, but they must not be copied as an unvalidated production formula.
Constituent | Reported quantity | Percentage by mass |
|---|---|---|
Portland cement | 712 kg/m³ | 28.5% |
Fine sand | 1,020 kg/m³ | 40.8% |
Silica fume | 231 kg/m³ | 9.3% |
Ground quartz | 211 kg/m³ | 8.4% |
Superplasticizer | 30.7 kg/m³ | 1.2% |
Accelerator | 30.0 kg/m³ | 1.2% |
Steel fibers | 156 kg/m³ | 6.2% |
Water | 109 kg/m³ | 4.4% |
The source, FHWA-HRT-06-103, identifies 150–600 μm fine sand and 12.7 mm long, 0.2 mm diameter fibers for that specific system. Modern proprietary and nonproprietary UHPC mixtures can use different constituents and curing regimes.
Cement chemistry, silica fume quality, sand grading, moisture, mixer energy, admixture compatibility and fiber geometry all affect performance. A laboratory formula may also scale poorly in a different mixer. Consequently, every proposed mixture needs qualification testing with the production materials and equipment.
Conventional unreinforced concrete loses tensile capacity rapidly after cracking. Fiber-reinforced UHPC can sustain or increase tensile stress while multiple fine cracks form. Later, one crack localizes and widens as fibers pull out or rupture.
This tensile response supports compact connections, thin elements and improved crack control. However, it is not guaranteed by compressive strength. A designer needs a validated stress-strain or stress-crack-opening relationship from the required test method.
Fresh UHPC flow tends to align fibers. Form geometry, casting direction, flow distance and obstruction by reinforcement can create preferred orientations or fiber-poor zones. Small laboratory prisms may therefore outperform the actual component.
Qualification should reproduce the intended mixer, fiber addition, placement direction and member geometry. For critical work, cores, sawn specimens or nondestructive fiber-orientation methods may supplement standard samples.
UHPC’s discontinuous pore structure strongly limits fluid and ion ingress. In the FHWA field-cast connection data, untreated material recorded 360 coulombs at 28 days in an ASTM C1202 test. Heat-treated or later-age specimens in another FHWA program achieved less than 100 coulombs. These results indicate very low to negligible electrical charge passed under that method. See the FHWA UHPC waffle-deck design guide.
Still, ASTM C1202 is an electrical indication test. UHPC chemistry and conductivity can affect the result. Use the durability tests required by the owner and exposure class rather than relying on one coulomb value.
Low chloride and water ingress when properly mixed and cured
Strong freeze–thaw performance in qualified formulations
High abrasion resistance
Small crack widths before localization
Reduced reinforcement exposure in well-designed sections
Autogenous shrinkage and restrained early-age cracking
Poor bond at smooth or contaminated interfaces
Fiber corrosion at exposed cut surfaces, depending on fiber and exposure
Fire spalling in dense matrices without an approved mitigation strategy
Galvanic or staining concerns from exposed steel fibers in architectural work
Inadequate curing during the first hours
Long service life must be demonstrated by the entire detail, not the matrix alone.

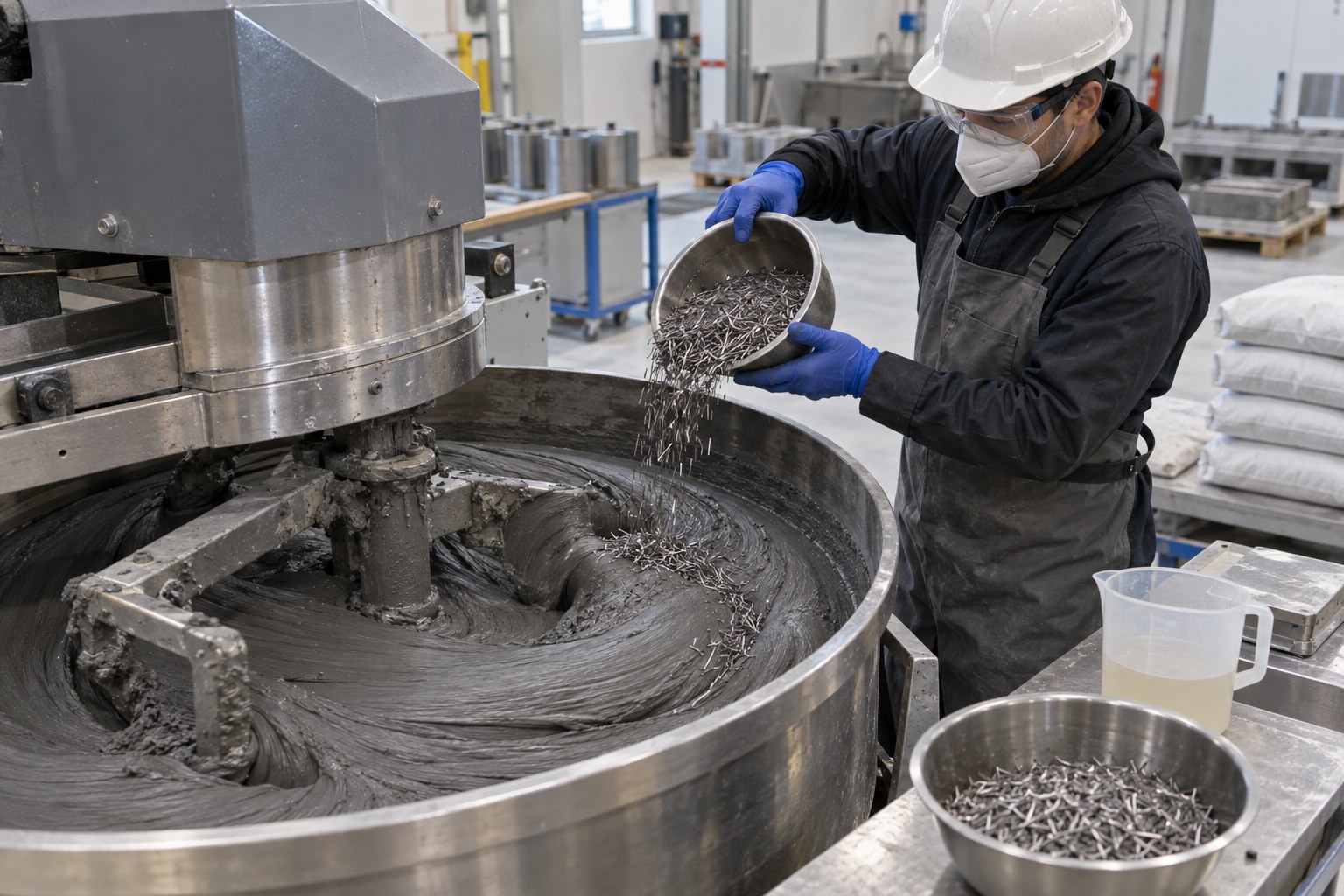

UHPC needs more mixing energy than conventional concrete. The dry powders may initially appear stiff or granular. After sufficient dispersion and admixture activation, the mix can change rapidly into a cohesive, fluid paste.
A robust production sequence includes:
Verify constituent lots, moisture corrections and calibrated scales.
Condition powders, water, admixtures and fibers within the approved temperature range.
Dry-blend the powder constituents as specified.
Add water and high-range water reducer in the qualified sequence.
Continue mixing until the matrix becomes uniform and reaches the required rheology.
Add fibers gradually to prevent balls and clusters.
Mix only long enough to disperse the fibers without overheating the batch.
Test static and dynamic flow before placement.
The exact order and time are mixture-specific. FHWA’s reference program added fibers over two minutes after the matrix converted to paste, then mixed for one additional minute. That procedure describes the tested system, not a universal instruction.
Mixer friction can raise UHPC temperature. Warm material may lose flow quickly and develop surface crusting. FHWA field guidance notes that keeping materials around 10–16°C can help during hot-weather work and warns that flow may decline when mixed UHPC exceeds about 26.7°C. Project limits should come from preconstruction trials and the supplier’s procedure.
Many UHPC mixtures flow without conventional vibration. Excessive vibration can change fiber distribution or promote segregation. Place continuously with a defined flow path, and minimize free fall or abrupt direction changes.
For field-cast bridge connections, FHWA guidance emphasizes that overly stiff material may not fill the detail, while overly fluid material can segregate fibers toward the bottom. Flow tests must therefore verify both mobility and stability.
Finish exposed surfaces promptly. UHPC has little bleed water, so evaporation can dry the surface early. Protect it from wind and sun, then apply the qualified curing system without delay.
Heat curing can accelerate hydration and pozzolanic reaction. In one FHWA study of a specific proprietary UHPC, average 28-day compressive strengths were:
193 MPa after steam treatment
171 MPa after delayed steam treatment
171 MPa after tempered steam treatment
126 MPa without heat treatment
The same study found that steam-treated material reached its full compressive strength within four days. See FHWA-HRT-06-103 conclusions.
These values demonstrate curing sensitivity. They do not prove that every UHPC needs steam curing. Many modern products achieve specified field performance under ambient or accelerated non-steam regimes. Specify the actual curing procedure used for qualification and construction.
ASTM C1856/C1856M-24 modifies conventional concrete procedures for UHPC specimen fabrication and testing. This is important because standard rodding, cylinder preparation or loading assumptions may not suit a highly flowable, fiber-rich material.
Static and dynamic flow, including visual stability
Setting time and temperature development
Compressive strength at form removal, transfer, loading and design ages
Direct tensile response or the approved tensile-performance test
Elastic modulus and Poisson’s ratio where required
Shrinkage, creep and thermal expansion
Chloride transport, freeze–thaw or other exposure tests
Bond to the actual prepared substrate
Constituent mass and aggregate-moisture correction
Mixer type, batch size, sequence and total mixing energy
Fiber lot, mass, geometry and addition time
Fresh UHPC temperature and ambient conditions
Initial and dynamic spread for every required batch frequency
Placement direction, flow distance and visual fiber stability
Curing start, duration, temperature and moisture protection
Specimen identification and curing history
Do not qualify only compressive cubes. Tensile response, fiber distribution and durability often control the structural value of UHPC.
UHPC is most effective when its full property set changes the design or construction method.

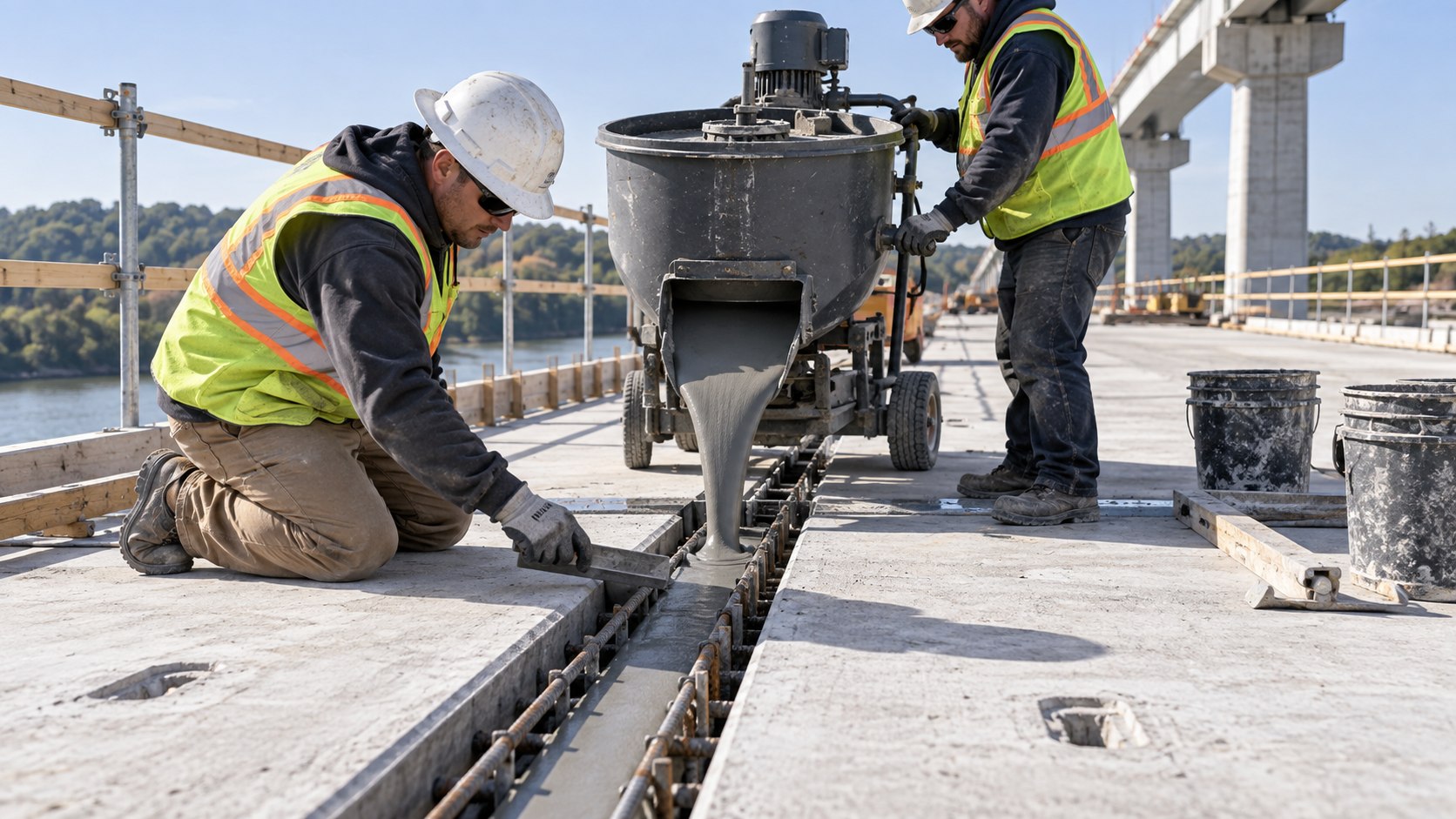

Short lap lengths, strong bond and high tensile resistance can create compact closure pours between precast bridge elements. The connection must still be designed and detailed under an accepted method.
Thin UHPC overlays can add abrasion resistance and limit chloride ingress. Bond preparation, moisture condition and restrained shrinkage remain critical.
High compressive and tensile capacity can reduce section size and self-weight. Prestress transfer, fire resistance, local stability and production tolerances may govern.
Fine particles reproduce detailed molds and sharp edges. Designers must address exposed fibers, color uniformity and surface repair procedures.
Fiber bridging and high matrix strength can improve energy absorption. Performance should come from full-scale or application-relevant testing, not material strength alone.
The 2024 AASHTO Guide Specifications for Structural Design with UHPC provide a current bridge-design framework. Building and non-bridge applications still require the engineer to establish an approved design basis.
UHPC uses specialized powders, admixtures, fibers and production controls. Material cost per cubic meter is therefore higher than conventional concrete. Yet unit price alone can mislead.
Potential lifecycle value comes from smaller volumes, faster connections, reduced reinforcement congestion, longer maintenance intervals and improved durability. Conversely, UHPC adds cost when a design uses it as a direct volume-for-volume substitute without exploiting its properties.
Other limitations include:
Longer or more energy-intensive mixing
Sensitivity to small water and admixture changes
Need for tensile characterization
Fiber-orientation effects
High autogenous shrinkage in some mixtures
Limited repair options after incorrect placement
Specialized design and inspection knowledge
Use a project-specific value analysis rather than a price-per-ton comparison.
No. High compressive strength alone does not establish UHPC performance. UHPC also depends on dense microstructure, low permeability and meaningful tensile resistance after cracking.
Most structural UHPC uses steel microfibers, but ACI recognizes other metallic and nonmetallic fibers for suitable applications. The specified tensile response matters more than the generic fiber label.
ACI PRC-239.1-24 states that UHPC commonly uses a water-to-binder ratio between 0.15 and 0.25. The approved mixture determines the exact value.
Some equipment may produce an acceptable qualified batch, but UHPC generally needs high mixing energy and careful sequencing. Demonstrate uniformity, temperature, flow and fiber dispersion at production scale.
No. Heat curing can accelerate and enhance properties, but many field-cast systems use qualified ambient curing. Use the same curing basis for testing, design and construction.
Not as a universal rule. Some details can reduce conventional reinforcement because fibers carry tension across cracks. The structural designer must verify every limit state under an accepted UHPC design method.
Specify ultra-high-performance concrete through performance and process. Define fresh flow, compressive strength, tensile response, durability, curing, geometry and acceptance tests. Then qualify the actual constituents, mixer, crew and placement sequence.
Most importantly, connect laboratory results to the finished member. Fiber orientation, interfaces, curing and field variability determine whether UHPC’s exceptional material properties become reliable structural performance.
Technical note: This article provides general engineering information. The governing code, owner specification, approved design method, project drawings and qualified UHPC mixture take precedence.
American Concrete Institute, ACI PRC-239.1-24: What is UHPC?.
ASTM International, ASTM C1856/C1856M-24.
Federal Highway Administration, Ultra-High Performance Concrete, FHWA-HRT-11-038.
Federal Highway Administration, UHPC State-of-the-Art Report, FHWA-HRT-13-060.
Federal Highway Administration, Material Property Characterization of UHPC, FHWA-HRT-06-103.
Federal Highway Administration, Design and Construction of Field-Cast UHPC Connections, FHWA-HRT-14-084.
AASHTO, Guide Specifications for Structural Design with UHPC, First Edition, 2024.
