Bridges are the lifelines of transportation networks. Yet around the world, a vast number of bridges are aging—expansion joints are failing, deck pavements are deteriorating, piers are corroding, and structural load-bearing capacity is declining. These problems not only threaten traffic safety but also impose enormous maintenance costs.
Studies show that the repair and replacement costs caused by bridge deterioration are staggering, and broken steel beams protruding from joints pose serious safety risks to vehicles. Traditional expansion joints, due to the inadequate mechanical properties and durability of their anchoring materials, often cause degradation of the underlying bridge structure, creating further safety hazards.
Meanwhile, conventional strengthening methods—such as section enlargement, steel plate bonding, and crack injection—generally suffer from limited reinforcement effectiveness, poor durability, and lengthy construction schedules. The emergence of UHPC ultra-high performance concrete is fundamentally changing this landscape.
Ultra-High Performance Concrete (UHPC) is widely recognized as "the most innovative cement-based engineering material of the past 30 years," thanks to its exceptional comprehensive performance. The following core parameters give UHPC unparalleled advantages in bridge strengthening:
Mechanical Properties: UHPC compressive strength reaches 120–200 MPa — 3 to 7 times that of ordinary concrete; UHPC flexural strength can exceed 30 MPa; UHPC elastic modulus ≥40 GPa. A mere 5 cm thick UHPC layer can effectively replace 25 cm of traditional concrete.
Durability: UHPC's chloride diffusion coefficient is extremely low, providing excellent impermeability.
Interface Bonding: UHPC exhibits outstanding bond strength with existing concrete substrates. By optimizing the cementitious material system and steel fibre content, the tensile bond performance of UHPC can be reliably ensured to meet design requirements.
Rapid Hardening: Rapid repair UHPC can achieve 70% of design strength within 24 hours of demoulding, reducing production cycles by 60% compared to traditional precast methods.

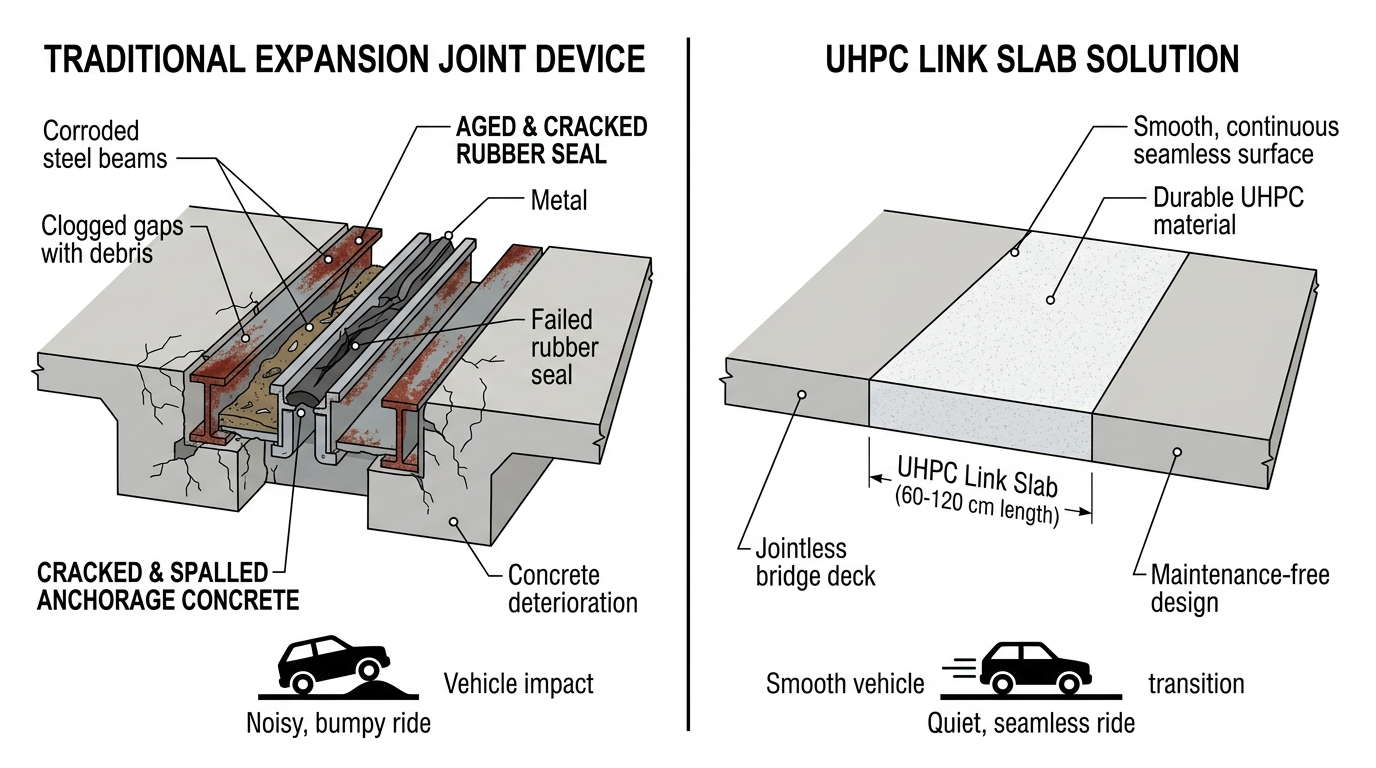

Conventional jointed bridges require expansion gaps and installed expansion devices at abutments, piers, and between girders to accommodate thermal movement. However, traditional expansion devices commonly suffer from: broken steel beams, blocked gaps, aged and detached rubber seals, cracked and spalled concrete in the anchorage zones, and the "vehicle bump" problem at joints.
UHPC link slabs directly connect adjacent bridge deck panels, creating a seamless deck surface. UHPC, with its high tensile strength and excellent toughness, can directly withstand tensile stresses from thermal movements and vehicle loads.
The technical advantages are significant:
Length Reduced by Over 50%: UHPC link slabs require only 60–120 cm in length, whereas ordinary concrete needs 180–270 cm.
Thinner Cross-Section: UHPC link slabs can be made thinner with reduced reinforcement requirements.
Adaptability to Complex Loading: UHPC link slabs better accommodate complex spatial stress conditions on bridge decks, with short construction periods and minimal traffic disruption.
Orthotropic steel bridge decks face two persistent problems: "steel structure fatigue cracking" and "deck pavement layer damage." Traditional repair methods only address symptoms, not root causes.
Tests have confirmed that adding a UHPC overlay to steel bridge decks effectively improves fatigue life without cracking. The UHPC overlay can limit cracks to below 0.1 mm. Compared with traditional pavement layers, its cracking strength increases by 295% to 395%, and flexural bearing capacity increases by 35% to 75%.
Bridge piers often suffer from reduced load-bearing capacity due to corrosion, cracking, voids, and other defects. Traditional strengthening methods like section enlargement are complex to construct, have long construction periods, and cause major traffic disruption.

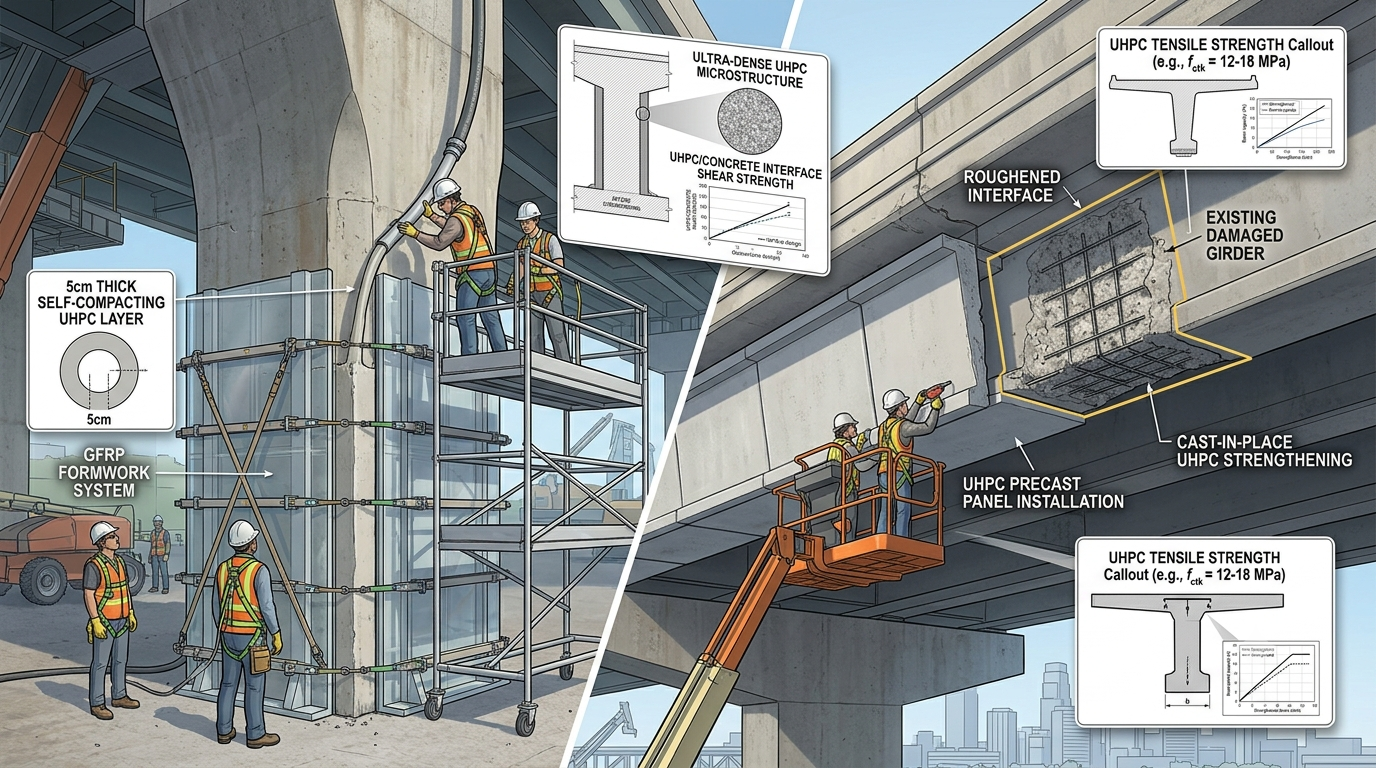

UHPC pier strengthening uses a UHPC layer just 5 cm thick, applied with glass fibre reinforced plastic (GFRP) formwork. The self-compacting UHPC with its high flowability allows the material to flow uniformly into the formwork under its own weight.
The "shallow UHPC replacement + deep crack injection" method for repairing deep-seated voids in piers has proven to offer short construction periods, high efficiency, excellent recovery of load-bearing capacity and durability, and low cost.
UHPC precast elements and cast-in-place UHPC can be used for strengthening various girder types, including T-girders and box girders.
The flexural performance of cracked reinforced concrete beams strengthened with UHPC is significantly improved. Damaged beams can be restored to or even exceed their original load-bearing capacity after UHPC strengthening.
Water-to-Binder Ratio (W/B): Typically controlled at ≤0.2
Steel Fibre Content: 2–5% by volume, balancing flowability with uniform fibre dispersion
Supplementary Material Optimization: Use of "low cement, high powder" design with industrial waste fillers replacing cement and silica fume
The bond quality between UHPC and the existing concrete surface is critical. The old concrete surface must be prepared by chipping, high-pressure water jetting, and other methods to ensure a clean, rough interface.
Steam-Curing-Free UHPC: Suitable for on-site strengthening, achieving 70% of design strength within 24 hours
Steam Curing: 60–90°C significantly enhances early-age strength
Although UHPC has a higher initial material cost, the lifecycle perspective tells a different story:
Comparison Dimension | Traditional Solution | UHPC Solution |
|---|---|---|
Strengthening Layer Thickness | 25 cm | 5 cm |
Construction Schedule | Traditional methods | 60–67% less than traditional |
Maintenance Frequency | High | Extremely low |
Service Life | 10–15 years (traditional joints) | 25+ years |
Long-Term Cost | Accumulated from repeated repairs | One-time investment, long-term benefit |
In one bridge renovation, the UHPC strengthening solution reduced maintenance costs by 80%. In a U.S. bridge renovation using UHPC rapid bridge component construction, while costs increased by approximately 37%, construction time was reduced by about 67%, extending the bridge's lifecycle and reducing future maintenance costs.
From UHPC bridge deck repair to UHPC expansion joint replacement, from UHPC pier strengthening to UHPC girder strengthening, ultra-high performance concrete is revolutionizing bridge repair and strengthening technologies. With compressive strength ≥150 MPa, superior durability from an ultra-low chloride diffusion coefficient, and construction advantages including rapid hardening, self-compacting properties, and thin-layer strengthening, UHPC is turning the vision of "100-year bridges" into reality.
UHPC precast elements, structural-grade UHPC, rapid repair UHPC, cast-in-place UHPC, and other diversified product lines are addressing the full spectrum of needs—from sea-crossing bridges to rural highway bridge rehabilitation. As localized UHPC production and economical UHPC mix designs continue to advance, the lifecycle cost advantages of UHPC will become even more compelling.
If you are planning a bridge repair or strengthening project, or would like to learn more about UHPC product specifications and technical parameters, please feel free to contact our technical team for professional support.
