UHPC steel fiber for bridge connections helps a field-cast closure material maintain tensile capacity after matrix cracking while transferring forces between precast components. In overlays, the fiber network supports post-cracking response within a thin, durable layer. These applications are demanding because geometry, reinforcement, substrate, weather, mixer output and traffic schedule interact. A fiber should be approved as part of the complete UHPC system through project specifications, trials and representative placement. Purchasing a high-strength loose fiber without verifying flow, dispersion and casting does not establish a successful bridge material.

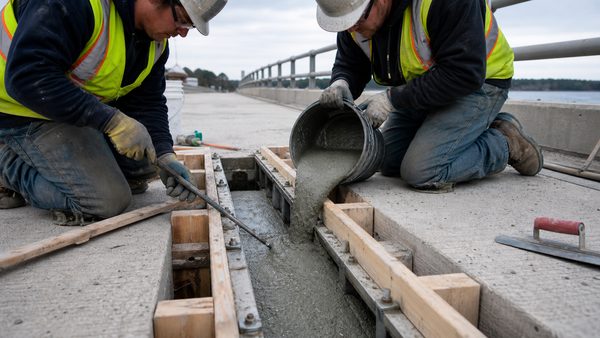

Precast bridge construction relies on connections to create continuity. UHPC can flow into narrow joints around projecting reinforcement and develop high bond and tensile performance in a compact closure. Discrete fibers bridge cracks within the cementitious material and support the post-cracking response used by the qualified design.
FHWA has published extensive research and guidance for field-cast UHPC connections. Its documentation describes steel fibers as primary reinforcement in the composite and emphasizes reporting fiber properties and volumetric proportion. The project owner’s specifications remain controlling.
longitudinal and transverse deck-panel joints;
closure pours between prefabricated elements;
link slabs and localized continuity zones;
connections around reinforcement or shear connectors;
repair of deteriorated joint material;
transitions between new UHPC and existing concrete.
Each condition changes flow length, restraint, crack direction and access. The mockup should reproduce the critical one.
The fiber must disperse without balls, travel with the UHPC through the connection and cross potential crack planes. Short, fine straight fibers are common in field-cast UHPC because they can be compatible with narrow flow paths. However, the selected dimensions, strength and content must match the approved mixture and test program.
The fiber must also remain consistent between laboratory qualification and site delivery. A change in diameter, length, coating, shape or source can affect mixing and orientation. Freeze the approved product by controlled description and lot records.

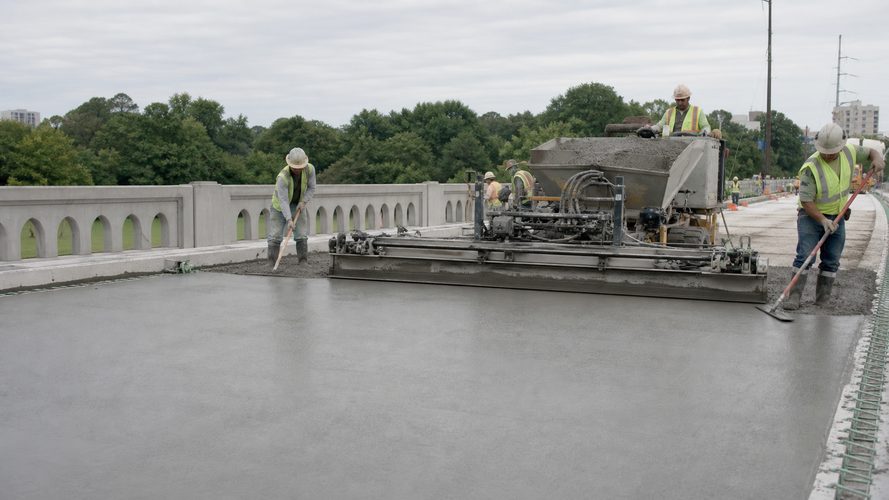

Overlays introduce a large, thin casting geometry. The operation must maintain continuous mixer output, uniform fiber dispersion, prepared substrate condition and a workable leading edge. FHWA’s early overlay experience warns that fibers added too quickly or mixed for too little time can form balls. It also notes that mixer output should match placement rate to avoid stops and surface irregularities.
An overlay trial should determine realistic fiber feed time and total cycle. Schedule estimates must include that time rather than assuming conventional concrete production rates. Trial sections can confirm finishing, surface texture, bond preparation and curing as well as composite properties.
Stage | Essential Control |
|---|---|
Substrate | Removal, cleaning, roughness and moisture condition per specification |
Materials | Approved lots, dry storage and temperature control |
Mixing | Qualified batch size, sequence, fiber feed and time |
Fresh testing | Required flow, temperature and visual dispersion |
Transport | Route and time that preserve the approved material condition |
Placement | Defined entry point, continuous front and congestion management |
Finishing | Tools and timing proven in trial placement |
Curing | Immediate protection and specified curing method |
Acceptance | Traceable specimens, location and documented results |
Bridge work often has limited staging space. Confirm pallet location, weather protection, bag movement, empty-package handling and safe fiber feeding. Steel fibers can puncture light gloves, so use project-approved PPE and handling procedures.
Prevent them with intact dry material, gradual dispersed feeding and sufficient mixing. Hold batches with visible clusters under the quality plan.
Keep the discharge and flow front consistent with the approved casting plan. Avoid pouring from scattered points merely to fill faster. Flow fronts meeting around reinforcement can create local differences.
Calculate mixer output against placement demand. Provide contingency planning for mixer, power, weather and traffic control without improvising an unqualified retempering method.
Do not accept an “equivalent” fiber by price and tensile strength alone. Review geometry, tolerances, manufacturing type, coating, packaging and composite evidence. Obtain engineering approval before use.
Send the supplier the applicable specification, controlled fiber description, total quantity, batch packaging preference, delivery sequence, site restrictions and certificate requirements. Ask for a production lead-time plan and lot allocation.
For imported material, build customs and inland transport into the schedule. Specify moisture-resistant unit packaging and pallet protection appropriate to the route. Confirm whether project requirements limit manufacturing origin and ensure all source approvals are complete before placing the order.
No. Use the approved mixture design and project specification. Published examples are not a substitute for the project’s qualified proportion.
Compliance may be required, but it does not prove compatibility with the particular UHPC. Composite qualification and owner approval are still necessary.
Flow can align fibers, changing the number that cross a potential crack plane. The casting plan and test method should represent the joint.
Keep sealed packages dry, off the ground and protected from rain, condensation and damage. Follow supplier and project storage limits.
Record product and lot identity, quantity, delivery condition, certificate status and which batches or placements used each lot.
UHPC steel fiber for bridge connections and overlays works only when material selection, mixing, flow, substrate, placement and curing are coordinated. Approve a traceable product through representative trials, protect it during delivery and keep the casting front within the qualified plan. For a bridge inquiry, provide the owner specification, proposed fiber geometry, quantity, packaging, delivery sequence and Buy America or origin requirements if applicable. Qiandao can then determine whether a compliant supply proposal and trial package are feasible.
