UHPC steel fiber is a short, discrete reinforcement added to an ultra-high-performance concrete matrix to carry tensile stress after the cementitious matrix begins to crack. In the first 100 words, that distinction matters: UHPC steel fiber does not create high compressive strength by itself. It works with a dense, low-water, well-proportioned matrix to bridge fine cracks, control crack opening and provide usable post-cracking tensile behavior. For an engineer or buyer, the correct question is therefore not simply, “How strong is the fiber?” It is, “Does this fiber work reliably in our complete UHPC mixture, mixer, casting method and structural test program?”

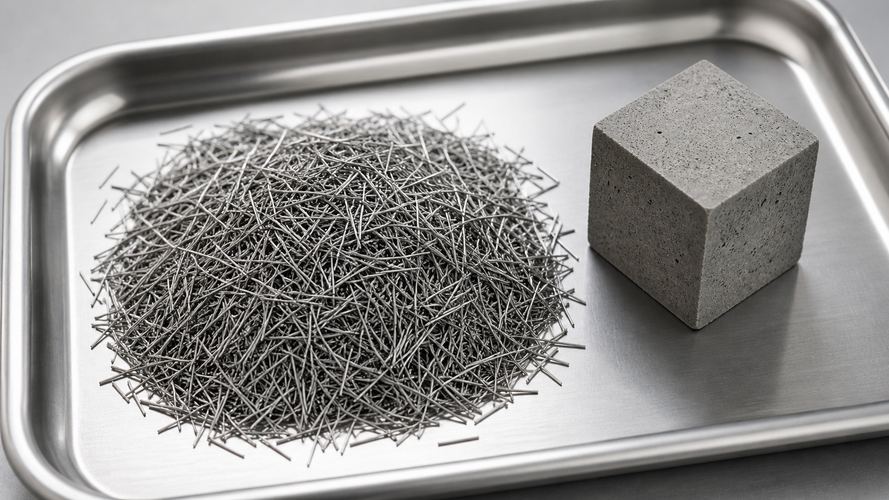

Conventional steel fiber-reinforced concrete covers a broad range of matrices, fiber shapes and structural goals. UHPC is more demanding. Its dense matrix and high tensile stress require a fiber with suitable geometry, strength, surface condition and dimensional consistency. Short, fine, high-strength steel wire fibers are widely used because a large number of fibers can be distributed through a small volume while maintaining workable flow.
The U.S. Federal Highway Administration describes UHPC as an optimized cementitious composite with discontinuous internal fiber reinforcement and sustained post-cracking tensile strength. FHWA design guidance also requires steel fiber reinforcement to comply with the project specification and calls for the fiber composition, strength, length, cross-sectional geometry, deformation or anchorage, coating and volumetric proportion to be reported. These are useful procurement fields even when a project follows a different national code.
Before cracking, the matrix carries most of the tensile stress. When microcracks form, fibers that cross the crack transfer force from one face to the other. Their effectiveness depends on bond, embedment length, orientation and whether they pull out progressively or rupture prematurely.
This system behavior explains why a data sheet alone cannot predict structural performance. A strong fiber with poor dispersion may leave weak zones. A workable mix may still produce unfavorable orientation if it is poured from multiple points without a casting plan. Qualification must assess the hardened composite, not just the loose fiber.

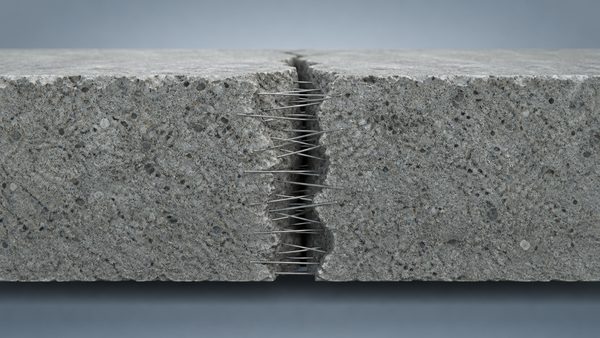

Crack bridging is the central mechanism. Thousands of short fibers are intended to cross potential crack planes. As a crack opens, bond stress develops along the embedded fiber surface. Properly selected fibers resist pullout and allow stress redistribution, encouraging multiple fine cracks instead of one uncontrolled opening.
This changes the material response after first cracking. The exact tensile curve varies with the UHPC formulation, fiber content, curing, specimen geometry and test method. Buyers should avoid assuming that one supplier’s published composite result will transfer directly to another matrix.
Post-cracking tensile capacity: fibers continue to transfer tension after matrix cracking.
Crack-width control: distributed bridging can limit localization when orientation and dispersion are suitable.
Toughness and energy absorption: progressive debonding and pullout absorb energy.
Flexural response: fibers crossing the tensile zone improve load resistance after first cracking.

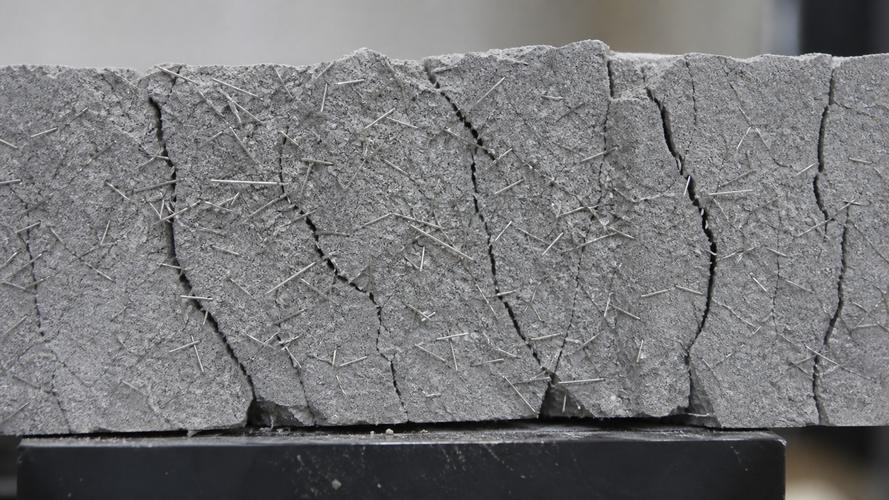

Damage tolerance: fine distributed cracking can support durability, provided placement and curing are controlled.
Fibers do not replace every conventional reinforcement requirement automatically. Any reduction of reinforcing bars must be supported by the governing design method, verified material properties and the engineer of record.
Property | Why It Matters | What to Request |
|---|---|---|
Material and manufacturing route | Affects consistency and mechanical properties | Steel grade or composition and fiber type |
Length and diameter | Control aspect ratio, fiber count and workability | Nominal values plus tolerances |
Tensile strength | Helps avoid premature fiber rupture | Minimum requirement and test evidence |
Shape and end condition | Influence bond and mixing behavior | Straight, deformed or anchored geometry |
Surface or coating | Can affect handling, corrosion appearance and bond | Coating type and purpose, if any |
Dimensional consistency | Supports repeatable dosing and dispersion | Lot inspection method |
Packaging | Protects fibers and affects site handling | Bag weight, pallet configuration and moisture protection |
Compliance | Connects the product to the project documents | Applicable standard and current test report |
ASTM A820/A820M covers several categories of steel fiber and addresses dimensions, tolerances, minimum physical properties and conformity testing. Compliance is a baseline product control, not proof that a particular UHPC mixture meets structural performance requirements.
Steel fiber reinforced UHPC is used where designers need a thin section, durable connection, high local resistance or controlled tensile response. Common applications include field-cast bridge connections, link slabs, closure pours, rehabilitation overlays, precast structural components, architectural panels and localized repairs.
Each application creates different selection pressures. A narrow congested connection prioritizes flow and dispersion. A thin architectural element may demand excellent surface finish and tight dimensional control. A repair may need a placing sequence that prevents fiber alignment from creating an unintended weak direction.
Start with the project performance requirements, not a catalog. Confirm the applicable material standard, required fiber information and composite acceptance tests with the designer. Then review supplier documents and obtain a representative sample from the proposed production route.
Run laboratory trials in the actual UHPC matrix. Record dry-mixing sequence, liquid addition, mixer load, fiber feed rate, total mixing time, temperature, flow and visual dispersion. Cast specimens using a placement method representative of production. Test the required fresh and hardened properties, including tensile or flexural behavior when specified.
After laboratory approval, conduct a production-scale trial or mockup. Small mixers can hide limitations in motor load, feed rate and discharge. Approve a defined fiber product, packaging, lot traceability and change-control procedure. A supplier substitution should trigger an engineering review rather than an automatic purchasing decision.
Not necessarily. UHPC frequently uses short, fine, high-strength straight fibers, while many industrial floors use longer hooked-end fibers. Either geometry must be evaluated in the intended matrix and application.
No. Higher content can increase bridging potential but may reduce flow, raise mixer demand and increase the risk of clumping. The dosage must be qualified as part of the mixture.
Only when the design standard, verified UHPC tensile properties and engineer’s calculations allow it. Fiber addition alone is not authorization to remove conventional reinforcement.
Only fibers crossing a crack at useful angles contribute effectively. Mixing, geometry and flow direction can create non-random orientation, so casting procedures belong in the qualification program.
Request product identification, manufacturing type, dimensions and tolerances, tensile-strength evidence, surface or coating details, packaging, applicable standards, lot traceability, lead time and sample availability.
UHPC steel fiber provides the crack-bridging network that distinguishes a structural UHPC composite from a strong but brittle matrix. Successful selection combines verified fiber properties with mixture compatibility, controlled mixing, representative casting and composite testing. If you are evaluating a new UHPC steel fiber supplier, send the project standard, target fiber geometry, estimated volume, packaging preference and trial schedule. The Qiandao Technical Team can review the information and prepare a sample and documentation package for qualification.
