Views: 0 Author: Qiandao Technical Team Publish Time: 2026-08-31 Origin: Hubei Qiandao New Materials Co., Ltd.
steel fiber UHPC presents a distinct decision for materials engineers, UHPC producers and structural designers. This article focuses on that decision and connects it to the wider UHPC series without repeating the scope of adjacent guides. Project values must come from the governing specification and named test methods. The guidance below explains the mechanisms, evidence and implementation questions that should be resolved before design approval, production or purchase.

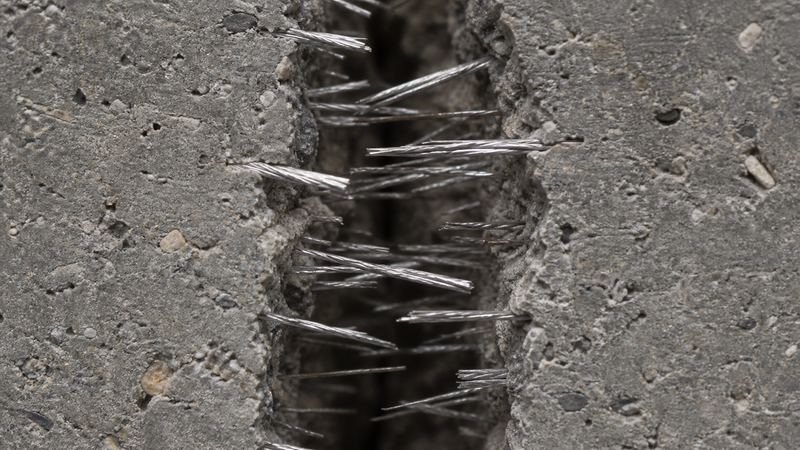

The cementitious matrix responds elastically until local tensile stress reaches its cracking resistance. Fibers crossing that plane then develop bond and transfer force across the opening. With a suitable formulation and distribution, cracking can spread into multiple fine cracks instead of one uncontrolled fracture. The response is not guaranteed by the word fiber-reinforced; it must be demonstrated by an applicable tensile or flexural test.
Length, diameter and aspect ratio influence anchorage, workability and the number of fibers crossing a potential crack. Tensile strength must be adequate so fibers do not rupture before useful pullout develops. Straight, deformed or coated fibers may interact differently with the matrix. Procurement specifications should identify the qualified fiber rather than allow substitution based only on mass or nominal length.
A higher fiber content does not automatically produce proportionally better performance. More fibers increase surface area, mixing demand and the risk of clusters, while the structural benefit depends on orientation and matrix bond. State dosage consistently by volume or mass and confirm the supplied premix basis. Any change should trigger a review of fresh behavior and mechanical evidence.

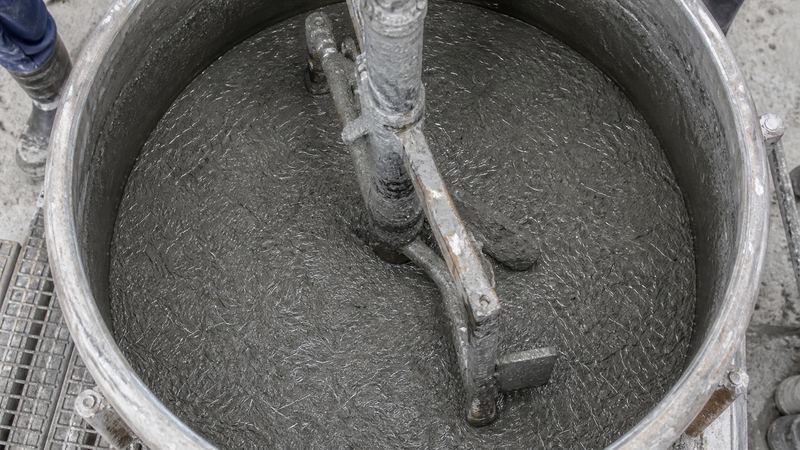

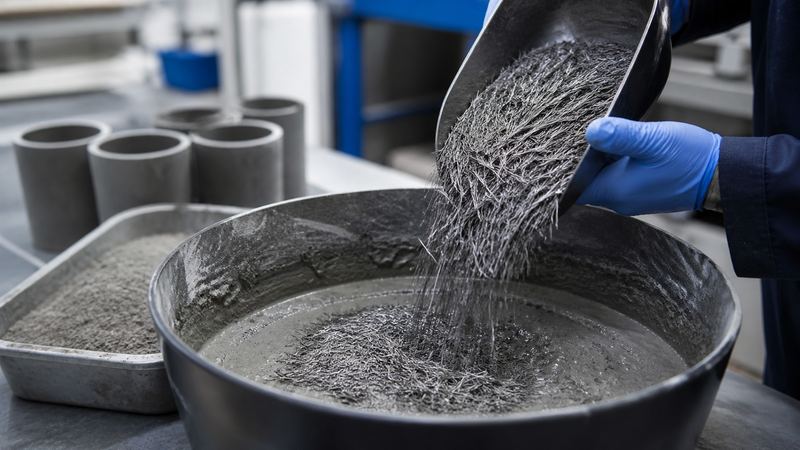

Introduce fibers at the qualified point and at a rate the mixer can distribute. A dry, stiff mixture or rapid dumping encourages interlocking. Mixer geometry, fill level, blade condition and batch size matter. If clusters appear, stop and diagnose the sequence rather than adding uncontrolled water. Screens can catch obvious balls, but they do not correct nonuniform distribution within the batch.
Flow through a narrow form can align fibers with the casting direction, while corners and obstacles create local changes. Specimens cast separately may not represent a thin or complex component. For critical work, align qualification sampling with the production method or test extracted samples where permitted. Designers should understand which orientation supports the reported characteristic value.
Confirm fiber designation, lot identification, dimensions and packaging against the approved submittal. Keep steel fibers dry and protected from contamination. Rust staining or bonded bundles can affect dosing and dispersion. Establish rules for damaged bags, partial packages and lot changes, and retain traceability to the UHPC batches in which each fiber lot was used.
Use batch records and fresh observations to confirm that the approved fiber reaches the mixer in the correct quantity and sequence. Where the quality plan requires it, washout, image analysis or hardened-section checks can support distribution review. Select a method before production so acceptance is not invented after a dispute.
Start by writing a one-page brief for this exact application. Identify the structural or purchasing objective, the responsible approver and the drawing or specification clauses that control the decision. List the conditions that differ from laboratory evidence, such as component geometry, casting direction, mixer scale, exposure, temperature, shipment or storage. This gap review determines whether document review is sufficient or whether a trial or full-size mock-up is needed.
Design the trial around the highest-risk feature discussed in this article. Record component lots, quantities, sequence, temperature, fresh observations, timing, curing and test specimens. Agree acceptance actions before work starts. If a result falls outside the approved range, isolate the material or component and obtain a technical disposition; an undocumented water, fiber or process adjustment destroys traceability.
At handover, retain records that allow the result to be connected to a batch, component and inspection decision. Feed the lessons into the neighboring series topics: material behavior informs design, design informs production, production informs construction, and the final technical scope informs supplier comparison and procurement.
Build the acceptance plan from the article-specific topics “From Matrix Cracking to Fiber Bridging,” “Fiber Geometry and Material Properties” and “Dosage Is Not the Whole Specification.” For each one, write the requirement, observation or test, sampling location, timing, responsible party and decision rule. This makes the plan relevant to steel fiber UHPC; it also prevents a general UHPC certificate from being used as evidence for a feature that was never examined.
Separate three kinds of evidence. Product evidence describes the supplied formulation and its verified properties. Process evidence shows that mixing, casting, preparation, curing, packaging or delivery followed the approved method. Project evidence connects those two records to the actual joint, component, repair area, production lot or shipment. A complete handover needs all three where they apply. Missing traceability should be resolved before the work is concealed, loaded, shipped or accepted.
Agree the nonconformance route in advance. A fresh-property result, damaged package, surface defect or test result outside the stated limit does not always lead to the same disposition. The authorized engineer or buyer may require investigation, additional testing, repair, restricted use, replacement or rejection. Record the technical basis and affected quantity. At closeout, provide the current data sheet, safety information, batch identification, inspection and test records, approved deviations, storage or maintenance instructions and contact point for technical support.
Begin with “From Matrix Cracking to Fiber Bridging.” It establishes the boundary for steel fiber UHPC and prevents a general material claim from replacing the application requirement.
The section “Fiber Geometry and Material Properties” identifies the most relevant evidence. Check whether its materials, geometry, curing and test method represent the planned work.
Use “Dosage Is Not the Whole Specification” to define an inspection point, responsible person and response to nonconformance before irreversible work proceeds.
No. Choose a system that meets all relevant fresh, mechanical, durability and execution requirements. Extra compressive strength does not correct an unsuitable detail or procedure.
Send the application, governing methods, required ages and properties, drawings, quantity, destination, schedule and available equipment. Ask the supplier to list included components and exclusions.
The correct steel fiber UHPC decision follows from its specific engineering or procurement purpose, representative evidence and controlled implementation. Keep the topic connected to the wider UHPC system, but do not substitute a generic strength claim, checklist or supplier promise for the distinct requirements described in this article.
Send Qiandao your application, standard, drawings, required properties, quantity, destination and equipment for a project-specific review of grade, supply scope and trial planning.
