steel fiber orientation UHPC casting direction fiber dispersion performance

Steel fiber orientation in UHPC describes the directions that fibers take after mixing and placement. A batch may be well dispersed yet still develop preferred alignment as flow carries fibers through a mold. Orientation matters because a fiber contributes most effectively when it crosses a crack plane at a useful angle and has adequate embedment on both sides. FHWA research identifies dispersion and orientation as critical parameters in post-cracking UHPC behavior. Designers and producers should therefore qualify the casting method, not assume that fibers remain randomly arranged everywhere in the element.


Dispersion and Orientation Are Not the Same

Dispersion describes whether fibers are distributed without balls, clusters or fiber-poor regions. Orientation describes their direction. Good mixing can produce good dispersion in the mixer, while placement creates alignment in the form.

Both affect the number of effective bridges at a potential crack. A cluster can create local workability and strength problems. Strong alignment may improve response parallel to one direction but reduce bridging across another plane. The design must reflect the actual material anisotropy when it is significant.

What Controls Steel Fiber Orientation in UHPC?

Flow Direction

Short fibers tend to rotate and align with sustained flow. A long uninterrupted pour path can therefore develop a dominant direction. Changes in velocity around corners, openings or reinforcement can produce different local patterns.

Form Boundaries and Section Thickness

Fibers cannot cross a form surface, so they turn near boundaries. Thin sections magnify this wall effect because a larger portion of the material lies close to a surface. Thickness relative to fiber length should be reviewed during selection.

Casting Point and Pour Sequence

Material placed from one end may create a continuous aligned flow. Multiple casting points can generate meeting fronts with different orientations. Pouring from above, moving a bucket or allowing free flow each produces a distinct history.

Vibration, Finishing and Congestion

UHPC is commonly self-consolidating, but project procedures vary. Unqualified vibration or aggressive manipulation can alter distribution. Reinforcing bars, shear keys, ducts and inserts redirect flow and may screen fibers locally.

What Research Means for Production

FHWA’s state-of-the-art report summarizes research in which placement direction affected flexural strength substantially, while compressive strength was much less sensitive. The exact magnitude is not transferable to every product or element, but the mechanism is important: coupon results are connected to how and where the coupon was cast.

Field and laboratory programs have also used intentional casting direction to encourage favorable alignment. That can be a design tool only when it is predictable, documented and compatible with other load directions. Accidental alignment is not a reliable benefit.


Build Orientation into the Casting Plan

Plan Item

Question to Answer

Entry point

Where does each batch enter the form?

Flow path

How far and in which direction will UHPC travel?

Flow fronts

Will fronts meet and create a weak interface or changed orientation?

Discharge width

Is material placed as a narrow stream or across the element width?

Batch continuity

Can production maintain the intended moving front?

Congestion

Which inserts or bars redirect fiber flow?

Specimen method

Are test samples cast separately or taken from representative material?

Inspection

How will deviations be recorded and assessed?

Use a placement sketch and a simple sequence number for each zone. Train the crew on the intended leading edge, discharge position and response to interruption. Avoid last-minute changes that make test specimens unrepresentative.

Qualify Orientation with a Mockup

A useful mockup reproduces section thickness, critical flow length, form surfaces, congestion and discharge method. Use the intended mixer output and crew. Record batch times, material temperature, entry points and interruptions.

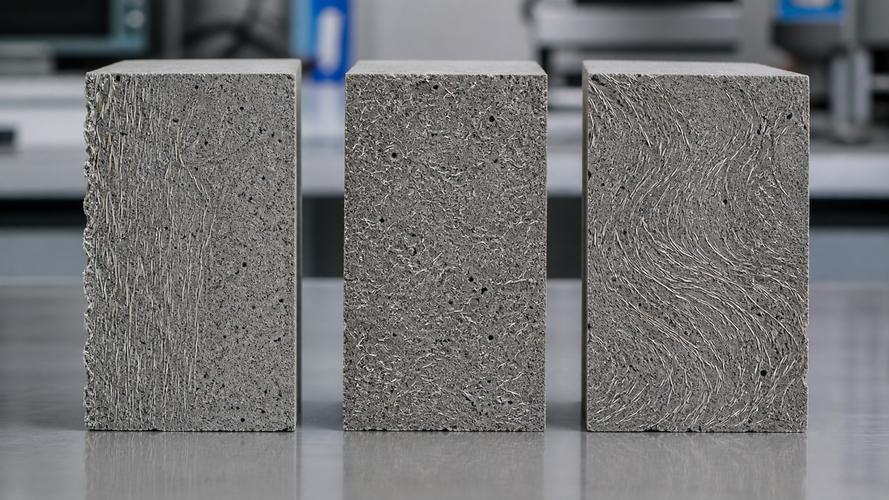

Inspect the mockup using methods accepted by the project. Options may include cut sections, polished surfaces, image analysis, extracted specimens or nondestructive methods validated for the purpose. The test plan should account for location and direction. A specimen cut parallel to flow answers a different question from one cut across it.

Report specimen axis, notch or crack plane, casting direction and extraction location. Test the required number of samples to assess variability. If the element has multiple critical load directions, the qualification should not examine only the most favorable orientation.

Control Changes During Production

Orientation control can drift when batch output changes, a different pump or bucket is used, crew members move the discharge, or unexpected delays create new flow fronts. Put these variables in the inspection plan and define which deviations require engineering review.

Fiber substitution also matters. A change in length, diameter, shape or dosage can change rotational behavior and boundary interaction even if loose-fiber strength is comparable. Revisit the mockup or test plan when the approved geometry changes.


FAQ About Fiber Orientation

Are fibers randomly oriented after mixing?

They may be broadly dispersed, but placement flow and boundaries commonly create preferred directions. Do not assume perfect three-dimensional randomness.

Is alignment always harmful?

No. Alignment across the expected crack plane can improve bridging. The risk is unverified anisotropy or reduced capacity in another critical direction.

Does orientation affect compressive strength?

It generally has a stronger influence on tensile and flexural behavior than on compression, but project testing governs acceptance.

Can separately cast coupons represent the structure?

Only if the specification and qualification demonstrate that their casting history is representative or provide an accepted correlation.

Should the casting point stay fixed?

Use the approved sequence. A fixed or moving point may be appropriate depending on geometry, but unplanned changes can alter orientation.

Conclusion

Steel fiber orientation in UHPC is created during placement as much as during mixing. Flow direction, boundaries, congestion, entry points and interruptions determine how many fibers cross a critical crack plane. Use representative mockups, direction-aware testing and a controlled casting plan to turn this variable into documented performance. When reviewing a fiber for a complex element, share the section thickness, flow path and test orientation with Qiandao so sample geometry and production advice can be discussed within the project qualification process.
