UHPC bridge pavement has become a game-changing solution for modern bridge new construction and structural rehabilitation, effectively solving the long-standing drawbacks of traditional bridge pavement worldwide. Highway and bridge infrastructures are constantly exposed to heavy vehicle dynamic loads, extreme temperature fluctuations, freeze-thaw cycles, and rainwater corrosion, placing rigorous demands on pavement stability and service life. Conventional concrete and asphalt bridge surfaces frequently suffer from irreversible cracking, surface peeling, water infiltration, and premature deterioration, leading to frequent maintenance shutdowns, shortened bridge lifespan, and rising operational expenditures. As a high-density, fiber-reinforced cementitious composite, ultra-high performance concrete bridge deck pavement overcomes the inherent limitations of conventional paving materials. It has become the most reliable engineering solution for steel bridge pavement renovation and concrete bridge upgrading. This article delivers an in-depth comparison between advanced UHPC overlay systems and traditional bridge pavement, analyzing key differences in structural stability, bridge deck durability, construction adaptability, and overall bridge life cycle cost, while elaborating on the core application advantages of UHPC in professional bridge deck projects.
A professional UHPC overlay is a thin-layer, high-strength paving system specifically engineered for new and aged bridge decks, including conventional concrete bridges and long-span steel bridge pavement structures. Unlike thick, rigid traditional bridge pavement that relies on coarse aggregate grading, UHPC adopts a dense, void-free micro-particle formula with embedded micro steel fibers, featuring ultra-high compressive and tensile strength, minimal curing shrinkage, and exceptional waterproof permeability. This unique material composition allows ultra-high performance concrete bridge deck systems to form an integrated composite bond with underlying bridge substrates, significantly enhancing overall structural rigidity and fatigue resistance. The optimized material structure eliminates common failure points of ordinary anti-crack bridge concrete, delivering outstanding bridge deck durability. Widely recognized in global infrastructure engineering, UHPC overlay technology is extensively applied in new bridge paving, old bridge structural reinforcement, and steel deck anti-crack and anti-corrosion renovation projects.
For decades, traditional bridge pavement materials, including ordinary cast-in-place concrete, modified asphalt, and standard cement mortar, have dominated bridge engineering due to their low upfront costs and accessible construction processes. However, these conventional materials possess unavoidable inherent flaws that compromise long-term bridge safety and service performance. Under sustained dynamic traffic loads and harsh natural environments, traditional pavement structures degrade rapidly, failing to meet the long-term durability and low-maintenance requirements of modern high-standard bridges. These defects not only reduce bridge service quality but also substantially increase the overall bridge life cycle cost for infrastructure owners and operators.
The most prominent weakness of traditional bridge pavement is insufficient crack resistance. Ordinary concrete undergoes significant drying and temperature shrinkage during curing and service, while asphalt pavement is highly sensitive to high-temperature softening and low-temperature brittleness. Even standard anti-crack bridge concrete cannot withstand repeated fatigue impacts from daily vehicle traffic. Micro cracks gradually expand, penetrate the entire pavement layer, and eventually develop into structural cracks, destroying the integrity of the bridge deck surface.
Second, traditional bridge deck structures have poor water resistance and durability. Rainwater penetrates through cracks to corrode steel reinforcement and steel bridge decks, causing rust expansion, structural peeling, and even local damage. In harsh environments such as coastal salt fog and cold freeze-thaw areas, the damage speed of traditional pavement is accelerated, requiring regular repair and replacement.
Most importantly, traditional bridge pavement brings uneconomical long-term operational expenses. Although the initial construction investment is low, frequent routine repairs, partial overhauls, and full-scale repaving are required throughout the service period, resulting in continuous capital and labor consumption. For steel bridge pavement structures, thick traditional pavement layers add excessive dead load, exacerbating structural fatigue and deformation. Ultimately, these issues push up the total bridge life cycle cost and reduce the economic and service value of bridge infrastructure.
Ultra-high performance concrete bridge deck pavement achieves far superior anti-crack and anti-fatigue performance compared to ordinary anti-crack bridge concrete and traditional bridge pavement. Uniformly distributed micro steel fibers inside the UHPC matrix effectively restrain the initiation and propagation of microcracks, enabling the pavement to maintain stable micro-crack or crack-free status under long-term dynamic traffic loads. For long-span steel bridge pavement that is prone to stress concentration and fatigue cracking, the UHPC overlay forms a flexible-rigid composite structure with steel plates, dispersing local stress and fundamentally solving the persistent fatigue cracking problem that plagues traditional steel bridge decks. This reliable anti-crack performance eliminates most structural safety hazards caused by pavement damage.
Bridge deck durability is the core benchmark for evaluating long-term pavement service quality, and UHPC bridge pavement comprehensively outperforms all traditional bridge pavement materials in durability indicators. With ultra-low porosity and excellent impermeability, the UHPC overlay effectively blocks the penetration of rainwater, chloride ions, and corrosive substances, protecting internal steel reinforcements and steel bridge substrates from corrosion. It delivers outstanding resistance to freeze-thaw damage, surface abrasion, and chemical erosion, adapting perfectly to coastal, high-altitude, and extreme temperature environments. Traditional concrete and asphalt pavement begin aging, peeling, and pulverizing within 3 to 5 years of service, while ultra-high performance concrete bridge deck pavement maintains stable structural performance for more than 20 years, greatly extending the overall service life of bridges.
A key competitive advantage of UHPC bridge pavement is its ultra-thin lightweight construction. A standard UHPC overlay only requires a thickness of 3 to 6 cm to meet structural bearing, anti-crack, and waterproof requirements. In contrast, qualified traditional bridge pavement needs a thickness of 10 to 18 cm, bringing huge dead load pressure to bridge structures. The lightweight design of ultra-high performance concrete bridge deck pavement is particularly suitable for old bridge reinforcement renovation and long-span steel bridge pavement projects. It avoids structural overload, optimizes overall bridge stress distribution, and significantly improves structural safety reserves.
While the initial construction cost of UHPC bridge pavement is slightly higher than traditional bridge pavement, it delivers remarkable economic advantages in full-cycle operation, effectively reducing the total bridge life cycle cost. Traditional pavement requires large-scale maintenance every 3–5 years and complete repaving every 8–12 years, accumulating massive labor, material, and traffic diversion costs. In contrast, a standard UHPC overlay requires almost no maintenance within 15 years of normal service. Data from global bridge engineering projects proves that ultra-high performance concrete bridge deck pavement can reduce the full-life comprehensive investment of bridge pavement projects by more than 40%, with far higher long-term cost performance than traditional solutions.

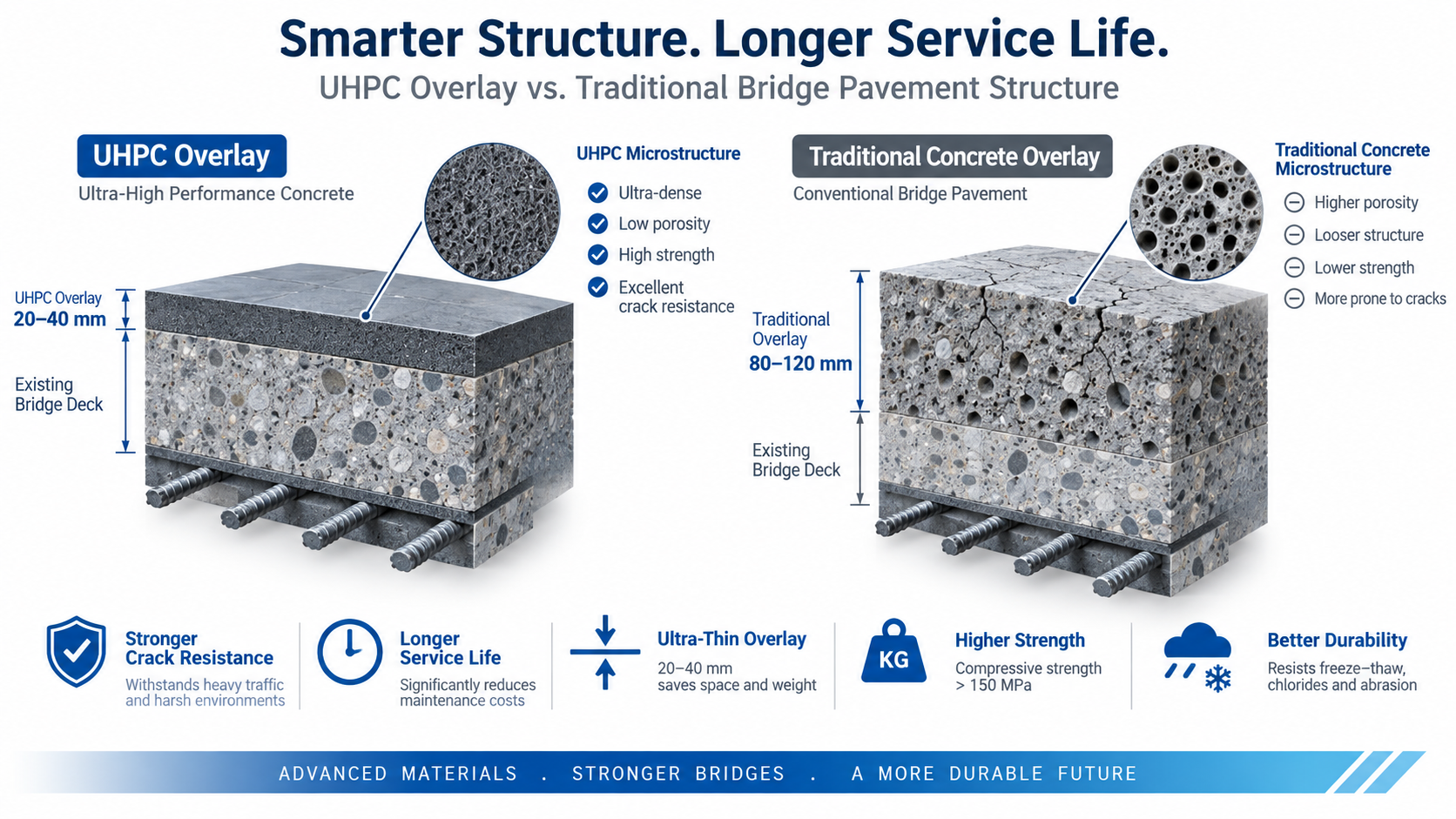

To help engineers and project owners intuitively understand the performance gaps between UHPC bridge pavement and traditional bridge pavement, we summarize a comprehensive comparison of core engineering indicators below, covering pavement thickness, anti-crack performance, bridge deck durability, structural load adaptability, and bridge life cycle cost:
Pavement Thickness: Traditional bridge pavement (10–18cm concrete/asphalt); UHPC overlay (3–6cm ultra-thin layer), lightweight and no structural burden.
Anti-Crack Performance: Traditional anti-crack bridge concrete is prone to penetrating cracks under dynamic load; UHPC relies on steel fiber toughening to achieve stable anti-crack and anti-fatigue effects.
Durability: Traditional pavement has poor impermeability and corrosion resistance, short service life; UHPC features ultra-high durability, adapting to all harsh environments.
Applicable Scenarios: Traditional pavement is only suitable for ordinary small-span concrete bridges; UHPC bridge pavement covers steel bridges, long-span bridges, old bridge reinforcement, and high-grade highway bridges.
Full-Life Cost: Traditional bridge pavement has low initial cost but high maintenance cost; UHPC has slightly higher initial investment and significantly lower full-cycle cost.
Compared with conventional traditional bridge pavement, modern UHPC bridge pavement and ultra-high performance concrete bridge deck overlay technology present comprehensive and irreplaceable advantages in anti-crack performance, bridge deck durability, structural adaptability, and full-cycle economic benefits. Making up for the inherent defects of ordinary anti-crack bridge concrete and asphalt pavement, UHPC has become the optimal paving solution for high-standard bridge engineering, especially for steel bridge pavement renovation and long-span bridge construction. With the continuous upgrading of global infrastructure quality standards, high-performance UHPC overlay systems will gradually replace traditional paving technologies, helping modern bridges achieve longer service life, higher structural safety, and lower bridge life cycle cost throughout operation.
