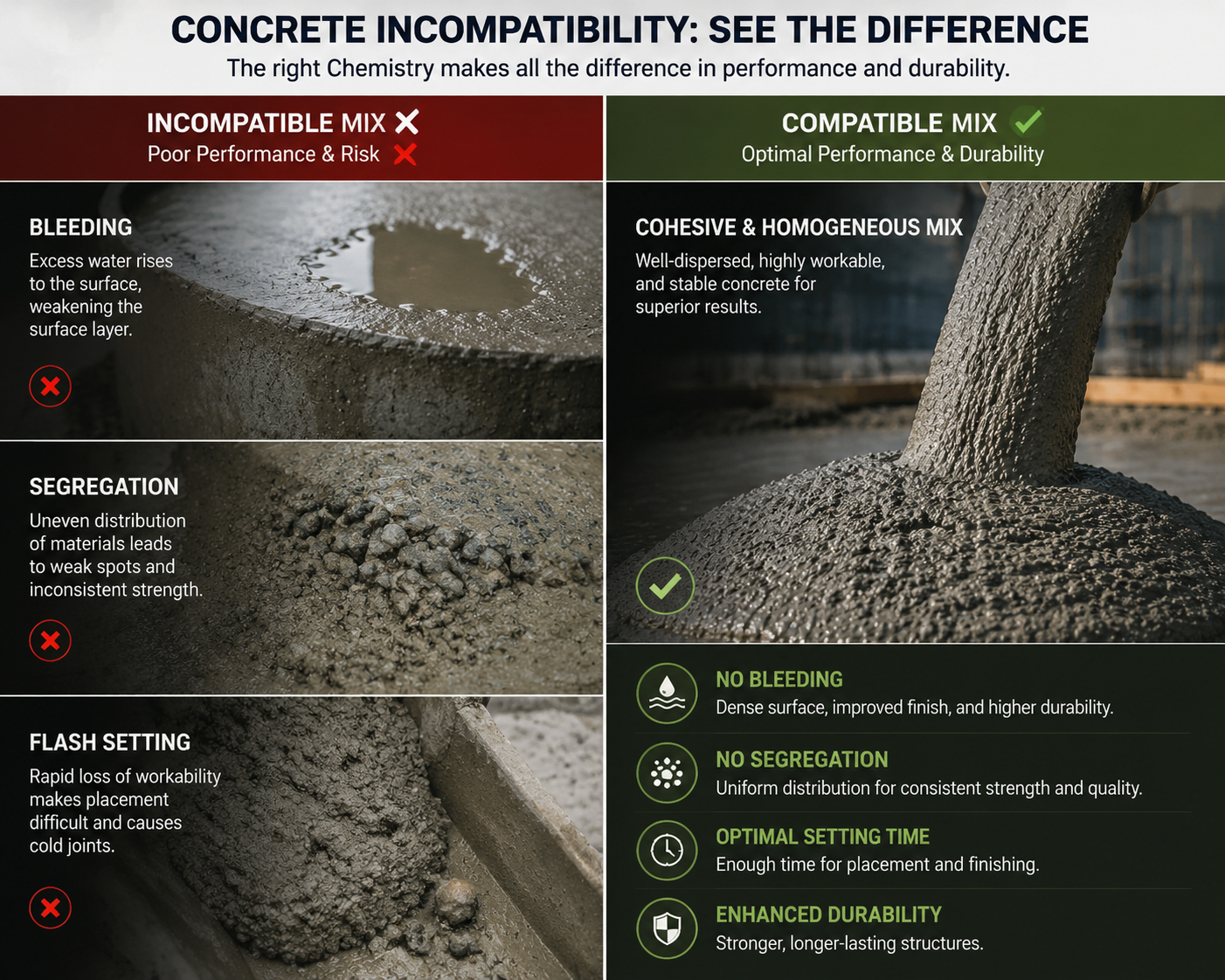

Cement-admixture incompatibility occurs when a specific combination of cement (including its mineral composition and gypsum types) and chemical admixtures (such as polycarboxylate superplasticizers or naphthalene-based water reducers) fails to produce the expected performance in fresh concrete. This undesirable interaction typically manifests as rapid slump loss, flash setting, severe retarding, segregation, bleeding, or a drastic reduction in early strength.
In modern civil engineering, resolving cement-admixture incompatibility is critical because even premium-grade raw materials can fail when mixed. The root causes usually trace back to complex chemical and physical variations, including the C3A (tricalcium aluminate) content in cement, the form of gypsum used as a setter regulator, the clay content in aggregates, and the molecular structure (such as the side-chain density) of the superplasticizers.
Understanding the chemistry behind cement-admixture incompatibility is key to solving it on-site. The most frequent chemical conflicts include:
Tricalcium aluminate (C3A) is the most reactive mineral phase in cement. During early hydration, C3A reacts rapidly with water to form aluminate hydrates. To control this flash-setting reaction, manufacturers add gypsum (calcium sulfate) to the cement, which reacts with C3A to form ettringite (AFt), forming a protective barrier on C3A grains.
When a superplasticizer is introduced, it competes with sulfate ions to adsorb onto the C3A surfaces. If the superplasticizer adsorbs too aggressively or if the sulfate solubility is too low, the C3A hydration goes uncontrolled, leading to rapid slump loss or "false set."
During the cement grinding process, high temperatures can cause dihydrate gypsum (natural gypsum) to dehydrate into hemihydrate (plaster of Paris) or anhydrous gypsum (soluble anhydrite). Hemihydrate dissolves much faster than dihydrate. If the chemical admixture alters the dissolution rate of these sulfate phases, the concentration of sulfate ions in the liquid phase drops below the critical threshold required to control C3A, resulting in rapid setting.

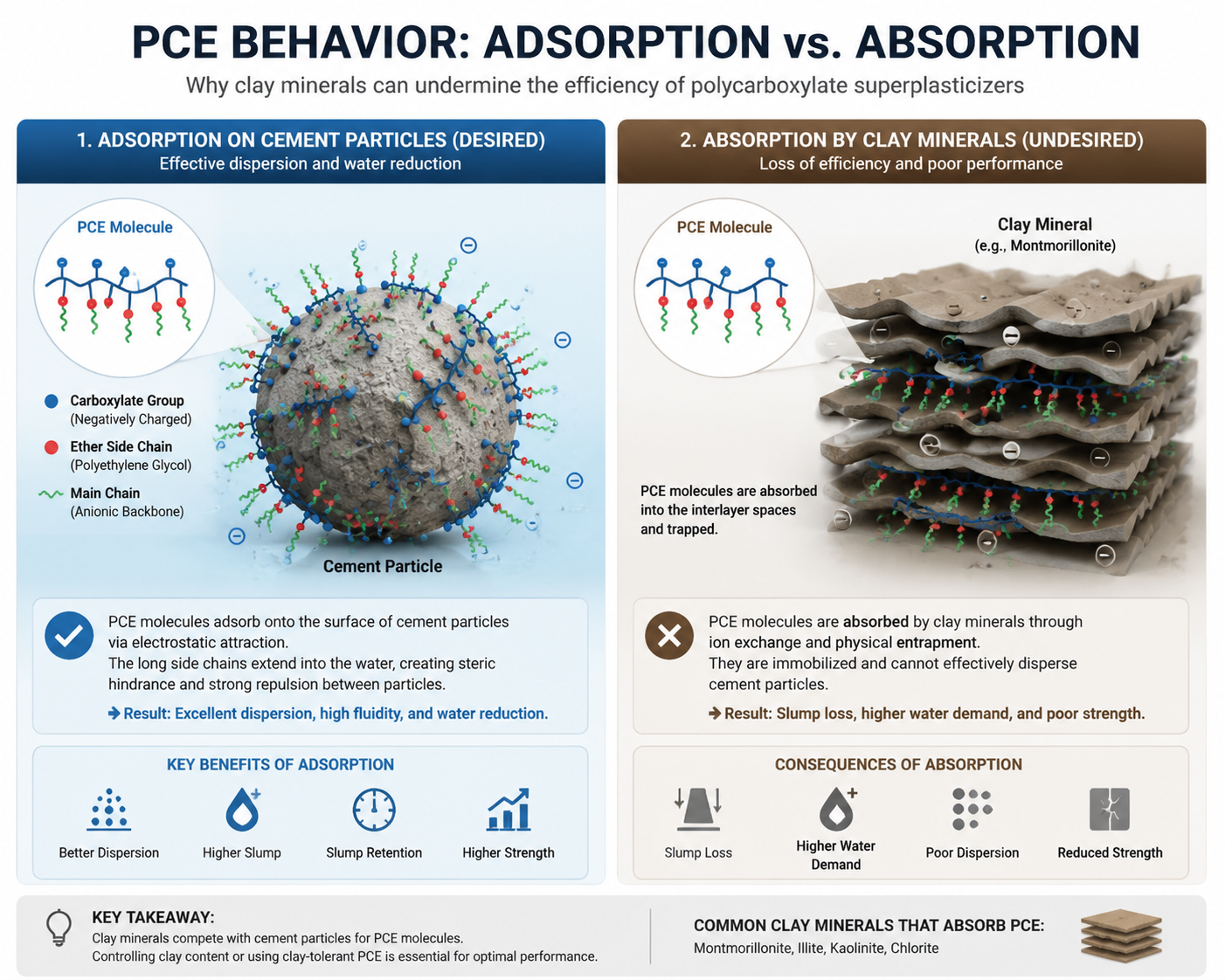

If the sand or gravel contains high amounts of swelling clays (such as montmorillonite), these clays will rapidly absorb water and selectively trap polycarboxylate ether (PCE) molecules within their layered structure. This physical consumption of the admixture leaves insufficient PCE available to disperse the cement particles, mimicking a cement-admixture compatibility failure.
Before implementing costly site adjustments, concrete quality control teams must run standardized laboratory diagnostic tests to identify the conflict.
Diagnostic Test Method | Target Parameter | Indicative Results for Incompatibility | Standard Protocol Reference |
Cement Paste Flowability Test | Saturation dosage & slump retention | Rapid loss of paste flow within 30 to 60 minutes; saturation dosage exceeds 1.2% | ASTM C1437 / GB8076 |
Marsh Cone Test | Flow time of grout | Flow time increases dramatically over 60 minutes or paste fails to flow | ASTM C939 |
Semi-Adiabatic Calorimetry | Hydration heat peak | Delayed hydration peak or suppressed initial heat output, indicating excessive retardation | ASTM C1702 |
Concrete Slump & Air Content | Workability and stability | Slump loss > 50 mm in 30 minutes; concrete bleeding or air content drops below 3.0% | ASTM C143 / ASTM C231 |
If your concrete mix exhibits rapid slump loss, flash setting, or bleeding, follow this systematic step-by-step troubleshooting workflow to resolve the issue:
Run a Methylene Blue test on the fine aggregates. If the MB value is greater than 1.0, the primary issue is clay absorption of the superplasticizer.
Action: Incorporate a specialized clay-sacrificial agent (clay-resisting agent) into the admixture formulation, or increase the dosage of the water reducer slightly to compensate for the molecules consumed by the clay.
If the clay content is low but slump loss is severe, the molecular structure of the polycarboxylate superplasticizer must be adjusted.
Action: Contact your admixture manufacturer (such as Qiandao New Materials) to synthesize a PCE with a lower charge density (longer side chains and fewer carboxylic groups). This slows down the initial adsorption rate and leaves more active molecules in the liquid phase to maintain slump over time.
If the cement has a high C3A content (greater than 8%) or if the gypsum solubility is poor, the sulfate ion concentration in the fresh mix is insufficient.
Action: Add a small amount of soluble sulfate (such as sodium sulfate, Na2SO4, at 0.1% to 0.5% by weight of cement) directly to the mixing water or blended into the admixture. This instantly restores the sulfate-to-C3A balance and prevents premature hydration.

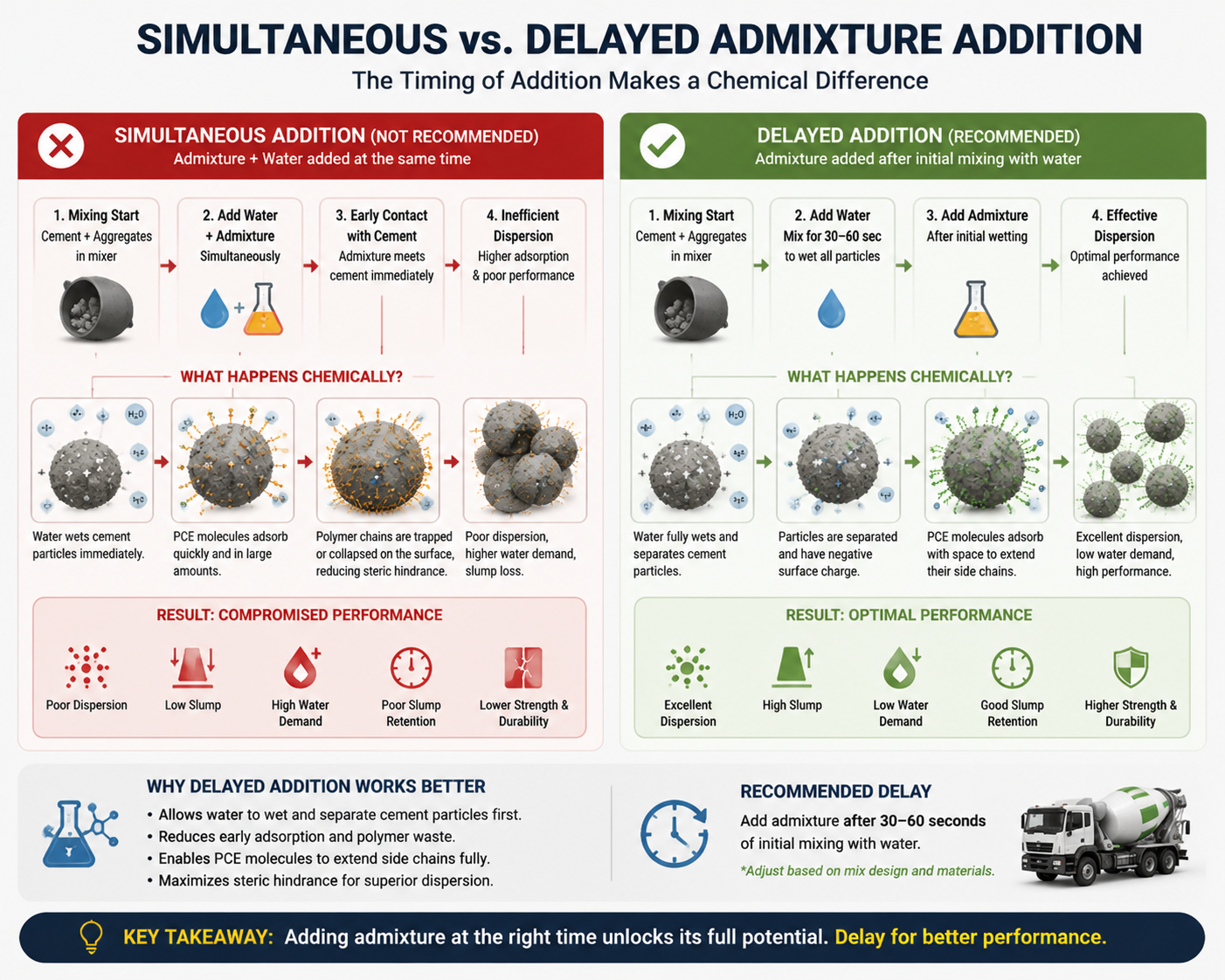

The timing of the admixture addition significantly affects its performance.
Action: Instead of adding the superplasticizer simultaneously with the dry cement and water, delay the addition of the admixture by 30 to 60 seconds after the cement has been wetted. This allows the initial gypsum dissolution and C3A passivation to occur first, preventing the superplasticizer from being prematurely consumed by highly reactive mineral phases.
In 2026, the global push for carbon reduction has led to the widespread use of low-carbon blended cements (utilizing high volumes of fly ash, slag, calcined clays, or limestone powder). These supplementary cementitious materials (SCMs) alter the overall surface chemistry of the binder system.
Calcined clays, for instance, have high specific surface areas and can absorb significant amounts of water and chemical admixtures. Slag and fly ash can alter the alkalinity (pH) of the pore solution, affecting the ionization and dispersion efficiency of polycarboxylate ethers. To achieve compatibility in sustainable concrete, engineers must utilize customized, multi-functional PCEs designed specifically for blended binder systems rather than relying on one-size-fits-all commercial admixtures.
Cement-admixture incompatibility is not a failure of individual components, but a mismatch in their chemical kinetics. By understanding the roles of C3A, gypsum types, and admixture molecular structures, and by applying diagnostic tools like the Marsh Cone test, engineers can rapidly troubleshoot and resolve workability issues. Utilizing delayed addition techniques and partnering with professional chemical synthesizers like Hubei Qiandao New Materials ensures stable, high-strength, and highly workable concrete mixes for any demanding modern mega-project.
