English
Views: 0 Author: Site Editor Publish Time: 2026-06-23 Origin: Site
In the field of infrastructure engineering, ordinary concrete features excellent compressive strength and overall stability, yet suffers from prominent brittleness. It is prone to microcracking, progressive damage and structural cracking under tension, impact load and alternating cyclic load, which fails to meet the construction requirements of modern projects with high standards, long service life and heavy load conditions. As an advanced composite modified building material, Steel Fiber Reinforced Concrete (SFRC) incorporates uniformly distributed short-cut steel fibers into the conventional concrete matrix. It achieves complementary advantages of rigid matrix and flexible fibers, comprehensively improving the tensile strength, crack resistance, impact resistance, fatigue resistance and overall toughness of concrete, and effectively overcoming the inherent brittleness defects of traditional concrete. Currently, SFRC has been widely applied in road and bridge engineering, tunnel support, industrial flooring, special protection works and key municipal infrastructure, serving as a preferred high-reliability engineering material.
Steel fibers used in engineering are available in various specifications. Different shapes, materials and dimensional parameters correspond to diverse working conditions. Rational fiber selection is a prerequisite for ensuring the reinforcing effect, structural stability and durability of concrete.
Common steel fibers are divided into four categories: straight fibers, wavy fibers, mill-cut fibers and hooked-end fibers. Among them, hooked-end steel fibers form a firm mechanical interlock with the concrete matrix through special anchorage structures at both ends. They deliver significantly better bonding and anchoring performance than other types, with low risks of slippage, debonding and pullout. Featuring optimal reinforcement and toughening effects, hooked-end steel fibers have become the most widely used type in civil infrastructure, key municipal and traffic projects.
Low-carbon steel fibers are commonly adopted in conventional projects due to their stable mechanical properties and high cost performance, which can satisfy the requirements of most civil, industrial, road and municipal projects. For special harsh conditions such as coastal salt fog, high humidity and chemical corrosion environments, stainless steel fibers are preferred to fundamentally reduce corrosion risks and ensure long-term structural service stability.
Engineering steel fibers generally have a length of 20–60 mm and a diameter of 0.3–1.0 mm. The slenderness ratio (length/diameter) is the core evaluation index, with a reasonable range of 30–100. This parameter directly determines fiber dispersion uniformity, crack-bridging capacity and overall toughening effect, serving as a key index for mix design and material acceptance.
The uniform incorporation of steel fibers fundamentally changes the brittle failure mechanism of ordinary concrete and achieves all-round upgrades in crack resistance, toughness, fatigue resistance, impact resistance and durability, enabling SFRC to adapt to complex load conditions, harsh environments and high-risk engineering scenarios.
Ordinary concrete has extremely low tensile and flexural strength and is susceptible to penetrating cracks under tension and bending. Steel fibers form a three-dimensional restraint network inside the concrete matrix, which effectively delays the initiation and propagation of microcracks. Even if fine cracks occur in the structure, the fiber bridging effect can maintain the residual strength of the matrix, prevent rapid crack penetration and expansion, and significantly improve the overall structural integrity.
Different from ordinary concrete that collapses instantaneously due to brittleness, SFRC possesses superior energy absorption and deformation coordination capacity. It undergoes gentle plastic failure rather than abrupt structural collapse, greatly improving the structural safety margin and eliminating potential risks of sudden instability and collapse.
For roads, bridges and pavement structures enduring long-term vehicle compaction and alternating loads, SFRC can effectively resist structural damage caused by cyclic external forces, slow down material aging and surface deterioration, significantly extend the service life of engineering structures, and reduce subsequent maintenance frequency.
The randomly distributed steel fiber network inside concrete can rapidly disperse and dissipate impact energy and blast load, endowing SFRC with excellent impact resistance, blast resistance and seismic performance. It is widely used in high-grade protection projects such as military bunkers, explosion-proof structures and civil air defense works.
Conventional carbon steel fibers are subject to potential corrosion. Such risks can be effectively eliminated through optimized mix proportion, adoption of anti-corrosion coated steel fibers, appropriately thickened concrete cover and improved compaction, ensuring long-term durability and structural stability.
The superior performance of SFRC relies on scientific and rigorous mix design, which balances structural strength, toughening effect and construction workability. It is essential to strictly control fiber dosage, working performance and dispersion uniformity to avoid mixing defects.
For conventional projects, the volume fraction of steel fibers is controlled within 0.5%–2%, corresponding to a mass dosage of 40–160 kg/m³. Insufficient fiber content fails to form an effective fiber network and cannot achieve ideal crack-resistant and toughening effects. Excessive fiber content will lead to poor fluidity, fiber balling, local accumulation and uneven mixing, seriously affecting pouring compaction and structural integrity.
The addition of steel fibers will reduce the fluidity and compactness of concrete. In construction, high-efficiency superplasticizers, optimized aggregate gradation and adjusted cementitious material dosage can be adopted to improve the fluidity, wrapping property and compactness of mortar, compensate for the workability loss caused by fiber incorporation, and ensure smooth construction.
Fiber clustering and uneven local distribution will result in unbalanced structural stress and local strength weakness. During batching and mixing, a staged feeding process and special mixing equipment shall be adopted to ensure uniform random distribution of steel fibers in the concrete matrix and give full play to the overall crack-bridging effect.
A scientific mix proportion can only deliver optimal performance through standardized construction. Fine-grained whole-process control of mixing, pouring, vibration and curing is the key to maximizing the mechanical properties and durability of SFRC.
Conventional SFRC strictly follows the principle of dry mixing first, then wet mixing: cement, aggregates and steel fibers are fully dry-mixed uniformly before adding water and admixtures for wet mixing and forming to ensure uniform fiber distribution without balling.

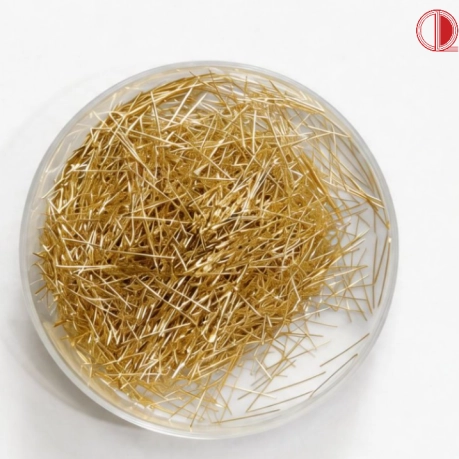

UHPC adopts a differentiated process: powder materials and aggregates are fully dry-mixed first, followed by wet mixing with water and admixtures, and steel fibers are added in the final stage to maximize fiber integrity and guarantee the toughening effect.
Continuous, uniform and layered pouring shall be implemented with strictly controlled vibration intensity and duration. Insufficient vibration causes inadequate compaction and pore defects, while excessive vibration leads to steel fiber settlement and local aggregation, resulting in inconsistent upper and lower structural performance and impairing overall strength and stability.
SFRC adopts the same curing standards as ordinary concrete. Timely covering and moisture retention shall be carried out after pouring and forming, with strict control of temperature and humidity changes, so as to effectively prevent early drying shrinkage cracks and temperature cracks and ensure steady strength development and durable structural forming.
Benefiting from the integrated advantages of crack resistance, wear resistance, fatigue resistance and impact resistance, SFRC has been widely used in various civil engineering fields, including heavy-duty flooring, underground support, road and bridge engineering, special protection works and precast components.
It is applicable to heavy-load floors of factories, warehouses, storage yards and logistics parks, which significantly improves compression resistance, rolling resistance and crack resistance, reduces the setting of expansion joints, and lowers later operation, maintenance and renovation costs.
SFRC can replace traditional steel mesh shotcrete, enhancing the integrity, crack resistance, seismic performance and impermeability of support structures, and improving construction efficiency and safety reserve of underground engineering.
It greatly improves the fatigue resistance and scouring resistance of structures, effectively resists damage from repeated vehicle loads, delays pavement and beam cracking, extends the service life of roads and bridges, and reduces maintenance frequency.
With excellent impact resistance, blast resistance and seismic performance, SFRC is widely used in explosion-proof bunkers, civil air defense structures and special protective facilities to meet high-standard protection requirements.
It can be used for concrete pipes, trench cover plates and small precast components, adapting to working conditions of frequent impact and repeated wear, and effectively improving component strength and durability.
A mature and complete standardization system for SFRC has been established. The design, material acceptance and construction control of key projects at home and abroad are implemented in accordance with the following specifications:
Domestic Standard: GB/T 39147-2020 Steel Fibers for Concrete, which stipulates the material properties, dimensional deviations, test methods and technical acceptance requirements of steel fibers.
European Standard: EN 14889-1 (Specification for steel fibers used in building concrete).
With the high-quality, green, durable and intelligent upgrading of the infrastructure industry, SFRC technology is continuously iterated and optimized. Current research and application hotspots mainly focus on two directions.
Composite mixing of steel fibers and synthetic fibers such as polypropylene gives full play to the high strength and toughness of steel fibers as well as the corrosion resistance and aging resistance of synthetic fibers. The complementary advantages enable the composite material to adapt to complex working conditions requiring high corrosion resistance and ultra-long durability.
Developed through optimized powder proportioning, aggregate gradation and fiber system, this new high-performance material has a compressive strength of over 120 MPa. Featuring ultra-high strength, superior toughness, excellent durability and low shrinkage, it is gradually popularized and applied in long-span bridges, special buildings and landmark projects.
As a high-performance upgraded alternative to traditional concrete, SFRC fundamentally solves the core defects of ordinary concrete, including high brittleness, easy cracking, poor fatigue resistance and weak impact resistance. Driven by the innovation of new material technologies and the development of green infrastructure, SFRC and ultra-high-performance fiber composites will continuously replace traditional building materials and be widely applied in high-end, heavy-load and special projects, serving as an important technical support for the high-quality, long-life and safe development of modern civil engineering.
