How Do Water Reducers Work? How Do Electrostatic Repulsion and Steric Hindrance Take Effect?

What is the working principle of concrete water reducers?

Concrete water reducers, also known as plasticizers or superplasticizers, work primarily by dispersing flocculated cement particles in a concrete mix. When water is added to cement, the particles naturally attract each other due to surface charges, trapping a significant amount of mixing water inside cement agglomerates (flocculation structures). Water reducers adsorb onto the surface of these cement particles, introducing repulsive forces—specifically electrostatic repulsion and steric hindrance—that break up these clusters. This releases the trapped water, drastically increasing the fluidity and workability of the concrete without requiring additional water, which ultimately improves the concrete’s compressive strength and long-term durability.

Why do cement particles clump together without admixtures?

To understand how water reducers work, it is essential to first analyze why cement agglomerates in the first place. Cement is a multi-component mineral mixture consisting of tricalcium silicate (C3S), dicalcium silicate (C2S), tricalcium aluminate (C3A), and tetracalcium aluminoferrite (C4AF).

During the initial stage of mixing with water, these mineral phases dissolve and develop different electrical charges on their crystal surfaces. For instance, the hydration products of C3A quickly bear positive charges, while C3S and C2S phases exhibit negative charges. This heterogeneity creates intense electrostatic attraction between oppositely charged particles. Concurrently, van der Waals attractive forces pull the fine particles together. The result is a rigid, network-like flocculation structure that traps approximately 10% to 30% of the mixing water inside. Locked away, this water cannot contribute to lubricating the fresh concrete mix, leading to low slump, poor workability, and placement difficulties.

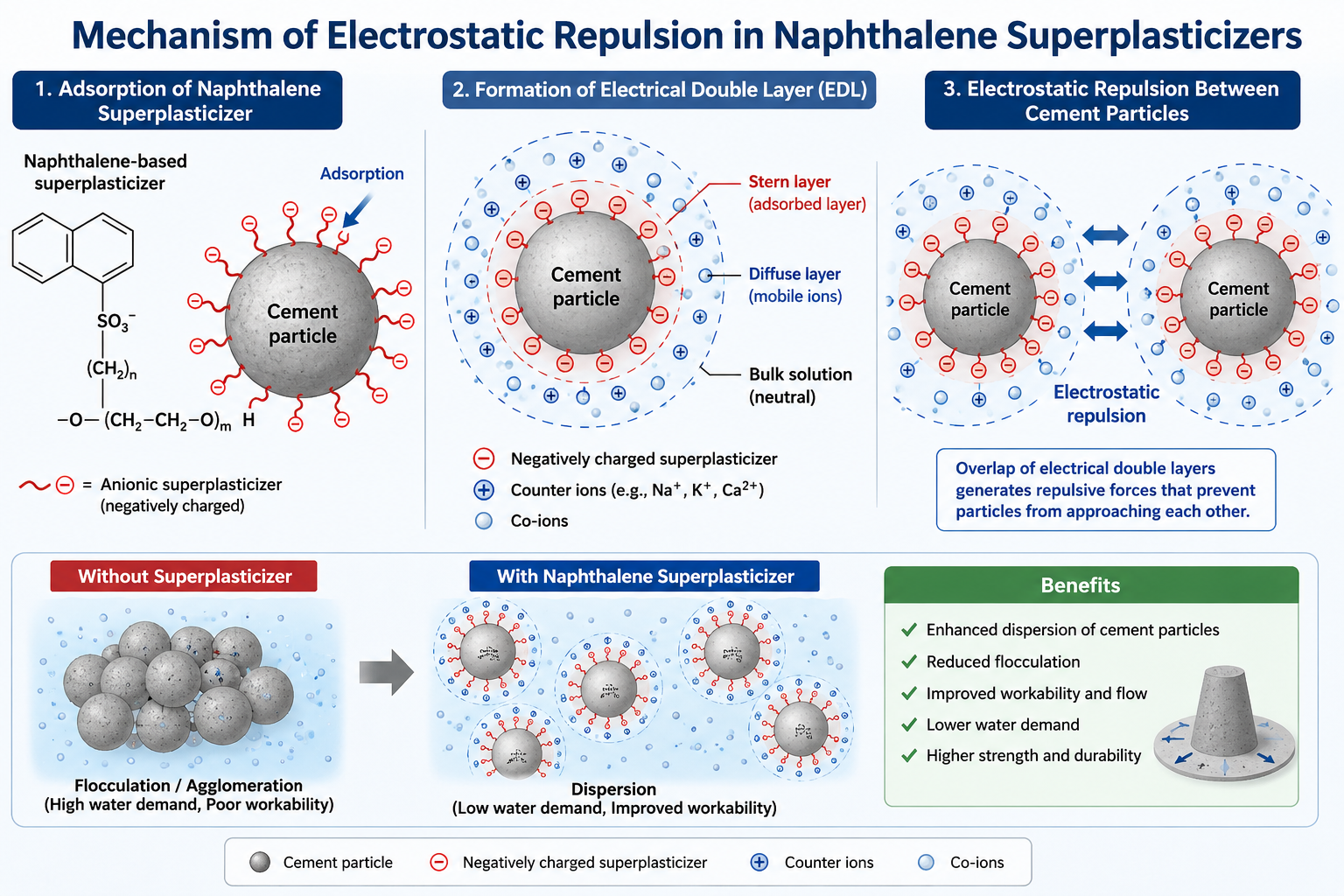

How does electrostatic repulsion disperse cement particles?

Electrostatic repulsion is the classic mechanism driving traditional second-generation water reducers, such as Naphthalene-based superplasticizers (SNF) and Aliphatic-based admixtures.

1. Linear Molecular Adsorption

SNF molecules consist of hydrophobic naphthalene rings with highly hydrophilic sulfonic acid groups. When dissolved in water, the hydrophobic backbones adsorb rapidly onto the cement particle surfaces via van der Waals forces and chemical coordination, leaving the negatively charged sulfonic groups pointing outward into the aqueous phase.

2. Formation of the Electrical Double Layer (EDL)

The concentration of negative charges on the particle surfaces alters their zeta potential (Z-potential). This negative surface layer attracts counterions (such as calcium and sodium ions) from the pore solution, forming a structured Electrical Double Layer (EDL).

3. Mutual Repulsion and Deflocculation

When two cement particles approach each other, their overlapping electrical double layers generate a powerful electrostatic repulsive force. Because like charges repel, the particles push apart, successfully collapsing the flocculation networks.

The Flaw of Electrostatic Repulsion: Slump Loss

While electrostatic repulsion is highly effective initially, it suffers from a major engineering drawback: rapid slump loss. As cement hydration progresses rapidly, new hydration products (like Ettringite and C-S-H gel) continuously cover the adsorbed superplasticizer layer. This buries the negative charges, causes the zeta potential to drop, and allows the cement particles to re-flocculate within 30 to 45 minutes, creating immense challenges for long-distance ready-mix concrete transport.

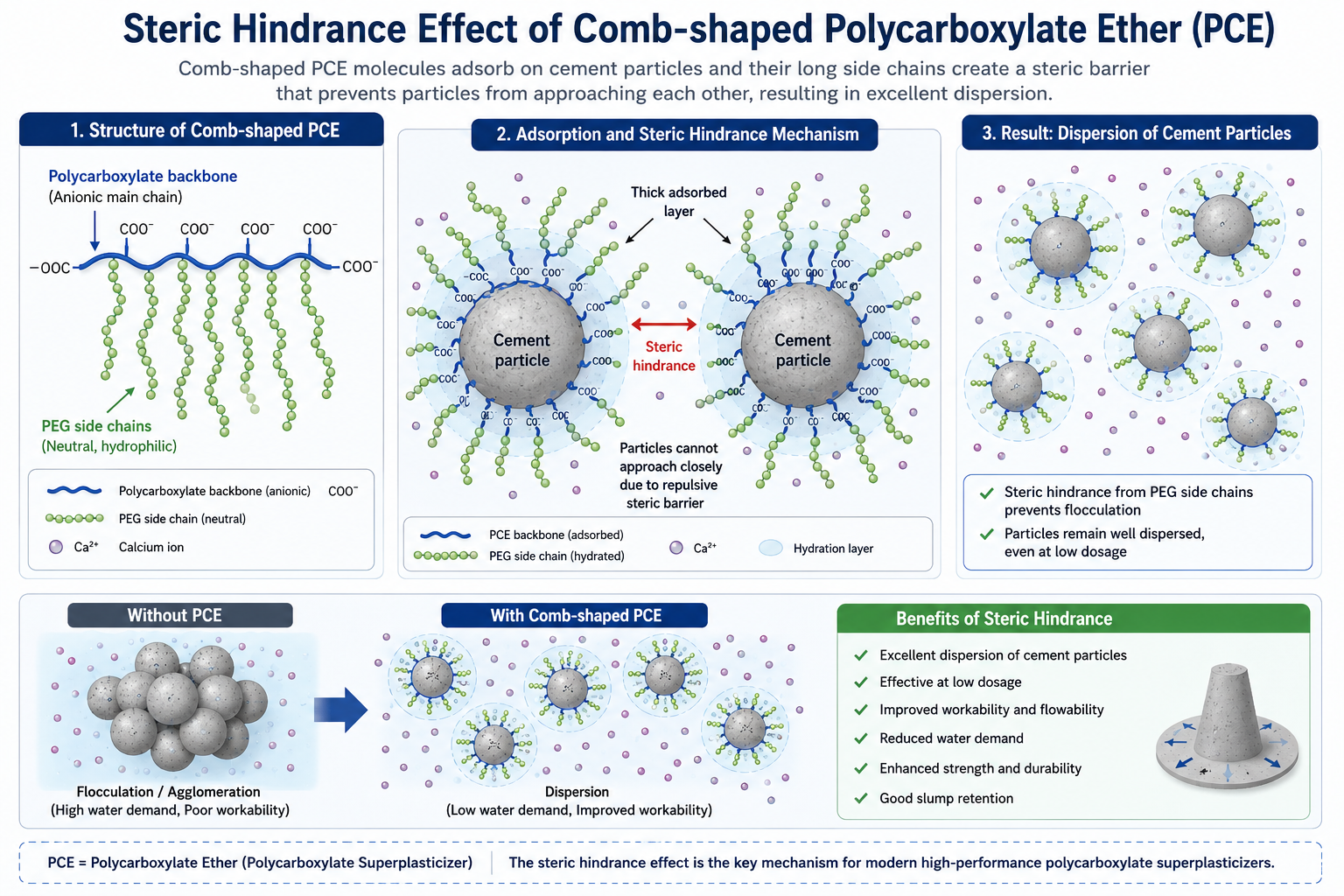

How does steric hindrance revolutionize concrete workability?

To solve the slump retention bottleneck, material scientists developed third-generation Polycarboxylate Ether (PCE) superplasticizers. PCE shifts the primary dispersion mechanism from pure electrostatic repulsion to a highly advanced chemical phenomenon: Steric Hindrance.

1. The Unique "Comb-like" Molecular Structure

Unlike the linear chains of naphthalene reducers, PCE possesses a distinct comb-shaped molecular architecture. It consists of a hydrophobic main chain (composed of polyacrylic acid or polymethacrylic acid) embedded with carboxylic groups and long, flexible hydrophilic side chains (typically Polyethylene Glycol, or PEG/MPEG).

2. Anchoring and Tail Extension

The carboxylic groups on the backbone act as "anchors," binding tightly to the cement particles through electrostatic attraction and complexation. Meanwhile, the long PEG side chains do not adsorb; instead, they extend straight out into the water, forming a dense, brush-like polymer macromolecular layer around each cement grain.

3. The Physical Space Barrier (Steric Effect)

When cement particles attempt to agglomerate, their extended polymer side chains overlap. This restriction triggers two powerful physical effects:

• Osmotic Effect: The overlapping of side chains drastically increases the local polymer concentration in the interstitial space. To balance this concentration gradient, surrounding water molecules spontaneously rush into the zone via osmosis, pushing the cement particles apart.

• Entropic Effect: Compressing the highly flexible PEG chains restricts their molecular motion, reducing their conformational entropy. Thermodynamically, the system strongly resists this state, generating a robust physical repulsive force that keeps the particles stably dispersed.

Because steric hindrance relies on physical spatial barriers rather than fragile surface charges, it is exceptionally stable. Even as early hydration progresses, the long side chains remain active on the particle boundaries, giving PCE its world-renowned slump retention capabilities over several hours.

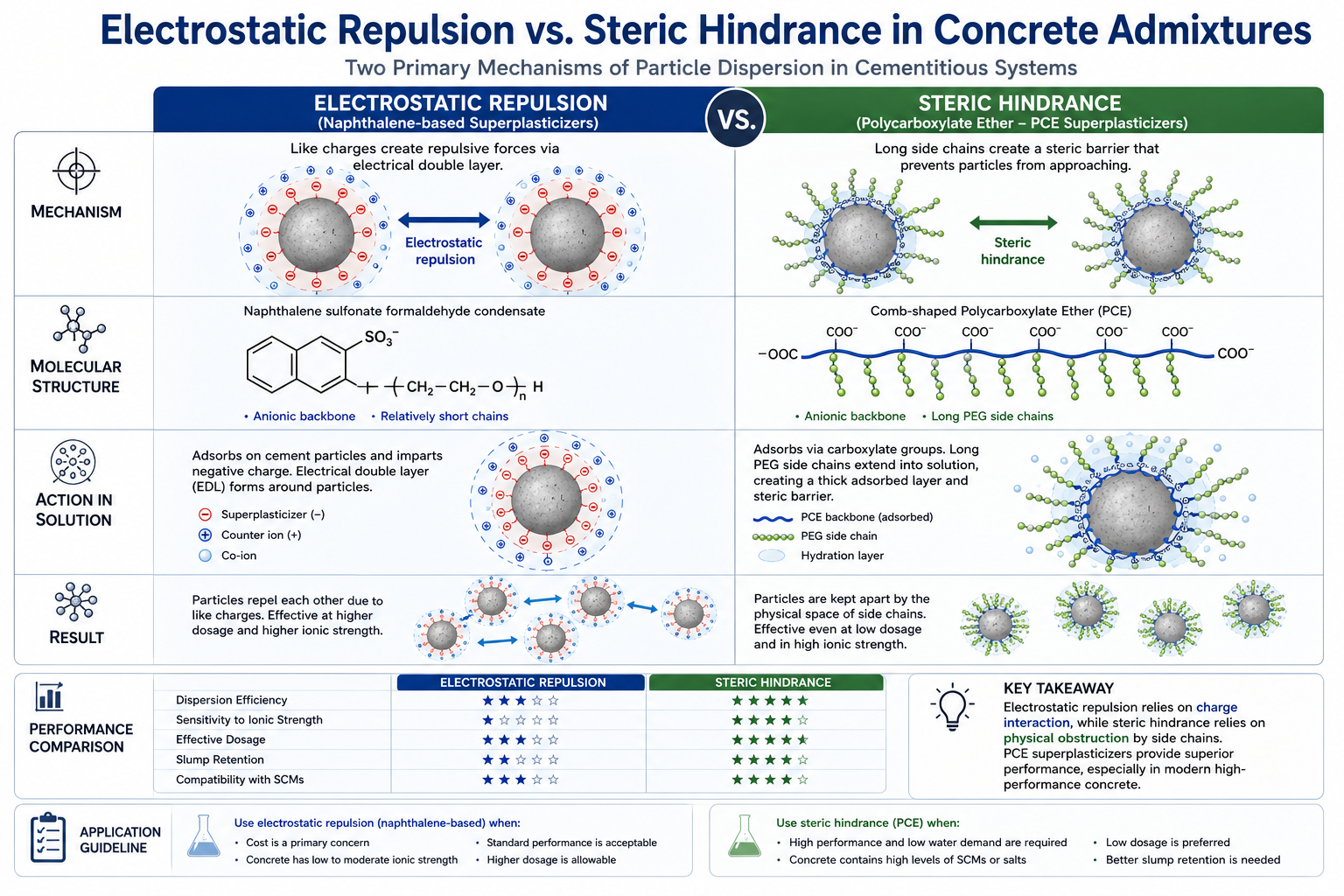

Electrostatic Repulsion vs. Steric Hindrance: What are the key differences?

To help concrete quality control engineers make precise decisions on-site, the core performance differences between these two mechanisms are summarized in the comparative table below:

How do these mechanisms impact modern engineering mega-projects?

The evolution from electrostatic repulsion to steric hindrance has completely redefined what is architecturally possible in modern concrete construction engineering.

1. Enabling Ultra-High Performance Concrete (UHPC)

UHPC demands an extremely low water-to-binder ratio (often below 0.20) and a dense packing of silica fume, quartz flour, and cement. Electrostatic water reducers fail under these conditions because there is simply not enough water to create an effective double layer. PCE, through its massive steric hindrance effect, easily liquefies this ultra-dense powder matrix, allowing the concrete to flow effortlessly around dense steel fiber reinforcement networks.

2. High-Rise Long-Distance Pumping (C60, C80 & Beyond)

Pumping high-strength concrete up hundreds of meters requires a mix with remarkably low plastic viscosity and excellent slump retention. The physical steric brush layer reduces friction between cement grains, providing unmatched rheological control, lowering pumping pressure, and eliminating the catastrophic risk of pipe blockages during vertical transit.

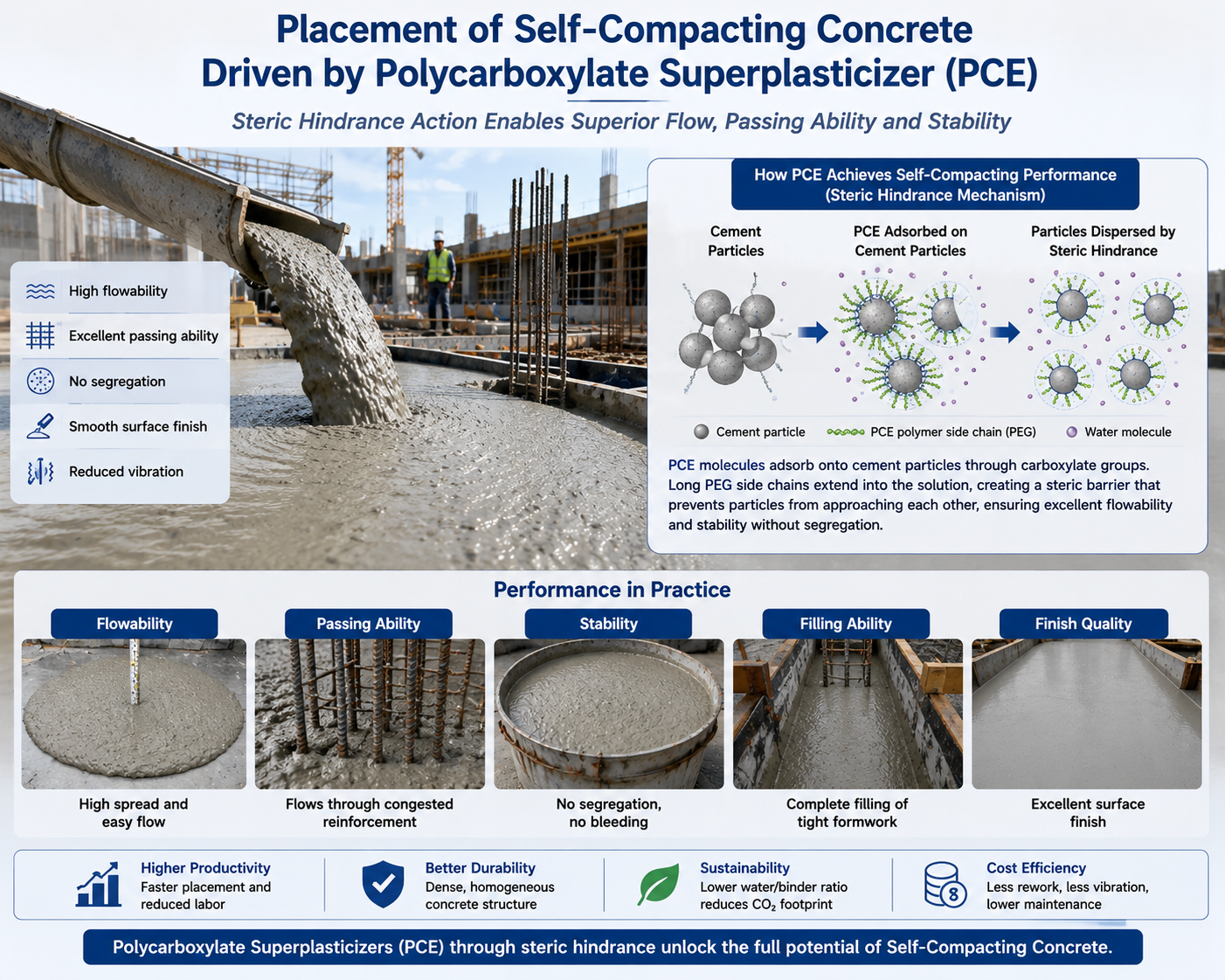

3. Self-Compacting Concrete (SCC)

SCC must flow under its own weight and fill formwork perfectly without mechanical segregation or bleeding. The steric hindrance mechanism delivers a stable polymer shield around particles, ensuring that aggregates remain perfectly suspended within the cement paste during dynamic flow, achieving flawless architectural concrete finishes.

Summary: Designing the perfect mix with molecular science

In summary, while electrostatic repulsion relies on negative surface charges to break up cement clusters, its vulnerability to hydration products causes rapid workability loss. Conversely, steric hindrance leverages the physical, comb-like spatial barriers of polycarboxylate polymers to offer unparalleled water reduction rates (greater than 27%) and prolonged slump protection. Understanding these microscopic chemical interactions enables modern engineers to precisely tailor admixtures for any high-performance application—from massive hydropower dams to skyscrapers—ensuring optimal structural strength, durability, and construction efficiency.
