The primary difference between Naphthalene-based water reducers (SNF) and Polycarboxylate-based water reducers (PCE) lies in their chemical evolution, molecular structure, and working mechanisms. Naphthalene Sulfonate Formaldehyde (SNF) represents the second-generation high-efficiency water reducer, dispersing cement particles primarily through electrostatic repulsion with a water reduction rate of 15%–25%. In contrast, Polycarboxylate Ether (PCE) is the third-generation high-performance admixture, featuring a unique comb-like molecular structure that disperses cement via both electrostatic repulsion and steric hindrance. PCE delivers a far superior water reduction rate (25%–40%), exceptional slump retention, lower dosage requirements, and a significantly smaller environmental footprint, making it the premier choice for modern high-strength and sustainable concrete engineering.
To understand why these two admixtures perform so differently on-site, we must examine their working principles at the microscopic level.

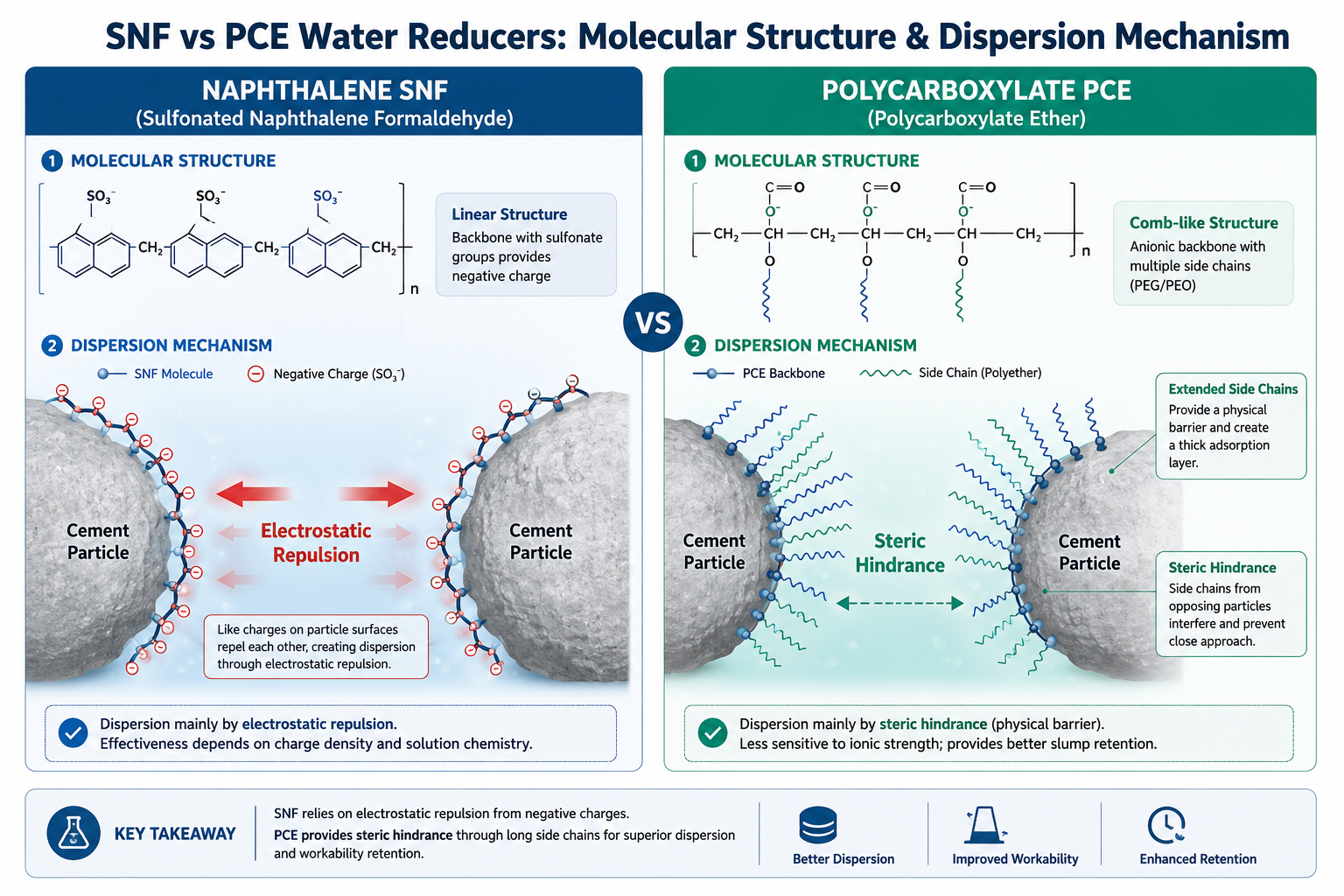

SNF molecules are linear polymers that carry negative charges. When added to the concrete mix, they rapidly adsorb onto the surfaces of positively charged cement particles. This creates a uniform negative electrostatic field around the particles, causing them to repel each other. This repulsion breaks up the cement flocculation structures, releasing the trapped mixing water and improving fluidity. However, as hydration progresses, the electrostatic charge diminishes quickly, leading to rapid slump loss.
PCE features a cutting-edge "comb-like" molecular architecture, consisting of a main chain with highly active carboxylic groups and numerous long hydrophilic polyether side chains. While the main chain anchors onto the cement particle to provide electrostatic repulsion, the extended side chains form a dense, physical steric hindrance barrier. Even as hydration begins, these side chains remain extended in the water, physically preventing cement particles from agglomerating. This dual-action mechanism ensures unparalleled water-reducing efficiency and prolonged slump retention without severe retarding effects.
When evaluating these admixtures for real-world application, five critical performance metrics must be considered:
SNF: Typically ranges from 15% to 25%. Increasing the dosage beyond the optimal limit (usually 0.5%–1.0%) does not significantly increase water reduction and can trigger segregation or bleeding.
PCE: Easily achieves a water reduction rate of 25% to over 40% at ultra-low dosages (typically 1.0% of cementitious material). It allows for the production of concrete with an extremely low water-binder ratio ($<0.25$).
SNF: Suffers from rapid slump loss, often losing significant fluidity within 30 to 45 minutes after mixing. This presents massive challenges for long-distance ready-mix transit or hot-weather concreting.
PCE: Demonstrates extraordinary slump retention. Specialized slump-retaining types can maintain high concrete workability for over 2 hours without compromising early strength development.
SNF: Enhances compressive strength by reducing mixing water, but the linear structure offers limited optimization for the concrete matrix micro-pores.
PCE: Drastically refines the pore structure of hardened concrete, reducing capillary porosity. This leads to substantial gains in early and long-term compressive strength, while significantly boosting resistance to carbonation, chloride penetration, and freeze-thaw cycles.
SNF: Exhibits relatively stable performance across various standard cements but is highly sensitive to the mineral composition of the cement, sometimes causing unexpected flash setting.
PCE: Offers superior versatility but can be sensitive to the clay content in aggregates. High-quality PCE formulations, such as those from Hubei Qiandao New Materials, are engineered with specific clay-insensitive monomers to overcome mud-rich aggregate issues.
SNF: Industrial synthesis involves formaldehyde and produces industrial waste high in sodium sulfate, raising environmental concerns under modern green building standards.
PCE: Synthesized via a green, formaldehyde-free polymerization process. It features low alkali, zero chloride ions, and ultra-low VOC emissions, fully aligning with global eco-friendly building certifications.

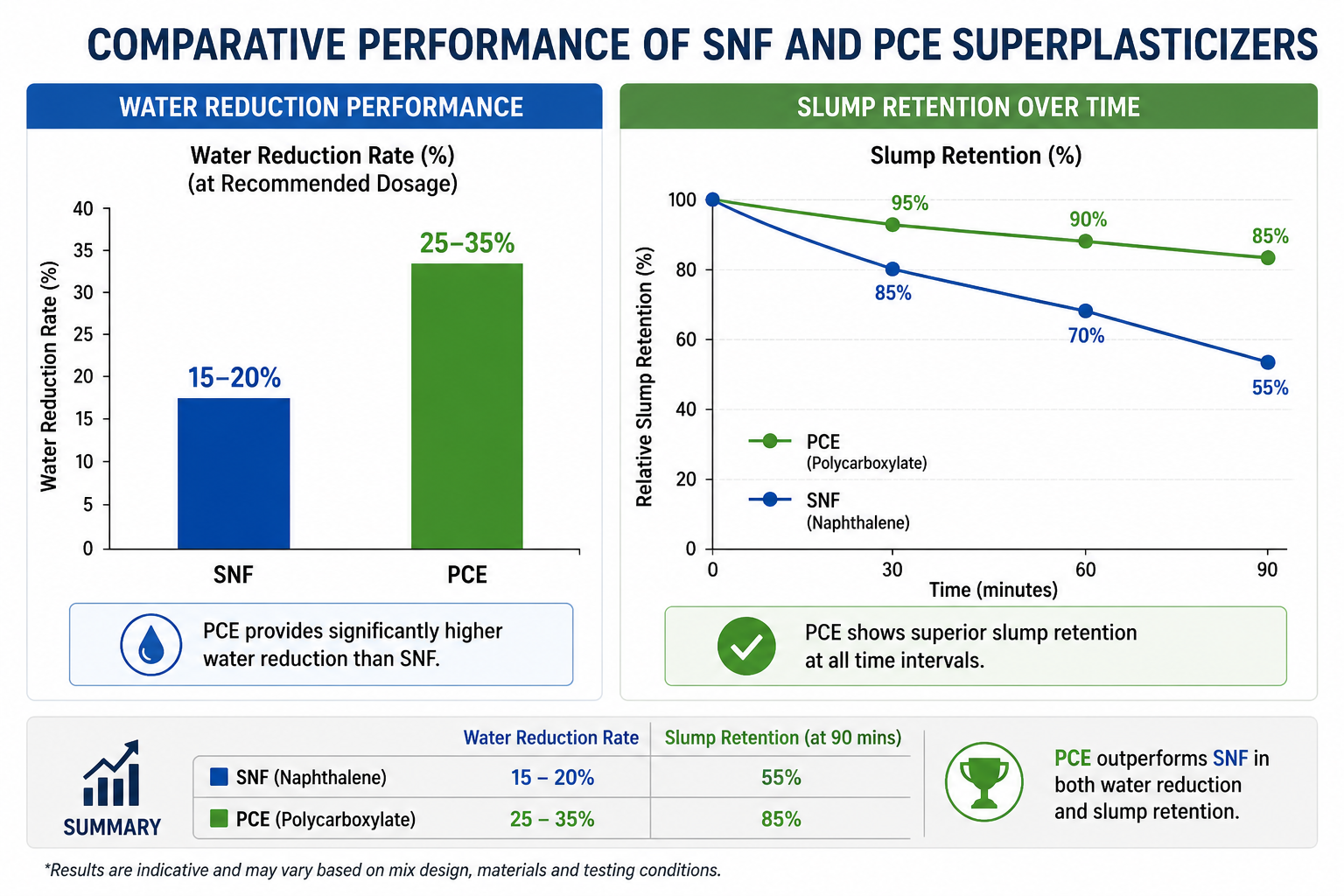

Performance Property | Naphthalene-Based (SNF) | Polycarboxylate-Based (PCE) |
Generation | 2nd Generation High-Efficiency | 3rd Generation High-Performance |
Molecular Structure | Linear polymer | Comb-like copolymer |
Primary Mechanism | Electrostatic Repulsion | Electrostatic Repulsion + Steric Hindrance |
Water Reduction Rate | 15% – 25% | 25% – 40%+ |
Optimal Dosage | 0.5% – 1.2% | 0.15% – 0.4% (Solid content) / ~1.0% (Liquid) |
Slump Retention | Poor (Rapid loss in 30-45 mins) | Excellent (Maintained for 60-120+ mins) |
Bleeding/Segregation | High risk at elevated dosages | Low risk; superior cohesion and fluidity |
Eco-Friendliness | Low (Contains Formaldehyde/High Sulfate) | High (Formaldehyde-free, low carbon footprit) |
Choosing between SNF and PCE is not simply about picking the more advanced product; it is about matching material properties to specific project requirements, economic budgets, and technical constraints.

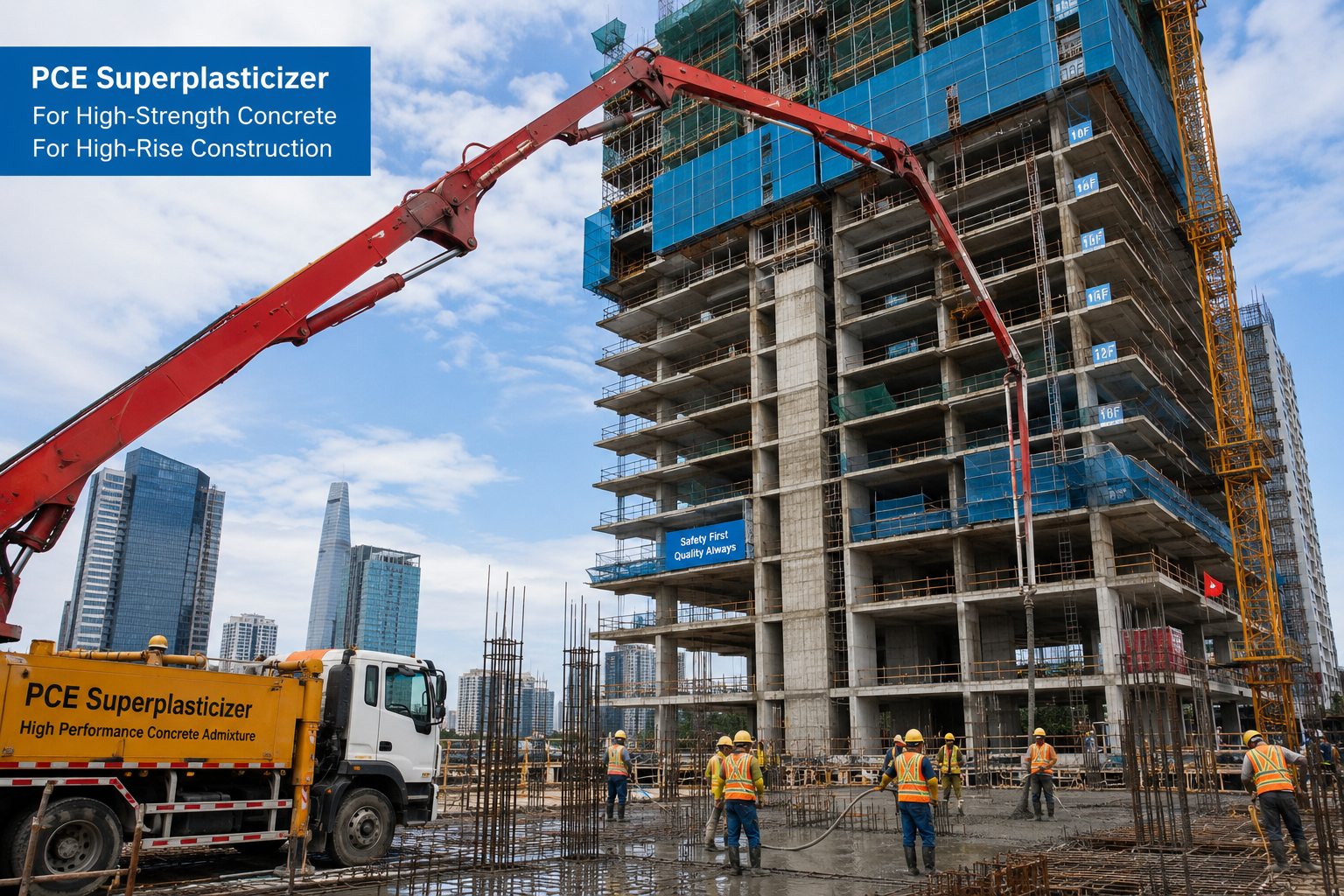

High-Strength & Ultra-High-Strength Concrete: Essential for grades C60, C80, and above (such as super-tall skyscraper cores or heavy-load infrastructure).
Self-Consolidating Concrete (SCC): Projects requiring high fluidity and zero segregation to flow through dense reinforcing steel bars without mechanical vibration.
Long-Distance Transportation: Ready-mix concrete that must travel over long distances or navigate heavy urban traffic while maintaining workability.
Precast Concrete Elements: PCE allows for tailored formulations (like standard or early-strength types) that accelerate mold-turnaround times while ensuring flawless surface finishes.
Green and Sustainable Projects: Buildings aiming for international low-carbon or green star certifications.
Conventional Construction Work: Routine structural layouts, low-rise residential buildings, or pavement slabs where concrete grades are below C40.
Strict Initial Material Budget Constraints: In regions where raw material costs dictate immediate procurement decisions, SNF offers a lower upfront cost per ton.
Short Haulage Distances: On-site batching plants where concrete is discharged and placed within 15–20 minutes of mixing, neutralizing the slump-loss disadvantage.
Familiarity with Traditional Mix Designs: Local projects with limited access to advanced testing labs that prefer working with traditional, long-established chemical formulations.
While Naphthalene-based water reducers continue to hold a market share in traditional, cost-sensitive applications, Polycarboxylate-based superplasticizers represent the definitive future of global concrete technology. For infrastructure projects demanding extreme durability, long-distance flowability, and low-carbon emissions, PCE stands out as the irreplaceable choice. Consulting with a professional manufacturer like Hubei Qiandao New Materials can help you conduct precise material matching tests, ensuring your project achieves the perfect balance of technical performance and commercial efficiency.
