Winter Construction in Frigid Regions: Technical Practice of Compounding Antifreeze Agents with Retarding High-Performance Superplasticizers

Subtitle: Advanced Chemical Admixture Solutions for Reliable Concrete Performance at Subzero Temperatures

Article Meta

• Reading Time: 12 minutes

• Target Audience: Concrete Admixture Manufacturers, Construction Material Suppliers, Exporters to Cold-Climate Regions

• Technical Level: Advanced

• Primary Keywords: Antifreeze agent, retarding superplasticizer, winter construction, PCE superplasticizer, concrete admixture

• Secondary Keywords: polycarboxylate ether, slump retention, cold weather concreting, early strength development, freeze-thaw resistance, concrete repair mortar, high-performance water reducer

Key Points Covered

• Understanding the technical challenges of concrete curing in frigid environments

• The compounding mechanism of antifreeze agents with retarding superplasticizers

• PCE-based formulations for extreme low-temperature performance

• Application best practices for winter construction in regions like Russia, Canada, and Northern China

• Quality control and performance verification methods

Introduction: The Challenge of Cold-Weather Concreting

Concrete remains one of the most versatile construction materials globally. However, cold-weather concreting presents significant technical challenges. When ambient temperatures drop below freezing, the hydration process of cement slows dramatically—or stops entirely—compromising the development of mechanical strength and long-term durability.

For infrastructure projects in frigid regions—including Siberia, Northern Canada, Scandinavia, and China's Northeast provinces—winter construction is not an option but a necessity. The solution lies in advanced antifreeze agents compounded with retarding superplasticizers, particularly polycarboxylate ether (PCE) -based formulations.

The compounding approach creates synergistic effects: the antifreeze agent lowers the freezing point of the concrete's pore solution, allowing cement hydration to continue at subzero temperatures, while the high-performance superplasticizer ensures adequate workability, water reduction, and controlled set times. This integrated approach enables year-round construction activity without the prohibitive costs of steam curing or heated enclosures.

This article covers:

• Technical fundamentals of antifreeze agent-superplasticizer compounding

• PCE chemistry and performance in cold environments

• Formulation principles and material selection

• Application guidance for winter construction

• Quality assurance and performance testing

Understanding Concrete Freeze-Thaw Damage and Winter Construction Challenges

Before selecting an admixture solution, it is essential to understand what happens to concrete during winter construction.

1.1 Hydration Arrest at Subzero Temperatures

Cement hydration is a thermochemical reaction. Below approximately 5°C, the reaction rate declines significantly. At freezing temperatures, water in the concrete mix crystallizes into ice, expanding by approximately 9% in volume. This expansion creates internal stresses that:

• Disrupt the cement paste structure

• Reduce ultimate compressive strength

• Increase permeability

• Compromise long-term durability

1.2 Freeze-Thaw Deterioration Cycle

During the freeze-thaw cycle, the alternating expansion and contraction of water in concrete pores generates cumulative damage. As ice forms, hydraulic pressure forces water from unfrozen capillary pores into gel pores, creating internal tension exceeding tensile strength.

The damage manifests as:

• Surface scaling

• Internal cracking

• Aggregate pop-outs

• Reinforcement corrosion (from cracking and chloride ingress)

1.3 Why Traditional Winter Construction Methods Are Costly

Historically, winter construction relied on:

• Steam curing — energy-intensive and expensive

• Heated enclosures (tented areas) — costly to set up and maintain

• Electrical heating systems — high operational costs

• Thermal blankets — limited effectiveness at extreme temperatures

Antifreeze admixture technology eliminates or reduces the need for these costly measures, providing a more economical and practical solution.

Antifreeze Agent Technology: Mechanisms and Classification

2.1 What Is an Antifreeze Agent?

An antifreeze admixture (also called antifreezing admixture or winter construction additive) is a chemical compound added to concrete mix to lower the freezing point of its pore solution. This allows cement hydration to continue at subzero temperatures.

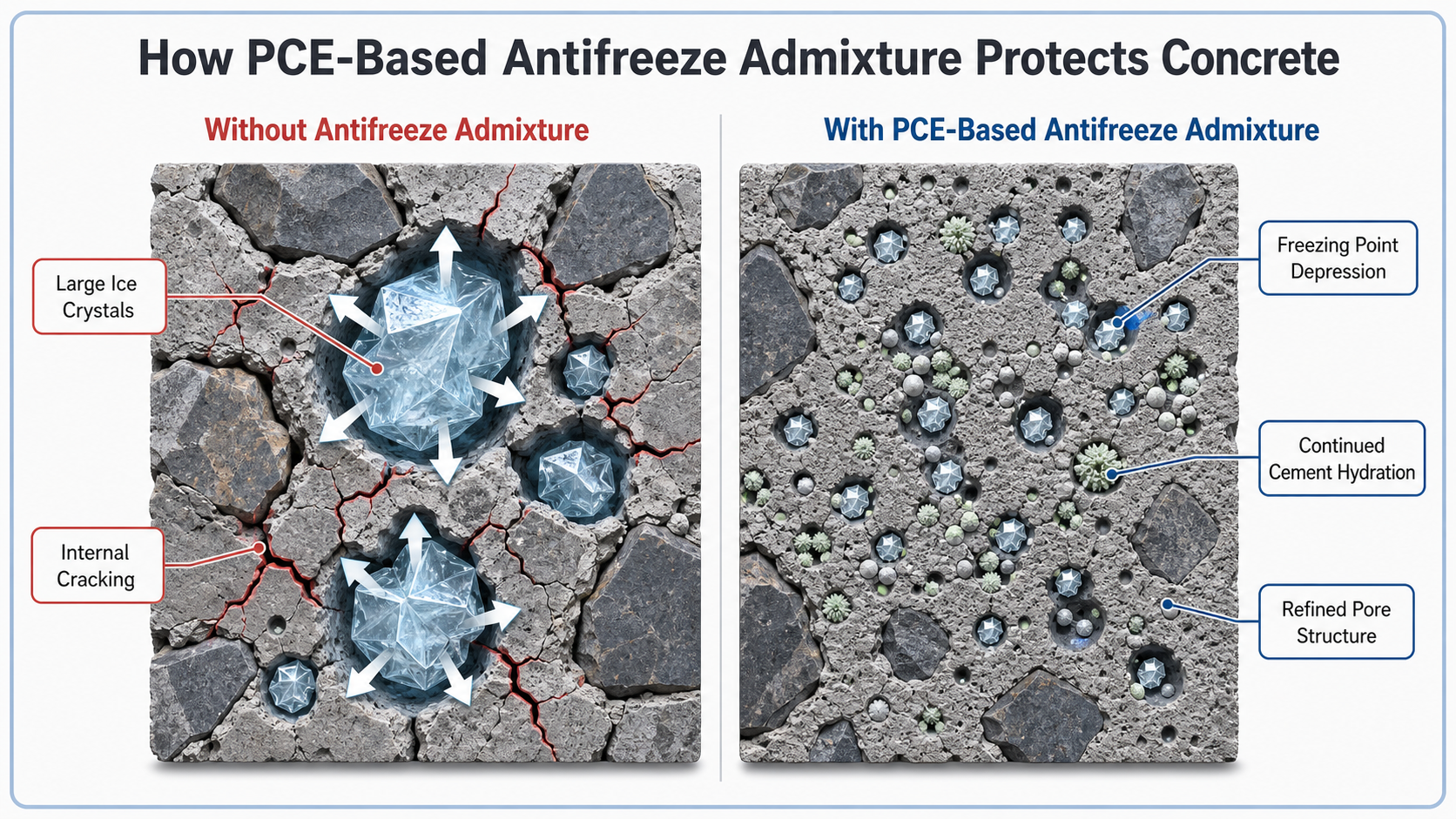

2.2 Mechanism of Action

Antifreeze agents work through several mechanisms:

2.3 Classification of Antifreeze Agents

Traditional Antifreeze Agents (First Generation):

Modern Blended Antifreeze Admixtures (BAFA):

Modern blended antifreeze admixtures combine multiple functional components to achieve superior performance at reduced dosages.

Key Insight: PCE-based antifreeze admixtures achieve effective freezing point depression at dosages of only 1.0-1.3% compared to 10% for traditional formate-based formulations. This represents a dramatic reduction in material usage.

Retarding High-Performance Superplasticizers in Winter Construction

3.1 What Is a Retarding Superplasticizer?

A retarding superplasticizer combines high water-reducing capability with controlled set retardation. While retardation may seem counterintuitive for winter construction, it provides critical benefits:

• Controlled workability retention in hot concrete (where mix water is heated)

• Prevention of slump loss during transport and placement

• Reduced risk of cold joints in large pours

3.2 Polycarboxylate Ether (PCE) as the Preferred Technology

PCE (Polycarboxylate Ether) has emerged as the superplasticizer of choice for cold-weather applications due to its:

• High water reduction rate: 25-40% water reduction enabling lower water-cement ratios

• Excellent slump retention: Maintains workability over extended periods

• Compatibility with antifreeze compounds: Can be formulated into a single blended admixture

• Low alkali and chloride content: Safe for reinforced concrete

3.3 Slump Retention Types for Winter Construction

Research on hot concrete (heated mix water) has demonstrated that slump retention type PCE superplasticizers are effective in reducing slump loss when mix temperatures are elevated.

Key Finding: The average concrete temperature for 60 minutes after mixing should be maintained below 30°C to prevent excessive slump loss, even with retarding superplasticizers. This requires careful temperature management during winter construction.

3.4 Addressing Retardation in Cold Climates

A known limitation of PCE superplasticizers is their potential to retard cement hydration, particularly at cold temperatures where early strength development is critical.

This challenge is addressed through:

1. Molecular Design: New PCE polymers with high molecular weight polyoxyethylene side chains provide:

   • Low water-cement ratios

   • High early-age mechanical strength even at low curing temperatures

   • Reduced or eliminated steam curing requirements for precast applications

2. Compounding with Accelerators: Calcium formate, nitrate salts, and other accelerators offset retardation effects

3. Optimized Dosage: Careful calibration to balance workability with strength development

Technical Principles of Compounding Antifreeze Agents with Retarding Superplasticizers

4.1 Why Compound Antifreeze and Superplasticizer?

Compounding advantages:

4.2 The Russian Experience

In Russia, the historical predominant practice has been the use of blended plasticizing-antifreezing admixtures. Early formulations based on sodium formate provided antifreeze performance down to -15°C but required high dosages (~10% of cement weight), creating alkali-silica reaction risks.

Modern Russian BAFA development achieved:

• Extreme freezing point down to -25°C

• Significantly reduced dosage: 1.0-1.3% for PCE-based formulations

• Superplasticizing effect in addition to antifreeze protection

4.3 The North American Context

Similar compounding approaches are used across North American cold regions. For example, winter projects in areas like Michigan's Upper Peninsula or Canada's Prairie provinces use blended admixture systems to:

• Enable year-round construction

• Reduce energy costs associated with heating

• Improve project scheduling by eliminating seasonal shutdowns

4.4 PCE-Based Antifreeze Superplasticizer Technology

Patent CN103922628B describes a polycarboxylate-based antifreeze high-performance water reducer with demonstrated efficacy at subzero temperatures. The formulation uses common raw materials with practical production processes.

Typical composition:

• Acrylic acid

• Isopentenyl polyoxyethylene ether (TPEG)

• Redox initiator system

• Sodium nitrite (antifreeze)

• Calcium chloride or formate (accelerator)

• Air-entraining agent

• Sugar-based retarder (for controlled setting)

The resulting product provides high water reduction, excellent antifreeze properties, and effective rust protection for reinforcing steel.

4.5 Antifreeze PCE Synthesis and Formulation Considerations

Key technical parameters for formulation:

Application Best Practices for Winter Construction

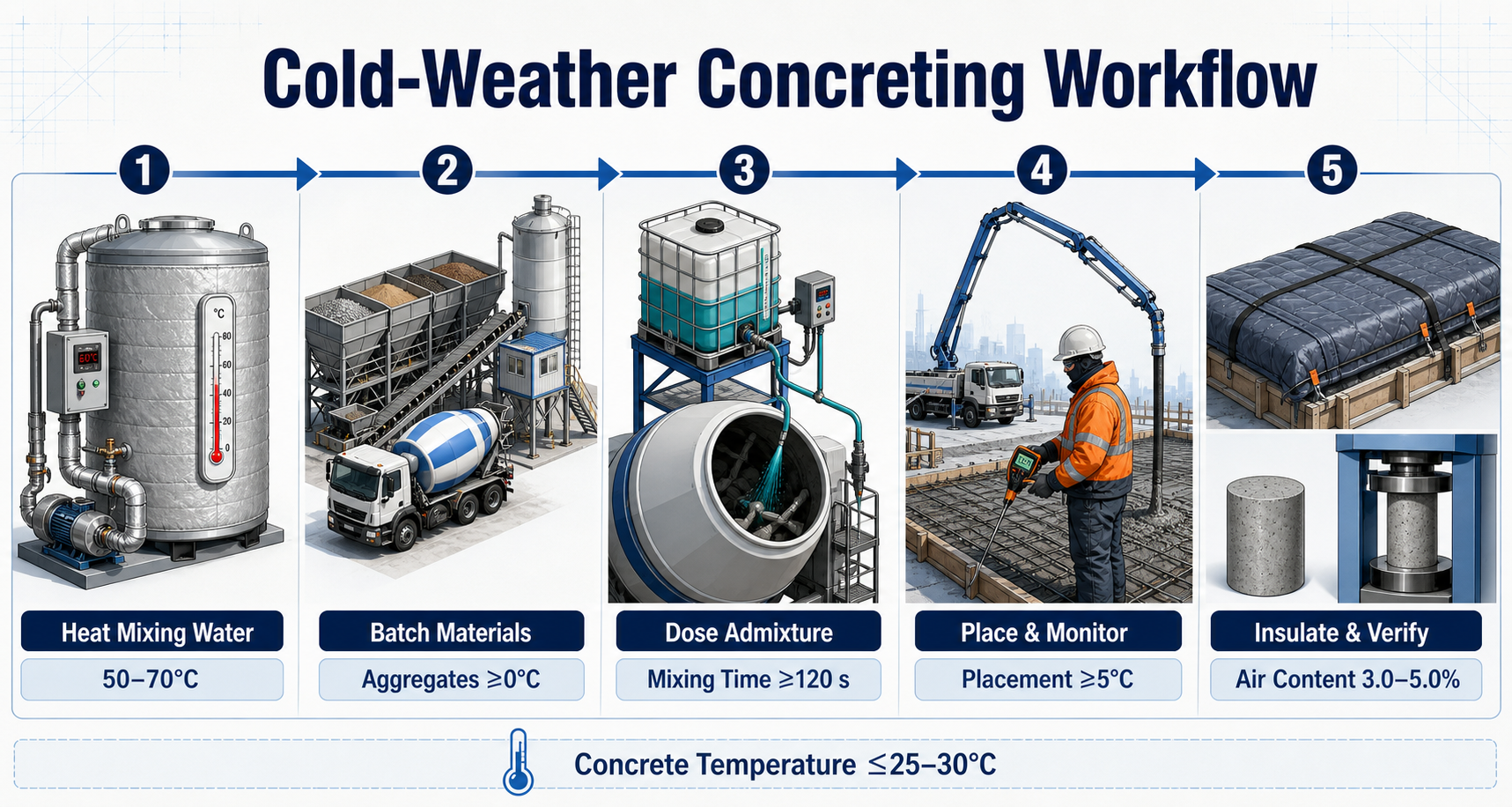

5.1 Cold Weather Concreting Procedure

Recommended step-by-step protocol:

Step 1: Material Preheating

• Heat mixing water to 50-70°C (not exceeding 80°C to avoid flash setting)

• Ensure aggregates are above freezing (≥0°C)

• Store cement in heated silos

Step 2: Batching Sequence

1. Add heated water first

2. Add aggregates

3. Add cement and mineral admixtures

4. Add liquid admixtures (including compounded antifreeze-superplasticizer)

5. Mix for minimum 120 seconds at mixing speed

Step 3: Temperature Control

• Minimum concrete temperature at placement: 5°C

• Maximum concrete temperature: 25-30°C (to prevent slump loss)

Step 4: Placement

• Place promptly after mixing

• Use insulated delivery equipment when needed

• Avoid exposure to wind or cold surfaces

Step 5: Curing

• Cover with insulating blankets (thermal blankets)

• Maintain moisture during curing (prevent drying)

• In extremely cold conditions, use heated enclosures or steam curing for initial protection

5.2 Achieving -25°C to -40°C Performance

For extreme cold conditions:

-25°C Applications:

• PCE-based BAFA at 1.0-1.3% dosage

• PNS-based BAFA at 1.8-2.2% dosage

• Non-chloride, non-plasticizing admixtures available for freeze point below -40°C

-40°C Applications:

• Specialized high-concentration formulations

• Higher dosages of nitrate salts and organic compounds

• Air content controlled at 3.0-5.0%

5.3 Practical Example: Chinese Winter Construction Case Study

Project Background: Box girder and pile foundation construction in a cold region of Northwest China with temperatures dropping below -10°C.

Challenges Identified:

• Slow concrete strength gain at low temperatures

• Freeze-thaw damage risk

• Strict quality requirements for structural elements

Technical Solution: Selection of chlorine-free antifreeze admixture compounded with a high-performance water reducer. The optimized mix achieved:

Construction Measures:

• Heating mixing water to 50-80°C

• Monitoring concrete temperature at batching and placement

• Covering with thermal blankets

• Steam curing for box girder production

5.4 Material Quality Control

Critical testing during winter construction:

• Admixture adaptability test with site cement

• Chloride ion content (must meet standards)

• Freezing point determination of admixture solution

• Daily slump retention testing (measure slump at 0, 30, 60 minutes)

• Air content monitoring (target 3.0-5.0%)

Quality Assurance and Performance Verification

6.1 Key Performance Indicators

6.2 Common Failure Modes and Solutions

6.3 Compatibility with Supplementary Cementitious Materials

Issue: Slag cement and fly ash have slower hydration rates, exacerbating cold-weather challenges.

Solution: When using mineral admixtures (slag, fly ash, silica fume), use:

• Higher dosage of antifreeze components

• Additional accelerator content

• Extended curing protection period

FAQ

1. What is the purpose of compounding antifreeze agents with superplasticizers?

Compounding provides synergistic effects: the antifreeze agent prevents freezing of pore water, allowing cement hydration at subzero temperatures, while the superplasticizer ensures adequate workability and water reduction. The combined formulation simplifies batching and improves performance consistency.

2. What makes PCE superplasticizer suitable for cold-weather concreting?

PCE offers high water reduction (25-40%), excellent slump retention, and compatibility with antifreeze compounds. New-generation PCE polymers with high molecular weight side chains provide high early-age strength even at low curing temperatures.

3. What is the recommended dosage for PCE-based antifreeze admixtures?

For extreme freezing point applications down to -25°C, PCE-based admixtures are dosed at 1.0-1.3% of cement weight. This is significantly lower than traditional formate-based formulations which required ~10% dosage.

4. Can antifreeze admixtures be used with all types of cement?

Cement adaptability is a critical consideration. Different cements react differently with admixture components. Conduct adaptability tests with site cement before project application. Mineral admixtures (slag, fly ash) may require increased dosage or additional accelerators.

5. What is the maximum working temperature for antifreeze-superplasticizer compounds?

These admixtures are designed for cold-weather applications where ambient temperatures are below 5°C. However, water should be heated to 50-70°C for mixing, and the concrete temperature at placement should be at least 5°C. The average concrete temperature for 60 minutes after mixing should be maintained below 30°C to prevent slump loss.

6. How much cement can be saved with superplasticizer use?

High-range water reducers enable lower water-cement ratios, potentially saving 10-15% of cement while maintaining or increasing strength. This represents a significant economic and environmental benefit.

7. What air content is required for freeze-thaw resistance?

For concrete exposed to freeze-thaw conditions, air content of 3.0-5.0% is generally required. Air-entraining agents should be included in the formulation.

Conclusion

Winter construction in frigid regions presents significant technical challenges, but modern admixture technology provides reliable solutions. The compounding of antifreeze agents with retarding high-performance superplasticizers—particularly PCE-based formulations—enables:

• Year-round construction activity

• Reduced energy costs compared to heating methods

• Consistent concrete quality even in extreme conditions

• Extended service life through improved durability

Key takeaways:

• PCE-based antifreeze admixtures achieve effective performance at dosages as low as 1.0-1.3%

• Retarding superplasticizers effectively control slump loss in hot concrete (heated mix water)

• Proper material heating, batching sequence, temperature control, and curing are critical for success

• Quality testing and cement adaptability are essential prerequisites

Advanced admixture systems like the PCE antifreeze superplasticizer offer construction material suppliers and project managers a competitive advantage in cold-climate infrastructure development. By combining technical expertise with proven formulation and application knowledge, the industry can confidently extend winter construction activities without compromising quality.
