Views: 0 Author: Qiandao Technical Team Publish Time: 2026-08-13 Origin: Hubei Qiandao New Materials Co., Ltd.
UHPC for bridges presents a distinct decision for bridge owners, designers, precasters and construction contractors. This article focuses on that decision and connects it to the wider UHPC series without repeating the scope of adjacent guides. Project values must come from the governing specification and named test methods. The guidance below explains the mechanisms, evidence and implementation questions that should be resolved before design approval, production or purchase.

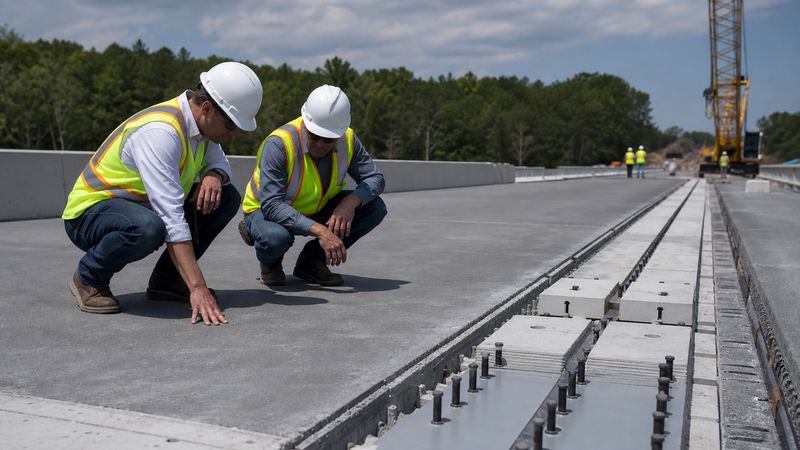

UHPC can transfer high local forces through relatively small closure pours when reinforcement, development and interface conditions are designed correctly. Compact joints reduce the volume of site-cast material and can simplify prefabricated layouts. The benefit depends on congestion, access and leakage control; a narrow joint that cannot be filled and inspected is not an efficient joint.
Fiber reinforcement can distribute cracking and retain capacity after matrix cracking. This is valuable in deck joints, negative-moment regions and other zones that combine tension with environmental exposure. Designers must use qualified tensile or flexural behavior and account for fiber orientation. Conventional reinforcement, anchorage and fatigue checks remain part of the structural system.

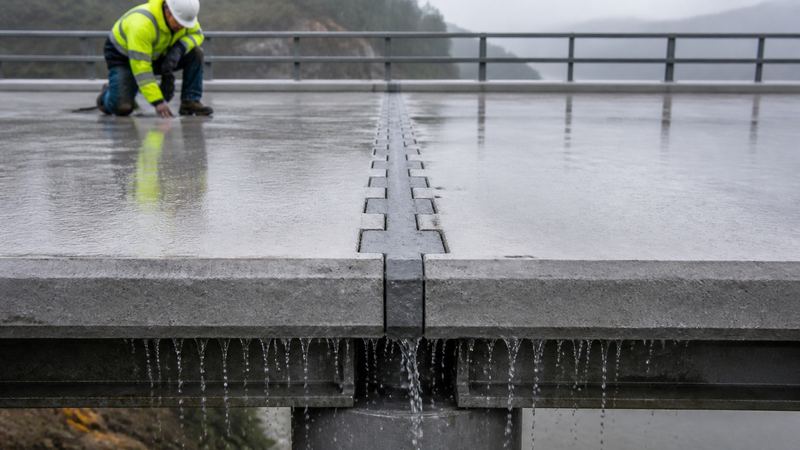

The refined pore structure of UHPC can slow water and chloride ingress, supporting bridge applications exposed to deicing salts or marine environments. Durable material does not compensate for poor drainage, leaking expansion joints or unsealed terminations. Detail the system so water is directed away, and verify the durability property required by the owner.

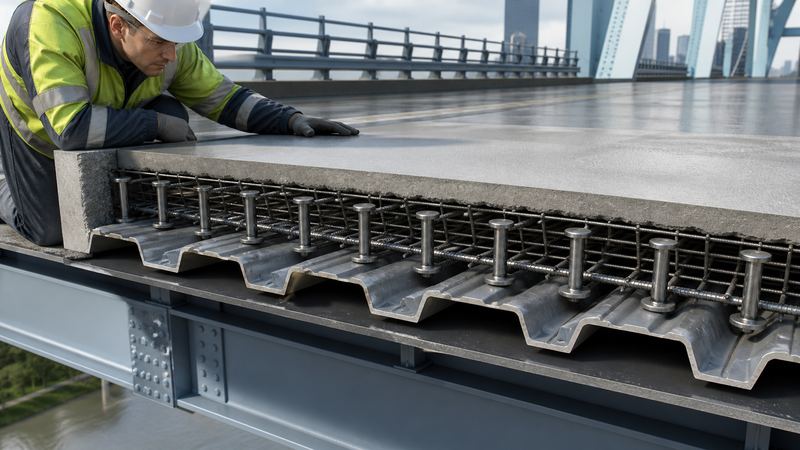

A thin UHPC layer can work compositely with a steel deck through shear connectors and reinforcement. The system can add stiffness, distribute wheel loads and protect the steel interface. Connector design, fatigue, casting sequence, restraint and surface preparation are essential. The layer thickness must follow structural design, not a generic product brochure.
UHPC closure pours support the connection of factory-made deck panels, girders or pier components. More work moves to controlled production, while smaller on-site pours may reduce closure duration. Actual schedule benefit depends on batching capacity, placement sequence, curing and acceptance testing. Plan contingencies for weather and fresh-property nonconformance.
Dense fiber-reinforced material can be considered for overlays, headers and localized repairs exposed to traffic or mechanical wear. Remove unsound concrete and design a reliable interface. Edge details and transitions frequently govern repair durability. Use a mock-up if finishing tolerance, bond or traffic opening time is critical.
Higher mechanical performance may allow optimized section geometry or reinforcement arrangements after engineering analysis. That can reduce self-weight or material volume in selected designs. It is not permission to make every member thinner. Serviceability, fatigue, fire, connections, handling and robustness still control many bridge components.
Start by writing a one-page brief for this exact application. Identify the structural or purchasing objective, the responsible approver and the drawing or specification clauses that control the decision. List the conditions that differ from laboratory evidence, such as component geometry, casting direction, mixer scale, exposure, temperature, shipment or storage. This gap review determines whether document review is sufficient or whether a trial or full-size mock-up is needed.
Design the trial around the highest-risk feature discussed in this article. Record component lots, quantities, sequence, temperature, fresh observations, timing, curing and test specimens. Agree acceptance actions before work starts. If a result falls outside the approved range, isolate the material or component and obtain a technical disposition; an undocumented water, fiber or process adjustment destroys traceability.
At handover, retain records that allow the result to be connected to a batch, component and inspection decision. Feed the lessons into the neighboring series topics: material behavior informs design, design informs production, production informs construction, and the final technical scope informs supplier comparison and procurement.
Build the acceptance plan from the article-specific topics “1. Compact Connections Between Precast Elements,” “2. Crack Control in Highly Stressed Zones” and “3. Dense Protection Against Ingress.” For each one, write the requirement, observation or test, sampling location, timing, responsible party and decision rule. This makes the plan relevant to UHPC for bridges; it also prevents a general UHPC certificate from being used as evidence for a feature that was never examined.
Separate three kinds of evidence. Product evidence describes the supplied formulation and its verified properties. Process evidence shows that mixing, casting, preparation, curing, packaging or delivery followed the approved method. Project evidence connects those two records to the actual joint, component, repair area, production lot or shipment. A complete handover needs all three where they apply. Missing traceability should be resolved before the work is concealed, loaded, shipped or accepted.
Agree the nonconformance route in advance. A fresh-property result, damaged package, surface defect or test result outside the stated limit does not always lead to the same disposition. The authorized engineer or buyer may require investigation, additional testing, repair, restricted use, replacement or rejection. Record the technical basis and affected quantity. At closeout, provide the current data sheet, safety information, batch identification, inspection and test records, approved deviations, storage or maintenance instructions and contact point for technical support.
Begin with “1. Compact Connections Between Precast Elements.” It establishes the boundary for UHPC for bridges and prevents a general material claim from replacing the application requirement.
The section “2. Crack Control in Highly Stressed Zones” identifies the most relevant evidence. Check whether its materials, geometry, curing and test method represent the planned work.
Use “3. Dense Protection Against Ingress” to define an inspection point, responsible person and response to nonconformance before irreversible work proceeds.
No. Choose a system that meets all relevant fresh, mechanical, durability and execution requirements. Extra compressive strength does not correct an unsuitable detail or procedure.
Send the application, governing methods, required ages and properties, drawings, quantity, destination, schedule and available equipment. Ask the supplier to list included components and exclusions.
The correct UHPC for bridges decision follows from its specific engineering or procurement purpose, representative evidence and controlled implementation. Keep the topic connected to the wider UHPC system, but do not substitute a generic strength claim, checklist or supplier promise for the distinct requirements described in this article.
