The global concrete industry is undergoing a significant transformation. With infrastructure demands rising across Southeast Asia, Africa, and the Middle East, large-scale batching plants face unprecedented pressure to improve efficiency, reduce costs, and meet stricter environmental standards . One of the most impactful changes gaining momentum is the strategic switch from naphthalene-based superplasticizers to polycarboxylate ether (PCE) water reducers.
While naphthalene-based products like Sodium Naphthalene Sulfonate (SNF) have been industry staples since the 1960s, their limitations in slump retention, high-temperature performance, and environmental footprint are becoming increasingly untenable for modern, high-capacity operations . This article provides a comprehensive analysis of the technical, economic, and operational benefits realized by large-scale batching plants that have made the switch. We will examine the mechanisms behind PCE's superior performance, present real-world case studies, and offer a practical framework for evaluating the transition at your own facility.
This article covers:
A technical comparison of PCE and naphthalene superplasticizer mechanisms
Key performance data: water reduction, strength development, and slump retention
Economic analysis: unit price versus per-cubic-meter cost
Real-world case studies from high-rise, infrastructure, and ready-mix applications
Implementation framework for batching plant operators
Environmental and sustainability benefits
To appreciate the operational benefits of switching to PCE superplasticizer, it's essential to understand how these two admixture types work at a molecular level .
Naphthalene superplasticizers (SNF/FDN) are based on naphthalene sulfonate formaldehyde condensate. Their molecular weight is relatively low, ranging from 1,000 to 3,000 Daltons. They function primarily through electrostatic repulsion. The sulfonic acid groups on the molecule generate a negative charge that disperses cement particles by repelling each other . However, this mechanism has limitations. The short, rigid molecular structure is susceptible to failure in high-temperature environments and lacks the spatial hindrance required for long-term dispersion.
Polycarboxylate superplasticizers (PCE), by contrast, feature a comb-shaped molecular structure with a polycarboxylic acid main chain and polyether side chains. Their molecular weight is significantly higher, typically between 20,000 and 50,000 Daltons . PCE works through a dual mechanism: electrostatic repulsion combined with steric hindrance. The long side chains create a physical barrier that prevents cement particles from re-agglomerating. This steric effect provides superior dispersion, maintains stability for longer periods, and is less temperature-sensitive than naphthalene.
The performance advantages of PCE are substantial and well-documented across multiple independent studies .
Water Reduction Rate: PCE superplasticizer typically achieves a water reduction rate of 25% to 40%, with some high-performance products exceeding 35%. Naphthalene superplasticizers offer a more modest 15% to 25% water reduction. In a controlled comparison, adding 0.8% PCE achieved a 28% water reduction and 28-day compressive strength of 72.5 MPa, while 1.2% naphthalene achieved only 18% water reduction and 65.3 MPa strength .
Parameter | PCE Superplasticizer | Naphthalene (SNF) |
|---|---|---|
Chemical Type | Polycarboxylate Ether polymer | Sulfonated Naphthalene Formaldehyde |
Water Reduction | 25–40% | 10–20% |
Slump Retention | 1–3 hours | 30–60 minutes |
Flowability | Excellent (SCC capable) | Moderate |
Strength Development | High | Medium |
Dosage | Low (0.8–1.2%) | High (1.0–1.5%) |
Slump Retention: For large-scale batching plants delivering concrete over long distances or in hot climates, slump retention is critical. PCE concrete shows slump loss of less than 10% over two hours, whereas naphthalene superplasticizer experiences a rapid slump loss rate of 30% to 50% within the same period . In one project conducted at 30°C, naphthalene-based concrete slumped from 220 mm to 150 mm within one hour, while PCE concrete only dropped to 205 mm .
Strength Development: A study on Ultra-High Performance Concrete (UHPC) with fly ash showed that PCE at 1.5% provided the best flowability (200 mm) and early strength (71.1 MPa at 7 days), whereas SNF yielded only 110 mm flowability and 39 MPa strength .
A common misconception is that PCE superplasticizer is too expensive. While PCE prices typically range from $1,100–1,500 per ton** compared to **$700–1,000 per ton for SNF, the analysis must be based on cost per cubic meter of concrete, not cost per kilogram .
Cost Breakdown per Cubic Meter:
Cost Factor | PCE Superplasticizer | Naphthalene (SNF) |
|---|---|---|
Unit Price | $1,100–1,500/ton | $700–1,000/ton |
Typical Dosage | 0.8–1.2% | 1.0–1.5% |
Cost per m³ | $8–20 | $7–15 |
Cement Savings | 8–10% | 0–3% |
Pumping Energy | Reduced 30–40% | Standard |
Waste Reduction | Significant | Higher rejection |
Batching plants that continue using naphthalene superplasticizer often face significant hidden costs:
Cement Overuse: Without the high water reduction of PCE, plants must use more cement to achieve the same strength, increasing material costs and carbon footprint.
Increased Slump Loss: Rapid slump loss leads to rejected batches, re-tempering costs, and project delays.
Higher Pumping Energy: Research shows that PCE's ultra-high water reduction can reduce pumping pressure by 30%, whereas SNF is limited to projects under 100 meters in height .
Environmental Compliance: Naphthalene production releases formaldehyde, while PCE is lower in volatile organic compounds and more environmentally friendly .
Project Type: 45-story commercial tower Location: Southeast Asia Concrete Grade: C60 Challenge: High pump height (>150m), strict slump retention (>2 hours), low water-cement ratio (<0.32)
Solution: The batching plant switched to PCE superplasticizer with a dosage of 0.18%.
Performance Data:
Water reduction: ~32%
Initial slump: 220 mm
Slump after 2 hours: 180 mm
28-day compressive strength: +18% vs. SNF mix
Cement reduction: ~8–10%
Result: Stable pumping at 150+ meters, no segregation, and improved structural strength. The plant achieved significant cost savings from reduced cement usage and eliminated batch rejection due to slump loss .
Scenario: A ready-mix batching plant in a hot climate region (30–38°C) with transport times of 90–120 minutes faced high rejection rates when using naphthalene superplasticizer.
Challenge: Rapid slump loss resulted in up to 5% of batches being rejected at the job site, requiring costly re-mixing or complete replacement.
Solution: The plant transitioned to a PCE superplasticizer formulation optimized for long slump retention.
Performance:
Slump loss after 2 hours: <20%
No re-tempering required at job sites
Pumpability improved by ~30%
Batch rejection rate: reduced to <1%
Economic Impact:
Reduced rejected batches by approximately 80%
Lower labor costs for job-site adjustments
Fewer equipment cleaning requirements
Improved customer satisfaction and repeat business
Project Type: Precast concrete element manufacturing
Challenge: Traditional naphthalene-based admixtures required long curing times to achieve demolding strength. The plant needed to increase production throughput.
Solution: Implementation of an early-strength PCE superplasticizer.
Performance:
Demolding time reduced by 50%
1-day formwork removal achieved
Production capacity increased by 30%

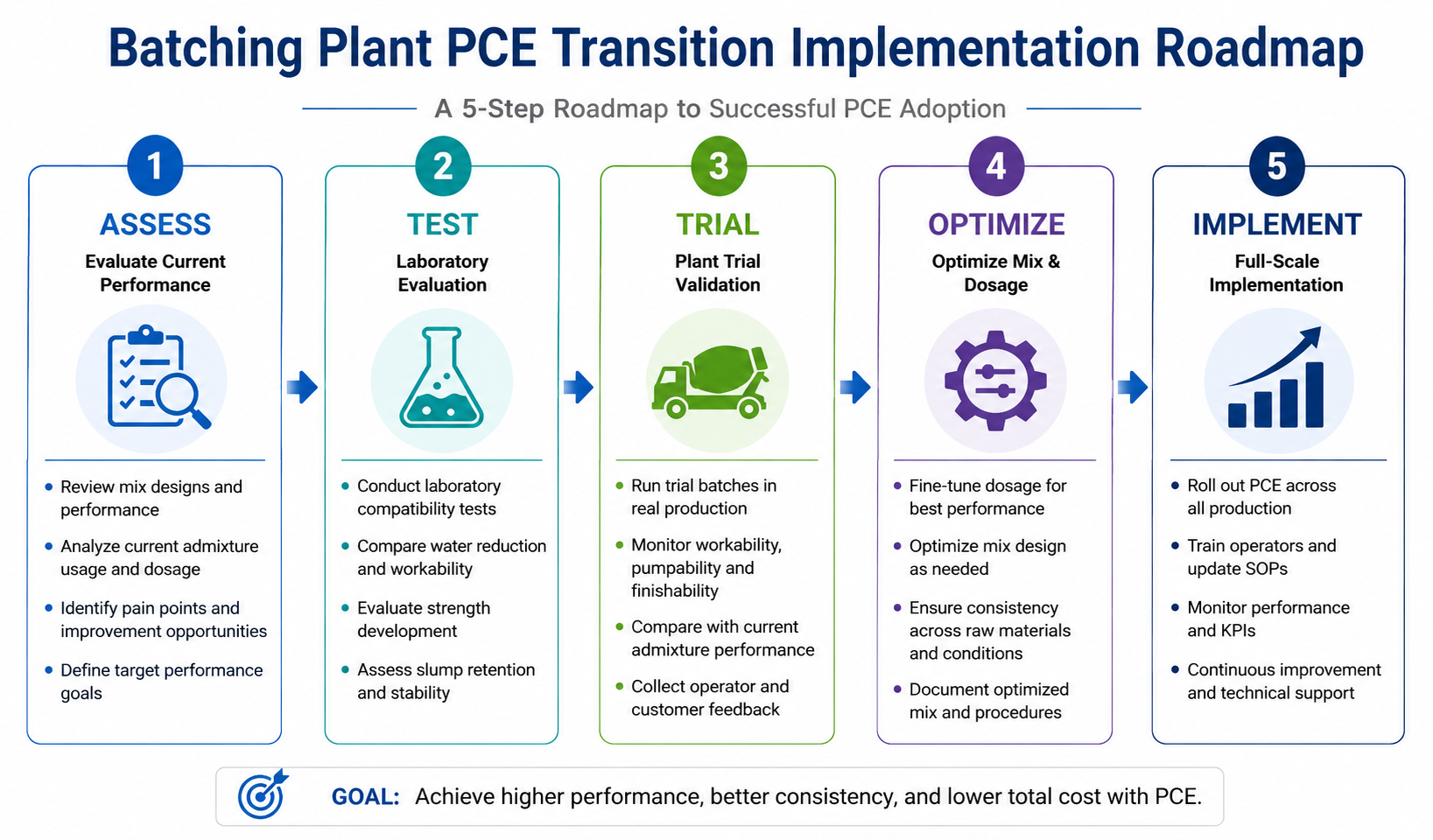

Before making the switch, document baseline metrics:
Current water reduction achieved
Slump retention over time (30, 60, 90, 120 minutes)
Concrete strength at 1, 3, 7, and 28 days
Batch rejection rate
Cement consumption per cubic meter
PCE superplasticizer can be sensitive to certain cement types and aggregate conditions .
Key compatibility factors:
Cement C3A content: PCE shows significant advantages for high C3A content cement. FDN requires up to 30% higher dosage under these conditions.
Alkali content: PCE performs better with high-alkali cement (Na2O content >0.6%), while FDN risks rapid setting.
Aggregate mud content: When mud content exceeds 3%, standard PCE may fail. However, special anti-mud PCE formulations are available. FDN essentially loses effectiveness under these conditions.
Run controlled comparisons using the same concrete mix design, varying only the admixture type. Test across multiple production batches to ensure consistency.
PCE superplasticizer typically requires 0.8% to 1.2% dosage by cement weight. The optimal dosage can be determined through 1.0%, 1.5%, and 2.0% composition testing .
Dosage | Flowability | 7-Day Strength |
|---|---|---|
PCE 1.0% | 180 mm | 68 MPa |
PCE 1.5% | 200 mm | 71 MPa |
PCE 2.0% | 195 mm | 69 MPa |
Train batching plant operators on proper dosing and mixing procedures
Update quality control specifications
Revise material cost projections
The switch from naphthalene to polycarboxylate supports sustainability goals in multiple ways.
Energy Consumption in Production:
Naphthalene superplasticizer production consumes significantly more energy. According to industry data:
Production of 1 ton of naphthalene mother liquor (38% solids) consumes 41 kg of standard coal equivalent
Production of conventional PCE mother liquor uses only 8.4 kg of standard coal equivalent
With improved processes, PCE mother liquor production can be reduced to 2.5 kg of standard coal equivalent
Cement Savings Through High Water Reduction:
The high water reduction capacity of PCE superplasticizer enables 15–25% cement savings in concrete
Over 3 billion cubic meters of concrete in a single year, industry leaders achieved cement savings of 750 million tons, reducing CO₂ emissions by 638 million tons
Naphthalene superplasticizer production can release formaldehyde residues. With tightening environmental regulations in Europe, North America, and increasingly in Southeast Asia, this is a significant concern . PCE is formaldehyde-free and considered more environmentally benign.
Lower batch rejection rates reduce concrete waste
Better slump control prevents premature disposal of unusable loads
Extended service life of structures reduces long-term environmental impact
The main difference lies in their molecular structure and dispersion mechanism. PCE (polycarboxylate ether) uses a comb-shaped structure that disperses cement particles through both electrostatic repulsion and steric hindrance, while SNF (naphthalene) relies solely on electrostatic repulsion. This makes PCE more effective at higher water reduction (25–40% vs. 15–25%), better slump retention, and superior compatibility with modern cement blends .
On a per-ton basis, yes. PCE typically costs 30–50% more than naphthalene superplasticizer. However, when calculated as cost per cubic meter of concrete, PCE often achieves lower overall costs due to reduced dosage requirements (0.8–1.2% vs. 1.0–1.5%), cement savings (8–10%), and reduced pumping energy consumption .
PCE is widely applicable but is particularly recommended for:
High-strength concrete (C50 and above)
Self-compacting concrete (SCC)
High-temperature or long-distance transportation
Corrosive environments (marine, industrial)
Green building certification projects
For non-important structures with low-grade concrete (below C30) and extremely limited budgets, naphthalene may still be a consideration .
Compatibility issues can arise with certain cement types, particularly those with specific C3A content. Aggregate mud content can also affect performance. Testing should be conducted on the specific materials used at the batching plant. Special anti-mud PCE formulations are available for problematic aggregate sources .
In real-world applications, the switch from naphthalene to PCE can reduce cement consumption by 8–15% while maintaining or improving concrete strength. In high-strength concrete, some projects have achieved up to 25% cement savings .
Yes. PCE superplasticizer has significant environmental advantages:
Production consumes 80–90% less energy (2.5–8.4 kg coal equivalent per ton vs. 41 kg for naphthalene)
No formaldehyde emissions
Enables cement savings that substantially reduce CO₂ emissions
Lower VOC content
PCE should be stored in a cool, dry place, protected from direct sunlight and extreme temperatures. While less temperature-sensitive than naphthalene, optimal storage temperatures are between 5°C and 35°C. Shelf life is typically 6–12 months when properly stored.
The transition from naphthalene to polycarboxylate superplasticizer is more than just a product substitution—it represents a fundamental upgrade in batching plant capabilities. As this article has demonstrated, the benefits extend across all aspects of operations:
Technical superiority:
25–40% water reduction vs. 15–25%
Extended slump retention (1–3 hours vs. 30–60 minutes)
Higher compressive strength and durability
Superior compatibility with modern cements and supplementary materials
Economic advantages:
Lower per-cubic-meter cost despite higher unit price
8–10% cement reduction
30% reduction in pumping energy
Minimal batch rejection and waste
Sustainability impact:
80–90% lower production energy consumption
Formaldehyde-free production
638 million tons CO₂ reduction potential annually
Ready-mix plants, precast facilities, and infrastructure projects across Southeast Asia, Africa, and the Middle East are already capturing these benefits. The question is no longer whether to switch from naphthalene to PCE, but how quickly your facility can implement this transformation.
Key takeaways:
PCE superplasticizer provides superior water reduction, slump retention, and strength development
Per-cubic-meter cost often decreases despite higher unit price
Significant sustainability benefits through reduced energy and cement consumption
Compatibility testing is essential before full implementation
Economic returns from reduced waste, energy, and cement typically justify the transition within 6–12 months
