English
Views: 0 Author: Qiandao Technical Team Publish Time: 2026-09-15 Origin: Hubei Qiandao New Materials Co., Ltd.
An early strength PCE can help precast producers lower mixing water while maintaining placement consistency. The strength benefit comes mainly from improved dispersion and a lower water-cementitious ratio—not from an assumption that every PCE chemically accelerates cement.
The relevant target may be stripping, lifting, prestress transfer, grinding or shipping. Each requires a verified concrete strength and may also require temperature or maturity controls. Release molds from measured acceptance criteria, never elapsed time alone.
ASTM C494 Type E means water-reducing and accelerating; Type F means high-range water-reducing. A PCE product may meet one classification, another, or neither until tested. Polymer family and performance class are not interchangeable labels.
Variable | Practical effect |
|---|---|
Effective w/cm | Lower values can improve strength when consolidation remains adequate |
Cement chemistry/fineness | Changes hydration rate and admixture demand |
Concrete temperature | Strongly affects early hydration |
SCM content | May alter early reaction and adsorption |
Air content | Excess air can reduce strength |
Curing | Moisture and heat history govern development |
An apparent “early strength” gain can disappear if the dose creates excess air, retardation or poor fiber distribution. Measure fresh air and set alongside strength.

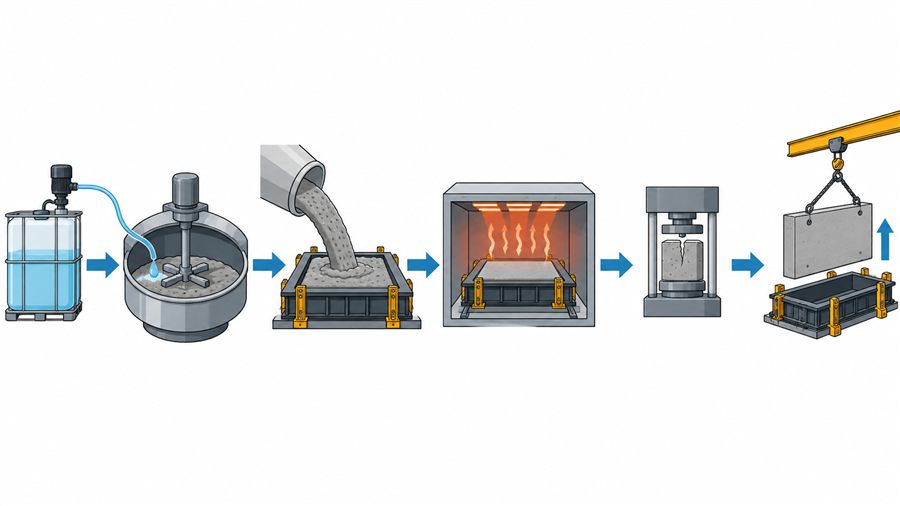

Start with a controlled reference mix. Reduce water in steps while maintaining the required flow with PCE. At each step, evaluate stability, finish, set, temperature rise and strengths at the actual release and design ages. Include dimensional finish and surface defects because a fast cycle is worthless if units need repair.
For heated curing, compare equal temperature histories. Otherwise, admixture effects become confused with curing energy. Excessive early heat may increase early strength but can affect later-age performance and thermal gradients.
Define release strength and latest acceptable release time.
Establish baseline water, flow, air, set and temperature.
Screen PCE dose and addition sequence with current materials.
Cast enough specimens for release-age and later-age verification.
Repeat under cold and warm production conditions.
Confirm with full-size elements and the plant's mixer.
No. Concrete still needs controlled temperature and moisture to hydrate and avoid damage.
Only when the approved structural release criterion and representative field-cured testing are satisfied.
No. An optimum balances water reduction with set, air, stability and cost.
Potentially, but chloride limits, release/transfer strength, modulus, creep and project requirements must be verified.
Early Strength PCE should be treated as a production-engineering tool. Use it to achieve stable flow at lower water content, then validate release strength under real curing conditions. Hubei Qiandao New Materials can support precast-specific formulation trials.
ASTM C494/C494M-24, Standard Specification for Chemical Admixtures for Concrete.
ACI 212.3R-16, Report on Chemical Admixtures for Concrete.
ACI 517.2R, Accelerated Curing of Concrete at Atmospheric Pressure.
