PCE Powder vs PCE Liquid: How to Choose the Right Format

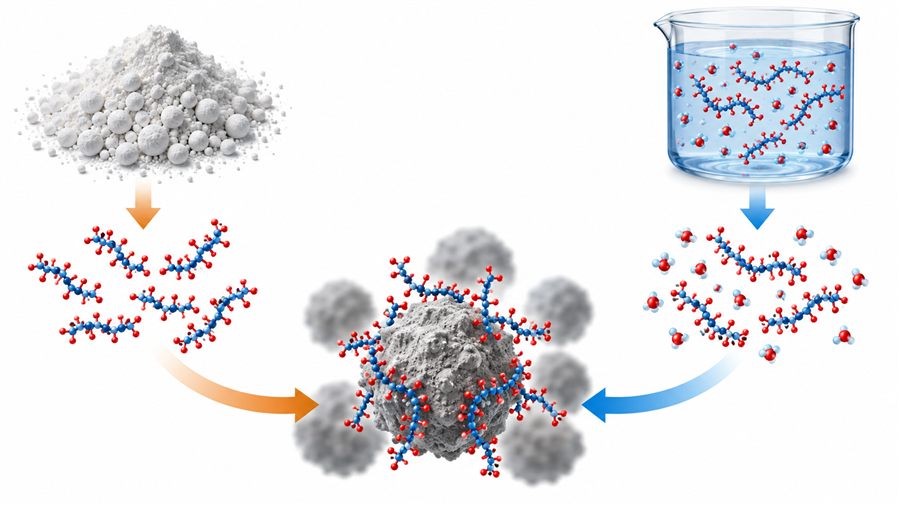

The practical choice between PCE powder vs PCE liquid is usually determined by the production process, not by a claim that one format is inherently stronger. Both can contain polycarboxylate ether polymers that disperse cement through adsorption and steric hindrance. Their solids content, carrier water, redispersibility, dosing equipment and application route are different.

The Same Product Mass Is Not the Same Polymer Dose

Always normalize comparisons to active solids:

active solids (kg) = product dose (kg) × solids fraction

For an illustrative 1,000 kg binder batch, 8.0 kg of a 40% solids liquid supplies 3.2 kg of solids. A 95% solids powder would supply the same nominal solids at 3.2 ÷ 0.95 = 3.37 kg. This is only a mass balance. Equal solids do not guarantee equal flow because polymer architecture, salts, defoamer and powder redispersion also matter.

Where Each Format Fits

PCE liquid is usually convenient when a concrete plant already has tanks, calibrated dispensers and automated batch records. The formulation can be adjusted for high water reduction, slump retention or early strength. PCE powder is better aligned with bagged non-shrink grout, repair mortar, self-leveling compounds and other products that must become complete one-component dry blends.

Powder is not simply dried liquid. Spray drying and protective carriers can alter dissolution. A powder intended for gypsum or mortar should not be assumed suitable for UHPC, and a ready-mix liquid should not be dried or blended into a bagged product without validation.

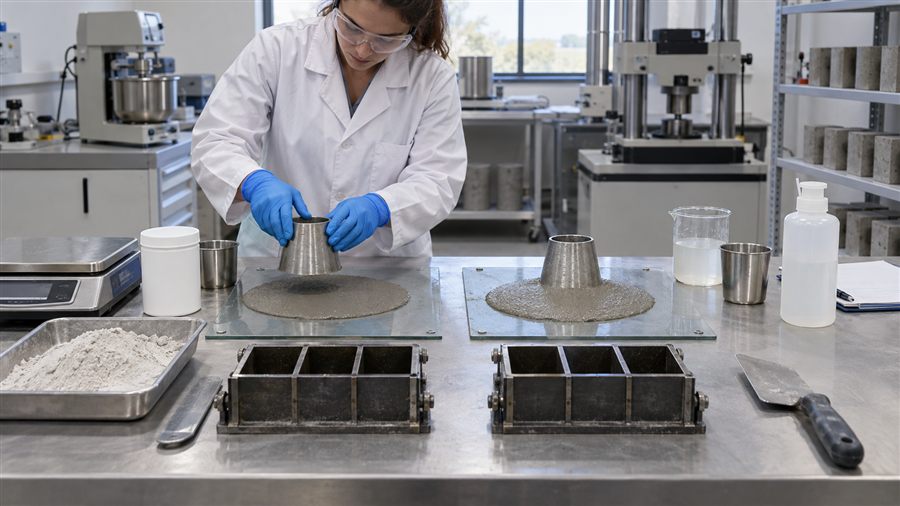

A Defensible Trial Protocol

1. Obtain solids content, density, recommended range, chloride information and current SDS/TDS.

2. Compare candidates on active-solids basis, then optimize around that starting point.

3. Use the actual cement, supplementary cementitious materials, aggregates and mixing sequence.

4. Measure initial and retained consistency, air, temperature, set, bleeding, segregation and required strengths.

5. Repeat at production scale before approval.

ASTM C494/C494M classifies performance rather than polymer chemistry. Its guidance also emphasizes tests with the project materials and conditions. Therefore, “PCE” on a label is not proof of compliance with Type A, F, G or another class.

Total Cost Is More Than Price per Kilogram

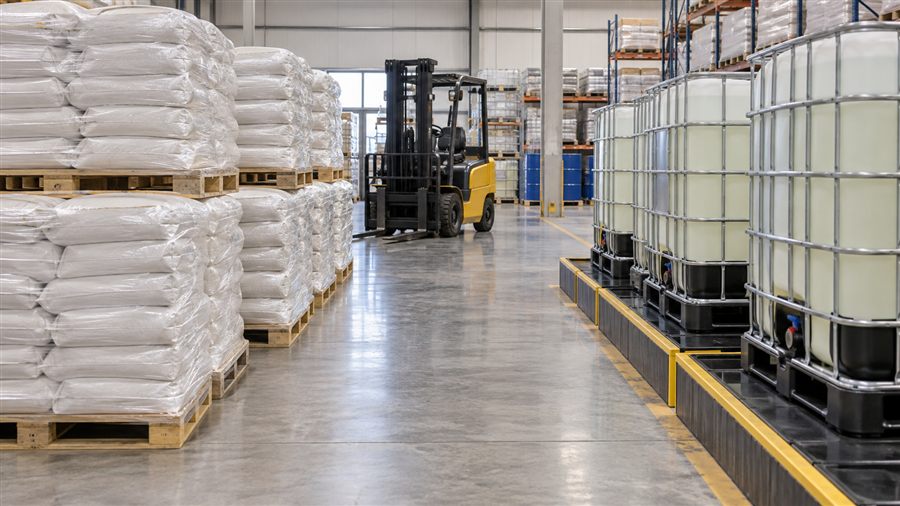

Compare cost per compliant cubic meter or per tonne of finished dry mix. Include active solids, freight, packaging disposal, storage, labor, calibration, rejected batches and working-capital effects. A concentrated powder may reduce freight but require humidity-controlled storage. A liquid may simplify dosing but ships carrier water.

Frequently Asked Questions

Can liquid and powder PCE be substituted at equal dosage?

No. First convert to active solids, then run performance trials. Different polymers can perform differently even at equal solids.

Does admixture water count in the water-cementitious ratio?

Yes. Water introduced by a liquid admixture belongs in the total mixing-water calculation unless the governing specification defines a documented exception.

Which format is best for bagged grout?

Redispersible PCE powder is normally the practical choice because all ingredients must remain dry until site mixing.

Is PCE powder automatically more economical?

Not necessarily. Freight may improve, but powder price, dust control, caking risk and dosing accuracy must be included.

Conclusion

Choose the PCE format around the manufacturing system and validated concrete performance. Hubei Qiandao New Materials Co., Ltd. can support side-by-side laboratory screening of PCE Powder and PCE Liquid using the buyer's binder and target consistency.

Technical References

• ASTM C494/C494M-24, Standard Specification for Chemical Admixtures for Concrete.

• ACI 212.3R-16, Report on Chemical Admixtures for Concrete.

• Sika, Sika ViscoCrete-556 P EU Product Data Sheet (example of a dry-mix PCE powder).

• Arkema, ETHACRYL DM Technical Data Sheet (product-specific dry-mix dosage guidance).
