Views: 0 Author: Qiandao Technical Team Publish Time: 2026-08-17 Origin: Hubei Qiandao New Materials Co., Ltd.
UHPC mixing problems presents a distinct decision for batching supervisors, site engineers and quality-control teams. This article focuses on that decision and connects it to the wider UHPC series without repeating the scope of adjacent guides. Project values must come from the governing specification and named test methods. The guidance below explains the mechanisms, evidence and implementation questions that should be resolved before design approval, production or purchase.
Check component sequence, mixer fill, blade condition, water measurement and whether all admixture entered the batch. UHPC may appear dry before dispersion develops, so stopping too early can be mistaken for low water. Compare actual material temperature and raw-material lot with the trial. Do not add water until the approved troubleshooting limit and authority are clear.

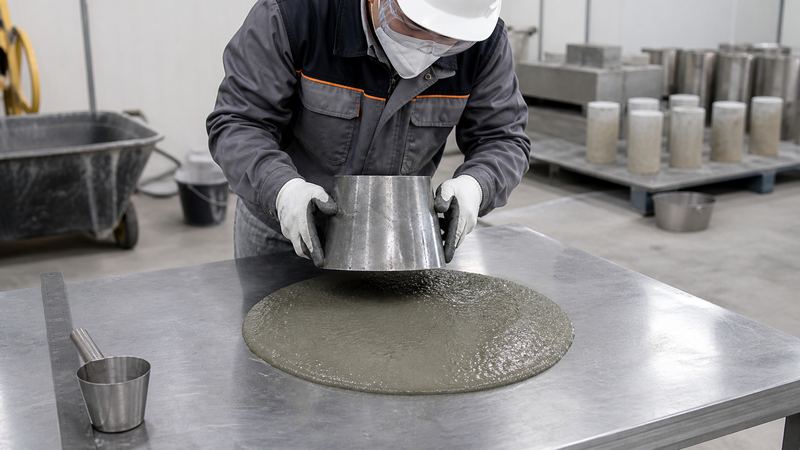

High temperature, delay, absorbent material, admixture incompatibility or an incorrect sequence can shorten the working window. Record flow against time during qualification. Shade and condition materials where permitted, coordinate batch size with placement rate, and avoid long idle periods. A retarding or retention solution must be technically validated rather than improvised on site.

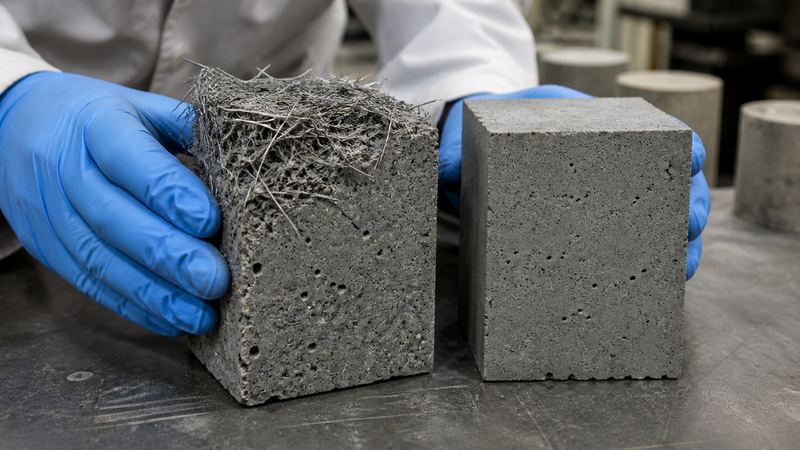

Fiber bundles typically relate to rapid addition, a mixture that is not ready, unsuitable mixer loading or interlocking at obstacles. Add fibers progressively at the qualified stage and maintain sufficient mixing action. Reject or manage affected material under the quality plan; breaking visible balls by hand does not prove that the remaining batch is uniform.
Review joint or mold vents, flow path, reinforcement congestion, leakage and working time. Surface appearance can hide voids beneath bars or inserts. Use transparent mock-up sections, outlet observations or volume reconciliation during trials. Altering the mixture is not always the answer; geometry and placement access may need revision.
A surface that skins rapidly may have lost moisture or working time. Excessive tooling can pull fibers and disturb the matrix. Define finishing tools, timing and any permitted surface treatment in a mock-up. Begin curing promptly after the required finish, and protect against wind and direct sun.
For every nonconformance record materials, lot numbers, temperature, quantities, sequence, mixer times, fresh tests and observations. Change one controlled variable at a time during investigation. This evidence separates material compatibility from equipment or procedure issues and prevents the same problem from being repeated on the next shift.
Create hold points after ingredient verification, after mixing and before discharge. The designated quality person should confirm fresh appearance, timing and required test results. A short controlled pause before placement is less costly than removing material from a congested joint after a known abnormal batch was allowed to proceed.
Start by writing a one-page brief for this exact application. Identify the structural or purchasing objective, the responsible approver and the drawing or specification clauses that control the decision. List the conditions that differ from laboratory evidence, such as component geometry, casting direction, mixer scale, exposure, temperature, shipment or storage. This gap review determines whether document review is sufficient or whether a trial or full-size mock-up is needed.
Design the trial around the highest-risk feature discussed in this article. Record component lots, quantities, sequence, temperature, fresh observations, timing, curing and test specimens. Agree acceptance actions before work starts. If a result falls outside the approved range, isolate the material or component and obtain a technical disposition; an undocumented water, fiber or process adjustment destroys traceability.
At handover, retain records that allow the result to be connected to a batch, component and inspection decision. Feed the lessons into the neighboring series topics: material behavior informs design, design informs production, production informs construction, and the final technical scope informs supplier comparison and procurement.
Build the acceptance plan from the article-specific topics “Problem 1: The Mixture Stays Dry or Lumpy,” “Problem 2: Flow Is Lost Too Quickly” and “Problem 3: Steel Fibers Form Balls.” For each one, write the requirement, observation or test, sampling location, timing, responsible party and decision rule. This makes the plan relevant to UHPC mixing problems; it also prevents a general UHPC certificate from being used as evidence for a feature that was never examined.
Separate three kinds of evidence. Product evidence describes the supplied formulation and its verified properties. Process evidence shows that mixing, casting, preparation, curing, packaging or delivery followed the approved method. Project evidence connects those two records to the actual joint, component, repair area, production lot or shipment. A complete handover needs all three where they apply. Missing traceability should be resolved before the work is concealed, loaded, shipped or accepted.
Agree the nonconformance route in advance. A fresh-property result, damaged package, surface defect or test result outside the stated limit does not always lead to the same disposition. The authorized engineer or buyer may require investigation, additional testing, repair, restricted use, replacement or rejection. Record the technical basis and affected quantity. At closeout, provide the current data sheet, safety information, batch identification, inspection and test records, approved deviations, storage or maintenance instructions and contact point for technical support.
Begin with “Problem 1: The Mixture Stays Dry or Lumpy.” It establishes the boundary for UHPC mixing problems and prevents a general material claim from replacing the application requirement.
The section “Problem 2: Flow Is Lost Too Quickly” identifies the most relevant evidence. Check whether its materials, geometry, curing and test method represent the planned work.
Use “Problem 3: Steel Fibers Form Balls” to define an inspection point, responsible person and response to nonconformance before irreversible work proceeds.
No. Choose a system that meets all relevant fresh, mechanical, durability and execution requirements. Extra compressive strength does not correct an unsuitable detail or procedure.
Send the application, governing methods, required ages and properties, drawings, quantity, destination, schedule and available equipment. Ask the supplier to list included components and exclusions.
The correct UHPC mixing problems decision follows from its specific engineering or procurement purpose, representative evidence and controlled implementation. Keep the topic connected to the wider UHPC system, but do not substitute a generic strength claim, checklist or supplier promise for the distinct requirements described in this article.
