The unique threats faced by mega cross-sea bridges in marine environments
How advanced water reducer technology combats chloride-induced corrosion
Performance specifications and the role of PCE in achieving high-density concrete
A real-world case study from a major cross-sea project
The world is witnessing an unprecedented era of infrastructure development, with mega cross-sea bridges serving as vital arteries for economic growth and regional connectivity. From the 24-kilometer Shenzhen-Zhongshan Link that created a "1-hour economic circle" in the Greater Bay Area to the 1,768-meter main span of the Shuangyumen Bridge in Zhejiang that pushes the limits of suspension bridge engineering, these projects represent the pinnacle of human engineering.
However, building across the sea presents challenges far beyond the logistics of lifting massive steel sections into place. The marine environment is inherently aggressive to the very material upon which these bridges depend: concrete. While concrete is renowned for its compressive strength, its Achilles' heel lies in its long-term durability when constantly exposed to chlorides, tidal cycles, and high humidity.
A professional concrete water reducer is not simply an additive for improving workability. In the context of cross-sea bridges, it is a critical component of an engineered durability system. This article explores how advanced, corrosion-inhibiting water reducing admixtures are fundamental to protecting these multi-billion dollar investments from premature deterioration.

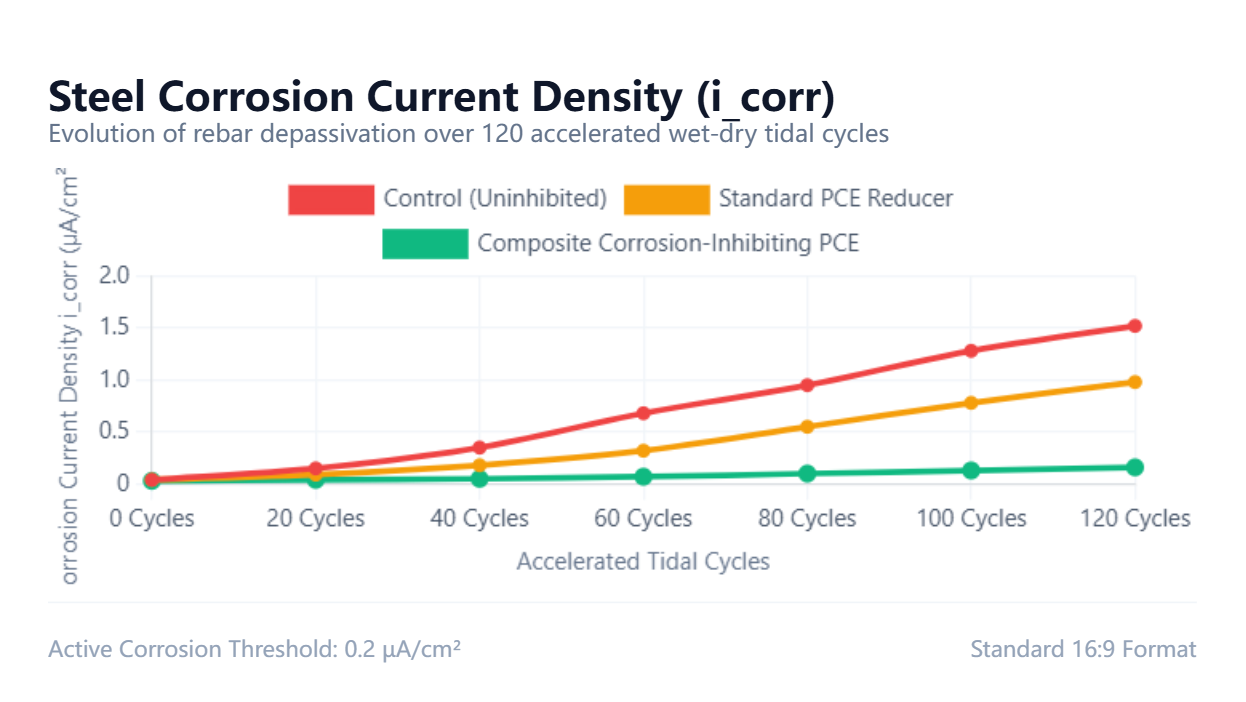

The most significant threat to concrete structures in marine environments is the corrosion of reinforcing steel. This is not a superficial issue; it is a structural one that can compromise the integrity of a bridge deck, pier, or foundation.
The process is electrochemical and relentless. Chloride ions from seawater penetrate the concrete cover and reach the reinforcing steel. When sufficient chlorides accumulate at the steel surface, they break down the passive oxide layer that protects the steel from corrosion. In the presence of moisture and oxygen, this initiates a corrosion cell. The resulting rust occupies a much larger volume than the original steel, creating internal tensile stresses that cause the surrounding concrete to crack and spall.
The key factors contributing to chloride ingress are:
Permeability: High-permeability concrete provides a direct pathway for chlorides to reach the rebar.
Cracking: Cracks, whether from shrinkage or structural loading, accelerate penetration.
Water-Cement Ratio: A high w/c ratio creates a more porous and permeable concrete matrix.
The consequences of ignoring this threat are severe. As the 2019 bridge collapse in Wuxi and the ground collapse in Guangzhou remind us, the durability of concrete structures is a critical public safety issue. For national economies, the cost is measured in billions. Routine maintenance, extensive repairs, and in extreme cases, premature replacement of vital infrastructure disrupt trade and drain public funds. Preventing reinforcement corrosion from the outset is the most cost-effective strategy.

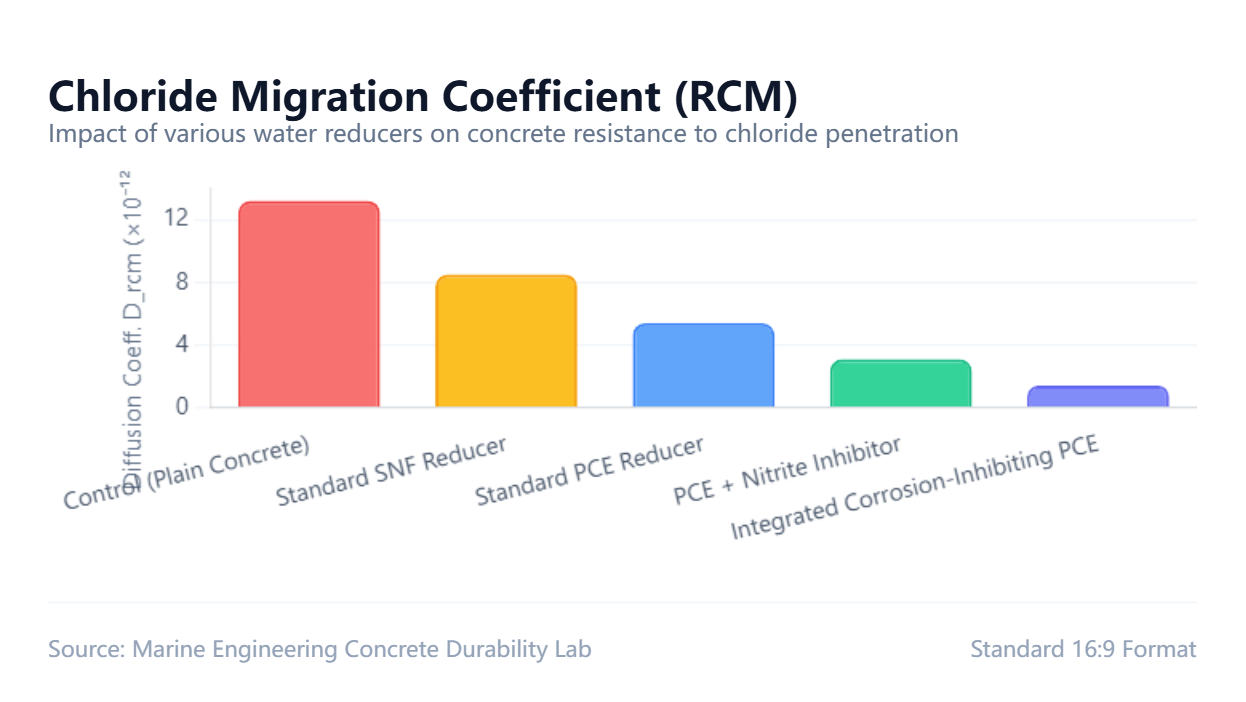

The most effective defense against marine degradation is to create concrete that is as impermeable as possible. This is where advanced high-range water-reducing admixtures, specifically Polycarboxylate Ether (PCE) superplasticizers, become indispensable.
A water reducer is a chemical admixture that allows for a significant reduction in the water content of a concrete mix while maintaining a required slump (workability). However, the role of a PCE superplasticizer in marine concrete extends far beyond just saving water.
Typical High-Performance PCE System for Marine Concrete:
Component | Function in Marine Concrete Protection |
|---|---|
Polycarboxylate Ether (PCE) | Imparts high water reduction and workability retention, enabling dense, low-permeability concrete. |
Corrosion Inhibitor | Provides a chemical barrier at the steel surface, slowing the onset of corrosion. |
Air-Entraining Agent | Improves freeze-thaw resistance by creating stable micro-air bubbles to relieve internal pressure. |
Retarding Component | Delays setting time to manage heat generation in mass concrete pours (for foundations and piers). |
The protective mechanism of a concrete admixture in this context is multi-faceted:
1. Densification and Reduced Permeability
The primary mechanism is the substantial reduction of the water-to-cement (w/c) ratio. By using a high-performance PCE, engineers can achieve a concrete mix with a w/c ratio as low as 0.25-0.35 without sacrificing workability. This dramatically reduces the capillary porosity of the hardened concrete. A denser matrix physically blocks the ingress of chlorides and water, a fundamental requirement for improving concrete durability.
2. Chemical Inhibition
While physical densification is the first line of defense, some PCE formulations include specific functional groups or are combined with corrosion-inhibiting admixtures that chemically protect the steel. These inhibitors create a molecular barrier on the steel surface, hindering the anodic or cathodic reactions of the corrosion cell, providing a secondary layer of protection against chloride attack.
3. Controlled Air Entrainment
For structures in cold marine climates (like the North Sea), freeze-thaw cycles are another major threat. Air-entraining water reducers introduce microscopic, stable air bubbles into the concrete paste. These bubbles provide space for freezing water to expand, relieving internal pressures and preventing micro-cracking that could otherwise create pathways for chloride ingress.
PCE-based superplasticizers have become the standard for high-performance concrete in critical infrastructure due to their superior properties.
Performance criteria are typically governed by standards like ASTM C494 (Type A, F, or G) or EN 934. Typical values for a standard-type PCE are as follows:
Property | Typical Performance | Significance for Marine Use |
|---|---|---|
Water Reduction Rate | ≥ 25% | Enables ultra-low w/c ratios (0.25-0.35) for maximum density and impermeability. |
Compressive Strength Ratio (28d) | ≥ 140% | Higher strength is associated with higher density and reduced porosity. |
Chloride Ion Content | ≤ 0.6% | Low chloride content prevents compromising the protective passivation layer on the rebar. |
Alkali Content | Low | Low-alkali formulations help prevent deleterious alkali-silica reactions (ASR) which can cause internal cracking and further accelerate degradation. |
Slump Retention (1hr) | Maintains workability | Extended set and slump retention are vital for complex pours in marine conditions (hot weather, long transport times). |
Compared to older technology like Naphthalene Superplasticizer (NSF) or lignosulfonates, PCE offers several key advantages:
Higher Water Reduction: PCE can achieve water reduction rates of 30-40%, more than twice that of a standard lignosulfonate. Its “comb-shaped” molecular structure provides powerful steric hindrance and electrostatic repulsion, dispersing cement particles far more effectively.
Slump Retention: PCE formulations can be engineered to provide long slump retention, which is critical for transport from batching plants to the bridge construction site.
Tailored Properties: The chemistry of PCE can be designed through molecular engineering to provide specific benefits like low viscosity (for high-strength concrete), reduced shrinkage, and compatibility with various cement types and supplementary cementitious materials (like fly ash or slag) often used in mass concrete pours.
To understand the practical application of these technologies, we can look to the construction of the Shuangyumen Bridge in the Zhoushan Archipelago, one of the world's most demanding marine environments.
Location: Zhoushan, Zhejiang Province, China Application: World's longest single-span steel box girder suspension bridge Environmental Conditions:
High ambient humidity
Strong winds and typhoon exposure
High chloride concentration in seawater
Seasonal temperature variations
The Shuangyumen Bridge faces the full brunt of the open ocean. For the bridge's concrete substructure—the foundations, piers, and towers—the challenge is to withstand decades of chloride penetration without the onset of steel corrosion.
Project-Specific Challenges:
Mass Concrete Pours: The bridge foundations require massive concrete pours. The heat generated during hydration can cause thermal cracking if not managed, creating future pathways for chloride ingress.
High-Rise Tower Construction: With main towers reaching 258.7 meters, maintaining workability in pumped concrete over such heights is a significant logistical challenge.
Extreme Weather: Typhoons bring the potential for storm surges and physical damage, but the day-to-day battle is against the constant salt spray.
The project successfully navigated these challenges through a combination of intelligent design and advanced materials:
Solution 1: Engineered Concrete Mix Design
The concrete mix was designed for both high performance and robustness. This involved:
Ultra-Low w/c Ratio: A target w/c ratio of 0.30-0.35 was achieved by using a high-performance PCE superplasticizer.
Supplementary Cementitious Materials: A blend of ordinary Portland cement with fly ash or slag was used. This addresses the thermal cracking problem in mass concrete and further refines the pore structure, increasing long-term resistance to chloride ingress.
Solution 2: Maintaining Workability and Slump Retention
For concrete to be pumped to the top of a 260-meter tower, it must have excellent flowability. The water reducing admixture ensured the necessary high slump while maintaining the ultra-low w/c ratio. Its slump retention properties kept the concrete workable even during the long pumping process, ensuring a uniform and properly consolidated placement.
Solution 3: Integrated Corrosion Protection
The primary protection against corrosion in the Shuangyumen Bridge is a multi-layered approach:
Increased Concrete Cover: A thicker layer of high-quality, dense concrete encases the rebar, increasing the distance chloride ions must travel.
High-Density Matrix: The superplasticizer was instrumental in creating this dense matrix.
Corrosion-Inhibiting Admixtures: Where specified, a corrosion inhibitor integrated into the mix design provided an added safeguard for the steel reinforcing, a common practice for the most critical structural elements.
Benefits:

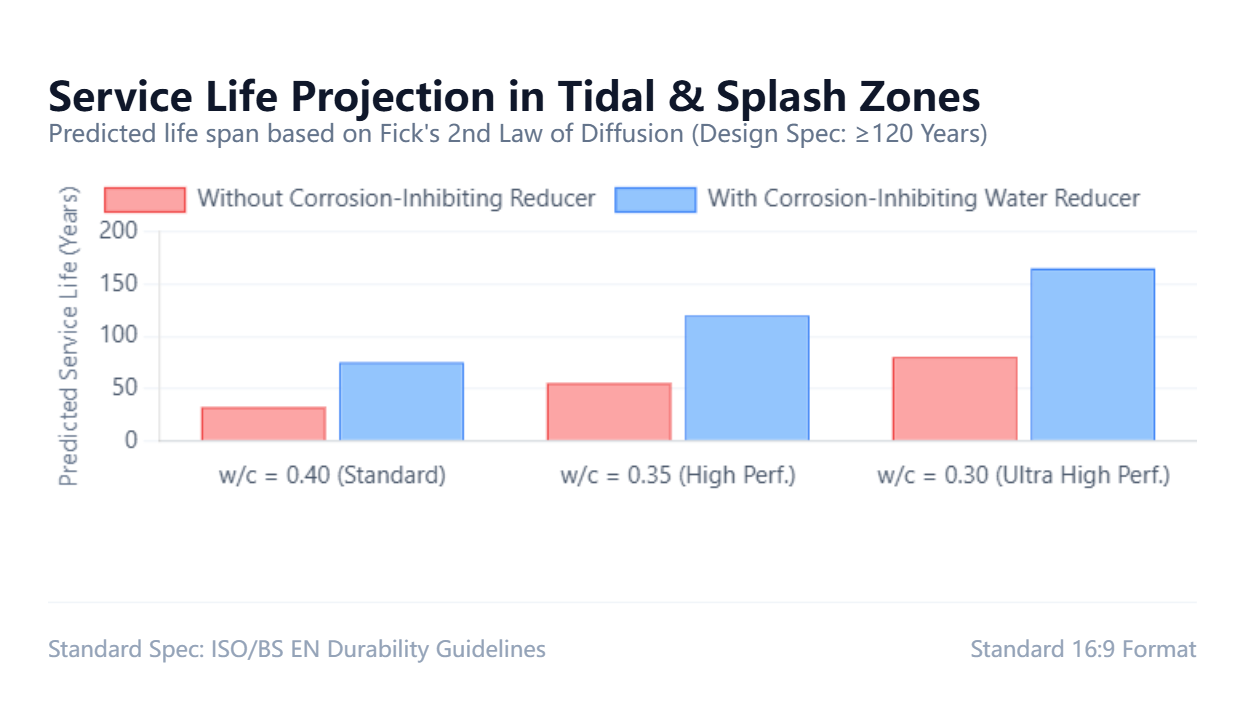

Extended design life of 100+ years for the concrete infrastructure.
Reduced life-cycle maintenance and repair costs.
Enhanced structural safety and reliability in a high-risk environment.
Mega cross-sea bridges are engineering marvels that connect economies and cultures, but they are constantly under attack from the marine environment. The failure of concrete from corrosion is not just a technical failure; it represents a massive economic and public safety liability.
Implementing a holistic durability strategy is no longer optional for these long-term investments. The scientific application of advanced corrosion-inhibiting water reducers is central to this strategy.
Key takeaways:
The primary threat to marine concrete is chloride-induced steel corrosion, driven by high concrete permeability.
Polycarboxylate Ether (PCE) superplasticizers enable the production of ultra-dense, low-permeability concrete with a w/c ratio as low as 0.30.
This densification is the most effective method for preventing the ingress of aggressive salts.
By reducing the need for frequent and costly repairs, high-performance concrete admixtures significantly extend the service life and sustainability of critical infrastructure.
For infrastructure agencies and contractors, the decision to use premium concrete water reducer technology is not a cost, but an investment in the future. The difference between a 50-year bridge and a 100-year bridge often comes down to the chemistry within the mix.
Polycarboxylate Ether (PCE) is the preferred technology for marine concrete because it offers the highest water reduction (≥25%), enabling the very low water-to-cement ratios required for high density and impermeability, which are essential for resisting chloride penetration.
A high-performance water reducer prevents corrosion primarily by reducing the concrete's permeability. By allowing the mix to achieve a lower water-to-cement ratio, it creates a much denser, less porous material that physically blocks chloride ions from reaching the reinforcing steel.
Yes. "Water reducer" is a general term for any admixture that reduces water content. A superplasticizer (like a PCE) is a more advanced type of high-range water reducer (HRWR) that can reduce water content by 25-40%, far more than common lignosulfonate water reducers.
Coatings provide surface protection, but they are a passive barrier that can be damaged. Using a water reducer to create inherently impermeable concrete is an active, bulk property of the material itself, providing far more robust and long-lasting protection.
Using a superplasticizer to achieve a dense concrete matrix is the primary and most effective defense. However, for the most critical structures or the most aggressive environments, adding a specific corrosion-inhibiting admixture alongside a PCE provides a powerful dual-layer protection strategy.
