UHPC Mix Design: Key Materials and Performance Factors

UHPC mix design presents a distinct decision for concrete technologists, laboratory teams and UHPC manufacturers. This article focuses on that decision and connects it to the wider UHPC series without repeating the scope of adjacent guides. Project values must come from the governing specification and named test methods. The guidance below explains the mechanisms, evidence and implementation questions that should be resolved before design approval, production or purchase.

Translate Project Needs Into Targets

Begin with the application, governing methods and construction constraints. Define only properties that matter: fresh flow and retention, mechanical behavior, dimensional stability, bond or exposure indicators. A mixture optimized for a precast thin panel may be unsuitable for a long bridge joint. Establish test age and curing with every target so laboratory results are comparable.

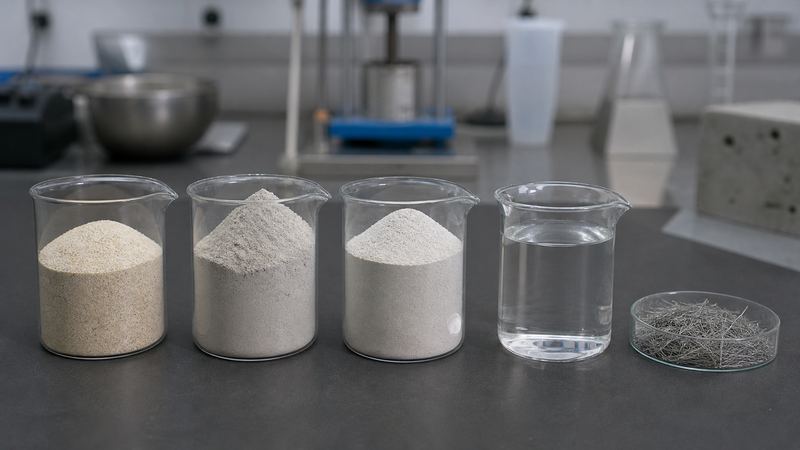

Build a Dense Granular Skeleton

Combine fine aggregate, cementitious powders and ultrafine material to reduce void space while maintaining workable surface area. Packing models are useful starting tools, but real powders have shape, absorption and chemical interactions. Verify grading and moisture for each source. Excess ultrafine content can increase water and admixture demand even when calculated packing looks favorable.

Balance Water and Dispersing Admixture

The water-binder ratio influences porosity, but workability depends on effective dispersion. Screen admixture compatibility with the actual cementitious blend and temperature range. Check initial flow, retention and mixing time, not just one early reading. Overdosage can cause delayed setting or segregation in some systems, while underdosage leads to high energy demand and poor filling.

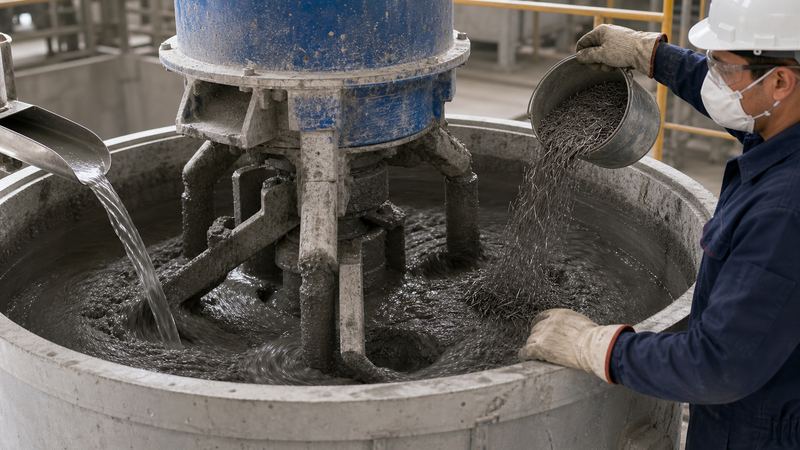

Integrate Fibers Without Losing Workability

Fibers add tensile functionality and substantial surface area. Select type and content with the structural test program, then adapt mixing sequence to distribute them. Evaluate fresh behavior after the full fiber dose, because a fiber-free matrix trial can be misleading. Observe discharge, mold filling and finishing as well as laboratory spread.

Account for Mixing Energy and Scale

A small high-shear laboratory mixer and a production mixer may reach different dispersion states. Scale-up changes fill ratio, temperature rise and addition time. Define an endpoint based on a stable, uniform mixture rather than copying laboratory minutes. Conduct trials at representative batch volume and inspect mixer cleanliness, blade wear and discharge residue.

Validate Robustness, Not One Ideal Batch

Test reasonable variations in material temperature, aggregate moisture and production timing. Establish allowable ranges and response actions. Repeat batches using different raw-material lots when risk warrants it. A robust mix design stays within requirements under controlled production variation; a single exceptional test result is not a production specification.

Document the Final Production Formula

Freeze approved sources, proportions, addition order, temperature range and mixer endpoint in a controlled production instruction. Record permissible adjustments separately from fixed ingredients. This prevents a successful laboratory formulation from drifting gradually during routine production and makes investigation possible when fresh or hardened results change.

Project Workflow for Uhpc Mix Design

Start by writing a one-page brief for this exact application. Identify the structural or purchasing objective, the responsible approver and the drawing or specification clauses that control the decision. List the conditions that differ from laboratory evidence, such as component geometry, casting direction, mixer scale, exposure, temperature, shipment or storage. This gap review determines whether document review is sufficient or whether a trial or full-size mock-up is needed.

Design the trial around the highest-risk feature discussed in this article. Record component lots, quantities, sequence, temperature, fresh observations, timing, curing and test specimens. Agree acceptance actions before work starts. If a result falls outside the approved range, isolate the material or component and obtain a technical disposition; an undocumented water, fiber or process adjustment destroys traceability.

At handover, retain records that allow the result to be connected to a batch, component and inspection decision. Feed the lessons into the neighboring series topics: material behavior informs design, design informs production, production informs construction, and the final technical scope informs supplier comparison and procurement.

Acceptance and Handover for Uhpc Mix Design

Build the acceptance plan from the article-specific topics “Translate Project Needs Into Targets,” “Build a Dense Granular Skeleton” and “Balance Water and Dispersing Admixture.” For each one, write the requirement, observation or test, sampling location, timing, responsible party and decision rule. This makes the plan relevant to UHPC mix design; it also prevents a general UHPC certificate from being used as evidence for a feature that was never examined.

Separate three kinds of evidence. Product evidence describes the supplied formulation and its verified properties. Process evidence shows that mixing, casting, preparation, curing, packaging or delivery followed the approved method. Project evidence connects those two records to the actual joint, component, repair area, production lot or shipment. A complete handover needs all three where they apply. Missing traceability should be resolved before the work is concealed, loaded, shipped or accepted.

Agree the nonconformance route in advance. A fresh-property result, damaged package, surface defect or test result outside the stated limit does not always lead to the same disposition. The authorized engineer or buyer may require investigation, additional testing, repair, restricted use, replacement or rejection. Record the technical basis and affected quantity. At closeout, provide the current data sheet, safety information, batch identification, inspection and test records, approved deviations, storage or maintenance instructions and contact point for technical support.

Frequently Asked Questions

What Is the First Decision for This Topic?

Begin with “Translate Project Needs Into Targets.” It establishes the boundary for UHPC mix design and prevents a general material claim from replacing the application requirement.

Which Evidence Deserves the Closest Review?

The section “Build a Dense Granular Skeleton” identifies the most relevant evidence. Check whether its materials, geometry, curing and test method represent the planned work.

Where Should the Quality Plan Add a Hold Point?

Use “Balance Water and Dispersing Admixture” to define an inspection point, responsible person and response to nonconformance before irreversible work proceeds.

Is the Highest Strength Grade Automatically the Right Choice?

No. Choose a system that meets all relevant fresh, mechanical, durability and execution requirements. Extra compressive strength does not correct an unsuitable detail or procedure.

What Should a Supplier Receive With the Inquiry?

Send the application, governing methods, required ages and properties, drawings, quantity, destination, schedule and available equipment. Ask the supplier to list included components and exclusions.

Conclusion

The correct UHPC mix design decision follows from its specific engineering or procurement purpose, representative evidence and controlled implementation. Keep the topic connected to the wider UHPC system, but do not substitute a generic strength claim, checklist or supplier promise for the distinct requirements described in this article.
