UHPC repair presents a distinct decision for structural engineers, bridge repair contractors and infrastructure owners. This article focuses on that decision and connects it to the wider UHPC series without repeating the scope of adjacent guides. Project values must come from the governing specification and named test methods. The guidance below explains the mechanisms, evidence and implementation questions that should be resolved before design approval, production or purchase.
Determine why the structure deteriorated: chloride corrosion, overload, impact, abrasion, leakage, poor detailing or movement. Repairing the surface without controlling the cause can move damage to the edge of the new material. Survey geometry, reinforcement, contamination and structural capacity. The engineer should define whether the work restores section, adds capacity or provides protection.
UHPC may suit thin overlays, localized high-stress repairs, deck strengthening, connection reconstruction or protective layers. Its dense matrix and fiber toughness are useful where thickness is limited or exposure is severe. Large low-demand void filling may favor another material. Select the repair system from function, access and life-cycle requirements.

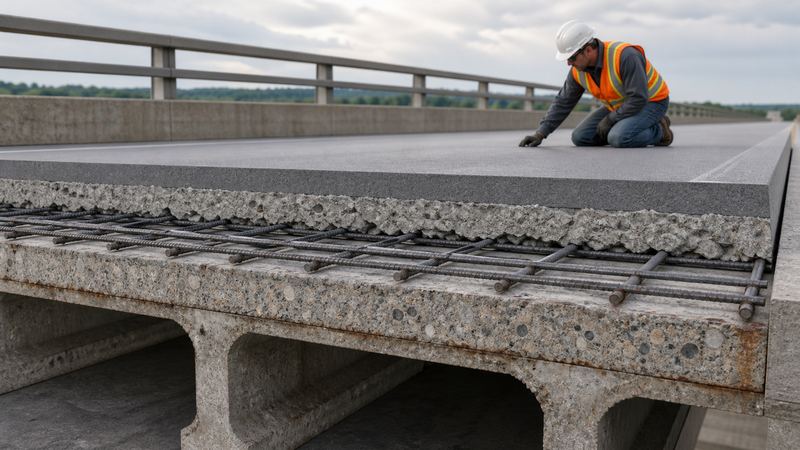

A strengthening overlay must transfer shear and sometimes tension at the interface. Design roughness, reinforcement, connectors and edge details accordingly. Existing cracks or movement joints cannot simply be buried. Verify substrate capacity and consider differential shrinkage, temperature and stiffness.

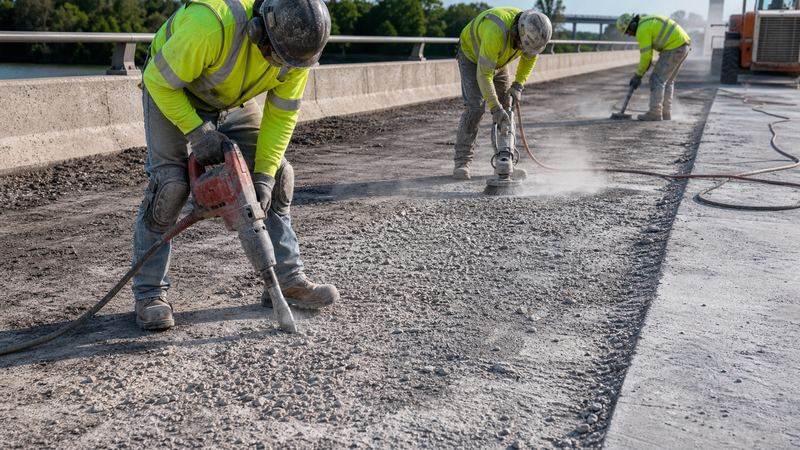

Remove all unsound concrete without unnecessary damage to retained reinforcement. Establish the specified rough profile, clean thoroughly and manage moisture. If corrosion products remain, address them under the repair design. Conduct trial areas and bond testing when required; a clean-looking surface is not proof of composite action.
Access, slope, overhead work, leakage and traffic vibration influence the method. Select formwork and seals for fluid pressure, and ensure vents permit complete filling. For overlays, control thickness and finishing. Protect adjacent bearings, drains and joints from contamination.
Cure according to the qualified system and restrict loads during development. Document batch and placement zones so any issue can be traced. Inspect interfaces, edges and drainage after return to service. Monitoring should relate to the original deterioration mechanism, not only the appearance of the new UHPC surface.
Start by writing a one-page brief for this exact application. Identify the structural or purchasing objective, the responsible approver and the drawing or specification clauses that control the decision. List the conditions that differ from laboratory evidence, such as component geometry, casting direction, mixer scale, exposure, temperature, shipment or storage. This gap review determines whether document review is sufficient or whether a trial or full-size mock-up is needed.
Design the trial around the highest-risk feature discussed in this article. Record component lots, quantities, sequence, temperature, fresh observations, timing, curing and test specimens. Agree acceptance actions before work starts. If a result falls outside the approved range, isolate the material or component and obtain a technical disposition; an undocumented water, fiber or process adjustment destroys traceability.
At handover, retain records that allow the result to be connected to a batch, component and inspection decision. Feed the lessons into the neighboring series topics: material behavior informs design, design informs production, production informs construction, and the final technical scope informs supplier comparison and procurement.
Build the acceptance plan from the article-specific topics “Start With Diagnosis, Not Product Selection,” “Where UHPC Can Add Value” and “Develop Composite Action.” For each one, write the requirement, observation or test, sampling location, timing, responsible party and decision rule. This makes the plan relevant to UHPC repair; it also prevents a general UHPC certificate from being used as evidence for a feature that was never examined.
Separate three kinds of evidence. Product evidence describes the supplied formulation and its verified properties. Process evidence shows that mixing, casting, preparation, curing, packaging or delivery followed the approved method. Project evidence connects those two records to the actual joint, component, repair area, production lot or shipment. A complete handover needs all three where they apply. Missing traceability should be resolved before the work is concealed, loaded, shipped or accepted.
Agree the nonconformance route in advance. A fresh-property result, damaged package, surface defect or test result outside the stated limit does not always lead to the same disposition. The authorized engineer or buyer may require investigation, additional testing, repair, restricted use, replacement or rejection. Record the technical basis and affected quantity. At closeout, provide the current data sheet, safety information, batch identification, inspection and test records, approved deviations, storage or maintenance instructions and contact point for technical support.
Begin with “Start With Diagnosis, Not Product Selection.” It establishes the boundary for UHPC repair and prevents a general material claim from replacing the application requirement.
The section “Where UHPC Can Add Value” identifies the most relevant evidence. Check whether its materials, geometry, curing and test method represent the planned work.
Use “Develop Composite Action” to define an inspection point, responsible person and response to nonconformance before irreversible work proceeds.
No. Choose a system that meets all relevant fresh, mechanical, durability and execution requirements. Extra compressive strength does not correct an unsuitable detail or procedure.
Send the application, governing methods, required ages and properties, drawings, quantity, destination, schedule and available equipment. Ask the supplier to list included components and exclusions.
The correct UHPC repair decision follows from its specific engineering or procurement purpose, representative evidence and controlled implementation. Keep the topic connected to the wider UHPC system, but do not substitute a generic strength claim, checklist or supplier promise for the distinct requirements described in this article.
Send Qiandao your application, standard, drawings, required properties, quantity, destination and equipment for a project-specific review of grade, supply scope and trial planning.
