Views: 0 Author: Qiandao Technical Team Publish Time: 2026-08-13 Origin: Hubei Qiandao New Materials Co., Ltd.
UHPC vs normal concrete presents a distinct decision for structural engineers, asset owners and contractors comparing material options. This article focuses on that decision and connects it to the wider UHPC series without repeating the scope of adjacent guides. Project values must come from the governing specification and named test methods. The guidance below explains the mechanisms, evidence and implementation questions that should be resolved before design approval, production or purchase.

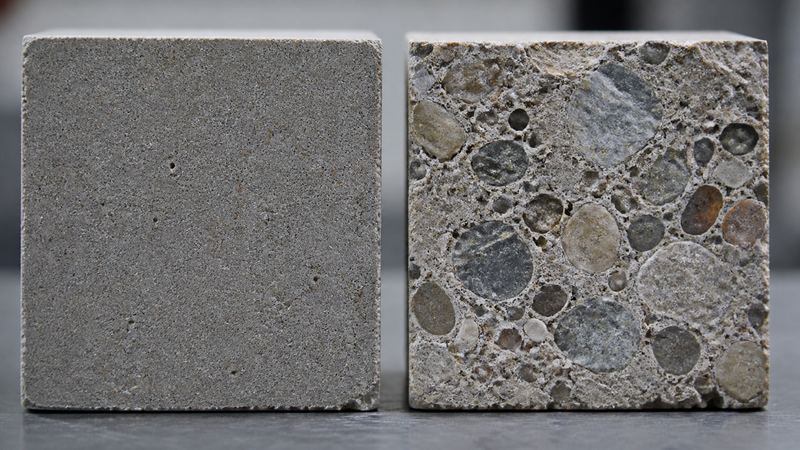

Normal concrete usually relies on coarse aggregate, fine aggregate, cement paste and a conventional water-cement ratio. UHPC uses a much finer and more tightly graded solid system, a powerful dispersing admixture and usually steel fibers. The change is not cosmetic: it alters mixing energy, pore structure, transition zones and cracking behavior. Comparisons must use a defined UHPC formulation and a defined normal-concrete class rather than treating either category as one fixed material.
UHPC generally targets substantially higher compressive and flexural performance, but design value comes from the complete response. Normal concrete is well understood, widely available and efficient for many members. UHPC is useful where compact sections, tensile contribution, joint transfer or exposure justify additional control. Engineers should compare characteristic or design values produced by compatible methods, not a supplier maximum against a specified minimum for another material.

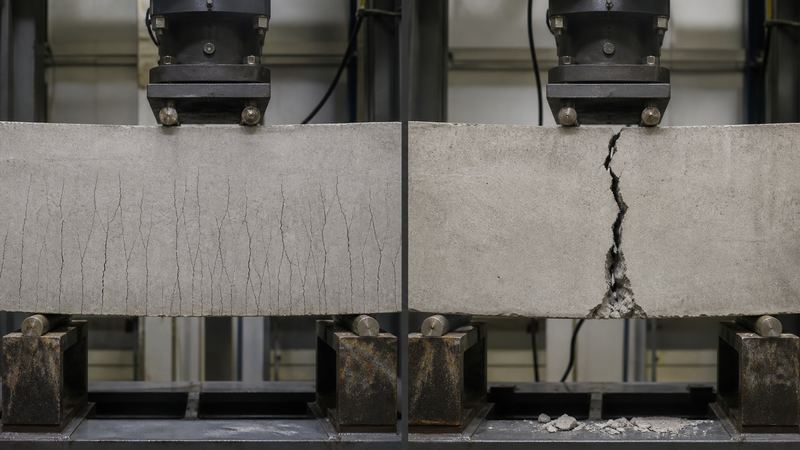

Plain normal concrete loses tensile capacity rapidly after a crack forms; reinforcement then controls structural crack behavior. Steel-fiber UHPC can develop multiple fine cracks and retain meaningful post-cracking resistance, depending on fiber orientation and the qualified formulation. The laboratory image of a narrow crack should not be translated directly into a design assumption. The relevant tensile or flexural test, specimen size and casting direction need to represent the component.
A dense UHPC matrix can restrict water and chloride transport and improve resistance to abrasion or freeze-thaw exposure. Normal concrete can also be durable when its mixture, cover, curing and detailing suit the environment. UHPC does not make joints, penetrations or drainage irrelevant. Compare measured indicators required by the exposure specification and include workmanship, cracking and interfaces in the durability assessment.
Normal concrete plants and crews are familiar with conventional mixing and vibration. UHPC may require longer or higher-energy mixing, staged additions, careful fiber dosing and different finishing. Some systems are self-consolidating, but reinforcement congestion and leakage still matter. Curing can also differ. A project that gains structural efficiency may require more detailed method statements and quality hold points.
UHPC normally has a higher material cost per unit volume because of its constituents and control requirements. A fair comparison considers the designed volume, reinforcement, formwork, erection, closures, traffic disruption, maintenance and service risk. Do not claim savings before the design and construction plan demonstrate them. Choose normal concrete where it meets requirements efficiently; choose UHPC where its specific properties solve a defined constraint.
Start by writing a one-page brief for this exact application. Identify the structural or purchasing objective, the responsible approver and the drawing or specification clauses that control the decision. List the conditions that differ from laboratory evidence, such as component geometry, casting direction, mixer scale, exposure, temperature, shipment or storage. This gap review determines whether document review is sufficient or whether a trial or full-size mock-up is needed.
Design the trial around the highest-risk feature discussed in this article. Record component lots, quantities, sequence, temperature, fresh observations, timing, curing and test specimens. Agree acceptance actions before work starts. If a result falls outside the approved range, isolate the material or component and obtain a technical disposition; an undocumented water, fiber or process adjustment destroys traceability.
At handover, retain records that allow the result to be connected to a batch, component and inspection decision. Feed the lessons into the neighboring series topics: material behavior informs design, design informs production, production informs construction, and the final technical scope informs supplier comparison and procurement.
Build the acceptance plan from the article-specific topics “Composition and Internal Structure,” “Strength Is Only One Comparison Dimension” and “Cracking and Post-Cracking Response.” For each one, write the requirement, observation or test, sampling location, timing, responsible party and decision rule. This makes the plan relevant to UHPC vs normal concrete; it also prevents a general UHPC certificate from being used as evidence for a feature that was never examined.
Separate three kinds of evidence. Product evidence describes the supplied formulation and its verified properties. Process evidence shows that mixing, casting, preparation, curing, packaging or delivery followed the approved method. Project evidence connects those two records to the actual joint, component, repair area, production lot or shipment. A complete handover needs all three where they apply. Missing traceability should be resolved before the work is concealed, loaded, shipped or accepted.
Agree the nonconformance route in advance. A fresh-property result, damaged package, surface defect or test result outside the stated limit does not always lead to the same disposition. The authorized engineer or buyer may require investigation, additional testing, repair, restricted use, replacement or rejection. Record the technical basis and affected quantity. At closeout, provide the current data sheet, safety information, batch identification, inspection and test records, approved deviations, storage or maintenance instructions and contact point for technical support.
Begin with “Composition and Internal Structure.” It establishes the boundary for UHPC vs normal concrete and prevents a general material claim from replacing the application requirement.
The section “Strength Is Only One Comparison Dimension” identifies the most relevant evidence. Check whether its materials, geometry, curing and test method represent the planned work.
Use “Cracking and Post-Cracking Response” to define an inspection point, responsible person and response to nonconformance before irreversible work proceeds.
No. Choose a system that meets all relevant fresh, mechanical, durability and execution requirements. Extra compressive strength does not correct an unsuitable detail or procedure.
Send the application, governing methods, required ages and properties, drawings, quantity, destination, schedule and available equipment. Ask the supplier to list included components and exclusions.
The correct UHPC vs normal concrete decision follows from its specific engineering or procurement purpose, representative evidence and controlled implementation. Keep the topic connected to the wider UHPC system, but do not substitute a generic strength claim, checklist or supplier promise for the distinct requirements described in this article.
Send Qiandao your application, standard, drawings, required properties, quantity, destination and equipment for a project-specific review of grade, supply scope and trial planning.
