Views: 0 Author: Qiandao Technical Team Publish Time: 2026-08-17 Origin: Hubei Qiandao New Materials Co., Ltd.
UHPC facade panels presents a distinct decision for architects, facade engineers, precasters and specialist installers. This article focuses on that decision and connects it to the wider UHPC series without repeating the scope of adjacent guides. Project values must come from the governing specification and named test methods. The guidance below explains the mechanisms, evidence and implementation questions that should be resolved before design approval, production or purchase.
The combination of a dense matrix and fiber reinforcement can support thin, expressive shapes and fine surface detail. Lower thickness may reduce individual panel weight compared with a thicker conventional element, but geometry must be engineered. Wind pressure, suction, impact, support spacing, openings and handling loads can govern before compressive strength becomes relevant.

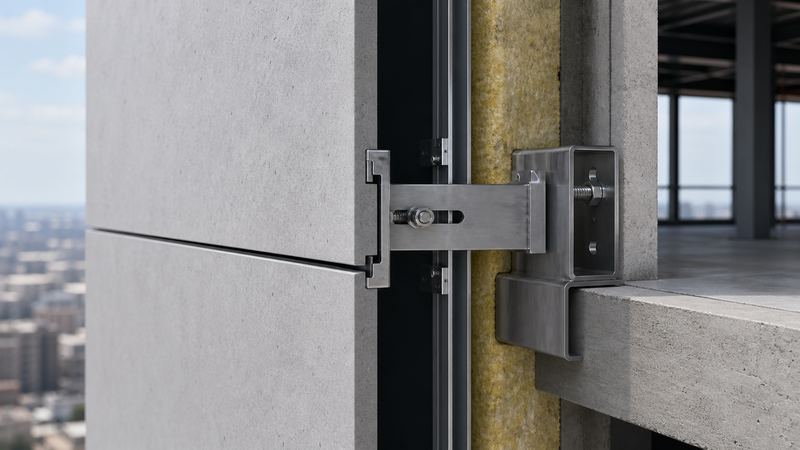

Anchors, inserts, brackets and edge distances are part of the structural system. Coordinate panel reinforcement or local thickening around connections and verify pullout, flexure and tolerance demands. Differential movement between the panel, support frame and building must be accommodated. A beautiful panel with an inaccessible or over-rigid anchor is not a successful facade solution.

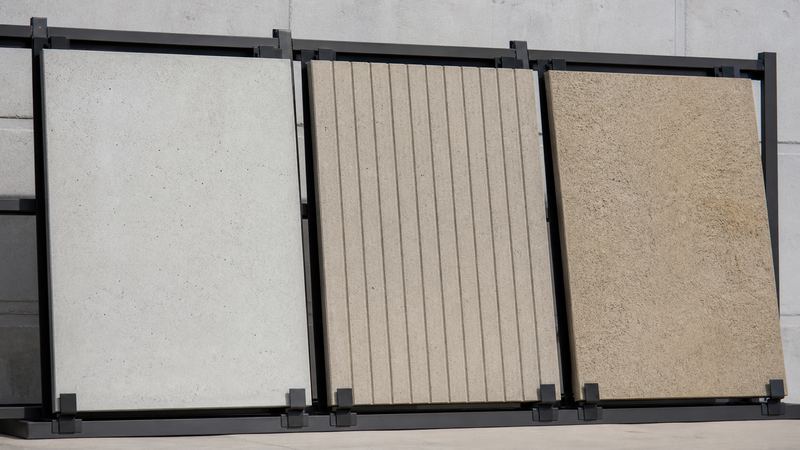

UHPC reproduces texture accurately, including unwanted joints, scratches or release-agent marks. Build a visual mock-up using the proposed mold, pigment, release method and curing. Agree color variation, bugholes, repairs and viewing distance before production. Raw-material and moisture consistency matter for repeated panels, especially in pale or architectural finishes.
Long flow paths, ribs and inserts affect filling and fiber orientation. Locate casting points and vents through trials, and seal molds against leakage. Inspect returns, corners and connection zones after demolding. Separate coupons may not represent the panel’s flow-induced fiber direction, so structural qualification should reflect the production process.

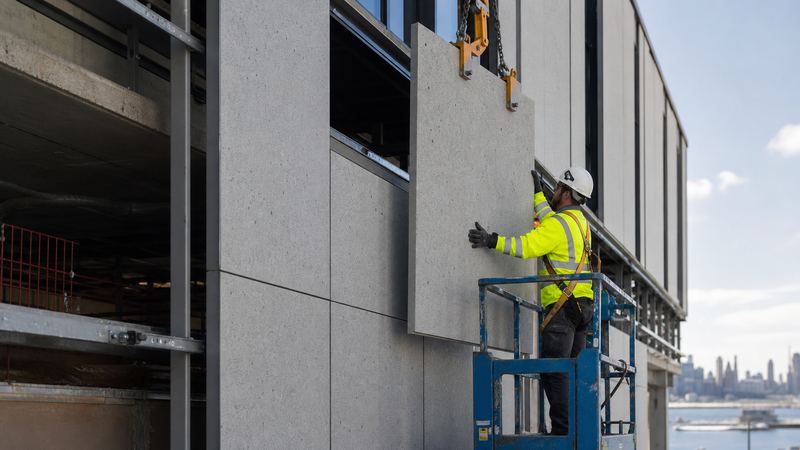

Define lifting points, spreaders, storage racks and transport supports with the panel designer. Young panels can be vulnerable at edges and openings. Protect finished faces from straps and abrasion. Installation plans should include bracket adjustment, temporary restraint, sealant interfaces, drainage and replacement access.
UHPC is a panel material, not a complete wall. Review water shedding, cavity drainage, air and vapor control, insulation continuity, fire requirements, joints and sealants. Project-specific testing may include structural, impact, water or connection performance. Coordinate the facade consultant, structural engineer and manufacturer early.
Start by writing a one-page brief for this exact application. Identify the structural or purchasing objective, the responsible approver and the drawing or specification clauses that control the decision. List the conditions that differ from laboratory evidence, such as component geometry, casting direction, mixer scale, exposure, temperature, shipment or storage. This gap review determines whether document review is sufficient or whether a trial or full-size mock-up is needed.
Design the trial around the highest-risk feature discussed in this article. Record component lots, quantities, sequence, temperature, fresh observations, timing, curing and test specimens. Agree acceptance actions before work starts. If a result falls outside the approved range, isolate the material or component and obtain a technical disposition; an undocumented water, fiber or process adjustment destroys traceability.
At handover, retain records that allow the result to be connected to a batch, component and inspection decision. Feed the lessons into the neighboring series topics: material behavior informs design, design informs production, production informs construction, and the final technical scope informs supplier comparison and procurement.
Build the acceptance plan from the article-specific topics “Why UHPC Suits Slender Architectural Elements,” “Design the Panel and Its Connections Together” and “Control Mold Quality and Surface Appearance.” For each one, write the requirement, observation or test, sampling location, timing, responsible party and decision rule. This makes the plan relevant to UHPC facade panels; it also prevents a general UHPC certificate from being used as evidence for a feature that was never examined.
Separate three kinds of evidence. Product evidence describes the supplied formulation and its verified properties. Process evidence shows that mixing, casting, preparation, curing, packaging or delivery followed the approved method. Project evidence connects those two records to the actual joint, component, repair area, production lot or shipment. A complete handover needs all three where they apply. Missing traceability should be resolved before the work is concealed, loaded, shipped or accepted.
Agree the nonconformance route in advance. A fresh-property result, damaged package, surface defect or test result outside the stated limit does not always lead to the same disposition. The authorized engineer or buyer may require investigation, additional testing, repair, restricted use, replacement or rejection. Record the technical basis and affected quantity. At closeout, provide the current data sheet, safety information, batch identification, inspection and test records, approved deviations, storage or maintenance instructions and contact point for technical support.
Begin with “Why UHPC Suits Slender Architectural Elements.” It establishes the boundary for UHPC facade panels and prevents a general material claim from replacing the application requirement.
The section “Design the Panel and Its Connections Together” identifies the most relevant evidence. Check whether its materials, geometry, curing and test method represent the planned work.
Use “Control Mold Quality and Surface Appearance” to define an inspection point, responsible person and response to nonconformance before irreversible work proceeds.
No. Choose a system that meets all relevant fresh, mechanical, durability and execution requirements. Extra compressive strength does not correct an unsuitable detail or procedure.
Send the application, governing methods, required ages and properties, drawings, quantity, destination, schedule and available equipment. Ask the supplier to list included components and exclusions.
The correct UHPC facade panels decision follows from its specific engineering or procurement purpose, representative evidence and controlled implementation. Keep the topic connected to the wider UHPC system, but do not substitute a generic strength claim, checklist or supplier promise for the distinct requirements described in this article.
Send Qiandao your application, standard, drawings, required properties, quantity, destination and equipment for a project-specific review of grade, supply scope and trial planning.
