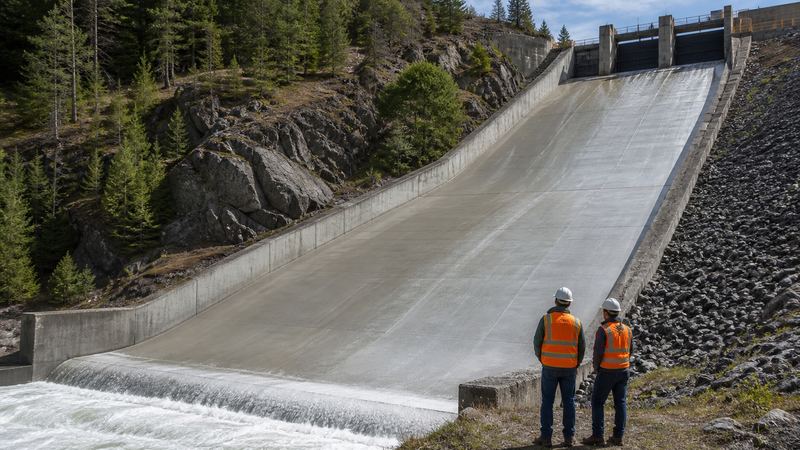

abrasion resistant UHPC presents a distinct decision for hydraulic engineers, dam owners, repair contractors and asset managers. This article focuses on that decision and connects it to the wider UHPC series without repeating the scope of adjacent guides. Project values must come from the governing specification and named test methods. The guidance below explains the mechanisms, evidence and implementation questions that should be resolved before design approval, production or purchase.
Sediment abrasion, debris impact, cavitation, freeze-thaw and chemical attack are different mechanisms. A material that performs well in one test may not solve another. Map the damaged zones, water velocity, sediment, pressure variation and seasonal operation. Correct hydraulic discontinuities or drainage problems where possible before specifying a protective material.

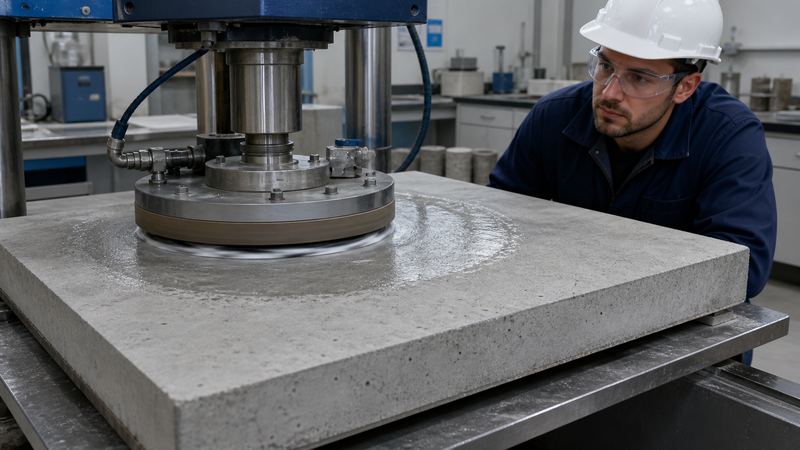

A dense UHPC matrix can resist material loss, while fibers can limit crack opening and improve toughness under impact. Aggregate hardness, matrix quality and curing all influence surface wear. Request test evidence that matches the owner’s specified method. Avoid converting one laboratory abrasion value into a universal service-life promise.
Overlay thickness, reinforcement, anchors and edge geometry depend on loads and substrate condition. Feather edges are vulnerable; use designed terminations or recesses. Consider thermal and shrinkage restraint, uplift and water pressure. Joints and penetrations need details that do not create a new erosion step.
Remove deteriorated material to sound concrete, expose and treat reinforcement as specified, and achieve the required roughness. Clean sediment, dust and oil. Control substrate moisture according to the qualified bonding method. Trial pull-off or other interface tests where the project requires them.

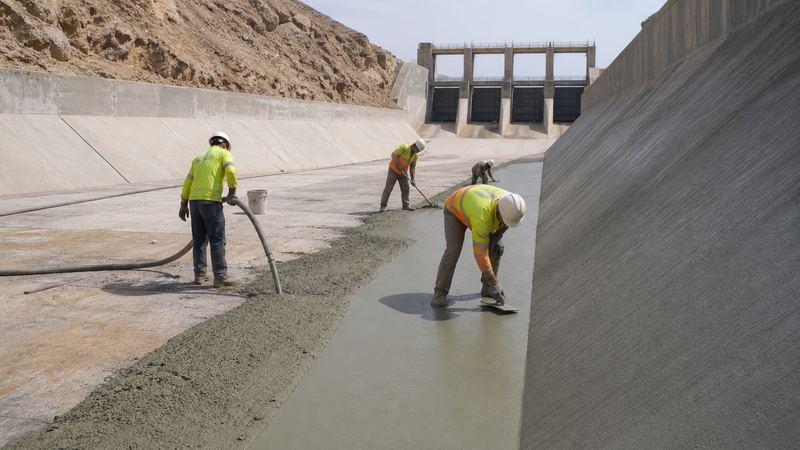

Dewater and isolate the work area so flowing water does not wash fresh material or contaminate the bond line. Plan batches around access, slope and finishing. Protect against rapid drying and unexpected releases. The owner should define when water flow may resume based on validated curing and strength criteria.
Record surface levels, thickness, materials and curing. Inspect terminations and joints after recommissioning because local turbulence can reveal weaknesses. Periodic surveys should use consistent reference points or methods. UHPC may reduce wear, but the hydraulic structure still needs monitoring and debris management.
Start by writing a one-page brief for this exact application. Identify the structural or purchasing objective, the responsible approver and the drawing or specification clauses that control the decision. List the conditions that differ from laboratory evidence, such as component geometry, casting direction, mixer scale, exposure, temperature, shipment or storage. This gap review determines whether document review is sufficient or whether a trial or full-size mock-up is needed.
Design the trial around the highest-risk feature discussed in this article. Record component lots, quantities, sequence, temperature, fresh observations, timing, curing and test specimens. Agree acceptance actions before work starts. If a result falls outside the approved range, isolate the material or component and obtain a technical disposition; an undocumented water, fiber or process adjustment destroys traceability.
At handover, retain records that allow the result to be connected to a batch, component and inspection decision. Feed the lessons into the neighboring series topics: material behavior informs design, design informs production, production informs construction, and the final technical scope informs supplier comparison and procurement.
Build the acceptance plan from the article-specific topics “Identify the Actual Deterioration Mechanism,” “What a Dense Fiber-Reinforced Matrix Offers” and “Design the Overlay and Terminations.” For each one, write the requirement, observation or test, sampling location, timing, responsible party and decision rule. This makes the plan relevant to abrasion resistant UHPC; it also prevents a general UHPC certificate from being used as evidence for a feature that was never examined.
Separate three kinds of evidence. Product evidence describes the supplied formulation and its verified properties. Process evidence shows that mixing, casting, preparation, curing, packaging or delivery followed the approved method. Project evidence connects those two records to the actual joint, component, repair area, production lot or shipment. A complete handover needs all three where they apply. Missing traceability should be resolved before the work is concealed, loaded, shipped or accepted.
Agree the nonconformance route in advance. A fresh-property result, damaged package, surface defect or test result outside the stated limit does not always lead to the same disposition. The authorized engineer or buyer may require investigation, additional testing, repair, restricted use, replacement or rejection. Record the technical basis and affected quantity. At closeout, provide the current data sheet, safety information, batch identification, inspection and test records, approved deviations, storage or maintenance instructions and contact point for technical support.
Begin with “Identify the Actual Deterioration Mechanism.” It establishes the boundary for abrasion resistant UHPC and prevents a general material claim from replacing the application requirement.
The section “What a Dense Fiber-Reinforced Matrix Offers” identifies the most relevant evidence. Check whether its materials, geometry, curing and test method represent the planned work.
Use “Design the Overlay and Terminations” to define an inspection point, responsible person and response to nonconformance before irreversible work proceeds.
No. Choose a system that meets all relevant fresh, mechanical, durability and execution requirements. Extra compressive strength does not correct an unsuitable detail or procedure.
Send the application, governing methods, required ages and properties, drawings, quantity, destination, schedule and available equipment. Ask the supplier to list included components and exclusions.
The correct abrasion resistant UHPC decision follows from its specific engineering or procurement purpose, representative evidence and controlled implementation. Keep the topic connected to the wider UHPC system, but do not substitute a generic strength claim, checklist or supplier promise for the distinct requirements described in this article.
Send Qiandao your application, standard, drawings, required properties, quantity, destination and equipment for a project-specific review of grade, supply scope and trial planning.
