Views: 0 Author: Qiandao Technical Team Publish Time: 2026-08-18 Origin: Hubei Qiandao New Materials Co., Ltd.
UHPC for wind turbines presents a distinct decision for wind-energy designers, EPC contractors, owners and component manufacturers. This article focuses on that decision and connects it to the wider UHPC series without repeating the scope of adjacent guides. Project values must come from the governing specification and named test methods. The guidance below explains the mechanisms, evidence and implementation questions that should be resolved before design approval, production or purchase.
UHPC may be considered in highly loaded local zones, tower-base or segment connections, prefabricated tower components and selected strengthening details. Its compact mechanical performance can help where forces must pass through limited geometry. It should not be marketed as a universal replacement for the mass concrete foundation; the turbine supplier and structural designer must define the role.
Wind turbines experience large numbers of load cycles from wind, rotor operation and start-stop events. Static compressive strength does not demonstrate fatigue performance. Connection details, fibers, reinforcement and interfaces need project-appropriate fatigue assessment. Material testing should reflect stress range, environmental condition and the governing design framework.

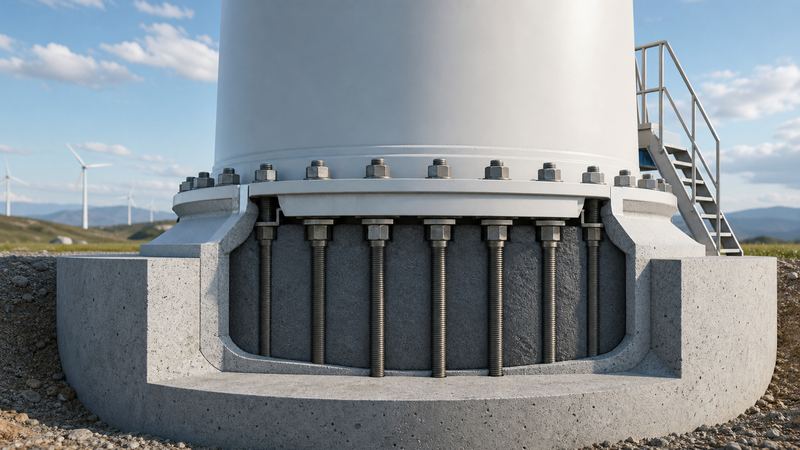

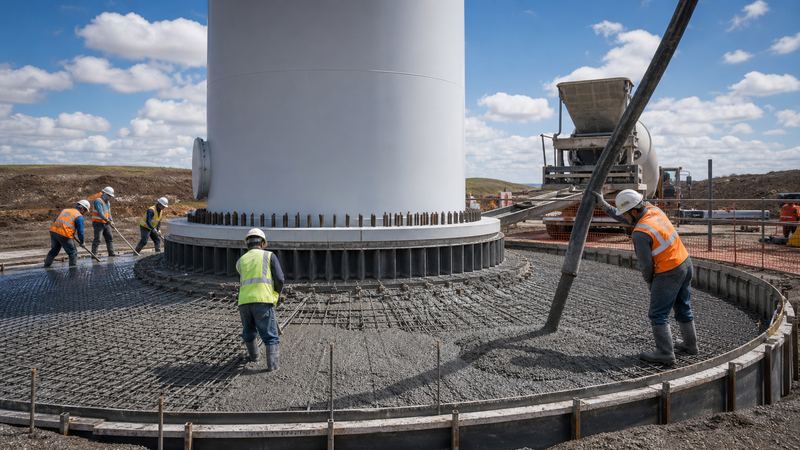

Dense reinforcement, anchor bolts, flanges and tight annular spaces create placement challenges. Coordinate tolerances and ensure the UHPC can fill beneath and around hardware without voids. Check load transfer, bearing, restraint and edge distances. Use a representative mock-up with the planned mixer, pump or discharge method before critical placement.

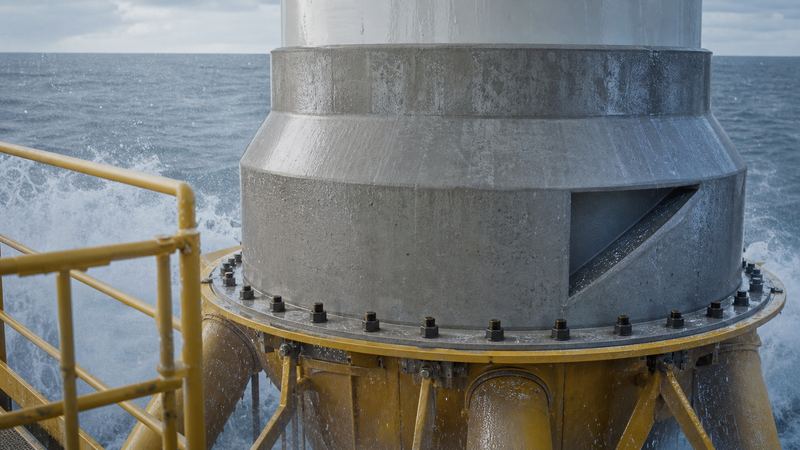

Onshore projects may face freeze-thaw, temperature variation and construction access constraints. Offshore or coastal structures add chloride spray, persistent moisture and difficult maintenance. Specify the relevant exposure indicators rather than a general durability claim. Seal interfaces, manage drainage and use compatible metallic components to control the whole system.
Factory-cast segments can offer controlled curing and dimensional quality, but transport and erection loads must be included. Segment joints require tolerances, temporary stability and reliable filling. Component size, crane capacity, route limitations and weather windows influence whether prefabrication creates value.
Provide the supplier with design requirements, fresh-property window, volume, climate and installation method. Review mechanical, dimensional and durability evidence with the designer. Conduct scale-appropriate trials, define curing and inspection, and agree action for nonconforming batches. Owner and turbine-system approvals control final use.
Start by writing a one-page brief for this exact application. Identify the structural or purchasing objective, the responsible approver and the drawing or specification clauses that control the decision. List the conditions that differ from laboratory evidence, such as component geometry, casting direction, mixer scale, exposure, temperature, shipment or storage. This gap review determines whether document review is sufficient or whether a trial or full-size mock-up is needed.
Design the trial around the highest-risk feature discussed in this article. Record component lots, quantities, sequence, temperature, fresh observations, timing, curing and test specimens. Agree acceptance actions before work starts. If a result falls outside the approved range, isolate the material or component and obtain a technical disposition; an undocumented water, fiber or process adjustment destroys traceability.
At handover, retain records that allow the result to be connected to a batch, component and inspection decision. Feed the lessons into the neighboring series topics: material behavior informs design, design informs production, production informs construction, and the final technical scope informs supplier comparison and procurement.
Build the acceptance plan from the article-specific topics “Potential Roles in Wind-Energy Structures,” “Cyclic and Fatigue Loading” and “Anchor and Tower-Base Connections.” For each one, write the requirement, observation or test, sampling location, timing, responsible party and decision rule. This makes the plan relevant to UHPC for wind turbines; it also prevents a general UHPC certificate from being used as evidence for a feature that was never examined.
Separate three kinds of evidence. Product evidence describes the supplied formulation and its verified properties. Process evidence shows that mixing, casting, preparation, curing, packaging or delivery followed the approved method. Project evidence connects those two records to the actual joint, component, repair area, production lot or shipment. A complete handover needs all three where they apply. Missing traceability should be resolved before the work is concealed, loaded, shipped or accepted.
Agree the nonconformance route in advance. A fresh-property result, damaged package, surface defect or test result outside the stated limit does not always lead to the same disposition. The authorized engineer or buyer may require investigation, additional testing, repair, restricted use, replacement or rejection. Record the technical basis and affected quantity. At closeout, provide the current data sheet, safety information, batch identification, inspection and test records, approved deviations, storage or maintenance instructions and contact point for technical support.
Begin with “Potential Roles in Wind-Energy Structures.” It establishes the boundary for UHPC for wind turbines and prevents a general material claim from replacing the application requirement.
The section “Cyclic and Fatigue Loading” identifies the most relevant evidence. Check whether its materials, geometry, curing and test method represent the planned work.
Use “Anchor and Tower-Base Connections” to define an inspection point, responsible person and response to nonconformance before irreversible work proceeds.
No. Choose a system that meets all relevant fresh, mechanical, durability and execution requirements. Extra compressive strength does not correct an unsuitable detail or procedure.
Send the application, governing methods, required ages and properties, drawings, quantity, destination, schedule and available equipment. Ask the supplier to list included components and exclusions.
The correct UHPC for wind turbines decision follows from its specific engineering or procurement purpose, representative evidence and controlled implementation. Keep the topic connected to the wider UHPC system, but do not substitute a generic strength claim, checklist or supplier promise for the distinct requirements described in this article.
Send Qiandao your application, standard, drawings, required properties, quantity, destination and equipment for a project-specific review of grade, supply scope and trial planning.
