UHPC for precast concrete presents a distinct decision for precast manufacturers, product designers and purchasing teams. This article focuses on that decision and connects it to the wider UHPC series without repeating the scope of adjacent guides. Project values must come from the governing specification and named test methods. The guidance below explains the mechanisms, evidence and implementation questions that should be resolved before design approval, production or purchase.
A facade panel, municipal cover, permanent form, bridge element and electrical enclosure impose different demands. Define load path, span, supports, connections, impact, exposure, fire requirements and finish before selecting a grade. Compressive strength may not govern a thin panel; flexural behavior, anchors, handling and edge robustness can be more important.

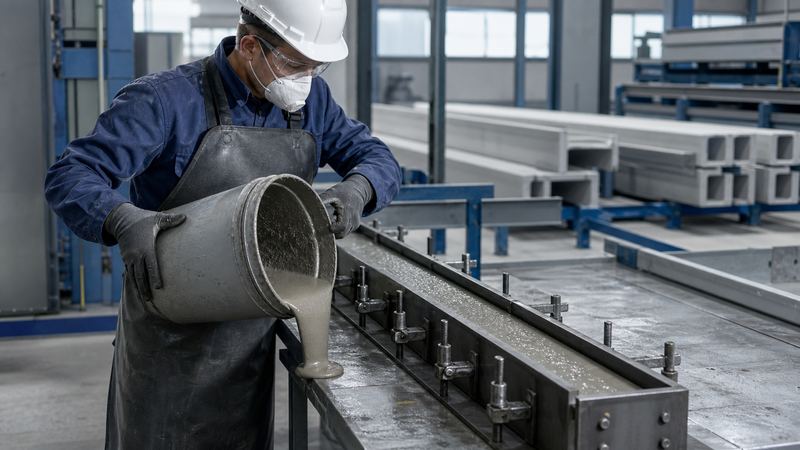

The mixture must fill the narrowest section and flow around inserts without segregation or fiber blockage. Map casting points, travel distance, vents and leakage paths. A flow value measured in isolation cannot prove mold filling. Trial the actual or representative mold and inspect corners, ribs and embedded items after demolding.
Thin molds and long flow paths can align fibers. Alignment may help one direction while reducing capacity in another. Casting method, number of discharge points and component geometry should be consistent with the test specimens used for design or acceptance. Avoid cutting test samples from only the easiest or most favorable location.
UHPC can reproduce fine surface detail, which also means mold defects, joints and contamination may appear clearly. Molds need adequate stiffness and sealed joints. Confirm release-agent compatibility and application rate; excess agent can stain the surface or affect bond at later connections. Plan safe demolding points and lifting hardware.
Factory curing offers repeatability, but the approved regime must match production capacity. Specify early protection, temperature limits, duration and the strength or maturity needed for demolding, lifting and transport. Heat curing may accelerate production for some systems, while others use controlled ambient or moist curing. Do not mix acceptance data from different regimes.

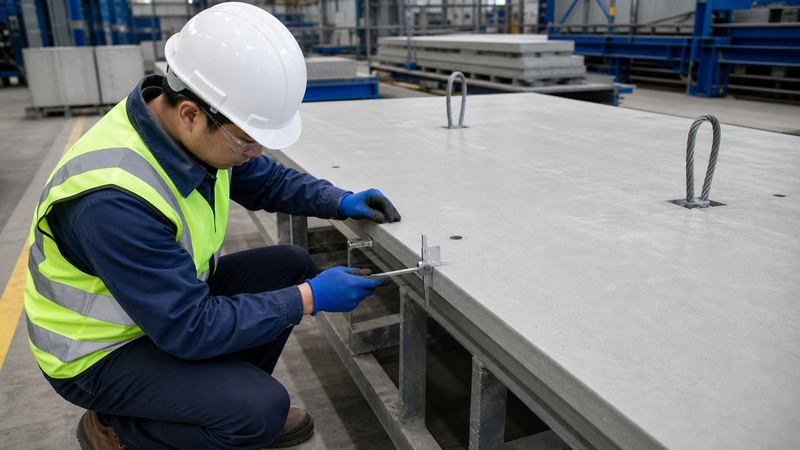

Inspect raw materials, batch quantities, fresh behavior, fiber addition, mold preparation and curing records. Dimensional tolerances, surface criteria, inserts and repairs need agreed acceptance rules. Produce a first article or full-size prototype before series production. Retain traceability from each component to its material batch and inspection results.
After the full-size trial, retain an approved reference component or documented visual standard. It should capture geometry, surface finish, edge quality, inserts and permitted repairs. Production inspectors can compare later units against the same agreed reference, while dimensional and structural acceptance remains governed by drawings and test records.
Start by writing a one-page brief for this exact application. Identify the structural or purchasing objective, the responsible approver and the drawing or specification clauses that control the decision. List the conditions that differ from laboratory evidence, such as component geometry, casting direction, mixer scale, exposure, temperature, shipment or storage. This gap review determines whether document review is sufficient or whether a trial or full-size mock-up is needed.
Design the trial around the highest-risk feature discussed in this article. Record component lots, quantities, sequence, temperature, fresh observations, timing, curing and test specimens. Agree acceptance actions before work starts. If a result falls outside the approved range, isolate the material or component and obtain a technical disposition; an undocumented water, fiber or process adjustment destroys traceability.
At handover, retain records that allow the result to be connected to a batch, component and inspection decision. Feed the lessons into the neighboring series topics: material behavior informs design, design informs production, production informs construction, and the final technical scope informs supplier comparison and procurement.
Build the acceptance plan from the article-specific topics “Start With the Component Function,” “Match Flow to the Mold and Reinforcement” and “Control Fiber Orientation.” For each one, write the requirement, observation or test, sampling location, timing, responsible party and decision rule. This makes the plan relevant to UHPC for precast concrete; it also prevents a general UHPC certificate from being used as evidence for a feature that was never examined.
Separate three kinds of evidence. Product evidence describes the supplied formulation and its verified properties. Process evidence shows that mixing, casting, preparation, curing, packaging or delivery followed the approved method. Project evidence connects those two records to the actual joint, component, repair area, production lot or shipment. A complete handover needs all three where they apply. Missing traceability should be resolved before the work is concealed, loaded, shipped or accepted.
Agree the nonconformance route in advance. A fresh-property result, damaged package, surface defect or test result outside the stated limit does not always lead to the same disposition. The authorized engineer or buyer may require investigation, additional testing, repair, restricted use, replacement or rejection. Record the technical basis and affected quantity. At closeout, provide the current data sheet, safety information, batch identification, inspection and test records, approved deviations, storage or maintenance instructions and contact point for technical support.
Begin with “Start With the Component Function.” It establishes the boundary for UHPC for precast concrete and prevents a general material claim from replacing the application requirement.
The section “Match Flow to the Mold and Reinforcement” identifies the most relevant evidence. Check whether its materials, geometry, curing and test method represent the planned work.
Use “Control Fiber Orientation” to define an inspection point, responsible person and response to nonconformance before irreversible work proceeds.
No. Choose a system that meets all relevant fresh, mechanical, durability and execution requirements. Extra compressive strength does not correct an unsuitable detail or procedure.
Send the application, governing methods, required ages and properties, drawings, quantity, destination, schedule and available equipment. Ask the supplier to list included components and exclusions.
The correct UHPC for precast concrete decision follows from its specific engineering or procurement purpose, representative evidence and controlled implementation. Keep the topic connected to the wider UHPC system, but do not substitute a generic strength claim, checklist or supplier promise for the distinct requirements described in this article.
