Views: 0 Author: Site Editor Publish Time: 2026-08-03 Origin: Site
Reading Time: 12 minutes
Target Audience: Concrete admixture manufacturers, ready-mix concrete producers, construction material importers (Southeast Asia & Africa), civil engineers, and procurement professionals
Technical Level: Intermediate to Advanced
Primary Keywords: Polycarboxylate superplasticizer, high-strength concrete, slump retention, water reducer
Secondary Keywords: PCE superplasticizer, C80 concrete, super high-rise pumping, concrete water reducer, long-distance pumping
Understanding the technical challenges of pumping C80 high-strength concrete to 300+ meters
The critical role of polycarboxylate superplasticizers (PCE) in achieving high water reduction and slump retention
Mechanisms of slump retention technology and its application in extreme conditions
Case studies from global super-tall landmark projects
Best practices for selecting water reducer solutions for tropical and challenging environments

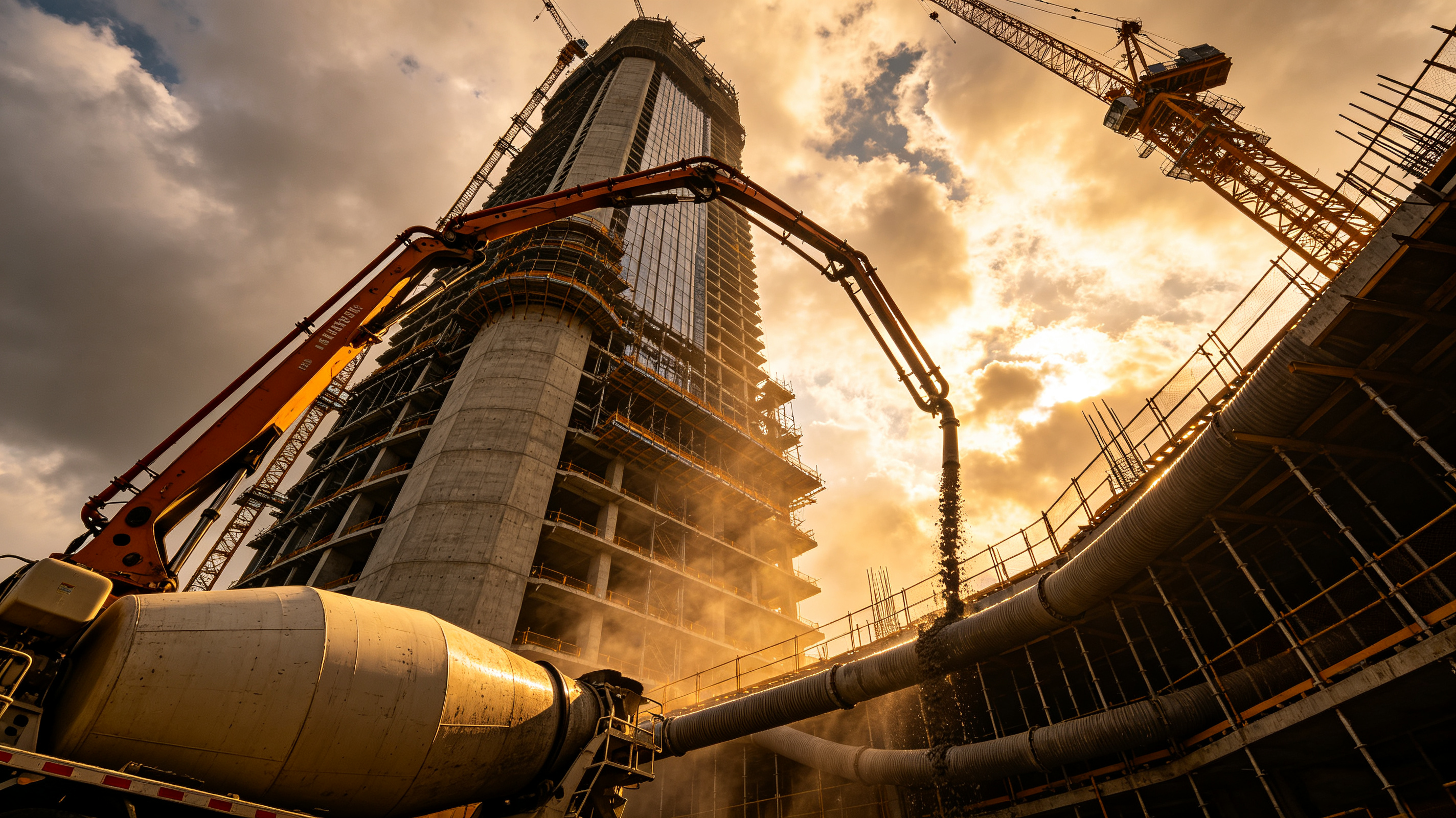

Across Southeast Asia and Africa, skylines are transforming. From the 499.8-meter Nanjing Greenland Jinmao International Financial Center to super-tall towers under development across Indonesia, Vietnam, and Nigeria, the construction of landmark high-rise buildings is accelerating . These projects demand not just high-strength concrete, but concrete that can be reliably pumped to unprecedented heights while maintaining workability in hot climates.
C80 grade high-strength concrete presents a paradox: to achieve the compressive strength required for super-tall structures, mix designs must be extremely dense and low in water content. Yet to be pumped over 300 meters through complex pipe networks, the concrete must remain fluid and workable for extended periods. This is where advanced polycarboxylate superplasticizers (PCE) and slump retention technology become essential .
This article covers:
The physics and chemistry behind C80 concrete pumping challenges
How PCE technology solves viscosity and slump loss issues
The science of extended slump retention and controlled dispersion
Real-world case studies from landmark projects up to 530 meters
Application guidance for tropical climates and challenging environments
Before selecting a water reducer solution for high-rise construction, it is crucial to understand the fundamental challenges that C80 high-strength concrete presents.
C80 concrete is characterized by a very low water-to-cement ratio (w/c), typically below 0.30. This is necessary to achieve compressive strengths of 80 MPa or greater, but it creates several technical difficulties .
High Viscosity and Internal Friction: At low w/c ratios, the cement paste becomes highly viscous. The dense packing of cement particles and fine aggregates increases internal friction, making the concrete difficult to push through a pipeline.
Rapid Slump Loss: High-strength concrete mixtures often contain high amounts of cementitious materials. Cement hydration begins immediately upon mixing, consuming water and forming hydrates that increase viscosity. In hot weather conditions common across Southeast Asia (30-35°C+) and Africa, this slump loss is dramatically accelerated, sometimes reducing slump from 230mm to below 150mm within 60-90 minutes .
Severe Pumping Conditions: In super-tall projects, the pump line can stretch over 400 meters horizontally with numerous bends. For example, in a 253-meter high-rise, the pump line included 11 90-degree bends, each of which dramatically increases resistance . For projects over 400 meters, the pump pressure can exceed 20-25 MPa.
Traditional water reducers—such as lignosulfonates or even standard naphthalene-based superplasticizers—cannot adequately address these challenges:
Limited water reduction: Maximum water reduction typically below 20%, insufficient for C80 requirements
Poor slump retention: Slump loss begins within 30 minutes of mixing, making long-distance transport and high-altitude pumping impossible
Incompatibility with high cement content: Workability loss is exacerbated in high-cement mixes
Consequences of using inadequate solutions:
Pipeline blockages and costly downtime
Re-tempering with additional water (compromising strength)
Inconsistent concrete placement
Structural defects and reduced durability
A Polycarboxylate Superplasticizer (PCE) is a high-range water-reducing admixture designed to provide exceptional flowability and slump retention in high-performance concrete . For super-tall landmark construction, a specialized system typically includes two complementary components: a high water-reducing PCE base and a slump-retaining PCE incorporating slow-release technology.
Typical PCE system for super-tall pumping includes:
Component | Function | Benefit for High-Rise |
|---|---|---|
High Water-Reducing PCE | Achieves 30-35% water reduction | Enables low w/c ratio for C80 strength |
Slump-Retaining PCE (Slow-Release) | Provides sustained dispersion over 2+ hours | Maintains pumpability to 300+ meters |
Viscosity Modifier | Controls rheology and prevents segregation | Reduces pump pressure requirements |
Air-Entraining Agent (Targeted) | Improves freeze-thaw resistance (cold climates) | Enhances durability (cold regions) |
Defoamer | Controls air content | Ensures density and strength |
Key Insight: The performance of a PCE system for high-rise pumping depends not only on individual raw materials but critically on the compatibility and balance between the high water-reducing base and the slump-retaining slow-release component. For extreme conditions—such as summer temperatures exceeding 35°C or 400-meter pumping heights—tailored formulations are often required .
Fresh concrete slump loss occurs through two primary mechanisms:
Cement hydration consumes mixing water: As cement hydrates, water becomes chemically bound, reducing the water available to lubricate particles.
Adsorption of PCE molecules onto cement surfaces: The dispersion effectiveness of PCE depends on PCE molecules being adsorbed onto cement particle surfaces to create electrostatic repulsion. However, as cement hydrates, the adsorption layer is disturbed, causing particles to re-agglomerate .

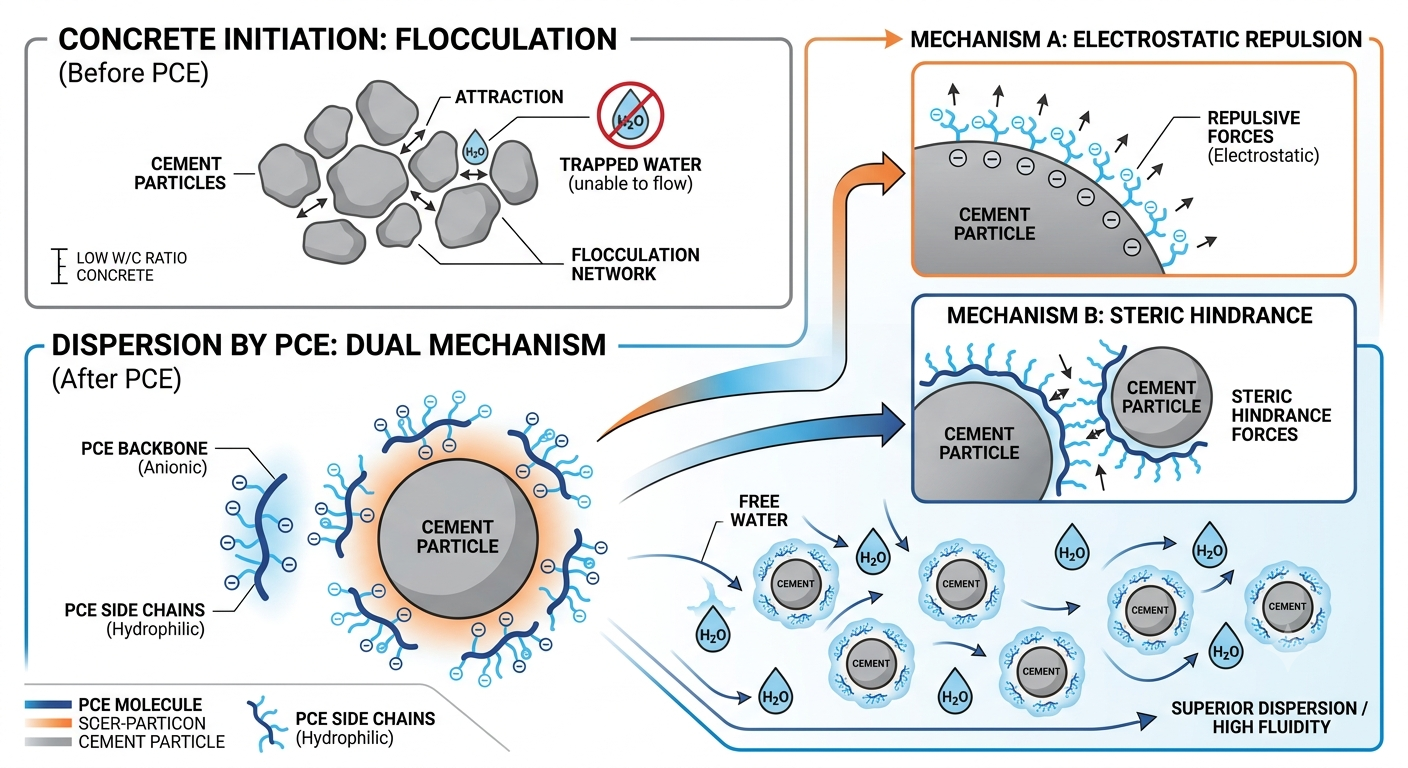

High-performance PCE counteracts these mechanisms through:
Electrostatic Dispersion (Negative Ion Layer): Chemical water reducers form a layer of negative ions on the surface of cement and aggregate particles. These like charges repel each other, separating particles and reducing internal friction. This "lubricates" the concrete without adding water .
Grafted Polymer Chains (Steric Hindrance): PCE molecules consist of a charged backbone and long, comb-like side chains. These side chains extend into the pore solution and prevent particles from approaching each other through physical obstruction—a process known as steric hindrance . The combination of electrostatic and steric stabilization provides much stronger dispersion than older technologies (like naphthalene or melamine-based superplasticizers).
For super-tall pumping, standard PCE alone is insufficient. The concrete must maintain a high slump (typically 200-230mm) for 2 hours or more . This requires a slow-release slump-retaining PCE .
The slow-release mechanism involves controlled hydrolysis:
The slump-retaining PCE is designed with functional groups (such as ester groups) that slowly hydrolyze in the alkaline concrete pore solution
As the PCE molecules are gradually consumed or adsorbed by cement hydration, hydrolysis releases additional dispersing polymers into the solution
This "time-release" replenishment maintains the dispersion effect and counters slump loss over the required time window
Advanced slow-release PCEs have achieved two key performance characteristics:
Extended Workability: Maintaining slump over 200mm for up to 2 hours in tropical climates
Improved Compatibility: Effective across diverse cement types and environments, including the common use of manufactured sand in Southeast Asia and Africa
Temperature Sensitivity: In temperatures of 35-40°C, cement hydration accelerates by approximately 2-3× compared to 20°C. The PCE system must counter this. Advanced products like Master Glenium Sky 8325 have been specifically developed for summer high-temperature high-rise pumping .
High Water Loss: Water from the concrete evaporates quickly in hot, dry conditions, increasing slump loss. The use of high water-reducing PCE (30-35% reduction) and retarders can help extend working time .
Long Transport and Pumping Times: Many ready-mix plants are located far from construction sites. Deliveries can take 60-90 minutes before pumping even begins. Slump-retaining PCE systems are essential .
High Strength Requirements: For C80 concrete grades, high water-reduction PCE is critical. The PCE should achieve at least 30-35% water reduction to allow low w/c ratios .
High Pump Pressure: At 300+ meters, pressure exceeds 20 MPa. The PCE must maintain viscosity stability (not dropping too low or remaining too high) to prevent blockages or segregation.
Binder/Pozzolan Compatibility: C80 high-strength concrete often contains high amounts of supplementary cementitious materials such as silica fume, GGBFS, and fly ash. The PCE must be optimized for compatibility with these binders .
Location: Wenzhou, China
Application: Super-tall landmark building, 378 meters high, 79 floors
Technical Challenge:
Pumping C60 high-strength concrete to over 300 meters
Core tube structure required large volumes of C50 and C60 grades
High pump pressure and viscosity management needed
Solution:
Custom-designed low-viscosity, high-slump-retention PCE
Formulated to break through viscosity bottlenecks and ensure pumpability at 389 meters elevation
Results:
Successful un-interrupted concrete supply to top of the structure (389m)
Over 10,153 m³ of high-performance concrete placed
Zero blockages during high-altitude pumping
Takeaway: The case demonstrates that custom-formulated PCE is critical for performance beyond 300m
Location: Nanjing, China
Application: Under-construction super-tall building, 499.8 meters, 104 floors
Technical Challenge:
C80 high-strength concrete for core walls and columns (1.2 million m³)
High-strength concrete viscosity and pumping performance
Mass concrete temperature control
Solution:
Close-packed aggregate design (to reduce water and paste demand)
High-performance PCE with very high water reduction (achieving required low w/c ratio)
Large-volume monitoring system for temperature control during curing
Results:
Successfully placed C80 concrete at high volumes (12,000+ m³ in a single section)
This was the first large-volume C80 mass concrete project in Jiangsu Province
Achieved consistent quality and pumpability
Takeaway: The project demonstrates that PCE technology can enable large-scale C80 applications for high-rise buildings, even in mass concrete contexts
Location: Guangzhou, China (530m tall)
Application: Super-tall commercial building, 530 meters tall
Technical Challenge:
Pumping C60-C80 concrete to 530 meters
High concrete grade leading to high viscosity, high shrinkage, and high heat of hydration
Need to maintain high workability and slump retention
Solution:
Optimum mix design with high supplementary cementitious material content (to reduce heat)
Selected high-performance PCE to achieve high strength and workability
Combined formulation to balance water reduction, slump retention, and viscosity control
Results:
Successfully placed over 140,000 m³ of C60-C80 high-performance concrete
Achieved high strength (C80), high workability, high durability, with lower heat and lower shrinkage
Takeaway: The case demonstrates that high-volume application (140,000 m³) of C60-C80 concrete with PCE is possible at 530m pump heights
Location: Kuwait (Middle East)
Application: 50-story high-rise building
Technical Challenge:
C60 high-strength concrete requirement
Temperatures exceeding 35°C
Complex architectural designs requiring superior workability
Strict construction timeline
Solution:
PCE Liquid 50% concentration (high water-reducing ability, 30-35% water reduction)
Excellent slump retention (maintained 230mm slump for 2 hours under high temperature)
Early strength development (28MPa at 7 days)
Results:
Achieved 68MPa concrete strength at 28 days
Maintained slump of 230mm for 2 hours (critical for long pumping in hot conditions)
Reduced placement time by 35%
15% cement reduction achieved (cost savings and sustainability)
Zero concrete rejection
Takeaway: The Middle East case demonstrates PCE's effectiveness under high-temperature conditions, a common challenge across the Middle East and Africa
Property | Specification | Testing Method |
|---|---|---|
Water Reduction Rate | ≥30% | EN 934 / ASTM C494 |
Slump Retention | 200-230mm at 2h | EN 12350-2 |
Compressive Strength (28d) | ≥C80 (80MPa) | EN 12390-3 |
Setting Time (Initial) | 6-10 hours (adjustable) | EN 480-2 |
Air Content | 1.5-3.0% | EN 12350-7 |
Density | 1.05-1.10 g/cm³ | — |
Chloride Content | <0.1% | EN 480-10 |
Alkali Content | <2.5% | — |
Step-by-Step Guide:
Start with a baseline dosage of 1.0-1.5% PCE by weight of cementitious materials (typical for C50-C60). For C80, 1.5-2.0% may be needed.
Test compatibility with the specific cement and supplementary cementitious materials (fly ash, silica fume, GGBFS) being used in the project.
Optimize the balance between the high water-reducing PCE and the slump-retaining PCE to meet both water-reduction and long-term slump retention goals.
Conduct full-scale pump trials to confirm actual pumpability under the specific temperature and pump-distance conditions.
Quality Considerations:
Avoid excessive dosage: Over-dosage can lead to segregation, bleeding, or excessive retardation
Consider temperature: Increase dosage slightly in hot weather to compensate for faster slump loss; ensure the formulation includes retarder components
Check for compatibility with manufactured sand (M-sand): Many Southeast Asian and African projects use manufactured sand. Ensure the PCE formulation includes a viscosity-modifying admixture to improve concrete cohesion and robustness when using M-sand
Segregation/Bleeding:
Cause: Over-dosage or insufficient viscosity modifier
Solution: Reduce PCE dosage or add a viscosity-modifying admixture (VMA)
Excessive Slump Loss:
Cause: Inadequate slump-retaining component, high temperature, or cement-PCE incompatibility
Solution: Increase proportion of slump-retaining PCE; use a slow-release PCE; add a retarder; use ice in mixing water to lower temperature
Incompatibility with Local Cement:
Cause: Cement sulfate content, alkali content, or C3A level affecting PCE adsorption
Solution: Conduct adaptability testing; consider adjusting the PCE molecular structure or using a different type of PCE (such as EPEG-based or modified PCE)
PCE provides significantly higher water reduction (30-35% vs. 15-20% for naphthalene), enabling low w/c ratios needed for C80 concrete. PCE also provides far superior slump retention through steric stabilization and slow-release technology, whereas naphthalene-based superplasticizers lose slump rapidly. PCE offers better compatibility with various cement types and supplementary cementitious materials .
In super-tall projects, concrete may take 60-120 minutes to transport and pump from ground level to 300+ meters. Without adequate slump retention, the concrete would become un-pumpable, leading to blockages, downtime, and costly rework. Maintaining 200+mm slump for 2 hours is essential .
A slow-release PCE contains ester groups that hydrolyze slowly in the alkaline concrete environment. As the initial PCE molecules are consumed by cement hydration, this hydrolysis continuously releases fresh dispersing polymers into the solution, maintaining slump retention over 1-3 hours .
Yes. However, M-sand often has higher fines content and angular particles than natural sand, which increases water demand and viscosity. PCE systems with additional viscosity-modifying admixtures are typically recommended to improve cohesion and pumpability .
Typical PCE dosage for C80 concrete is 1.5-2.0% by weight of cementitious materials. The exact dosage depends on the cement type, SCM content, desired slump, and temperature conditions. Always conduct trial mixes to determine optimal dosage for your specific materials .
The construction of super-tall landmark buildings pushes concrete technology to its limits. Achieving ultra-long distance pumping of C80 high-strength concrete requires a sophisticated understanding of rheology, hydration chemistry, and admixture science.
Advanced polycarboxylate superplasticizer solutions provide the critical enablers:
High water reduction (30-35%) enabling low w/c ratios for C80 and above
Advanced slump retention technology maintaining pumpability for 2+ hours over 300+ meters
Compatibility with local materials in regions such as Southeast Asia and Africa
Real-world success across global landmark projects (including 530m Guangzhou East Tower, 378m Wenzhou Oujiang Eye, and Kuwait's 50-story landmark)
For concrete producers and contractors in Southeast Asia and Africa, selecting the right PCE system is the key to:
Reliable high-strength concrete production
Successful super-tall pumping in hot climates
Reduced construction delays
Superior structural durability
Key takeaways:
C80 high-strength concrete is critical for modern super-tall buildings but requires advanced water reducer solutions
PCE superplasticizers with slow-release slump retention technology overcome viscosity and slump loss challenges
Real-world case studies demonstrate PCE effectiveness at 530m pump heights and 35°C+ temperatures
Custom-formulated PCE solutions are essential for extreme conditions and local material compatibility
Selecting the right PCE superplasticizer—specifically designed for high-strength concrete and long-distance pumping—is an investment in project success, risk mitigation, and long-term structural durability.
