Views: 0 Author: Qiandao Technical Team Publish Time: 2026-08-12 Origin: Hubei Qiandao New Materials Co., Ltd.
UHPC concrete, or ultra-high-performance concrete, is a cement-based composite engineered to provide a dense internal structure, high mechanical performance and strong resistance to aggressive exposure. Unlike conventional concrete, it is designed as an integrated material system rather than simply a mixture of cement, water and coarse aggregate. Fine powders, optimized granular materials, high-performance admixtures and reinforcing fibers work together to reduce defects and control cracking.
For engineers and buyers, the important point is not a single strength number. UHPC must combine suitable fresh properties, verified hardened performance and a practical installation method for the intended project. This article explains how the material works, where it adds value and what to verify before procurement.

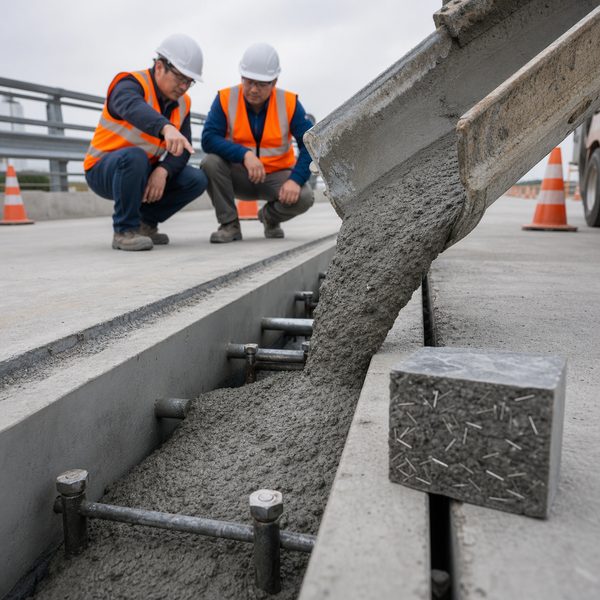

ALT: UHPC concrete placement in a prefabricated bridge joint with steel fiber sample.
UHPC is commonly described as a fiber-reinforced, cementitious material with a very dense matrix and enhanced strength, toughness and durability. Its formulation generally uses carefully graded fine particles instead of relying on the conventional coarse-aggregate skeleton found in normal concrete. This approach reduces internal voids and improves the quality of the paste-to-particle interfaces.
The term “ultra-high-performance” should not be treated as a universal product grade. Test methods, classification thresholds, curing regimes and project requirements vary by specification and market. A purchaser should therefore identify the applicable standard and required test values instead of accepting the UHPC label alone.
Qiandao’s current product range includes UHPC120-22, UHPC120-25 and UHPC140-25. In the company’s product documentation, the model designations correspond to stated compressive and flexural performance classes, while the required values for a particular order should still be confirmed in the technical data sheet and project specification.
The performance of UHPC comes from several mechanisms working together. Changing one ingredient or site procedure can affect flow, fiber dispersion, strength development and durability, so the system must be evaluated as a whole.
UHPC formulations combine particles of different sizes so that smaller particles fill spaces between larger ones. Fine mineral components and reactive powders help create a compact matrix with fewer connected pores. This dense structure limits pathways through which water and aggressive ions can move.
Packing density is not achieved by adding powder without control. Particle-size distribution, material compatibility, mixing energy and moisture condition all influence the result. A formulation developed with one local cement or sand may require validation before raw materials are substituted.
Reducing mixing water can decrease capillary porosity and support higher strength, but an extremely low water-binder ratio also makes workability difficult. High-performance water-reducing admixtures are therefore used to disperse particles and achieve flow without adding excess water.
The supplier’s instructions should govern water and admixture dosage. Unapproved water added on site may improve apparent flow temporarily while reducing consistency and hardened performance. Ambient temperature, mixer type, batch size and mixing sequence also affect the response.
The cementitious matrix provides compressive capacity, while distributed steel fibers help resist crack opening after the matrix begins to crack. Fibers bridge developing cracks, redistribute tensile stress and improve flexural behavior and energy absorption. This mechanism is a major reason UHPC can be considered for slender components, joints and areas exposed to concentrated stress.
Fiber performance depends on more than dosage. Length, diameter, tensile properties, geometry, orientation and bond with the matrix all matter. Poor mixing can create fiber clusters, and poor placement can cause nonuniform orientation. The project team should qualify both the material and the mixing procedure.
Conventional concrete often contains relatively large coarse aggregate and a more pronounced interfacial transition zone around aggregate particles. UHPC commonly uses high-quality fine aggregate and tightly controlled particle sizes to limit weak regions. The resulting matrix is more homogeneous, although its actual behavior still depends on production quality and curing.
UHPC is selected when several performance requirements must be satisfied together. Exact values should come from the relevant product data sheet, test report and project standard.
Characteristic | How UHPC Achieves It | Why It Matters |
|---|---|---|
High compressive performance | Dense particle packing and low capillary porosity | Supports high loads and compact sections where the design permits |
Flexural performance and toughness | Fibers bridge cracks and transfer stress | Improves crack control and post-cracking behavior |
Low permeability | Dense, refined pore structure | Helps limit ingress of water and aggressive ions |
Wear resistance | Strong matrix and controlled constituents | Suits surfaces exposed to abrasion or hydraulic action |
Dimensional and structural efficiency | High performance can permit optimized geometry | May reduce component size, subject to structural design and verification |
These benefits have boundaries. UHPC does not remove the need for structural analysis, correct reinforcement detailing, substrate preparation, curing or quality control. A high laboratory result cannot compensate for an unsuitable joint design or poor site execution.
Bridge engineering is a major UHPC application area. The material can be used in connections between precast elements, wet joints, negative-moment regions, composite bridge decks and selected repair zones. Its flow, bond conditions, crack control and durability can be valuable where a small connection must transfer significant forces.
For bridge work, contractors should confirm placement access, joint geometry, reinforcement congestion, surface preparation and curing before construction. Mock-ups or trial batches can reveal issues that are difficult to correct after placement.
UHPC can support slender precast elements, architectural facade panels, covers and other components where strength, surface quality or durability is important. Component thickness should never be reduced solely because the material has a high compressive rating; the designer must consider flexure, connections, handling, fire performance and service conditions.
Precast production offers controlled batching and curing, which can improve repeatability. Manufacturers still need a documented mixing sequence, calibrated equipment and inspection criteria for fiber distribution and finished surfaces.
Potential applications include wind-power foundation or tower components, abrasion-resistant hydraulic elements, municipal covers and protective layers. Exposure conditions differ widely across these projects. Freeze-thaw cycles, chloride exposure, impact, wear and chemical contact should be specified separately rather than grouped under a generic durability claim.
UHPC may be used as a repair overlay or localized strengthening material when the system is designed to develop reliable composite action with the existing substrate. Success depends on removing unsound material, preparing the surface, controlling moisture condition, detailing interfaces and curing correctly. Compatibility and restraint should be reviewed by the project engineer.
Start with performance requirements, not a model name. A clear inquiry allows a manufacturer to recommend a product and identify any validation work needed before supply.
Define the application and governing standard. State whether the material is for a bridge joint, precast panel, overlay, cover, foundation or another use. Include the applicable national, industry or project specification.
Specify required test properties. List compressive and flexural requirements, elastic modulus, flow or workability, durability indicators and test ages where relevant. Use consistent test methods and curing conditions.
Describe site and production conditions. Provide ambient-temperature range, mixer type, batch volume, placement distance, reinforcement congestion and available curing method.
Review the complete material system. Confirm premix, separate additives, water dosage, fiber type and fiber dosage. Do not assume components from different suppliers are automatically compatible.
Request supporting documents. Depending on the market and project, these may include a technical data sheet, safety data sheet, recent test results, batch controls and installation guidance.
Plan a trial batch. Verify mixing time, flow, fiber dispersion, placement, finishing and curing with the actual equipment whenever the project risk justifies it.
One available Qiandao UHPC120 commissioned test report states that the submitted sample met the RPC120 requirements for 28-day compressive strength, flexural strength and static compressive elastic modulus under GB/T 31387-2015. That report concerns the tested sample and stated conditions; buyers should request the current report and confirm that its scope matches their own specification.
A capable UHPC manufacturer should help translate design requirements into a controlled supply and installation plan. Useful technical discussions cover raw-material compatibility, mixing sequence, fiber addition, expected working time, curing, testing and corrective action if fresh properties fall outside the agreed range.
Procurement teams should compare quotations on equal scope. Check whether the offer includes fibers and additives, how water is added, packaging size, shelf life, minimum order quantity, technical support and freight terms. The lowest price per tonne may not represent the lowest installed risk if the system is incomplete or difficult to use with available equipment.
Qiandao supplies UHPC materials and related steel-fiber and concrete-admixture solutions. Project-specific recommendations should be based on drawings, performance requirements, application conditions and trial results rather than a generic grade selection.
No. High compressive strength is only one part of UHPC performance. UHPC is designed as a dense composite system and commonly incorporates fibers to improve tensile and flexural behavior. The project specification should address the relevant fresh, mechanical and durability properties.
Many structural UHPC systems use steel fibers because they improve crack control and post-cracking performance. Fiber type and content vary with the product and application. Confirm the complete supplied system and do not change the fiber without technical approval.
Possibly, but mixer suitability must be verified. UHPC can require greater mixing energy and a specific addition sequence. A trial should confirm that the equipment can produce uniform flow without fiber balling or dry pockets.
Not every UHPC application uses heat curing. The chosen curing method affects early-age development and other properties, so follow the manufacturer’s method and project specification. Do not transfer results from one curing regime to another without validation.
UHPC can have very low permeability, but “waterproof” is too absolute for design or procurement. Joints, cracks, penetrations, workmanship and the whole structural system influence water resistance. Specify and test the relevant permeability or durability indicator.
Provide the application, required standard and performance, estimated quantity, delivery location, schedule, packaging preference and site mixing conditions. Drawings or joint dimensions are helpful for technical review when available.
UHPC concrete works by combining optimized particle packing, a low water-binder ratio, controlled fine materials and reinforcing fibers into a dense, tough cementitious composite. These mechanisms can provide meaningful advantages in bridge joints, precast components, thin sections, protective layers and demanding infrastructure, but only when design, batching, placement and curing are treated as one system.
If you are evaluating UHPC for a project, send Qiandao’s technical team your application, governing standard, required test properties, quantity and site conditions. We can help review a suitable grade, supply scope and trial plan before quotation.
