Why manufactured sand can make concrete feel sticky even when slump is acceptable
How superplasticizer disperses cement and fine-particle flocs
How to identify an effective dosage window rather than simply maximizing dosage
Which tests can distinguish poor flow from excessive cohesiveness
How to adjust dosage in the laboratory and at the batching plant
How to avoid overdosing, delayed slump loss, bleeding, and segregation
Manufactured sand is increasingly used in concrete because it can provide a consistent local supply and reduce dependence on natural river sand. However, crushed sand does not behave like every source of natural sand. Its particles are often more angular, rougher, and more variable in shape. The production process can also generate a significant quantity of particles below the nominal sand size, including mineral filler and dust.
These characteristics can improve interlock and, in some mixtures, contribute to strength. They can also increase the water demand and internal friction of the fresh concrete. The result is a mixture that may show an acceptable slump but still feel excessively cohesive, sticky, or resistant during discharge, pumping, vibration, and surface finishing.
A common response is to add more water or more superplasticizer. Extra water can damage the designed water-to-binder ratio. Excessive superplasticizer can produce delayed slump gain, bleeding, paste-aggregate separation, or unstable flow. The practical solution is not to pursue the highest possible slump. It is to optimize the admixture dosage so that the mixture reaches the required flow with an appropriate balance between yield stress, plastic viscosity, cohesiveness, and stability.
In this article, “cohesiveness” refers to the resistance of the fresh concrete to internal rearrangement and flow caused by the combined effects of paste rheology, fine-particle concentration, aggregate shape, surface texture, and particle interactions. The objective is to reduce unwanted stickiness while preserving enough viscosity to prevent segregation.
This article covers:
The root causes of sticky manufactured-sand concrete
The mechanism by which superplasticizer changes particle dispersion and rheology
A dosage-optimization method based on active solids and performance testing
Laboratory and production procedures for selecting the working dosage
An illustrative mix-development case study
Frequently asked questions about superplasticizer dosage and cohesiveness
Four recommended technical illustrations for publication
The first step is to separate “high cohesion” from other workability problems that may look similar in the field.
A concrete mixture can be difficult to place for several different reasons. It may have a high yield stress, which means that a significant stress is required before it starts to flow. It may have high plastic viscosity, which means that it flows slowly even after movement begins. It may also contain too much paste, too much fine material, or an incompatible combination of cement, manufactured-sand fines, and chemical admixture.
These mechanisms require different corrections. Increasing superplasticizer dosage can reduce particle flocculation and lower yield stress, but it cannot compensate indefinitely for an unsuitable grading curve, excessive dust, or insufficient paste volume.
Natural sand particles are often rounded or sub-rounded, depending on their geological origin and processing history. Manufactured sand is produced by crushing and shaping rock. Its particles may therefore have more angular edges, elongated forms, and rough surfaces.
Angular particles tend to interlock more strongly than rounded particles. Rough particles also require more paste to coat their surfaces and fill the voids between them. When the paste volume is not sufficient for the actual surface area of the sand, the mixture can feel harsh, draggy, or sticky during mixing and placement.
Common symptoms include:
High resistance during mixer discharge
A concrete mass that holds together instead of spreading smoothly
Increased pump pressure or unstable pumping rate
Difficult screeding and finishing
Paste that adheres to the mixer, hopper, chute, or tools
The important point is that particle shape is a physical constraint. Superplasticizer can improve paste dispersion and reduce interparticle attraction, but it does not change the angular geometry of the sand.
Manufactured sand may contain particles in the filler range, sometimes described as material passing the 75 µm sieve or a project-specific finer fraction. The influence of this material depends on its mineralogy, shape, porosity, and quantity.
Fine particles increase the total specific surface area that must be wetted by the available mixing water. They can also occupy the spaces between larger particles and increase the concentration of solids in the paste-sand system. If the fines are highly angular or absorbent, the concrete may require more water or a more effective dispersing system to achieve the same flow.
However, not every fine fraction is harmful. A well-graded fine fraction can fill voids and improve packing. The problem occurs when the fines increase surface demand and particle interaction faster than the mixture design can accommodate.
Common causes include:
A high or fluctuating manufactured-sand fines content
Poor control of the sand grading curve
Clay-like or highly absorbent contaminants
High specific surface area from crushed mineral dust
An insufficient paste volume for the selected aggregate skeleton
A superplasticizer dosage below the effective dispersion range
Slump is a useful field indicator, but it does not fully describe fresh-concrete rheology. Two mixtures can have the same slump and behave very differently during pumping or finishing.
One mixture may have moderate yield stress and low plastic viscosity, allowing it to flow and spread quickly. Another may have a similar static slump but high plastic viscosity, causing slow movement and a sticky texture. A third may show a good slump immediately after mixing but lose workability quickly because the admixture is being consumed by cement and fine particles.
For self-consolidating or highly flowable concrete, slump flow and visual stability are especially important. ASTM C1611/C1611M evaluates the unconfined flow of self-consolidating concrete and includes observations related to spread, viscosity, stability, and the presence of a paste halo. The test is useful because it considers not only how far the concrete spreads, but also whether the paste separates from the aggregate during flow.
Key Insight: A larger slump or slump flow is not automatically a better result. The target is controlled mobility: enough dispersion to reduce unwanted cohesiveness, with sufficient viscosity to keep the aggregate and paste together.

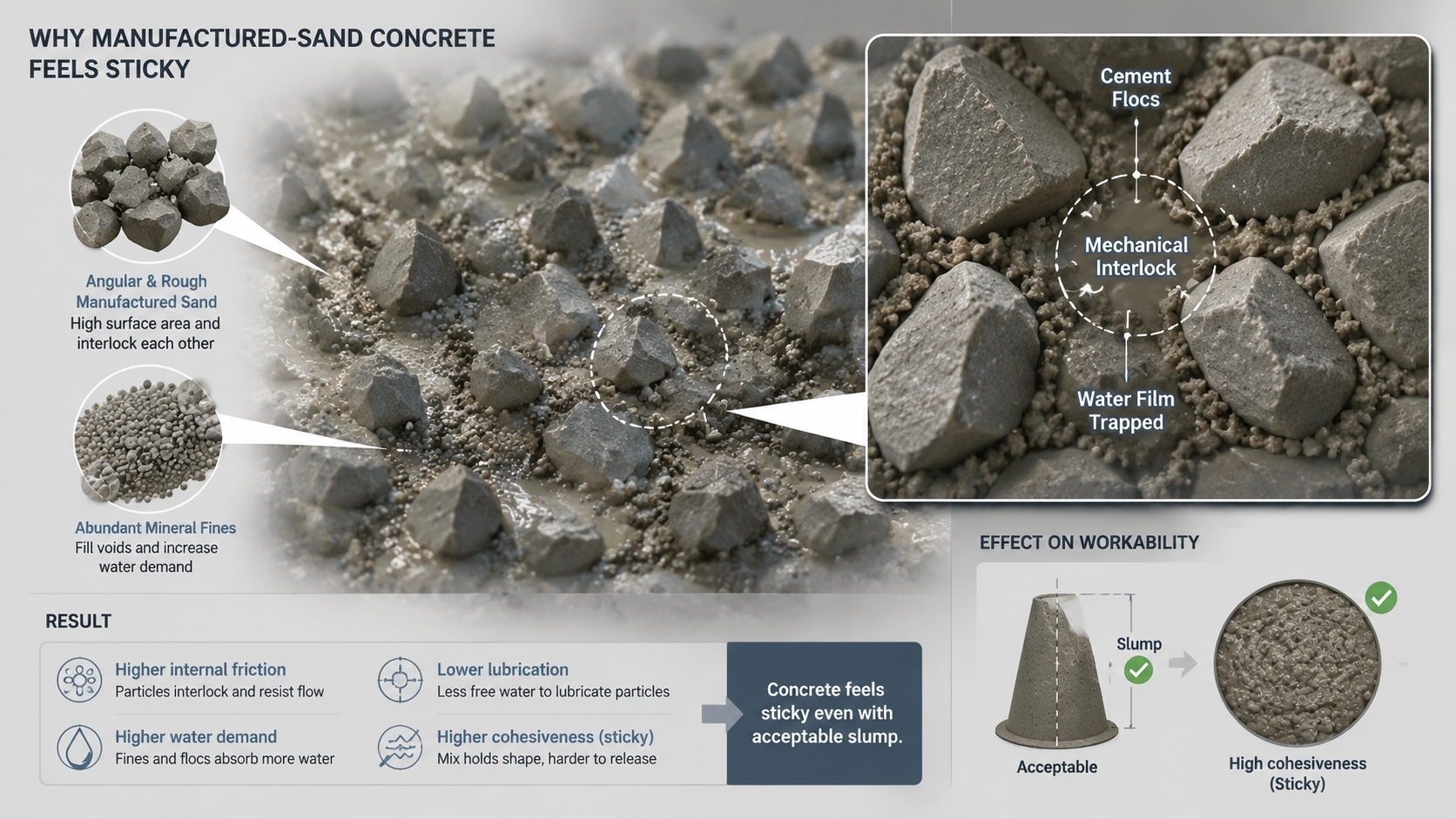

Alt text: Illustration of angular manufactured-sand particles and fine-particle flocs increasing concrete cohesiveness
Before optimizing superplasticizer dosage, it is useful to understand why common field adjustments can produce inconsistent results.
Water is an efficient way to reduce friction and increase flow. It is also the easiest way to change the water-to-binder ratio, paste volume, setting behavior, drying shrinkage, and hardened-concrete performance.
If water is added after batching, the mixture may no longer comply with the approved mix design. The resulting concrete may show lower strength or durability, even if it becomes easier to place. Water addition also does not solve the underlying problem of poor particle dispersion. The concrete may remain cohesive at one moisture condition and become unstable at another.
More paste can help coat angular particles and fill voids. Yet a very high paste volume can increase the total liquid-like material that must move through the aggregate skeleton. Depending on the cementitious materials and admixture, this may improve filling ability or create a thick, tacky matrix.
Paste volume should therefore be adjusted together with aggregate packing, water demand, and admixture response. It should not be used as an isolated correction.
A superplasticizer has an effective dosage range for a particular cement, manufactured sand, water content, temperature, and mixing sequence. Below that range, the available molecules may not provide enough surface coverage to disperse the cement and fine particles. Near the effective range, additional dosage can substantially improve flow. Beyond the saturation region, the improvement in flow may become small while the risk of delayed setting, bleeding, or segregation increases.
The dosage curve can shift when any of the following changes:
Cement type, fineness, or alkali and sulfate balance
Supplementary cementitious materials
Manufactured-sand source, fines content, or moisture
Concrete temperature
Mixing energy and mixing time
Admixture chemistry or active-solids content
Required retention time
A dosage selected from another project should therefore be treated as a starting reference, not a final answer.
Superplasticizers are high-range water-reducing admixtures designed to increase the dispersion of cementitious particles and improve the workability of concrete without requiring a proportional increase in mixing water. Modern formulations commonly use polycarboxylate ether (PCE) polymers, although other chemistries may be used depending on the application.
A PCE molecule typically contains an adsorbing backbone and side chains that extend into the surrounding liquid phase. When the polymer adsorbs on cement and other reactive or fine surfaces, the side chains create steric repulsion between particles. This helps break down flocs and releases water that was previously trapped within the floc structure.
In an un-dispersed cement paste, particles can form clusters through electrostatic attraction, van der Waals forces, and early hydration-related interactions. These clusters create a network that resists movement. The stress required to initiate flow is commonly described as yield stress.
Superplasticizer can reduce this network strength by increasing particle separation. The effect is often observed as:
Faster slump or slump-flow response
Lower resistance at the beginning of discharge
Easier pumping and placement
Reduced tendency of the concrete mass to remain in a compact mound
This is the main reason a properly selected dosage can reduce unwanted cohesiveness.
Plastic viscosity is the resistance to flow after the mixture has started moving. It is influenced by solids concentration, particle size distribution, paste viscosity, aggregate shape, and the interaction of the liquid phase with solid surfaces.
A concrete mixture with manufactured-sand fines can still have elevated plastic viscosity after yield stress has been reduced. This is why a dosage increase may make the concrete start moving more easily but may not completely remove its sticky or slow-flowing character.
If the mixture remains too viscous, the formulator may need to examine the fines fraction, aggregate packing, paste volume, water demand, and admixture compatibility rather than continuing to increase dosage.
Once most of the available adsorption sites are effectively covered, additional superplasticizer may remain in the liquid phase. The consequences depend on the concrete system and the specific product, but excessive dosage can contribute to:
Very rapid flow with insufficient stability
Bleeding or water accumulation
Coarse aggregate settlement
Paste halo or visible separation during slump-flow testing
Delayed setting or unusual hardening behavior
Excessive slump retention followed by a sudden change in consistency
The right dosage is therefore the lowest dosage that meets the required flow and retention targets while maintaining visual and measured stability.
Commercial liquid superplasticizers are supplied at different concentrations. Comparing products by liquid mass alone can be misleading. A practical dosage calculation should distinguish between product dosage and active polymer solids.
The active-solids dosage can be expressed as:
Active superplasticizer dosage (% by mass of binder) = liquid product dosage × active-solids fraction ÷ binder mass × 100
For example, a liquid admixture dosage of 1.0% by mass of binder does not represent the same polymer input as another product dosed at 1.0% if their active-solids fractions differ. The technical data sheet should state the recommended dosage range, density, solids content, chloride content, and compatibility information.
Use the following controls during development:
Record dosage as both product mass and active-solids percentage
Keep the binder mass constant during a dosage comparison
Record the manufactured-sand moisture and absorption condition
Use the same mixing energy and test timing for every trial
Record concrete temperature and ambient conditions
A useful laboratory program normally includes a control mixture and several dosage steps. The exact interval depends on the product and the expected working range. As an initial development approach, a formulator may select five or more points around the supplier’s recommended range, such as a low, low-mid, mid, high-mid, and high dosage.
The dosage range should be stated as a trial plan, not a universal specification. A practical example is:
Trial stage | Purpose | Typical observation |
|---|---|---|
Low dosage | Identify under-dispersed behavior | High resistance, low flow, rapid slump loss |
Low-mid dosage | Locate the beginning of effective response | Noticeable flow improvement |
Mid dosage | Identify the main working region | Balanced flow and cohesion |
High-mid dosage | Check the approach to saturation | Smaller additional flow gain |
High dosage | Confirm overdosing risk | Bleeding, halo, delayed setting, or segregation may appear |
Plot at least two response variables rather than only slump. Recommended outputs include slump or slump flow, visual stability, air content, time-dependent slump retention, and, where available, yield stress and plastic viscosity.
Many dosage–response curves show a region where flow improves rapidly, followed by a region where additional dosage produces only a small improvement. The transition is sometimes described as a saturation point or dosage knee.
The practical selection is usually near the knee, subject to the project target. Selecting far below the knee may leave the concrete sticky and difficult to place. Selecting far above the knee may offer little additional workability while increasing instability and cost.
The knee should be identified under the actual material combination because adsorption is affected by cement chemistry, supplementary cementitious materials, fines, temperature, and mixing procedure.
Use a consistent test method and timing. Record the initial result and subsequent results at the planned placement interval. A mixture that reaches the target quickly but loses flow before discharge requires a different solution from a mixture that is initially sticky but retains workability well.
For highly flowable or self-consolidating concrete, ASTM C1611/C1611M provides a standardized approach to measure the average spread diameter after the cone is lifted. Also observe the flow pattern, aggregate distribution, and any paste halo. A high spread with visible separation is not a successful optimization.
A cement-paste or mortar screening test can reduce material consumption during formulation. It can help compare dosage response before full concrete trials. However, paste results should not be transferred directly to concrete because aggregate shape, volume, moisture, and mixing energy affect the final rheology.
When equipment is available, a concrete rheometer or paste rheometer can help distinguish yield stress from plastic viscosity. This is especially useful when the slump is similar across several mixtures but the pumping or finishing behavior differs.
Test the manufactured sand for grading, moisture, absorption, and the relevant project limits for fines and deleterious materials. If the fine fraction changes from batch to batch, the apparent response to superplasticizer will also change.
A dosage is not accepted because it improves only one property. Use a decision matrix such as the following:
Property | What to record | Interpretation |
|---|---|---|
Initial flow | Slump or slump flow at a fixed time | Measures immediate mobility |
Retained flow | Result after the planned hold time | Shows time compatibility |
Cohesiveness | Visual handling, discharge, finishing | Identifies stickiness not captured by one number |
Stability | Aggregate distribution, halo, bleeding | Detects under-viscous or over-dispersed concrete |
Air content | Measured air at the same stage | Separates workability gain from air-related change |
Temperature | Concrete temperature | Explains part of dosage and retention variation |
Hardened performance | Strength and durability tests | Confirms that fresh-property changes do not compromise design intent |
Key Insight: The accepted dosage is a performance window, not a single magic number. Define the window by the lowest dosage that meets flow and retention requirements without unacceptable stability or hardened-performance effects.

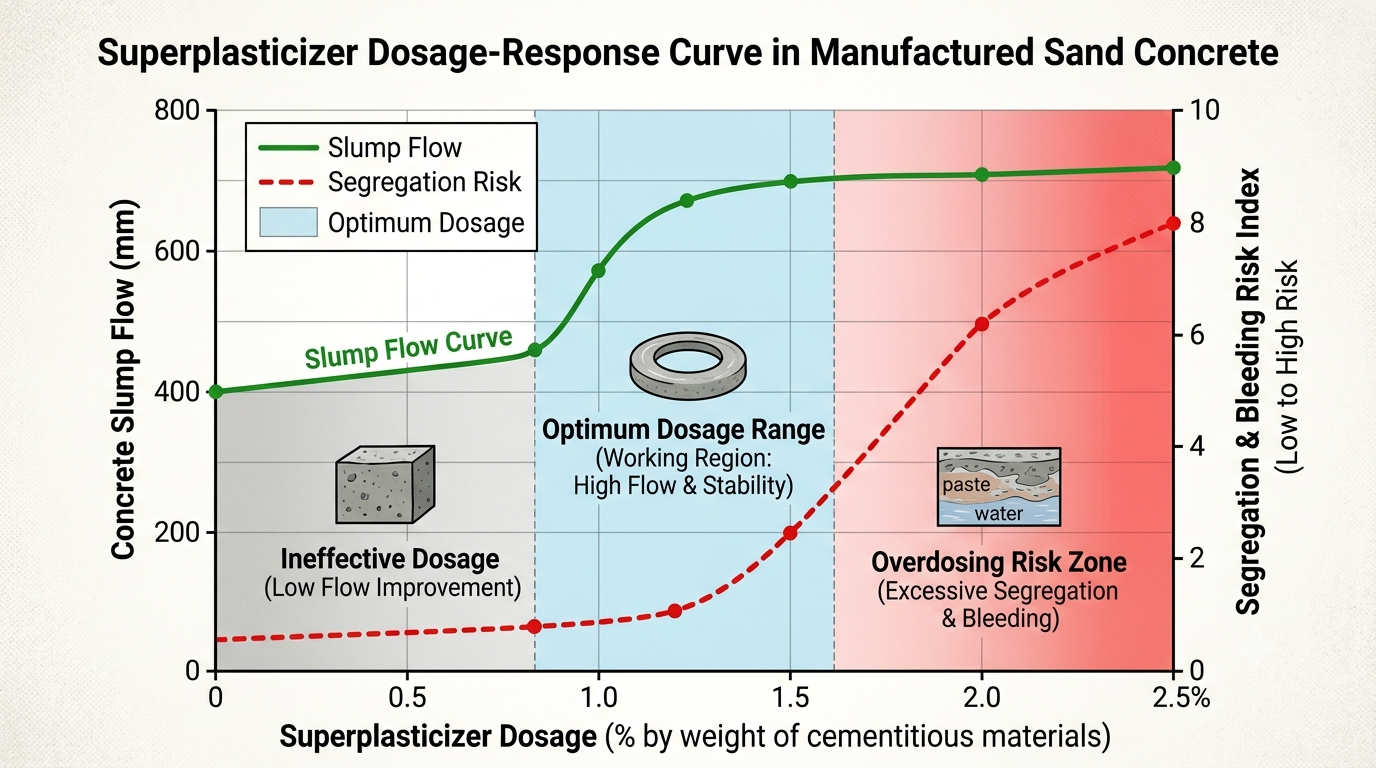

Alt text: Dosage-response curve showing the effective superplasticizer range and overdosing risk in manufactured-sand concrete
Superplasticizer performance depends not only on dosage but also on when and how it is introduced. A practical sequence may include:
Preblend cementitious materials and aggregates as required by the plant procedure.
Add part of the mixing water to wet the aggregate and reduce dusting.
Add the remaining water with the superplasticizer, or use a delayed addition when validated by trial.
Mix for a consistent period after the admixture has entered the system.
Check the concrete after a defined rest or transport-simulation period.
The correct sequence depends on the product chemistry and the equipment. A delayed addition can improve the measured response in some systems, but it can also create inconsistent results if the initial wetting and mixing are not controlled.
Do not compare two dosages when one batch has received substantially more mixing energy or a different addition sequence. Otherwise, the apparent dosage effect may actually be a mixing effect.
Manufactured sand can hold surface moisture or absorb water into internal pores. A change in moisture correction changes the effective water content of the concrete. It can also change the surface condition presented to the paste and admixture.
Before adjusting superplasticizer, verify:
Surface moisture of the manufactured sand
Absorption value used in the batch calculation
Actual aggregate mass entering the mixer
Changes in the fine fraction caused by screening or stockpile segregation
Rainfall, drying, and stockpile drainage conditions
A dosage that works on dry, well-drained sand may produce different flow on a wet or highly absorbent stockpile.
Superplasticizer adsorption is affected by cement composition and early hydration. Sulfate balance, cement fineness, supplementary cementitious materials, and mineral fillers can all change the available surface area and the response curve.
If the concrete becomes sticky after a cement or filler change, do not assume the admixture has failed. Repeat the dosage–response trial with the new binder system. The effective dosage may shift, and the retention behavior may change even if the nominal water-to-binder ratio remains the same.
Superplasticizer dosage is a powerful control variable, but it is only one variable. Consider a broader correction when the following symptoms remain after dosage optimization:
The mixture needs an unusually high dosage to reach basic flow
The response curve is flat across the entire trial range
The mixture is still harsh despite adequate paste dispersion
Flow improves but plastic viscosity remains excessive
Fine-material content varies substantially between tests
A stable mixture cannot be achieved at the required flow
Possible formulation-level actions include adjusting the manufactured-sand grading, controlling the filler fraction, improving aggregate packing, reviewing paste volume, changing the water-retaining or viscosity-modifying system, or selecting a more compatible superplasticizer.
A successful dosage selection must survive the transition from laboratory beaker or small mixer to production batching and placement.
Record the cementitious materials, manufactured-sand grading, fines content, moisture, absorption, coarse aggregate grading, water quality, and admixture certificate data. Establish control limits for the properties that have the greatest influence on fresh rheology.
Do not begin dosage optimization with an unknown sand condition. A changing sand moisture or fines content can mask a real admixture response.
Use the approved binder content, water-to-binder ratio, aggregate proportions, and target air content. Keep the mixing sequence, batch size, mixer type, and mixing time constant.
The reference mixture should represent the production materials as closely as possible. Laboratory sand and plant sand should not be treated as interchangeable without verification.
Prepare at least five dosage points around the supplier’s recommended starting range. Measure fresh properties at the same time after water and admixture addition.
For each point, record:
Slump or slump flow
Visual cohesiveness and discharge behavior
Air content
Concrete temperature
Retained workability after the required interval
Any bleeding, halo, or aggregate separation
If the application is pump-intensive or highly flowable, add an appropriate rheology or passing-ability test where available.
Choose the dosage region that meets the project’s flow and retention requirements with acceptable stability. Define a nominal target and an operating tolerance. The tolerance should reflect the sensitivity of the mixture and the accuracy of the plant dosing system.
A narrow dosage window indicates that the mixture may be sensitive to material fluctuations. In that situation, improving sand control or changing admixture chemistry may be more reliable than attempting tighter chemical dosing alone.
Repeat the selected dosage and one nearby comparison dosage in the actual mixer or production equipment. Check the first discharge, middle discharge, and, when relevant, the final discharge.
Also verify the concrete after a transport-simulation period. A mixture that is satisfactory immediately after mixing may become too sticky, too fluid, or unstable during delivery.
Observe pump pressure, discharge continuity, vibration response, surface closing, and finishing effort. Record any material adhered to the chute, hopper, pump line, or formwork.
Field feedback should be linked to measured data. “Sticky” is a useful observation, but it should be accompanied by slump, temperature, air content, sand moisture, and dosage records so that the cause can be identified.
Production adjustments should follow a documented procedure. If the concrete is sticky, first confirm the actual water, moisture correction, sand grading, temperature, and admixture dosage. Do not automatically add water or make a large dosage change without checking the approved adjustment limits.
Any change to the superplasticizer type, active-solids content, addition sequence, or dosage should trigger a compatibility review and, where necessary, a new trial.

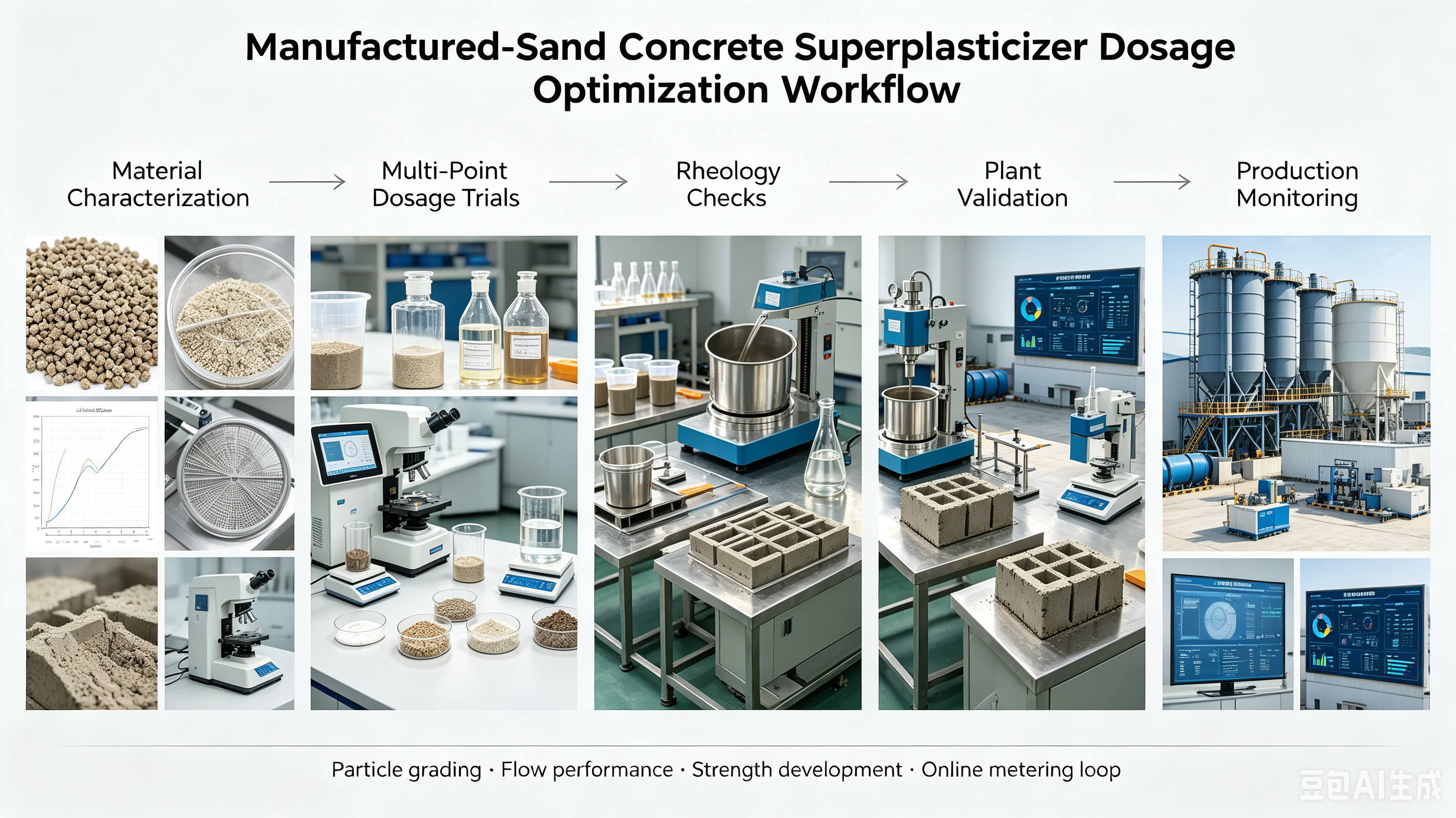

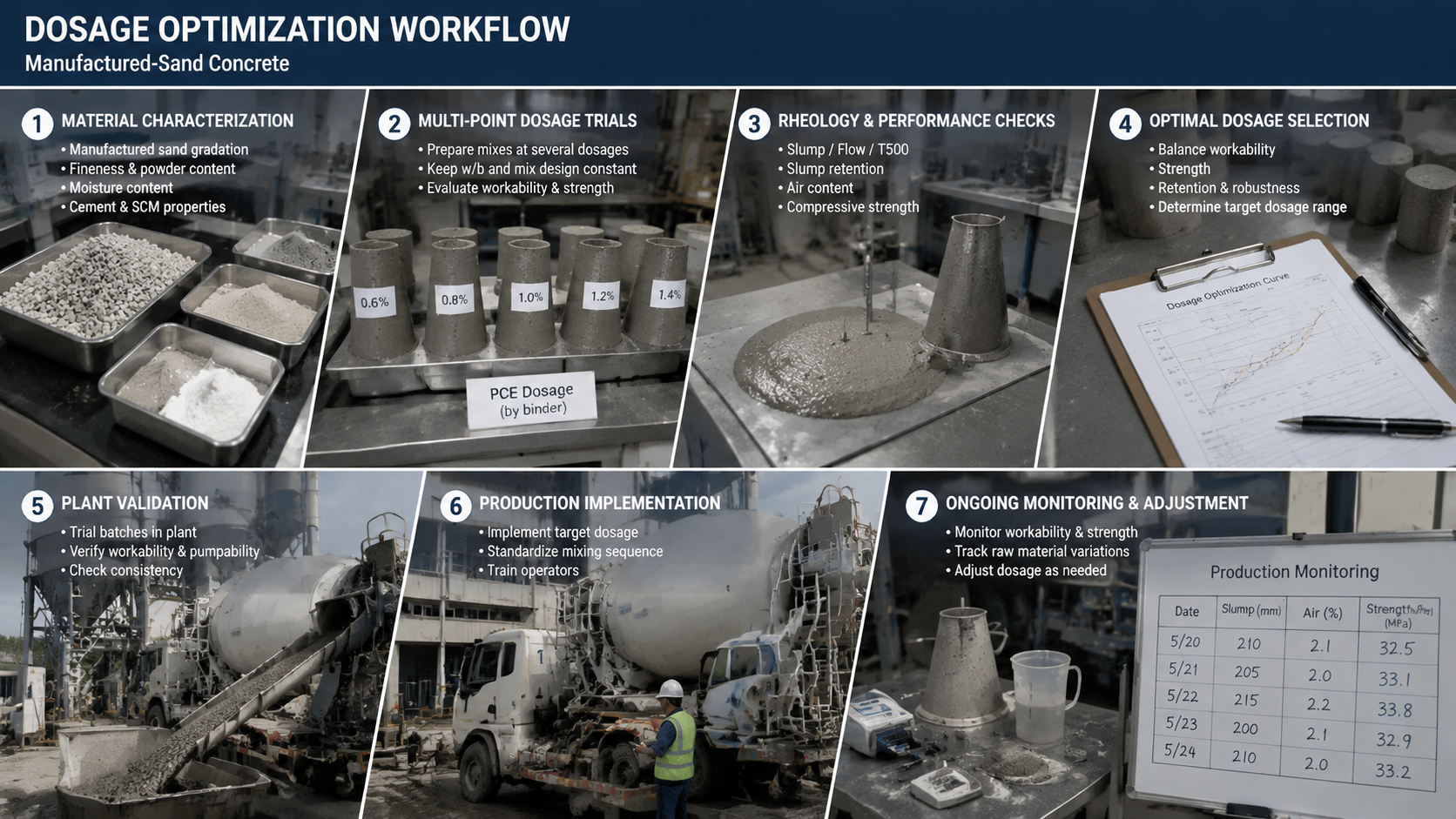

Alt text: Laboratory and plant workflow for optimizing superplasticizer dosage in manufactured-sand concrete
Likely causes: insufficient dispersion, low effective dosage, dry or absorbent fines, or excessive water demand.
Recommended checks: confirm active-solids dosage, sand moisture, fines content, mixing time, and cement change. Run a dosage step-up trial before changing the water-to-binder ratio.
Likely causes: high plastic viscosity, angular aggregate skeleton, excessive fine-particle surface area, or high paste viscosity.
Recommended checks: compare a rheology or mortar-flow result, review the fine fraction and aggregate packing, and evaluate whether a small dosage change improves movement without producing bleeding.
Likely causes: excessive superplasticizer, insufficient viscosity, excessive water, or a poor aggregate-paste balance.
Recommended checks: reduce dosage to the stable side of the working window, verify water correction, and review the paste volume and fine-particle distribution.
Likely causes: rapid admixture consumption, temperature increase, cement-admixture incompatibility, or an addition sequence that does not provide sufficient retention.
Recommended checks: conduct a time-based dosage trial, test the concrete at the expected delivery age, and consult the admixture supplier about a retention-oriented formulation.
Likely causes: variation in moisture, absorption, grading, fines content, mineralogy, or stockpile segregation.
Recommended checks: introduce incoming-material control limits and adjust the batch water based on measured moisture. Chemical dosage should not be used to hide uncontrolled aggregate variation.
Important note: The following is an illustrative mix-development example created to demonstrate the optimization method. It is not presented as an independently verified project record or a universal performance guarantee. Actual values must be established with the materials and test methods used on the target project.
Application: Pumped structural concrete requiring improved discharge and finishing behavior Aggregate system: Crushed coarse aggregate combined with manufactured sand Main concern: The concrete achieved a nominal slump target but remained resistant during pumping and difficult to close during finishing Environmental consideration: Moderate variation in aggregate moisture and concrete temperature during the production day
The initial mixture showed the following symptoms:
A compact, cohesive appearance after slump testing
High resistance during discharge from the mixer
Increased effort during screeding
Inconsistent behavior when the manufactured-sand stockpile moisture changed
No clear evidence that adding more water would be acceptable for the designed water-to-binder ratio
The first diagnostic step was to verify sand moisture, grading, fines content, and the actual admixture active-solids input. The team then repeated the mixture with a controlled dosage series.
Five superplasticizer dosages were selected around the supplier’s recommended starting range. The binder content, water content, aggregate proportions, mixing time, test timing, and concrete temperature range were controlled as closely as practical.
Each batch was evaluated for initial slump, retained slump, visual cohesiveness, air content, and signs of bleeding or aggregate separation. A small-paste screening test was also used to compare the relative response before the full concrete series.
The low-dosage mixtures remained resistant and showed only limited improvement in movement. A middle dosage produced a noticeable reduction in the effort required to start flow and improved discharge behavior. The next dosage step produced only a smaller additional improvement, indicating that the main dosage response had already been obtained.
At the highest trial point, the concrete appeared more fluid but showed a less uniform paste distribution and a greater need for stability checks. The trial therefore did not select the highest-flow result. It selected the lower side of the stable working region, where the mixture met the placement target without visible separation.
The mix-development team implemented the following controls:
Expressed superplasticizer dosage on an active-solids basis as well as liquid-product mass.
Added a manufactured-sand moisture check to the production control sheet.
Repeated the selected dosage at plant scale using the production mixer.
Checked the concrete at initial discharge and after the expected transport interval.
Established a dosage adjustment rule tied to measured fresh properties rather than operator perception alone.
The example demonstrates the type of result that should be reported, not a guaranteed value for every manufactured-sand concrete mixture:
Performance area | Before optimization | After selecting the stable dosage window |
|---|---|---|
Initial handling | Compact and resistant | Easier discharge and movement |
Finishing response | High effort and drag | More uniform closing behavior |
Dosage control | One nominal setting | Defined trial-based operating window |
Material control | Moisture checked inconsistently | Moisture and fines included in routine checks |
Stability | Not systematically recorded | Visual stability included in dosage decisions |
The main lesson is that the improvement came from combining dosage optimization with aggregate-moisture control and a multi-property acceptance method. Superplasticizer was used to reduce unwanted particle flocculation, not to compensate for every variation in the aggregate system.
Alt text: Before-and-after comparison of manufactured-sand concrete handling after superplasticizer dosage optimization
Yes, it can reduce unwanted cohesiveness when the main cause is insufficient dispersion of cement and fine-particle flocs. The effect depends on cement chemistry, manufactured-sand fines, temperature, mixing sequence, and admixture compatibility. Increasing dosage beyond the effective range may create bleeding, segregation, delayed setting, or other instability.
There is no universal dosage. The best dosage is the lowest active-solids input that meets the project’s flow and retention requirements while maintaining stability. Determine it with a multi-point dosage–response trial using the actual cementitious materials, manufactured sand, water condition, mixer, and test timing.
Use the basis specified by the admixture supplier and the project mix-design procedure. For technical comparison, record the dosage as a percentage of the relevant binder mass and also calculate the active-solids input. If supplementary cementitious materials or mineral fillers are present, define clearly whether the denominator includes all cementitious materials.
Slump primarily indicates the ability of the concrete to deform under a standardized test condition. Stickiness may be associated with high plastic viscosity, angular manufactured-sand particles, excessive fines, high paste viscosity, or poor aggregate packing. A dosage increase may lower yield stress while leaving plastic viscosity high. In that situation, review the aggregate and paste system instead of only increasing admixture.
Usually, water addition should not be the first correction when the water-to-binder ratio is controlled. It changes the designed mixture and may affect strength, durability, shrinkage, and stability. A properly selected superplasticizer dosage can improve dispersion and workability without adding the same amount of water, although the final decision must follow the approved mix design and quality-control procedure.
Potential indicators include a large flow increase with little additional dosage benefit, bleeding, paste halo, coarse aggregate settlement, delayed setting, unusual slump retention, or a sudden change in consistency. These observations should be confirmed with controlled dosage trials and hardened-performance checks. A high slump alone does not prove overdosing.
Yes. Fine particles increase surface area and may alter particle packing, water demand, adsorption, and paste rheology. The effect depends on the amount, mineralogy, shape, porosity, and moisture condition of the fines. A change in fines content can shift the dosage–response curve, so incoming sand control is part of admixture optimization.
Useful tests include slump, slump retention, slump flow when applicable, visual stability, air content, temperature, mortar or paste flow, and rheological measurements of yield stress and plastic viscosity. For highly flowable concrete, use a standardized slump-flow method such as ASTM C1611/C1611M and document any halo or segregation.
A viscosity-modifying admixture is normally intended to improve stability and control segregation. It may not solve a mixture whose main problem is excessive yield stress or poor particle dispersion, and it can increase apparent viscosity if used incorrectly. First determine whether the concrete is under-dispersed, too viscous, or unstable. Then select the correction that matches the mechanism.
First correct the batch water using the measured surface moisture and absorption condition. Then compare the fresh properties with the approved control range. Do not automatically increase or decrease superplasticizer before confirming the effective water content and aggregate mass. If the wet sand also differs in fines or grading, a separate dosage or material review may be required.
The laboratory result should be validated at plant scale. Mixer type, batch size, mixing energy, addition sequence, temperature, transport time, and aggregate moisture can change the response. Production should use a documented nominal dosage and adjustment limits supported by plant trials.
Repeat it whenever there is a significant change in cement, supplementary cementitious material, manufactured-sand source, fines content, admixture type, active-solids content, water quality, production process, or required retention time. Routine verification should also be scheduled according to the project quality plan and the variability of incoming materials.
Sticky manufactured-sand concrete is usually a rheology and materials-balance problem, not simply a lack-of-water problem. Angular particles, rough surfaces, mineral fines, moisture variation, cement chemistry, mixing conditions, and admixture adsorption can all contribute to excessive cohesiveness.
Superplasticizer dosage optimization is effective when it is treated as a controlled dosage–response study. The objective is to disperse cement and fine-particle flocs enough to reduce yield stress and improve mobility, while maintaining sufficient plastic viscosity and stability to prevent segregation. The most reliable selection is normally near the effective dosage knee, not at the highest possible dosage.
A robust control strategy should:
Characterize manufactured-sand grading, fines, moisture, and absorption
Compare superplasticizer dosages on an active-solids basis
Use multiple dosage points rather than one trial dosage
Measure flow, retention, air, temperature, and visual stability together
Distinguish yield stress from plastic viscosity when possible
Validate the selected working window at plant scale
Link production adjustments to measured material and concrete data
For concrete producers and admixture formulators, the commercial value is also practical: a stable dosage window can reduce rejected loads, improve pumping consistency, reduce finishing effort, and make performance less sensitive to normal aggregate variation. The next step is to build a controlled trial matrix using the actual manufactured sand, binder system, superplasticizer, and placement conditions of the target application.
Visual concept: A cross-sectional schematic with angular manufactured-sand particles, fine mineral particles, cement-particle flocs, and a limited liquid film. Show how rough particle surfaces and fine-particle clusters create contact points and increase resistance to movement. Include a second, simplified state in which superplasticizer molecules separate the cement and fine-particle flocs.
Technical purpose: Explain why concrete can remain cohesive even when its measured slump is not extremely low. The image should distinguish particle shape, fines, flocculation, and available liquid film rather than implying that all stickiness has one cause.
Recommended visual labels: Angular manufactured sand; mineral fines; cement floc; water film; superplasticizer adsorption; reduced particle attraction; lower yield stress.
Visual concept: A line chart with active superplasticizer dosage on the horizontal axis and flow or slump flow on the vertical axis. Divide the curve into three shaded regions: under-dosed, effective working region, and overdosing risk. Add a second line or annotation for stability, showing that stability may decline after the flow response begins to level off.
Technical purpose: Show that dosage optimization is a balance rather than a race toward maximum flow. The chart should use illustrative labels such as “trial region” and “project-specific acceptance window,” not universal numerical dosage limits.
Recommended visual labels: Under-dispersed; dosage knee; stable working window; diminishing flow gain; bleeding or segregation risk; select the lowest dosage meeting requirements.
Visual concept: A left-to-right process diagram beginning with material characterization, followed by controlled reference mixture, five-point dosage trial, fresh-property testing, working-window selection, plant-scale validation, and production monitoring. Use a feedback arrow from production monitoring back to material characterization.
Technical purpose: Convert the article’s recommendations into a practical quality-control sequence. The workflow should make clear that dosage selection includes sand moisture, fines, temperature, mixing sequence, and transport time.
Recommended visual labels: Check grading and fines; measure moisture and absorption; dose on active-solids basis; record slump and retention; inspect halo and stability; validate mixer and transport; control production adjustments.
Visual concept: A four-panel comparison showing the same manufactured-sand concrete before and after dosage optimization. Compare mixer discharge, slump-flow pattern, aggregate-paste distribution, and finishing response. The “before” side should show a compact, dragging mass; the “after” side should show smoother movement and more uniform stability without exaggerated fluidity.
Technical purpose: Connect numerical testing with field behavior. The illustration should communicate that the desired outcome is easier handling and controlled flow, not a visibly segregated or watery mixture.
Recommended visual labels: High resistance; uneven movement; stable spread; improved discharge; reduced finishing drag; no visible paste separation.
Leite Skare, E., Sheiati, S., Cepuritis, R., Mørtsell, E., Smeplass, S., Spangenberg, J., and Jacobsen, S. “Rheology modelling of cement paste with manufactured sand and silica fume: Comparing suspension models with artificial neural network predictions.” Construction and Building Materials, Volume 317, 2022, Article 126114. The study examines how manufactured-sand filler and mixture composition relate to yield stress, plastic viscosity, flow resistance ratio, and mini-slump flow.
ASTM C1611/C1611M, Standard Test Method for Slump Flow of Self-Consolidating Concrete. The method evaluates unconfined flow and includes observations related to spread, viscosity, and stability. Always use the current edition and the project-specified testing procedure.
ASTM C136/C136M, Standard Test Method for Sieve Analysis of Fine and Coarse Aggregates. Use the current edition and applicable project requirements when evaluating aggregate grading.
The superplasticizer manufacturer’s current technical data sheet, safety data sheet, recommended dosage range, active-solids content, and compatibility guidance should be reviewed before formulation or production use.
